Spaziale

HYDRAULISCHE-ANLAGE NEW-SUPER 3000

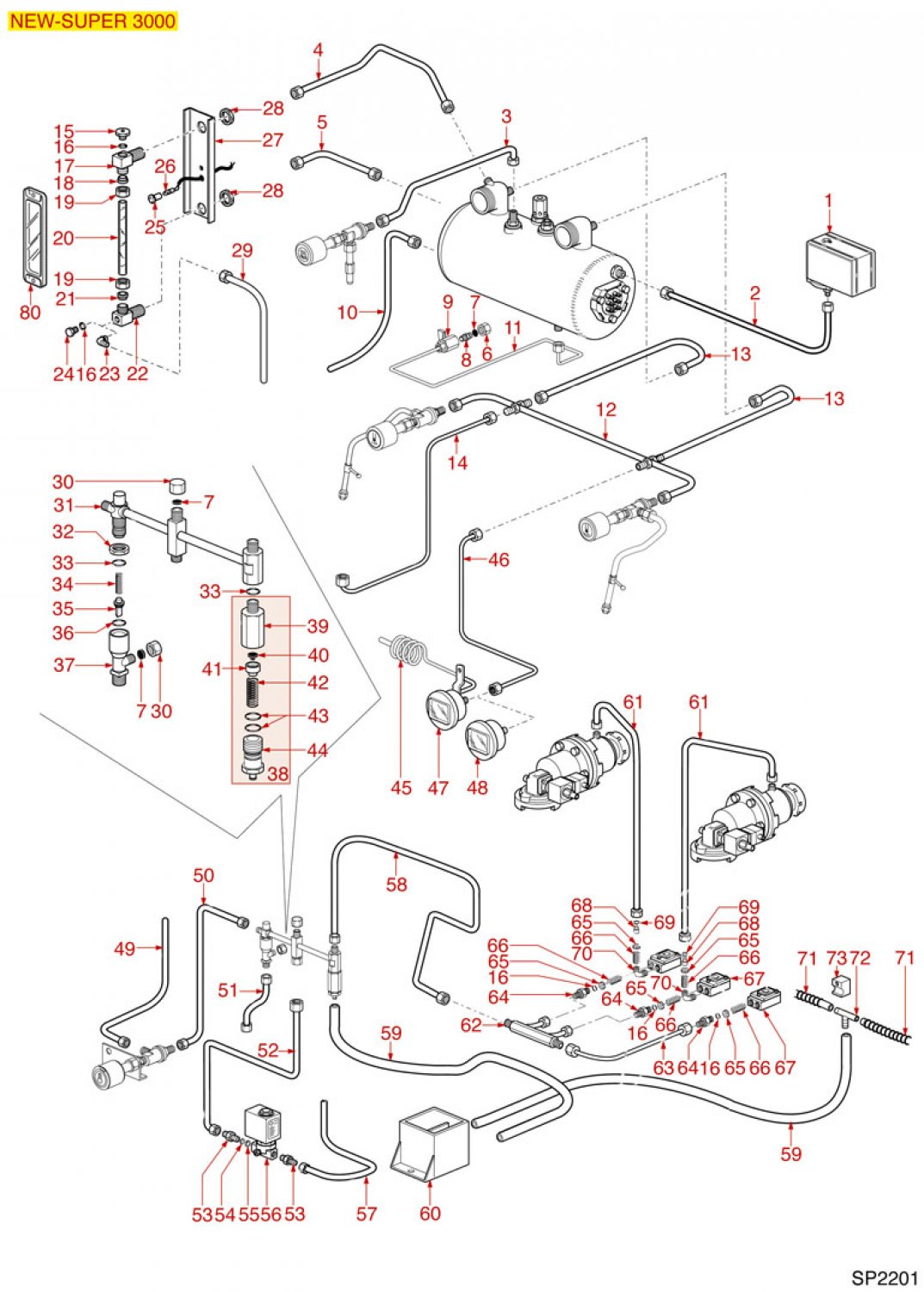

Drawing number 8057490

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
62,26 €
62,26 €

excl. Shipping costs

immediately available, 13 available
7blind gasket o 11 5x2 mm 8001909
BLIND GASKET ø 11,5x2 mm
0,92 €

excl. Shipping costs

immediately available, 1 available
8fitting o 1 4 8005710
Fitting ø 1/4
3,64 €

excl. Shipping costs

immediately available, 16 available
9ball valve o 1 4 rime in and out 8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs

immediately available, 8 available
15boiler valve o 1 4 rime 8007149
BOILER VALVE ø 1/4″
7,90 €

excl. Shipping costs

immediately available, 12 available
15boiler valve old model 8007152
Boiler valve - old model
5,65 €

excl. Shipping costs

immediately available, 11 available
16o ring 0114 viton 8001910
O-RING 0114 VITON
1,04 €

excl. Shipping costs

immediately available
18flat epdm gasket 8001504
FLAT EPDM GASKET
0,86 €

excl. Shipping costs

immediately available
19glass fastening nut 8007281
GLASS FASTENING NUT
5,62 €

excl. Shipping costs

Delivery time 4-6 weeks..

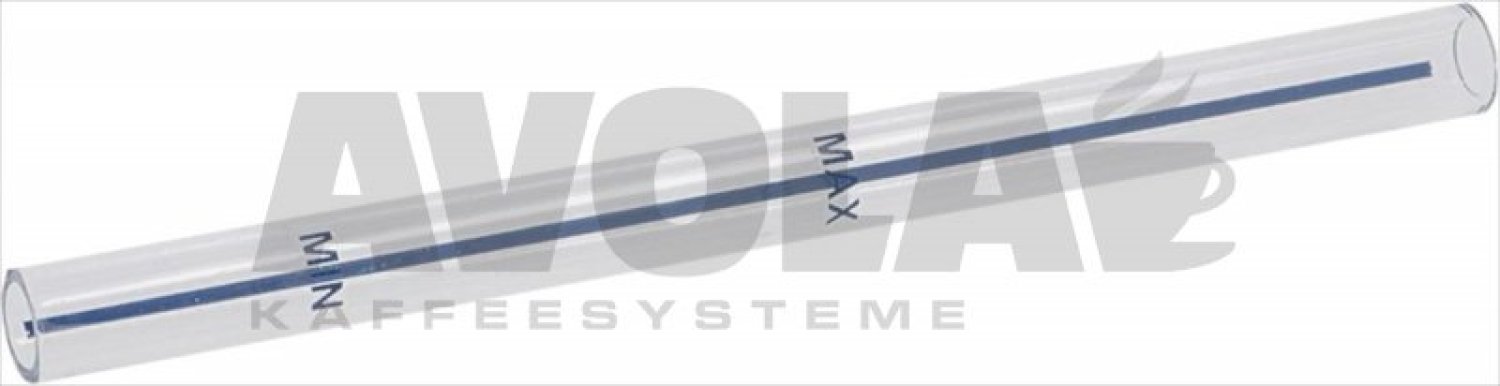

20level glass o 11x150 mm 8007034
LEVEL GLASS ø 11x150 mm
7,98 €

excl. Shipping costs

immediately available, 3 available
21flat red silicone gasket 8001913
Flat red silicone gasket
2,84 €

excl. Shipping costs

Delivery time
is determined
23nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 5 available
24boiler cap 8006407
BOILER CAP
1,83 €

excl. Shipping costs

Delivery time
is determined
25green lamp receptacle 8015689
GREEN LAMP RECEPTACLE
2,44 €

excl. Shipping costs

immediately available, 1 available
26signalleuchte neutral 230v 8002731
SIGNALLEUCHTE NEUTRAL 230V
Price on request
28nut o 1 2 8005857
NUT ø 1/2
2,77 €

excl. Shipping costs

immediately available, 6 available
32nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 13 available
33o ring 0115 viton 8001890
O-RING 0115 VITON
1,49 €

excl. Shipping costs

immediately available
34spring 8x30 mm 8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs

immediately available, 17 available
35triangular non return valve 8007062
TRIANGULAR NON-RETURN VALVE
3,49 €

excl. Shipping costs

Delivery time
is determined
36o ring 02031 viton 8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs

immediately available, 10 available
37la spaziale non return valve body 8007059
La Spaziale NON-RETURN VALVE BODY
22,97 €

excl. Shipping costs

Delivery time 4-6 weeks..
38expansion valve o 1 4 rime 8007160
EXPANSION VALVE ø 1/4″
16,04 €

excl. Shipping costs

immediately available, 7 available
40flat epdm gasket 8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs

immediately available
41gasket holder for tap 8001873
GASKET HOLDER FOR TAP
5,72 €

excl. Shipping costs

Delivery time
is determined
43viton o ring r9 0121 8001522
VITON O-RING R9 0121
1,40 €

excl. Shipping costs

immediately available, 13 available
47boiler pump pressure gauge 8003472
BOILER-PUMP PRESSURE GAUGE
65,32 €

excl. Shipping costs

Delivery time
is determined
48boiler pressure gauge 8003471
BOILER PRESSURE GAUGE
46,40 €

excl. Shipping costs

Delivery time 4-6 weeks..
51hydraulic feeding pipe 8006600
HYDRAULIC FEEDING PIPE
22,56 €

excl. Shipping costs

Delivery time 4-6 weeks
53fitting o 1 8 a 1 8 a 8005709
FITTING ø 1/8 A-1/8 A
2,34 €

excl. Shipping costs

immediately available, 10 available
54stainless steel water filter 8001034
STAINLESS STEEL WATER FILTER
2,78 €

excl. Shipping costs

immediately available, 15 available
562 way solenoid valve parker 240v 50 60hz 8000813
2-WAY SOLENOID VALVE PARKER 240V 50/60Hz
64,76 €

excl. Shipping costs

Delivery time
is determined
60outlet tank 8007236
OUTLET TANK
33,43 €

excl. Shipping costs

Delivery time
is determined

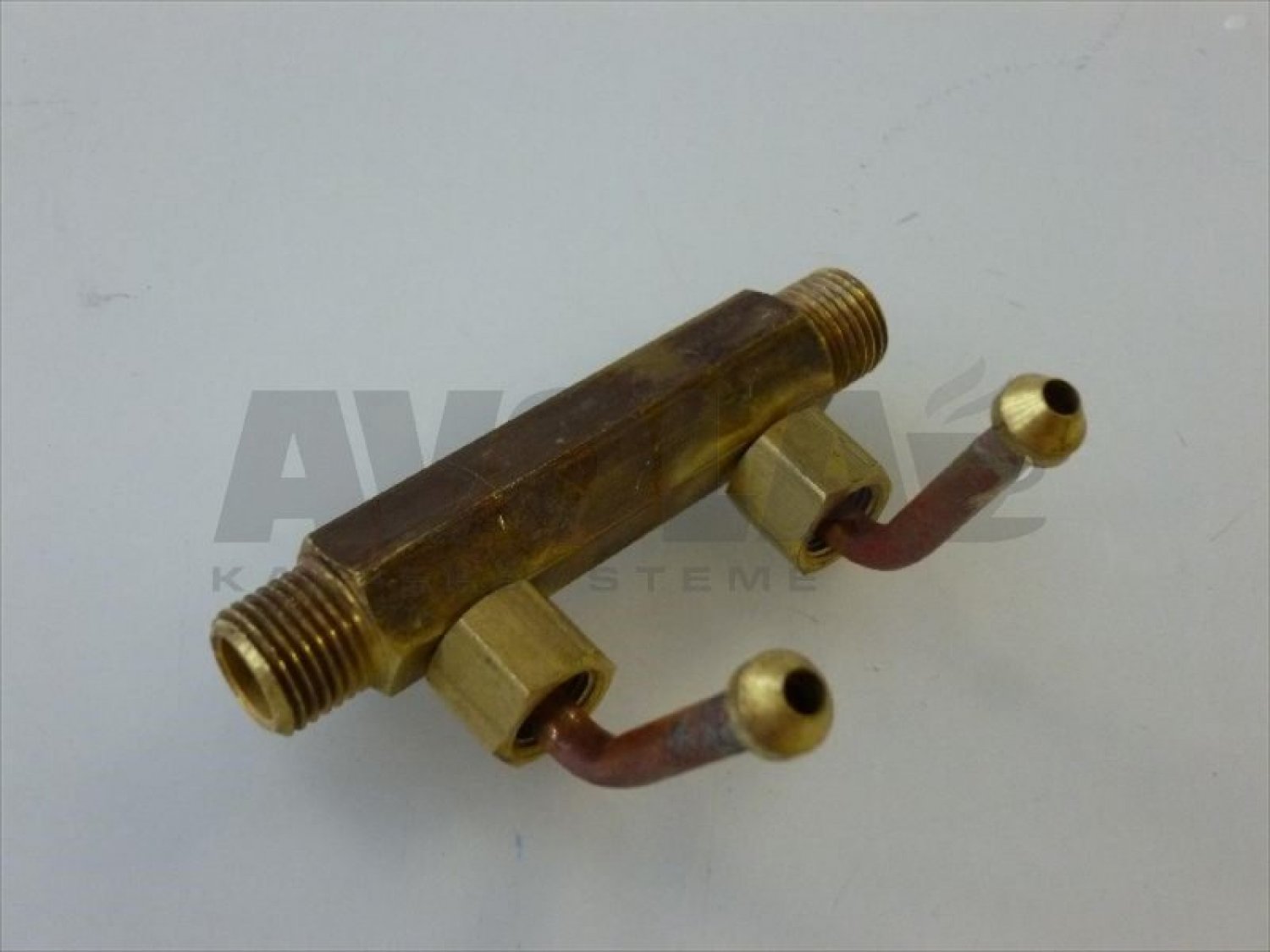

62tubo di accoppiamento contatori volumetr 8181902
TUBO DI ACCOPPIAMENTO CONTATORI VOLUMETR
76,16 €

excl. Shipping costs

Delivery time 4-6 weeks..
64fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 15 available
65water filter o 7 mm 8001121
WATER FILTER ø 7 mm
2,88 €

excl. Shipping costs

immediately available, 12 available
66jet spring o 6 5x13 mm 8003689
JET SPRING ø 6,5x13 mm
2,88 €

excl. Shipping costs

immediately available, 1 available
67volumetric flowmeter gicar 24v 8006911
VOLUMETRIC FLOWMETER GICAR 24V
66,56 €

excl. Shipping costs

immediately available, 2 available
68jet group 8006964
JET GROUP
2,99 €

excl. Shipping costs

immediately available, 4 available
69flat ptfe gasket 8001898
FLAT PTFE GASKET
1,34 €

excl. Shipping costs

Delivery time
is determined
70nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 5 available
72t hose end fitting 11 5 mm 8020160
T HOSE-END FITTING 11.5 mm
6,26 €

excl. Shipping costs

Delivery time
is determined
80level plate 30x110 mm 8002682
LEVEL PLATE 30x110 mm
7,03 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
