Spaziale

HYDRAULISCHE-ANLAGE S3

Drawing number 8057495

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
2blind gasket o 11 5x2 mm 8001909
BLIND GASKET ø 11,5x2 mm
0,92 €

excl. Shipping costs

immediately available, 1 available
6low nut 1 8 8005638
LOW NUT 1/8
1,95 €

excl. Shipping costs

immediately available, 5 available

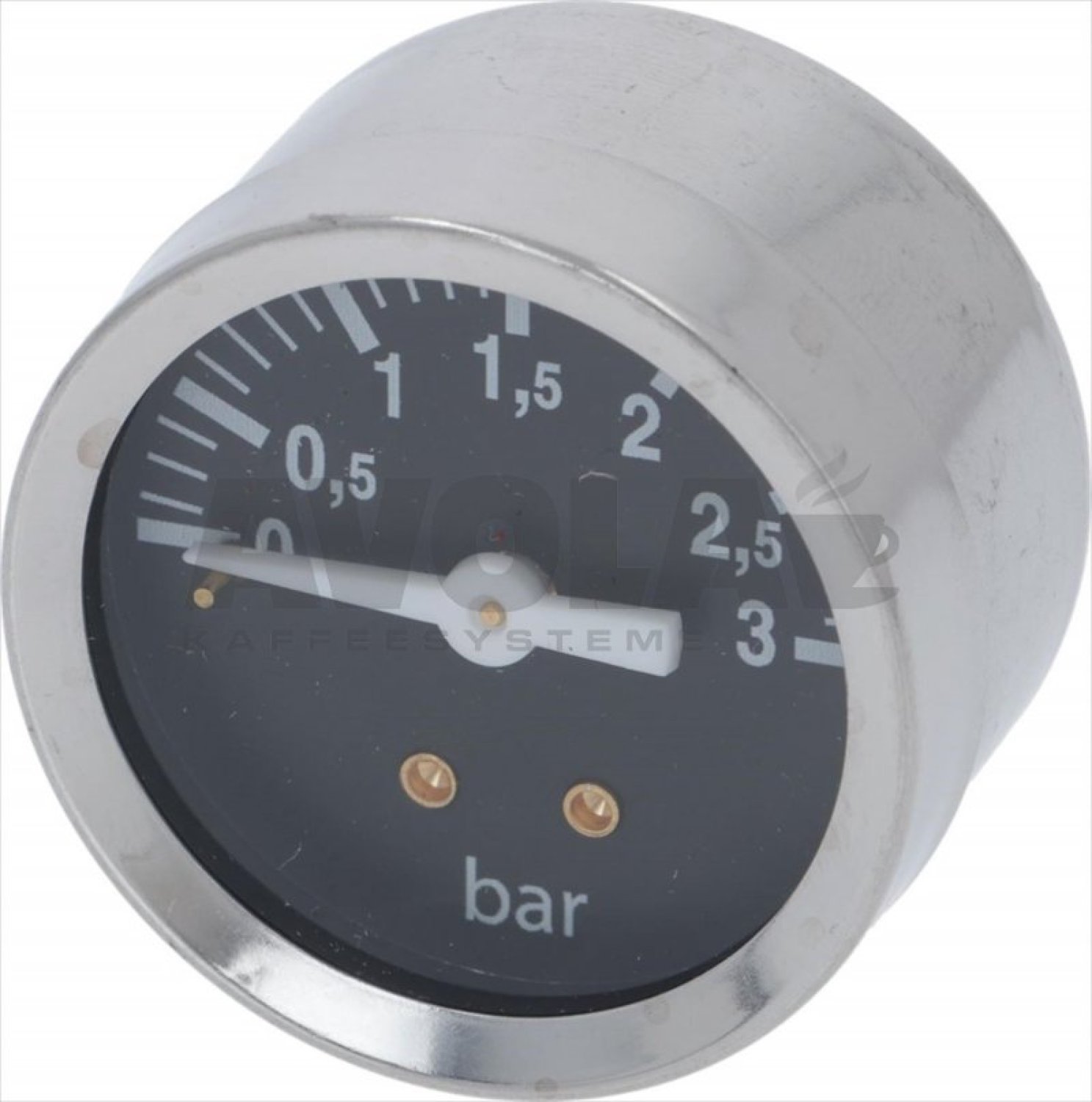

8boiler pressure gauge 8003470
BOILER PRESSURE GAUGE
28,96 €

excl. Shipping costs

Delivery time
is determined
9boiler valve o 1 2 8007061
BOILER VALVE ø 1/2
49,83 €

excl. Shipping costs

immediately available, 1 available
14fitting o 1 4 8005710
Fitting ø 1/4
3,64 €

excl. Shipping costs

immediately available, 15 available
15ball valve o 1 4 rime in and out 8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs

immediately available, 8 available
18pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
62,26 €
62,26 €

excl. Shipping costs

immediately available, 11 available
23boiler valve o 1 4 rime 8007149
BOILER VALVE ø 1/4″
7,90 €

excl. Shipping costs

immediately available, 10 available
23boiler valve old model 8007152
Boiler valve - old model
5,65 €

excl. Shipping costs

immediately available, 11 available
24o ring 0114 viton 8001910
O-RING 0114 VITON
1,04 €

excl. Shipping costs

immediately available
26flat epdm gasket 8001504
FLAT EPDM GASKET
0,86 €

excl. Shipping costs

immediately available
27glass fastening nut 8007281
GLASS FASTENING NUT
5,62 €

excl. Shipping costs

Delivery time 4-6 weeks..
28level glass o 11x150 mm 8007034
LEVEL GLASS ø 11x150 mm
7,98 €

excl. Shipping costs

immediately available, 3 available
29flat red silicone gasket 8001913
Flat red silicone gasket
2,84 €

excl. Shipping costs

Delivery time
is determined
31nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 9 available
34nut o 1 2 8005857
NUT ø 1/2
2,77 €

excl. Shipping costs

immediately available, 6 available
38stainless steel water filter 8001034
STAINLESS STEEL WATER FILTER
2,78 €

excl. Shipping costs

immediately available, 14 available
41nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 12 available
42o ring 0115 viton 8001890
O-RING 0115 VITON
1,49 €

excl. Shipping costs

immediately available
43spring 8x30 mm 8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs

immediately available, 17 available
44triangular non return valve 8007062
TRIANGULAR NON-RETURN VALVE
3,49 €

excl. Shipping costs

Delivery time
is determined
45o ring 02031 viton 8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs

immediately available, 9 available
46la spaziale non return valve body 8007059
La Spaziale NON-RETURN VALVE BODY
22,97 €

excl. Shipping costs

Delivery time 4-6 weeks..
47hydraulic feeding pipe 8006600
HYDRAULIC FEEDING PIPE
22,56 €

excl. Shipping costs

Delivery time
is determined
49expansion valve o 1 4 rime 8007160
EXPANSION VALVE ø 1/4″
16,04 €

excl. Shipping costs

immediately available, 7 available
51flat epdm gasket 8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs

immediately available
52gasket holder for tap 8001873
GASKET HOLDER FOR TAP
5,72 €

excl. Shipping costs

Delivery time
is determined
54viton o ring r9 0121 8001522
VITON O-RING R9 0121
1,40 €

excl. Shipping costs

immediately available, 13 available

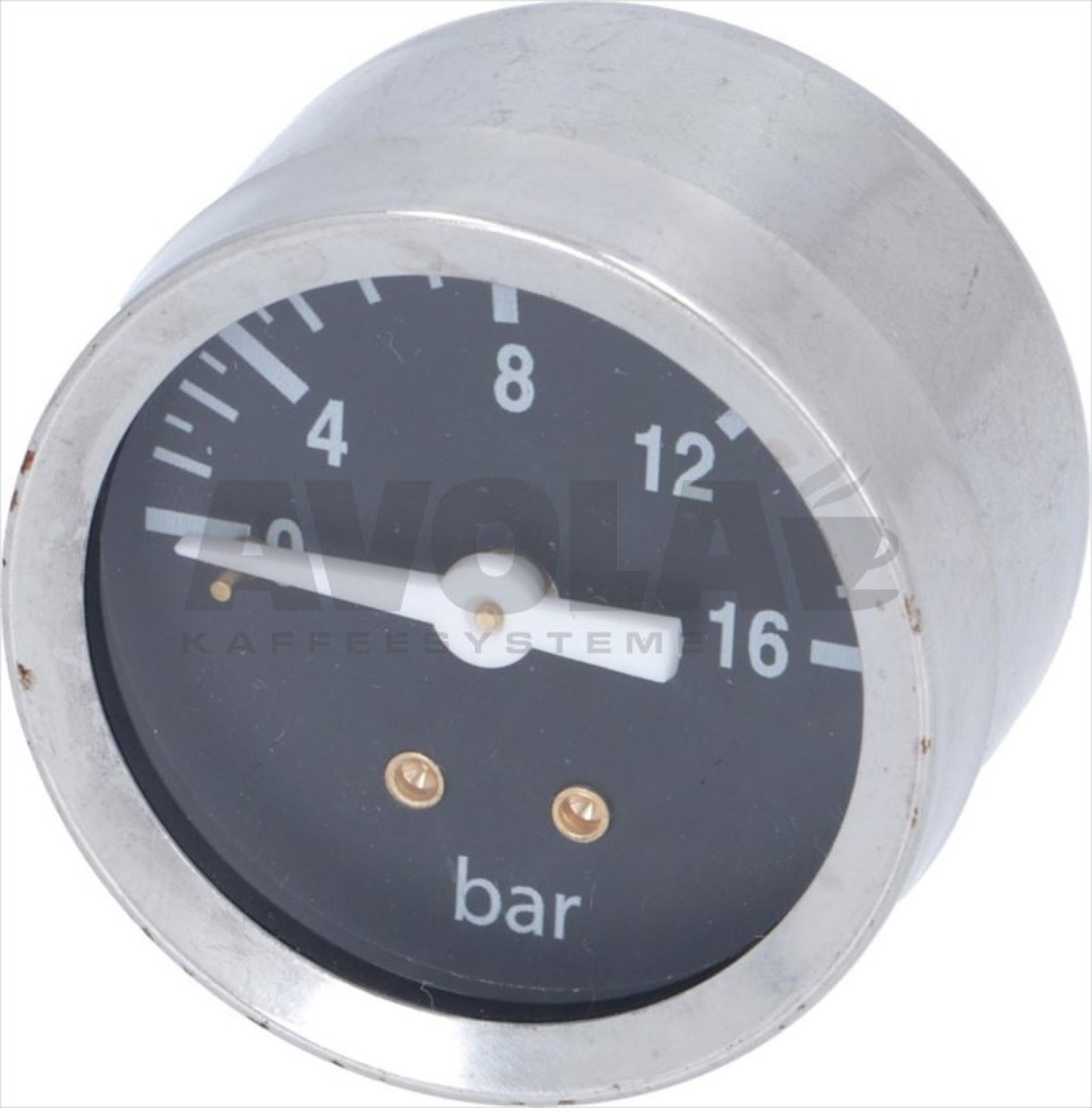

56pump pressure gauge 8003469
PUMP PRESSURE GAUGE
29,92 €

excl. Shipping costs

immediately available, 1 available
61outlet tank 8007236
OUTLET TANK
33,43 €

excl. Shipping costs

Delivery time
is determined
65fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 13 available
66o ring 0114 viton 8001910
O-RING 0114 VITON
1,04 €

excl. Shipping costs

immediately available
67water filter o 7 mm 8001121
WATER FILTER ø 7 mm
2,88 €

excl. Shipping costs

immediately available, 12 available
68jet spring o 6 5x13 mm 8003689
JET SPRING ø 6,5x13 mm
2,88 €

excl. Shipping costs

immediately available, 1 available
69nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 9 available
70volumetric flowmeter gicar 24v 8006911
VOLUMETRIC FLOWMETER GICAR 24V
66,56 €

excl. Shipping costs

immediately available, 2 available
71jet group 8006964
JET GROUP
2,99 €

excl. Shipping costs

immediately available, 4 available
72flat ptfe gasket 8001898
FLAT PTFE GASKET
1,34 €

excl. Shipping costs

Delivery time
is determined
75t hose end fitting 11 5 mm 8020160
T HOSE-END FITTING 11.5 mm
6,26 €

excl. Shipping costs

Delivery time
is determined
80level plate 30x110 mm 8002682
LEVEL PLATE 30x110 mm
7,03 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
