Spaziale

HYDRAULISCHE-ANLAGE S5

Drawing number 8057488

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

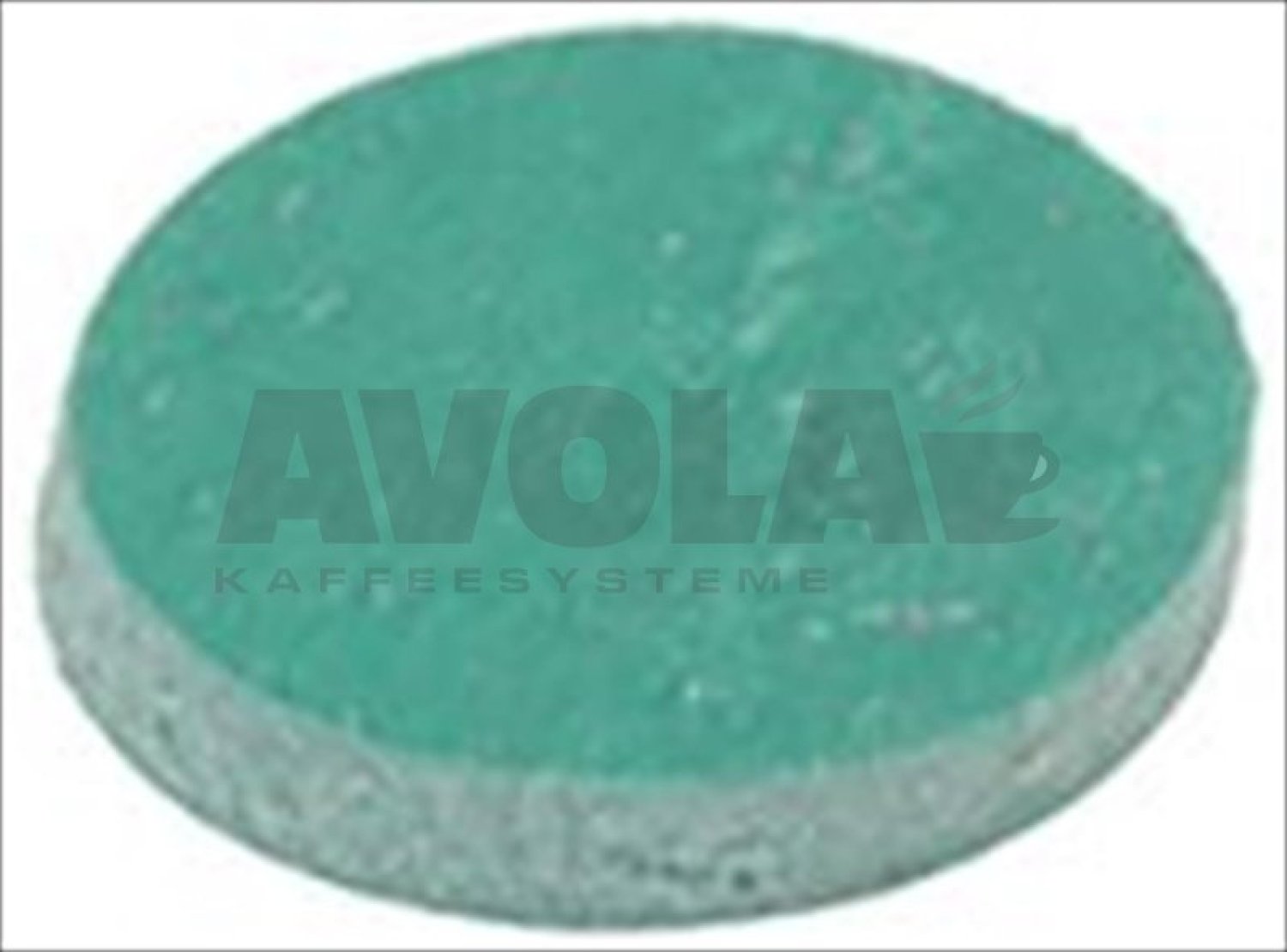

5blind gasket o 11 5x2 mm8001909
BLIND GASKET ø 11,5x2 mm
0,92 €

excl. Shipping costs
Delivery time
is determined
10fitting o 1 48005710
Fitting ø 1/4
3,64 €

excl. Shipping costs
immediately available, 20 available
11ball valve o 1 4 rime in and out8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs
immediately available, 8 available
14boiler valve o 1 4 rime8007149
BOILER VALVE ø 1/4″
7,90 €

excl. Shipping costs
immediately available
14boiler valve old model8007152
Boiler valve - old model
5,65 €

excl. Shipping costs
immediately available, 14 available

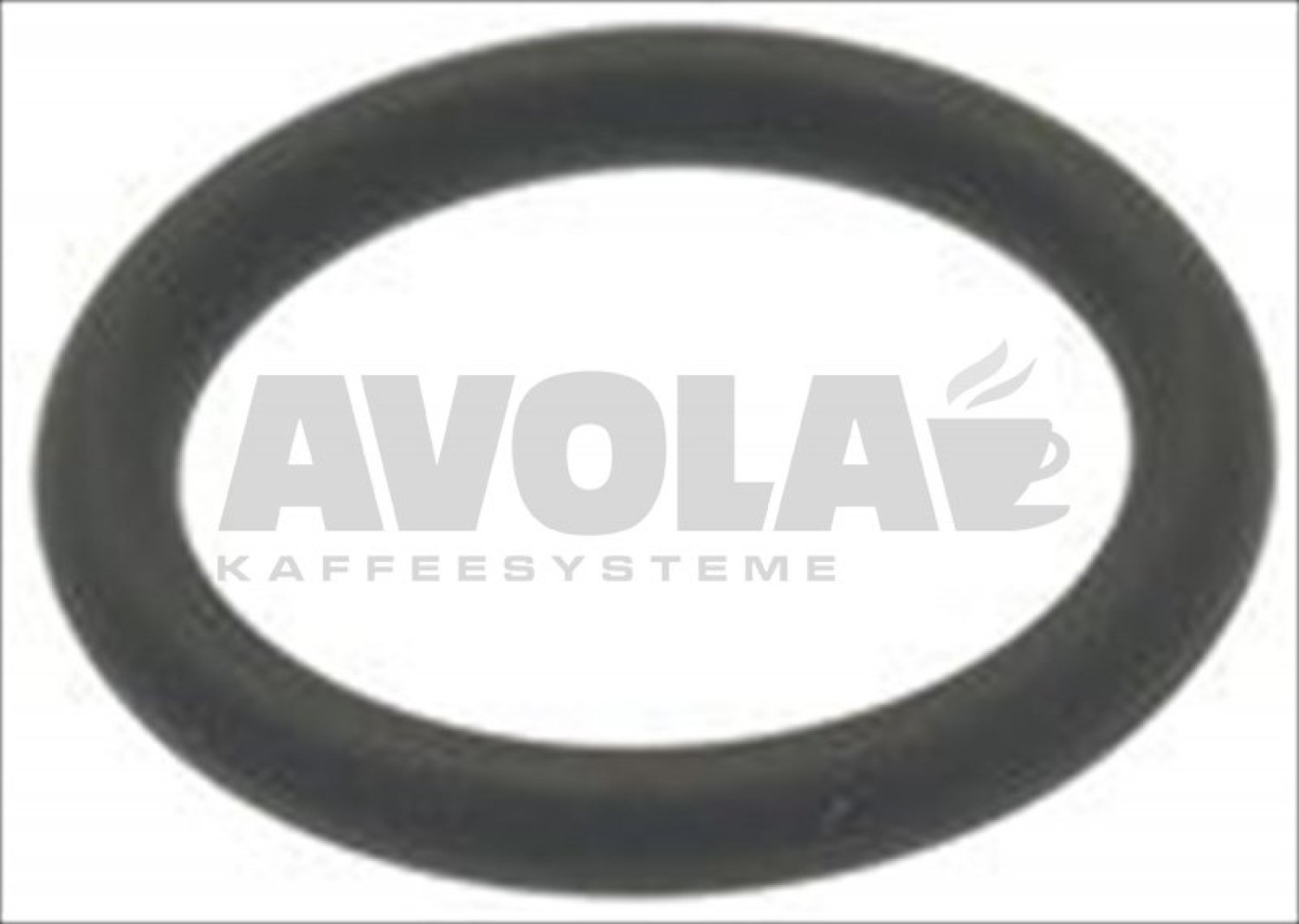

15o ring 0114 viton8001910
O-RING 0114 VITON
1,04 €

excl. Shipping costs
immediately available
17flat epdm gasket8001504
FLAT EPDM GASKET
0,86 €

excl. Shipping costs
immediately available

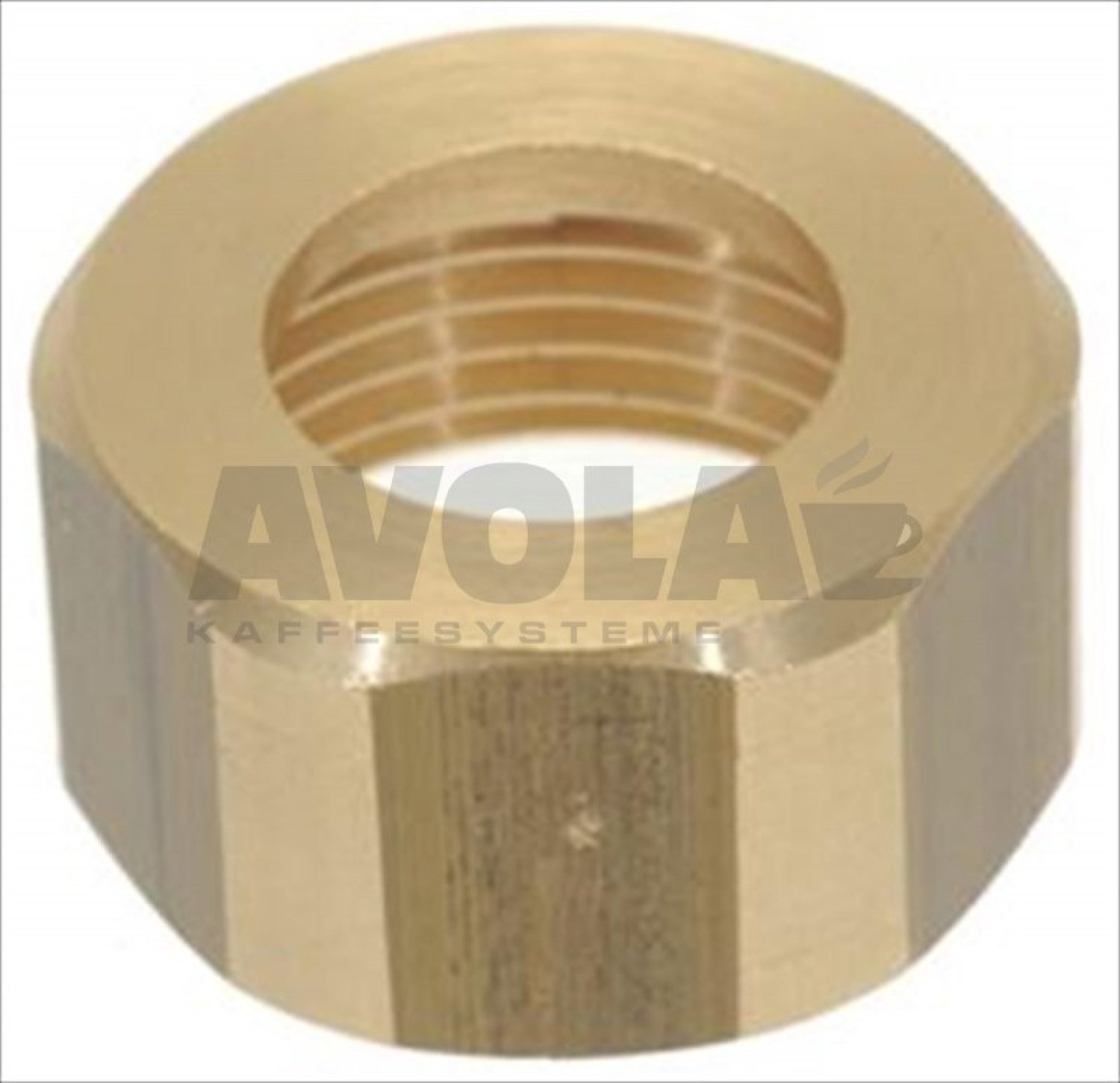

18glass fastening nut8007281
GLASS FASTENING NUT
5,62 €

excl. Shipping costs
immediately available, 2 available

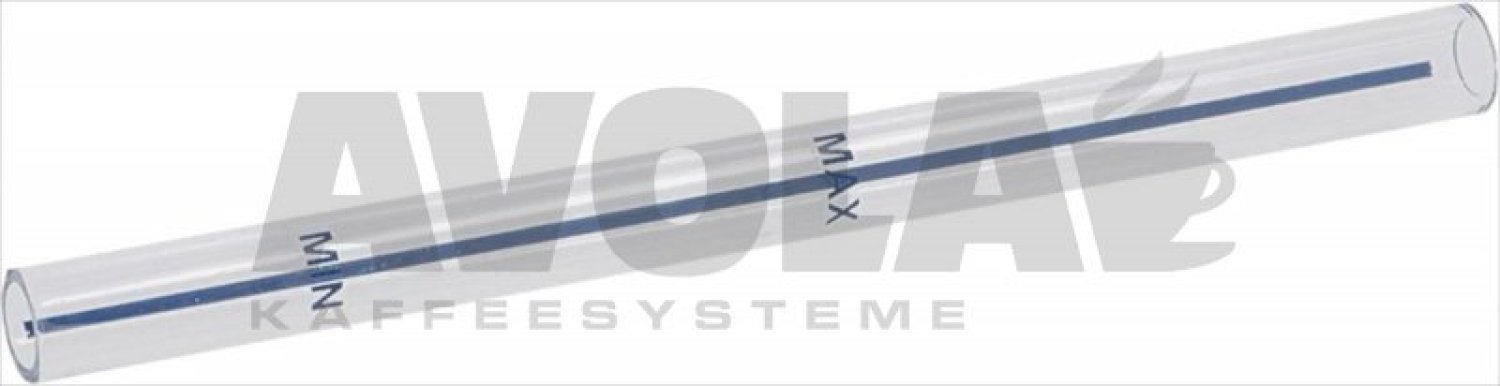

19level glass8007034
LEVEL GLASS
7,98 €

excl. Shipping costs
immediately available, 1 available

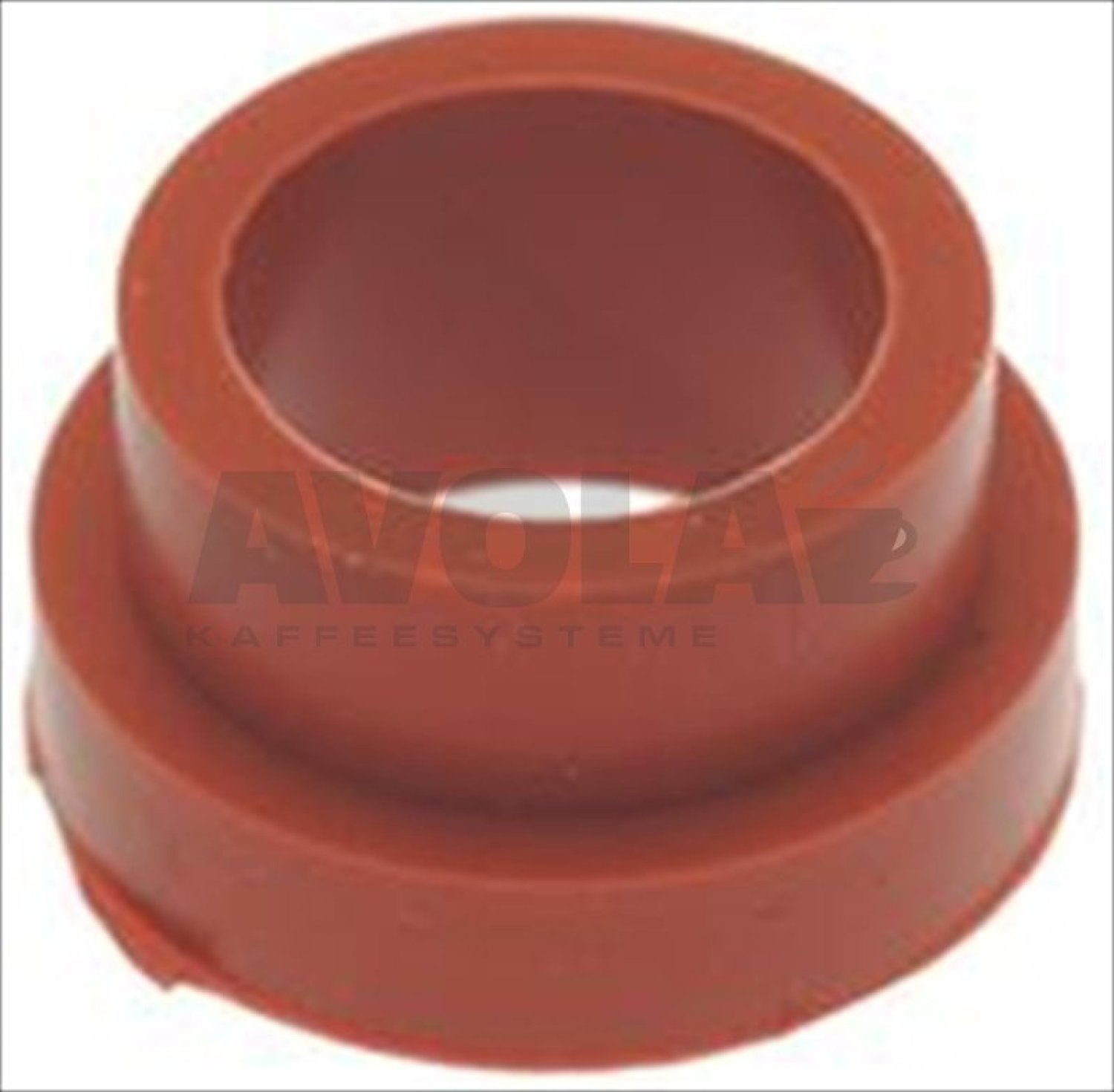

20flat red silicone gasket8001913
Flat red silicone gasket
2,84 €

excl. Shipping costs
Delivery time
is determined
22nichel platedl fitting8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs
immediately available, 8 available
23nut o 1 28005857
NUT ø 1/2
2,77 €

excl. Shipping costs
immediately available, 8 available

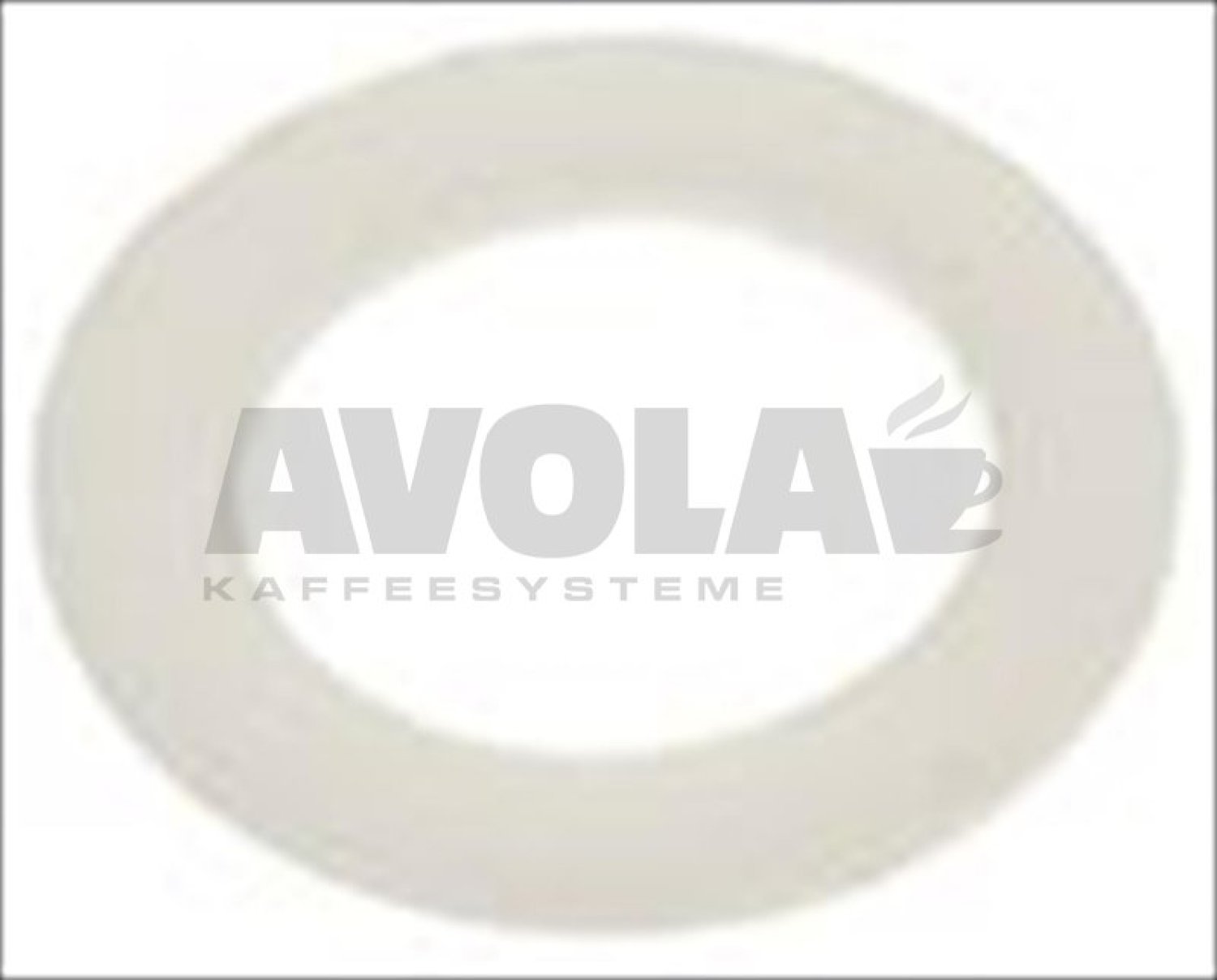

27flat ptfe gasket8001898
FLAT PTFE GASKET
1,34 €

excl. Shipping costs
Delivery time
is determined

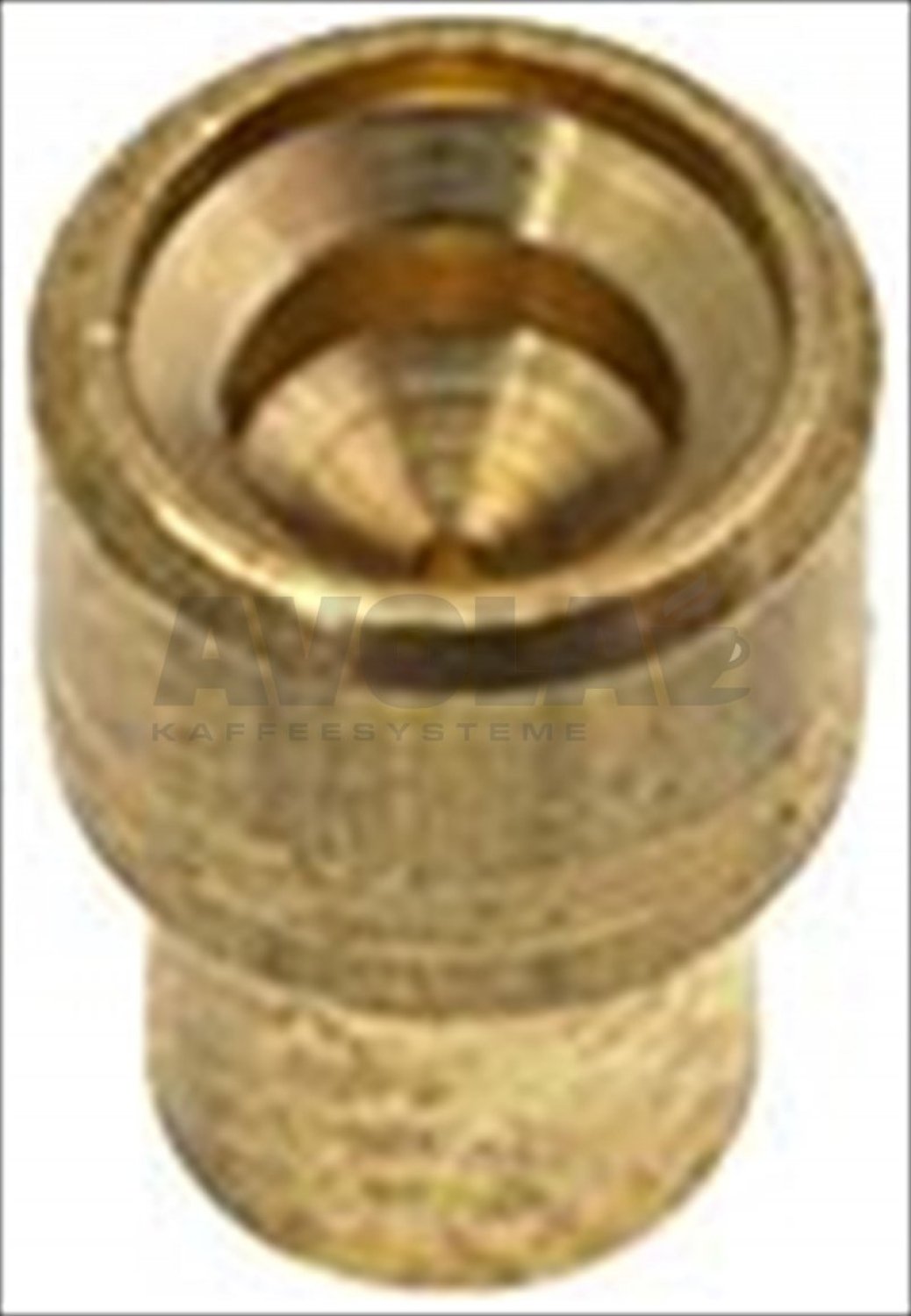

28jet group8006964
JET GROUP
2,99 €

excl. Shipping costs
immediately available, 4 available

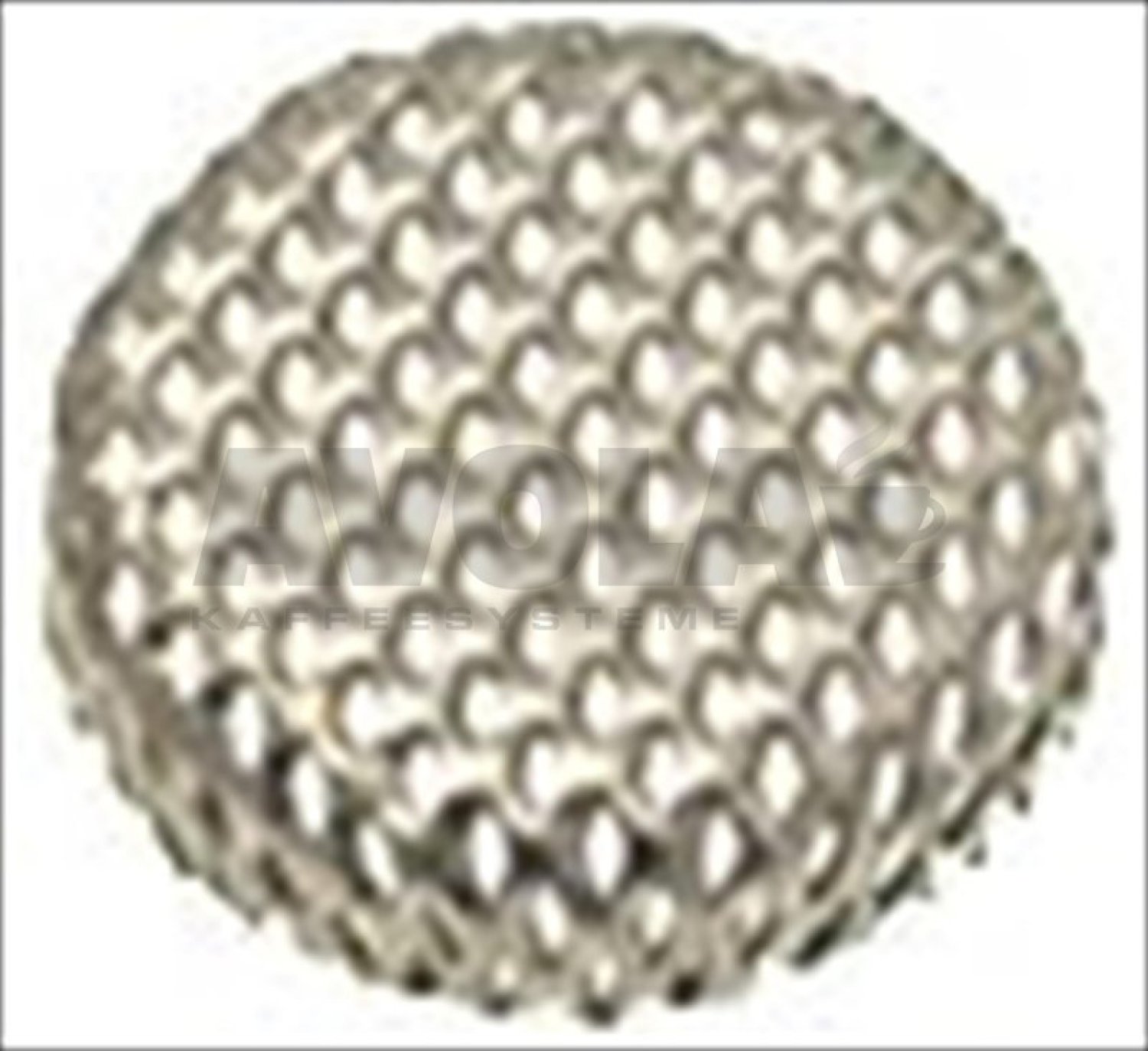

29water filter o 7 mm8001121
WATER FILTER ø 7 mm
2,88 €

excl. Shipping costs
immediately available, 12 available
30jet spring o 6 5x13 mm8003689
JET SPRING ø 6,5x13 mm
2,88 €

excl. Shipping costs
Delivery time
is determined

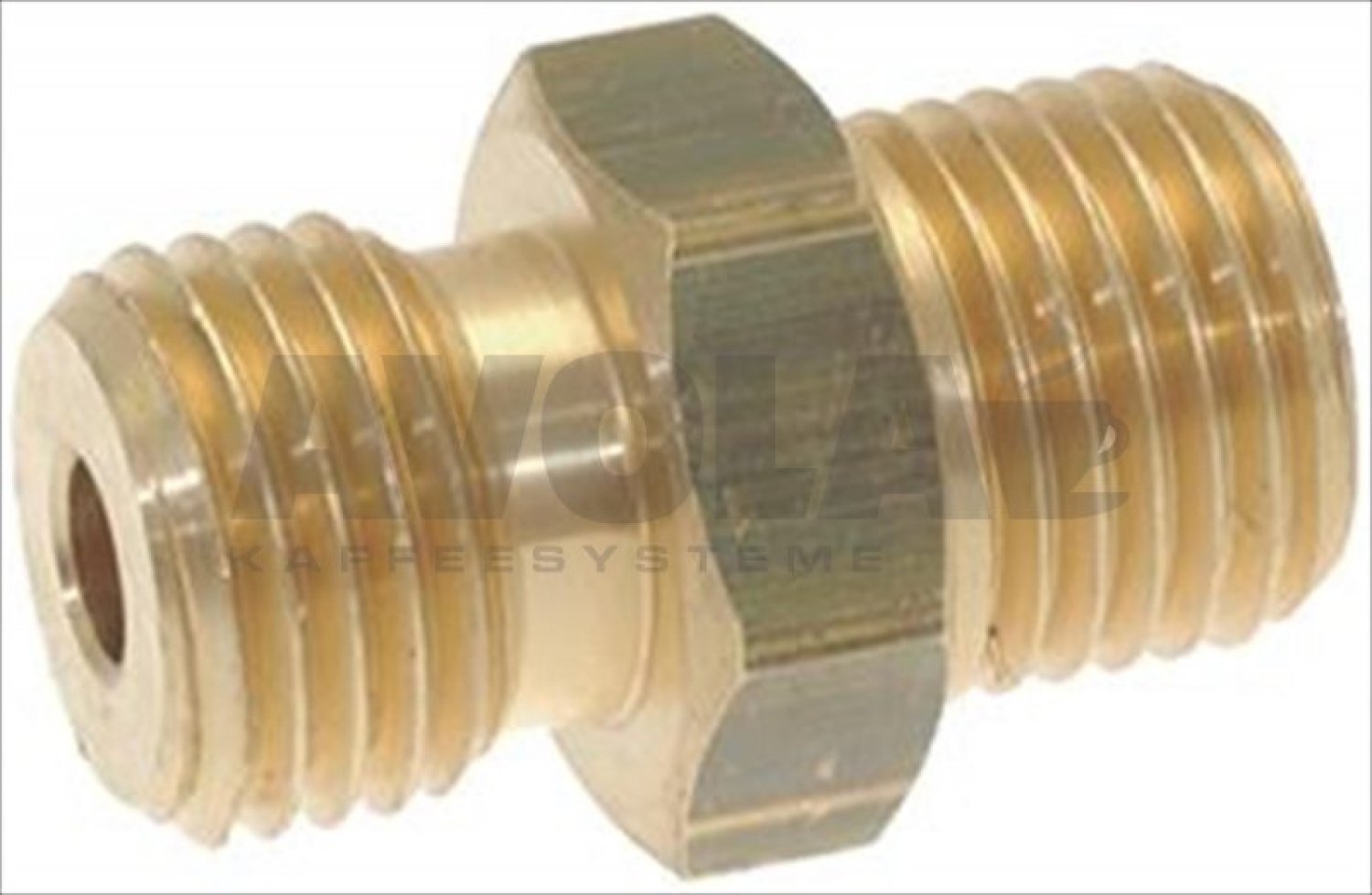

31reduced fitting8005686
REDUCED FITTING
5,41 €

excl. Shipping costs
Delivery time 4-6 weeks
32fitting o 1 8 and o 1 48005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs
immediately available

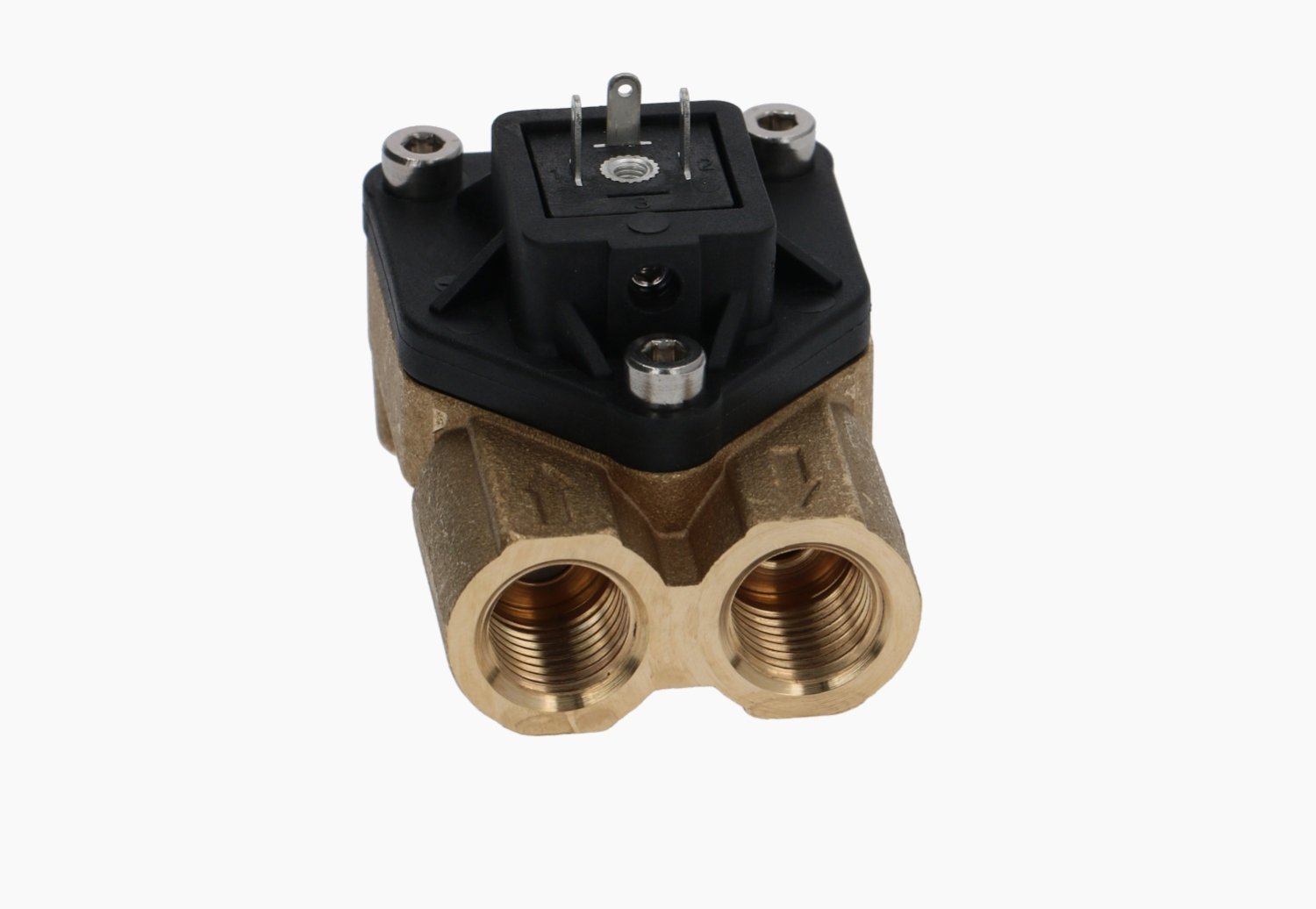

33volumetric flowmeter gicar 24v8006911
VOLUMETRIC FLOWMETER GICAR 24V
66,56 €

excl. Shipping costs
immediately available, 2 available

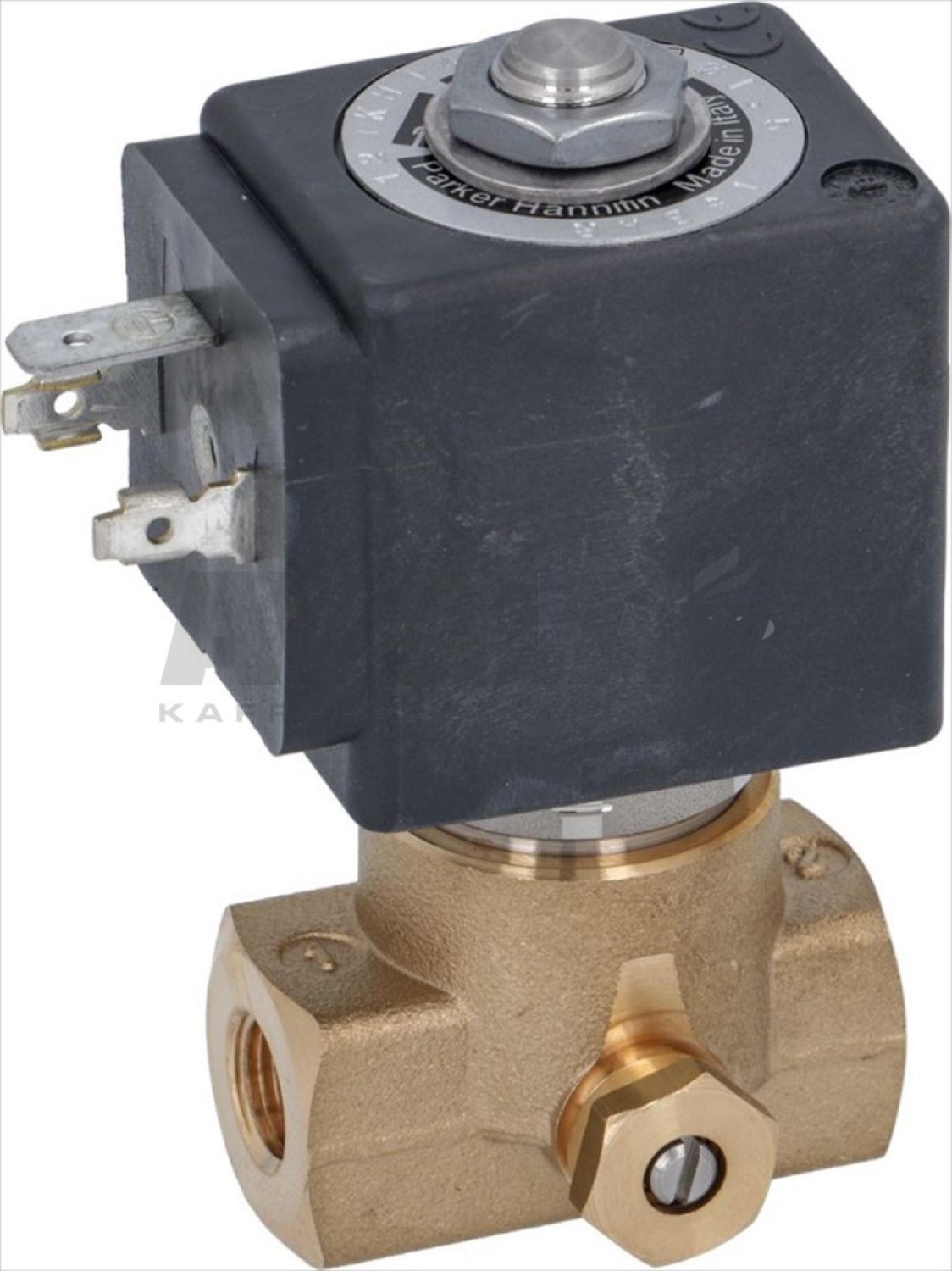

372 way solenoid valve parker 240v 50 60hz8000813
2-WAY SOLENOID VALVE PARKER 240V 50/60Hz
64,76 €

excl. Shipping costs
Delivery time 4-6 weeks

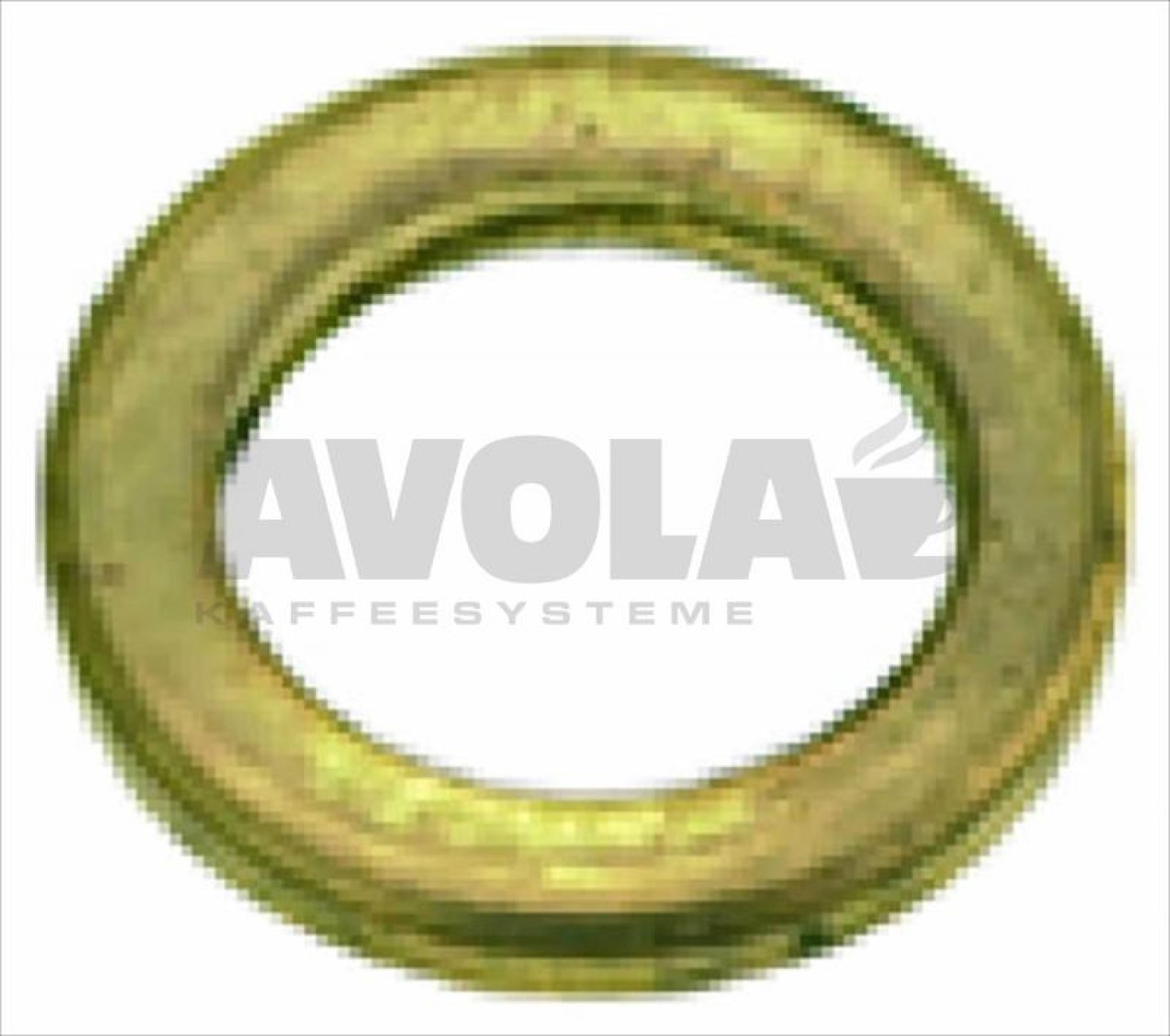

38messingscheibe8146054
MESSINGSCHEIBE
1,37 €

excl. Shipping costs
immediately available, 9 available
39stainless steel water filter8001034
STAINLESS STEEL WATER FILTER
2,78 €

excl. Shipping costs
immediately available, 15 available

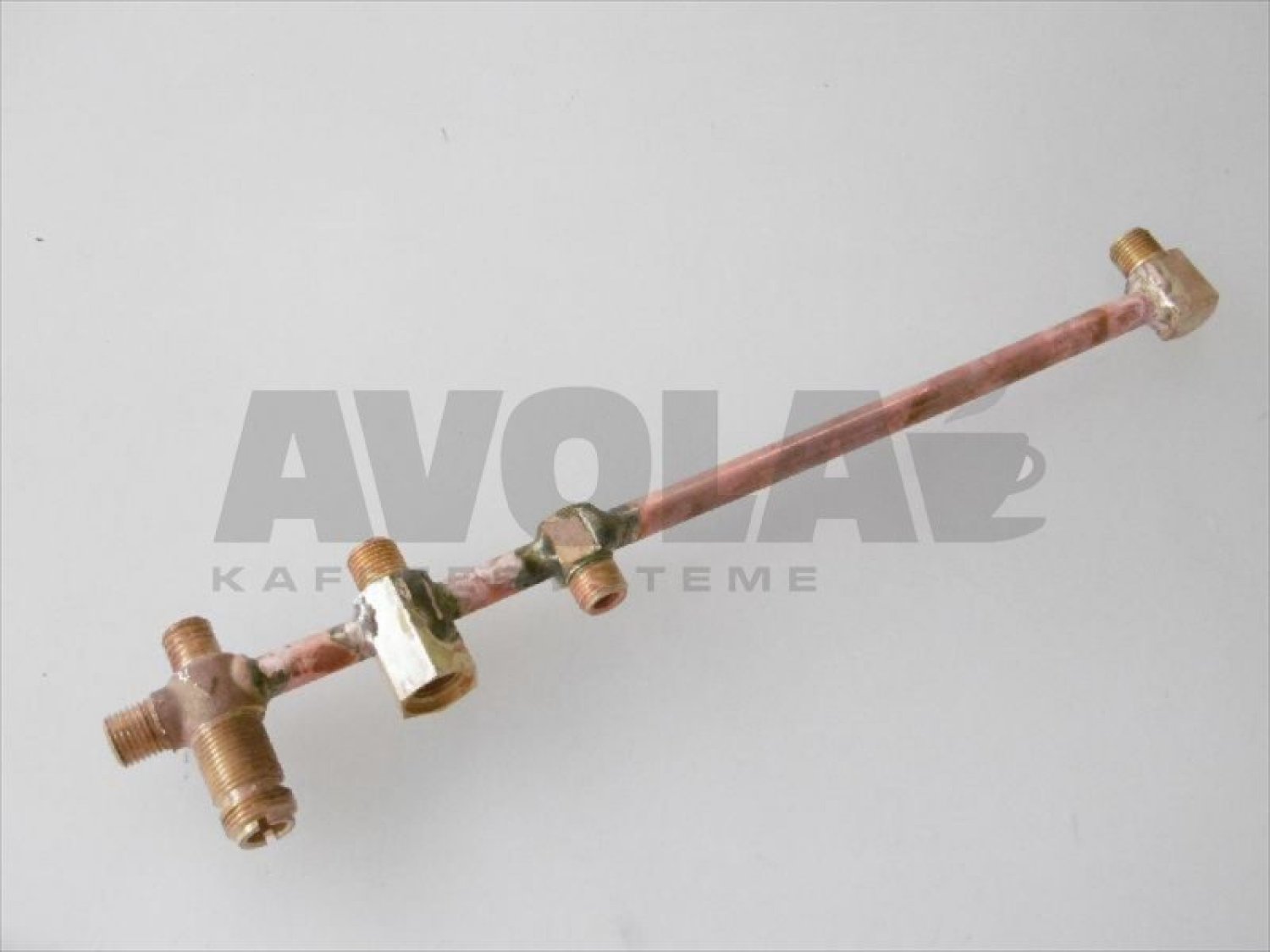

41tubo collettore alimentazione 2 gr s58188489
TUBO COLLETTORE ALIMENTAZIONE 2 GR. S5
114,78 €

excl. Shipping costs
Delivery time 4-6 weeks
42nut8005455
NUT
3,38 €

excl. Shipping costs
immediately available, 6 available
43o ring 0115 viton8001890
O-RING 0115 VITON
1,49 €

excl. Shipping costs
immediately available
44spring 8x30 mm8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs
immediately available

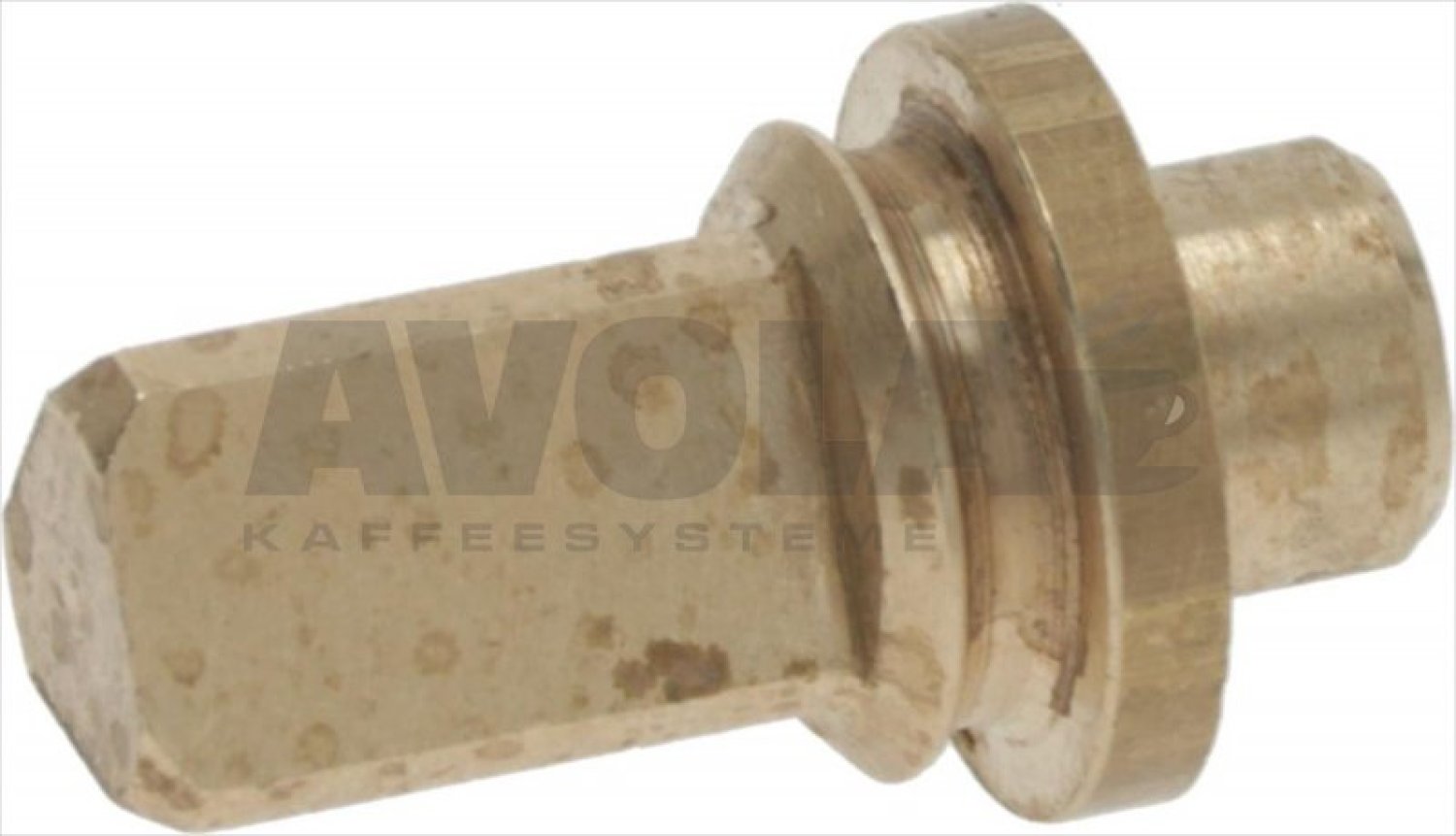

45triangular non return valve8007062
TRIANGULAR NON-RETURN VALVE
3,49 €

excl. Shipping costs
Delivery time
is determined
46o ring 02031 viton8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs
immediately available, 13 available

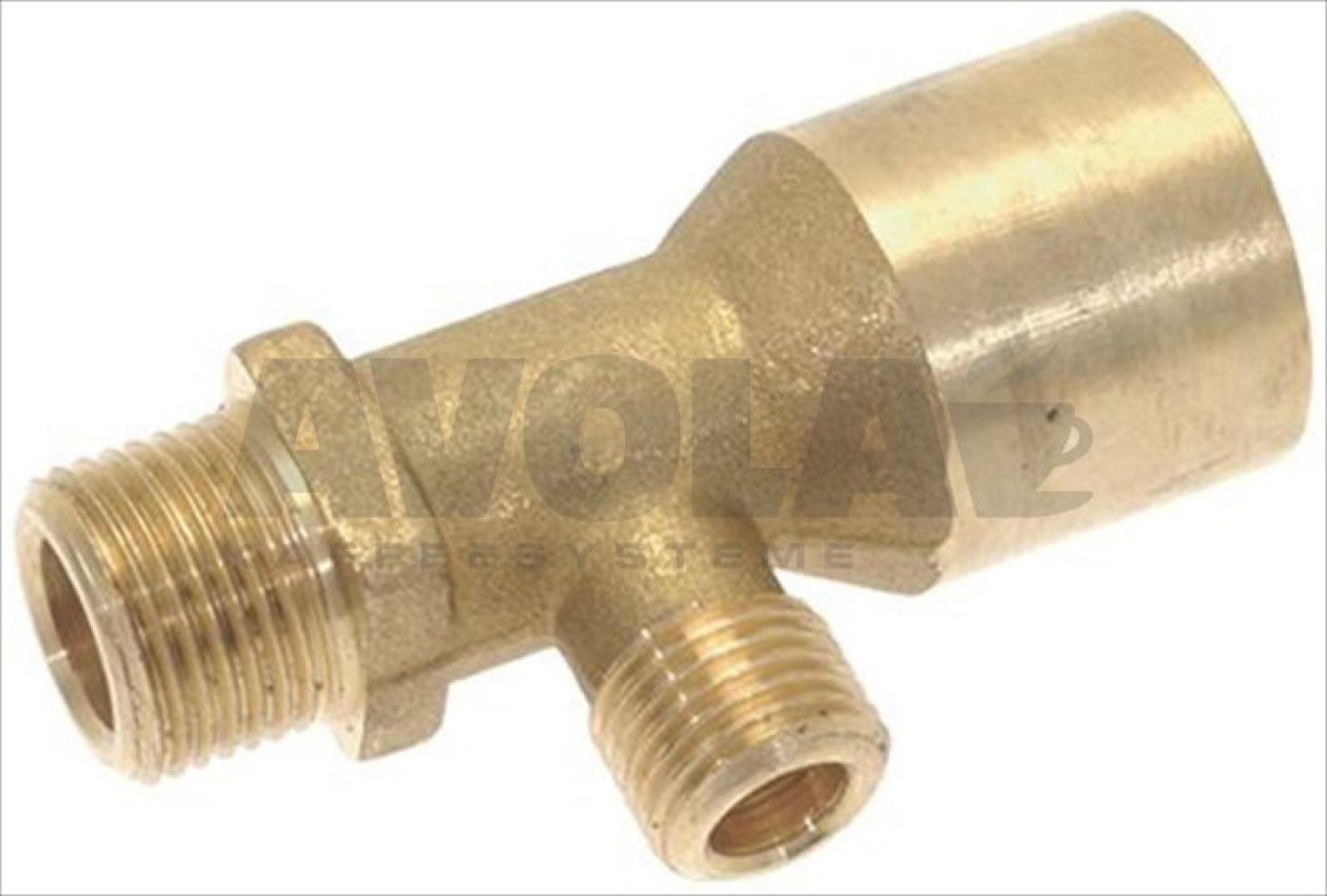

47la spaziale non return valve body8007059
La Spaziale NON-RETURN VALVE BODY
22,97 €

excl. Shipping costs
Delivery time 4-6 weeks

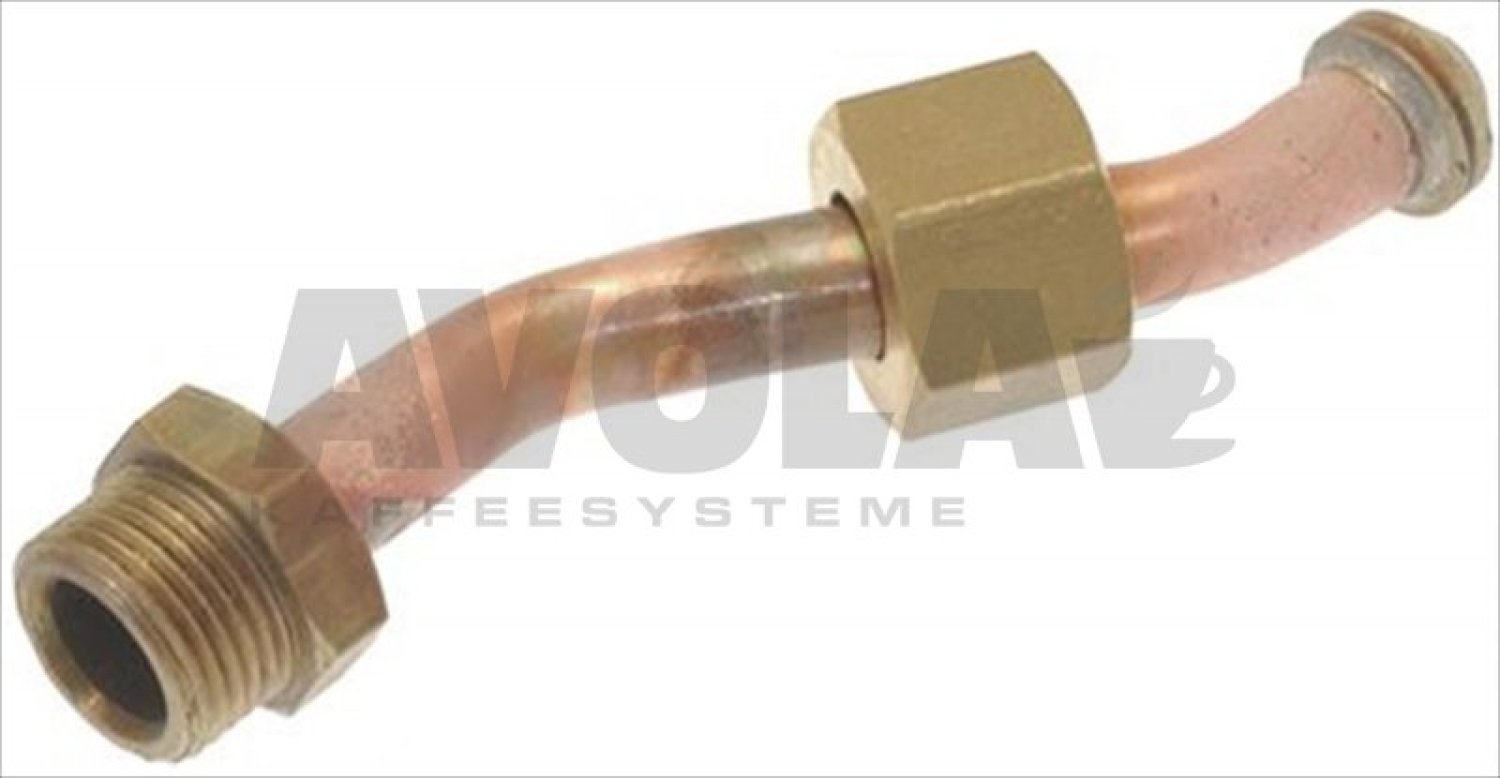

48hydraulic feeding pipe8006600
HYDRAULIC FEEDING PIPE
22,56 €

excl. Shipping costs
Delivery time 4-6 weeks
49expansion valve o 1 4 rime8007160
EXPANSION VALVE ø 1/4″
16,04 €

excl. Shipping costs
immediately available, 9 available
51flat epdm gasket8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs
immediately available

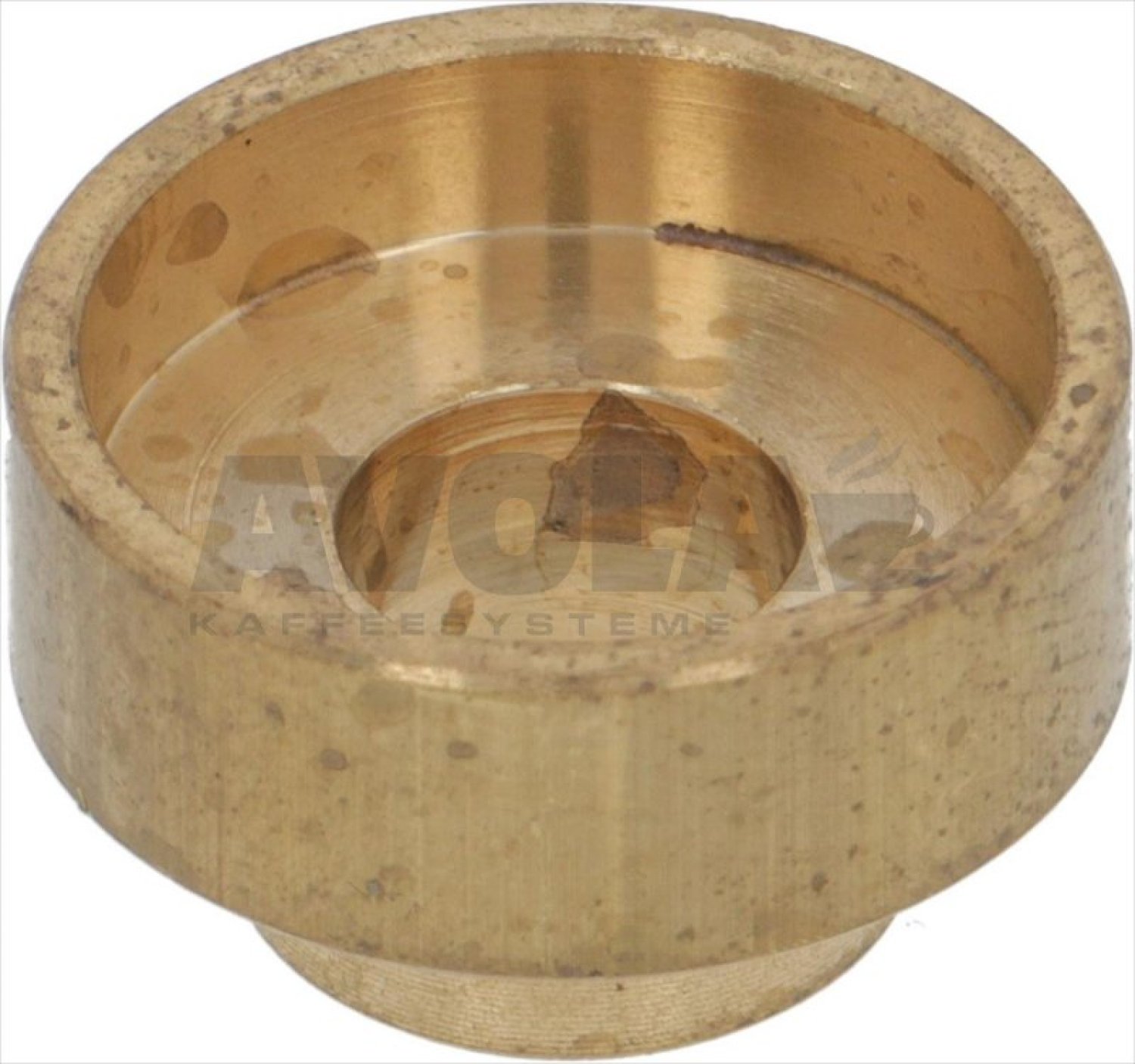

52gasket holder for tap8001873
GASKET HOLDER FOR TAP
5,72 €

excl. Shipping costs
Delivery time
is determined

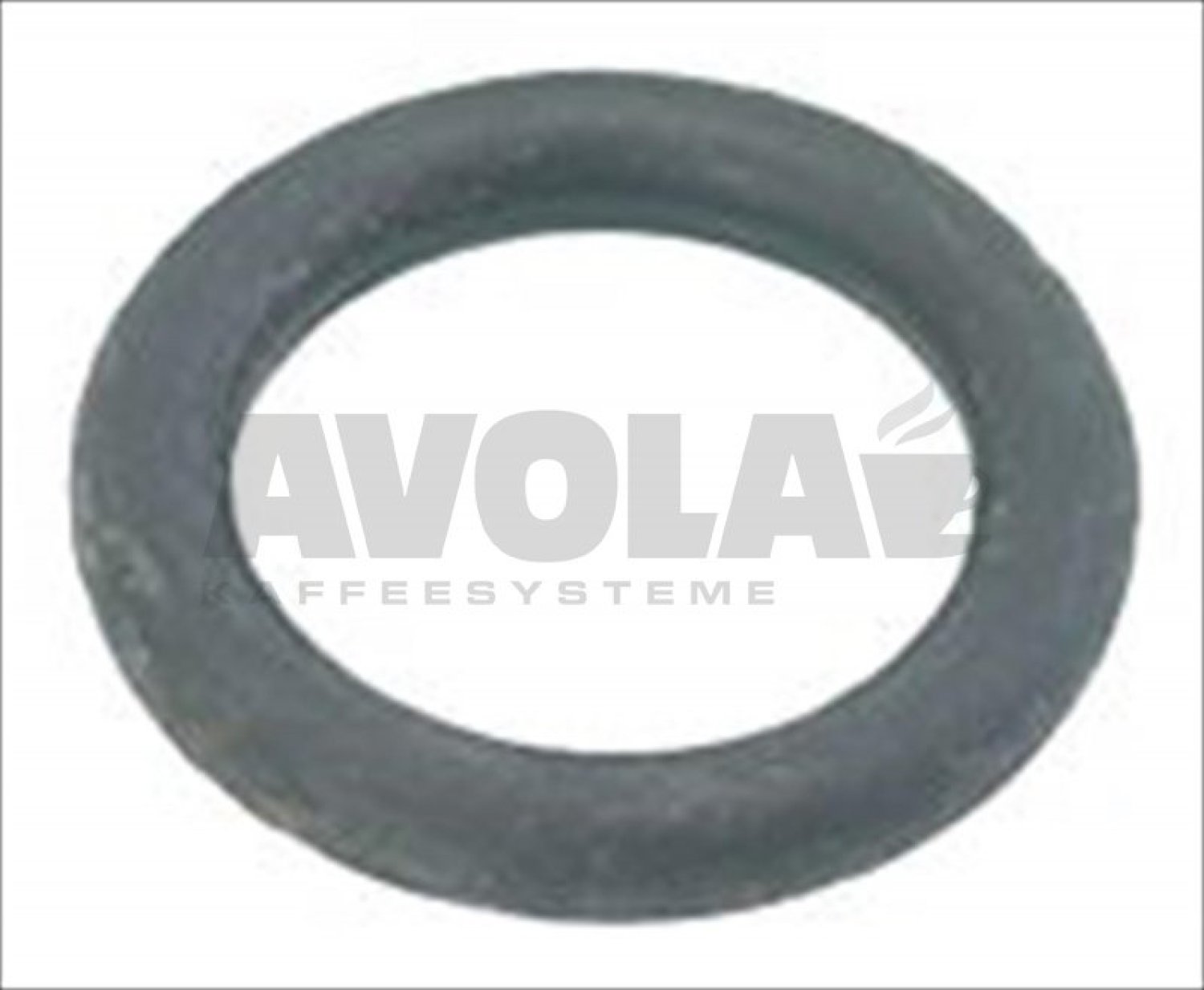

54viton o ring r9 01218001522
VITON O-RING R9 0121
1,40 €

excl. Shipping costs
immediately available, 17 available

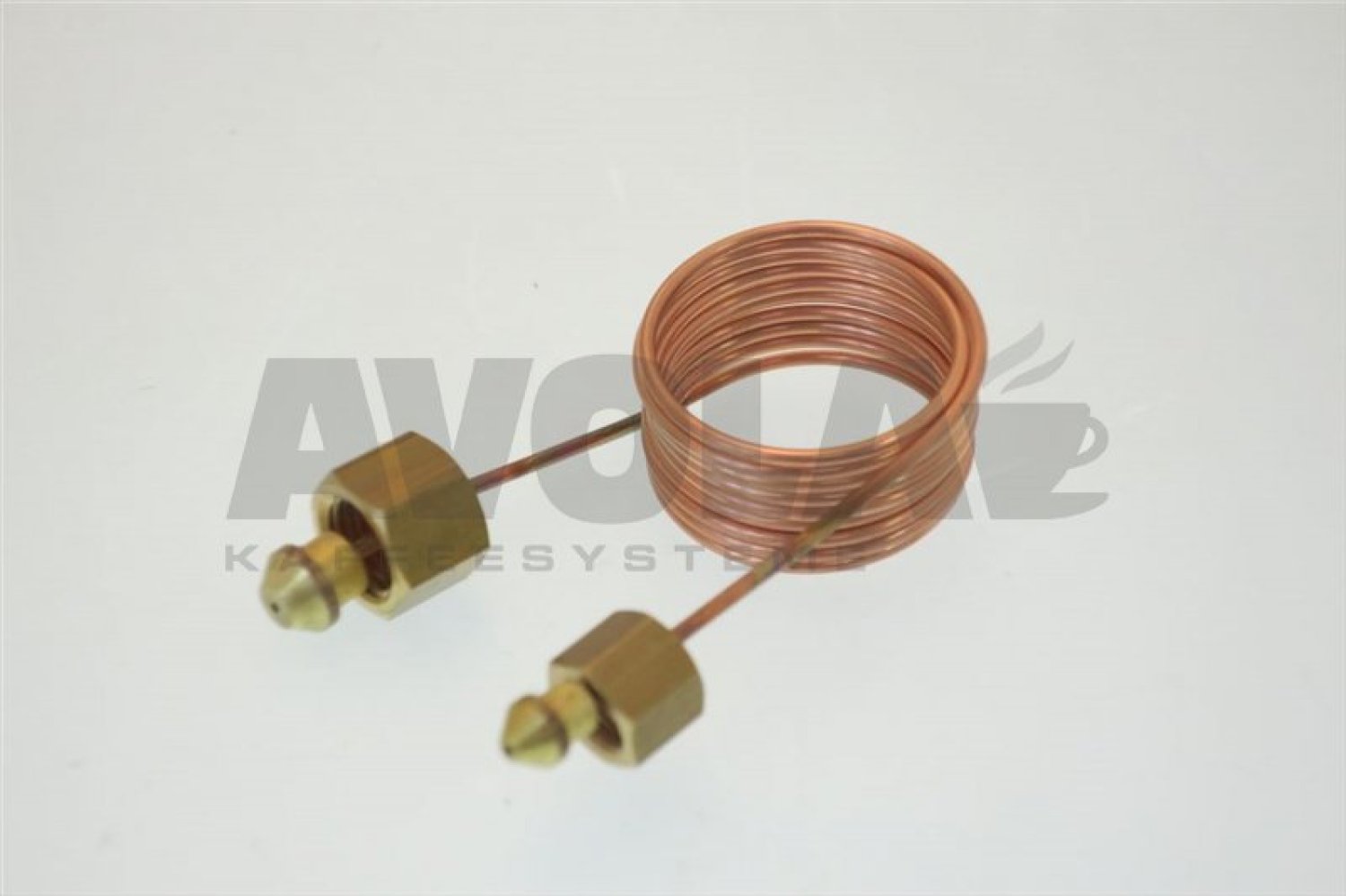

57tubo manometro acqua8198994
TUBO MANOMETRO ACQUA
70,21 €

excl. Shipping costs
Delivery time 4-6 weeks..

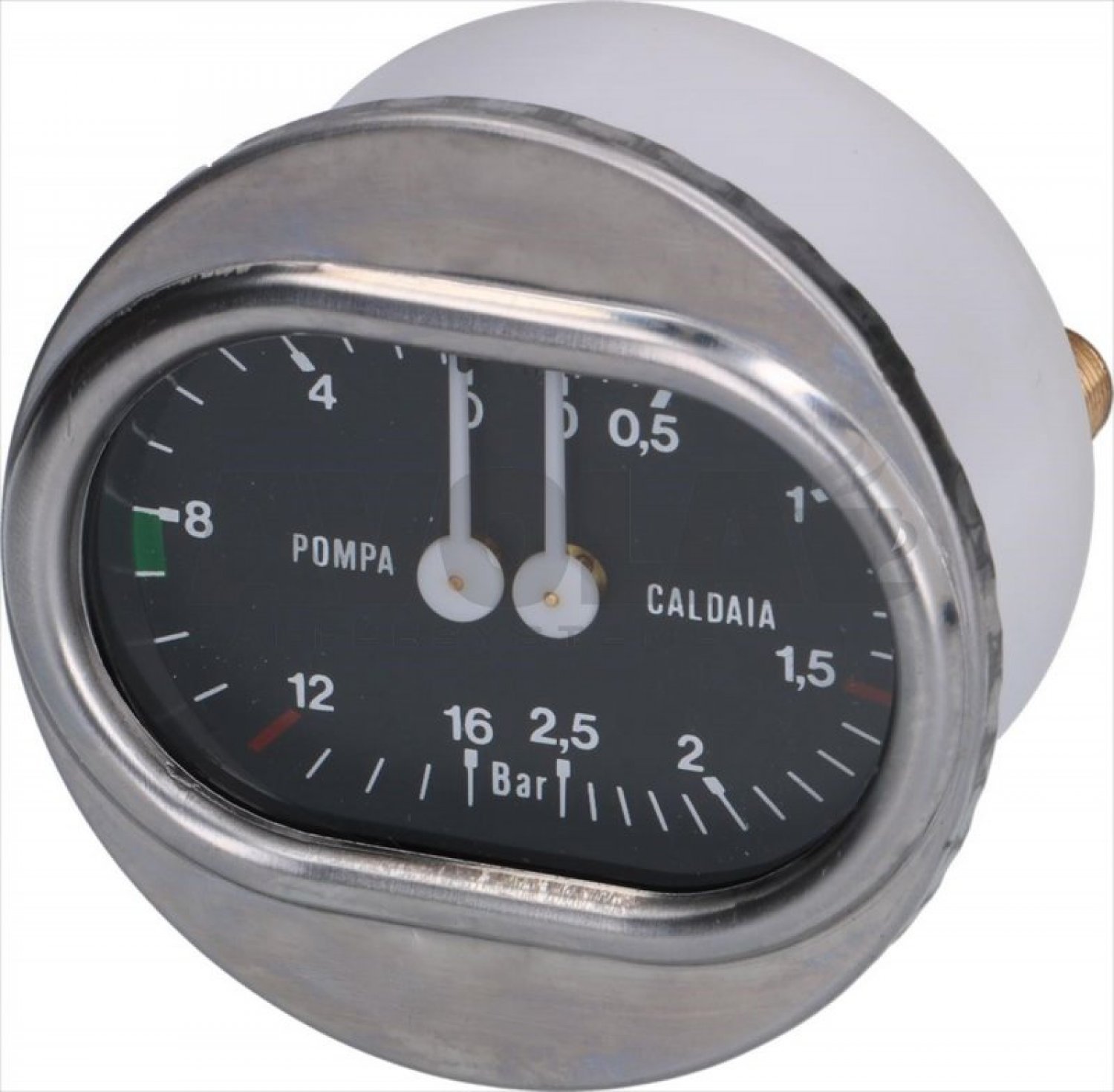

58boiler pump pressure gauge8003532
BOILER-PUMP PRESSURE GAUGE
39,16 €

excl. Shipping costs
Delivery time
is determined

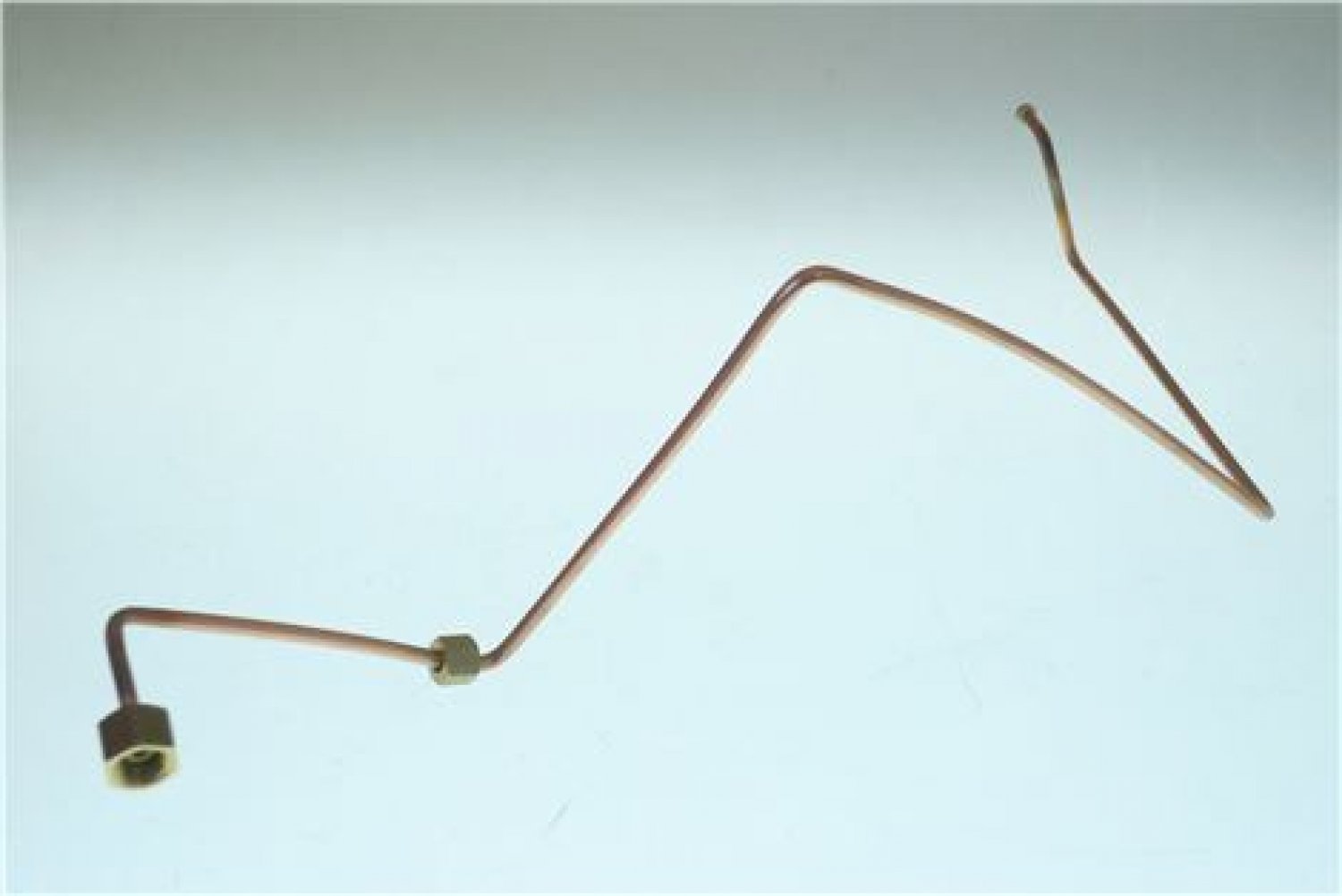

60tubo manometro s58393394
TUBO MANOMETRO S5
48,73 €

excl. Shipping costs
Delivery time 4-6 weeks

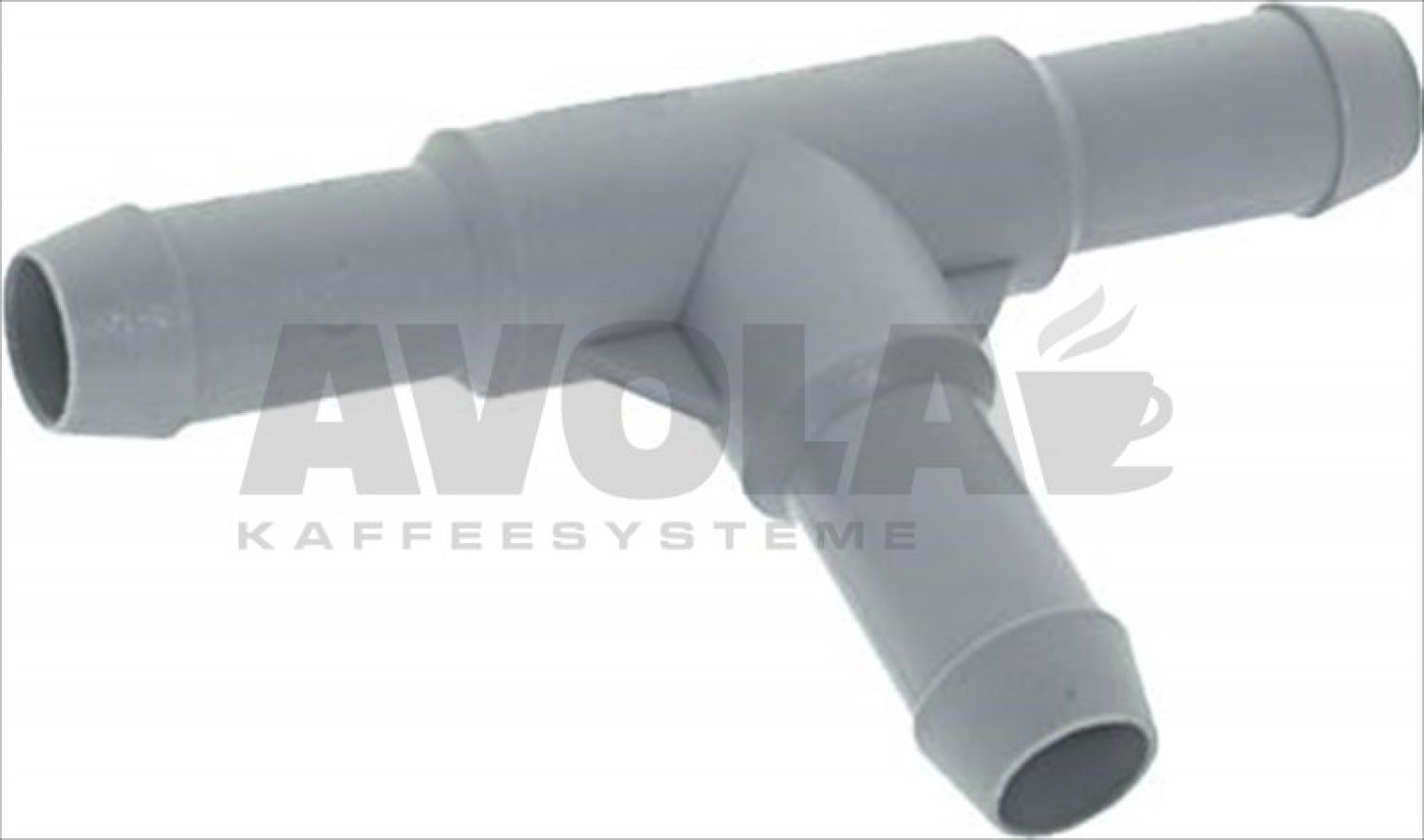

61t hose end fitting 11 5 mm8020160
T HOSE-END FITTING 11.5 mm
6,26 €

excl. Shipping costs
Delivery time
is determined

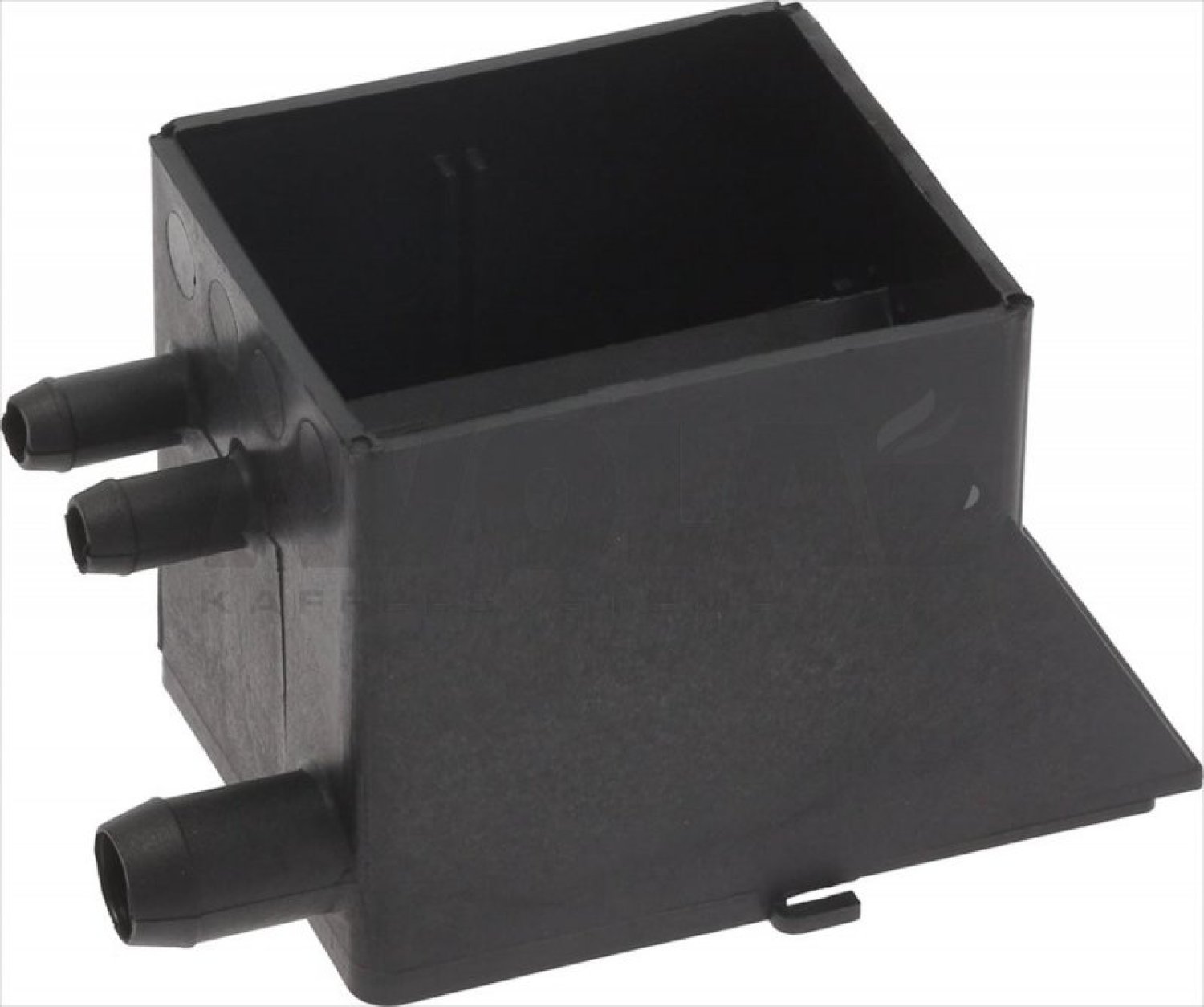

65outlet tank8007236
OUTLET TANK
33,43 €

excl. Shipping costs
Delivery time 4-6 weeks

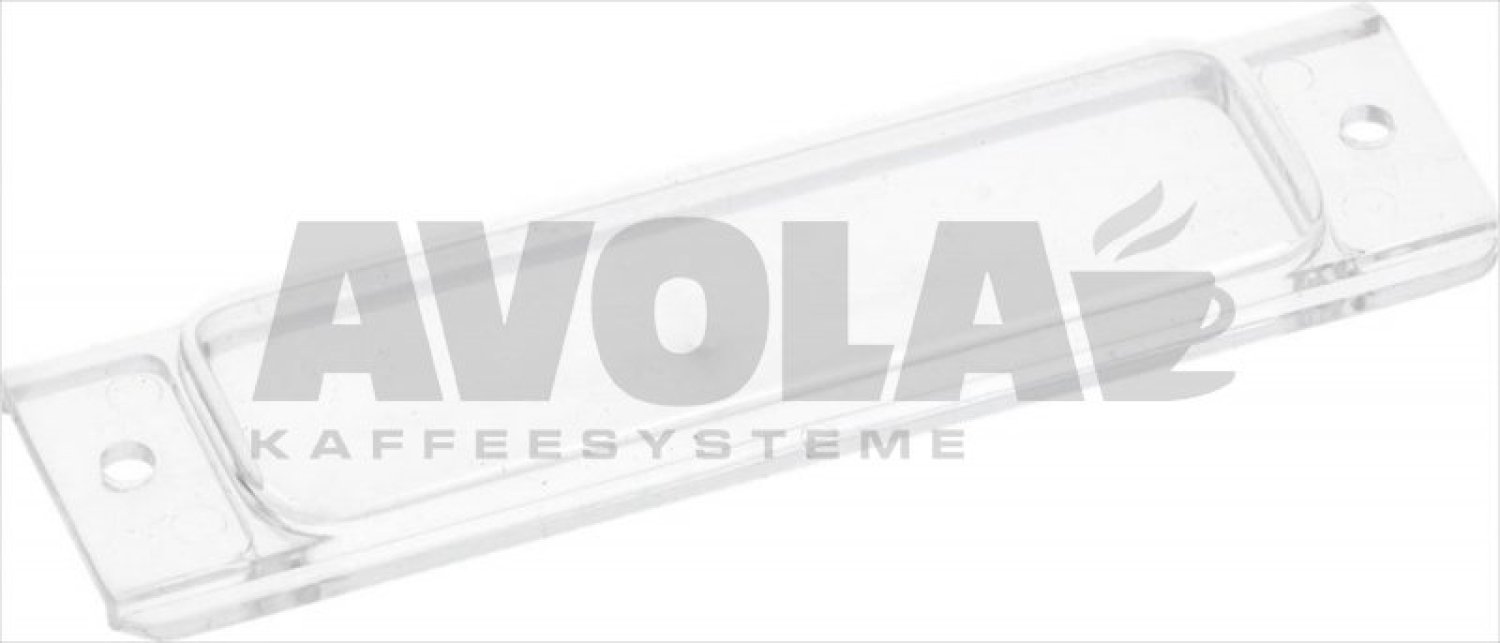

70level plate 30x110 mm8002682
LEVEL PLATE 30x110 mm
7,03 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
