Spaziale

HYDRAULISCHE-ANLAGE SPAZIO

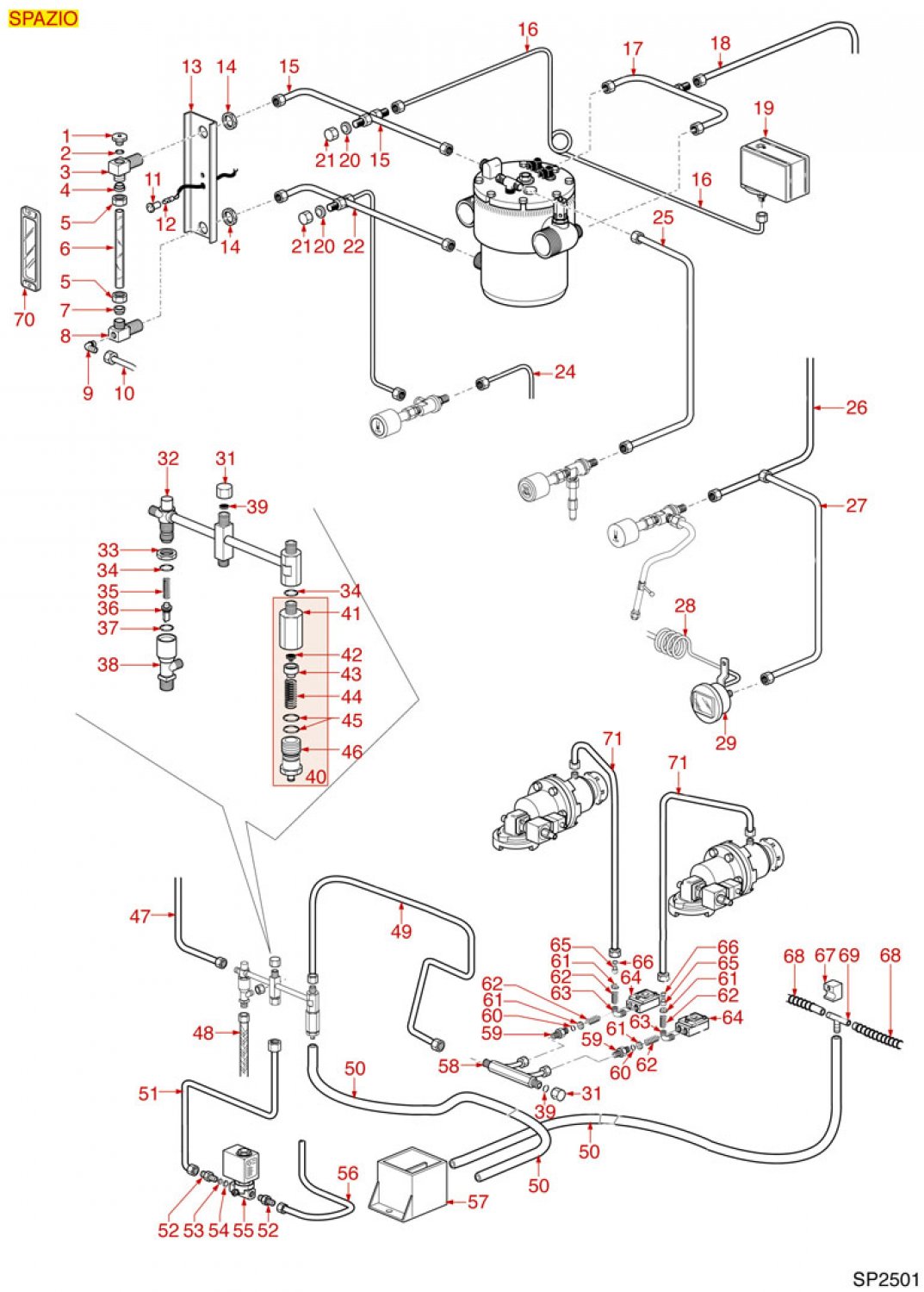

Drawing number 8057493

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1boiler valve o 1 4 rime 8007149
BOILER VALVE ø 1/4″
7,90 €

excl. Shipping costs

immediately available, 10 available
1boiler valve old model 8007152
Boiler valve - old model
5,65 €

excl. Shipping costs

immediately available, 11 available
2o ring 0114 viton 8001910
O-RING 0114 VITON
1,04 €

excl. Shipping costs

immediately available
4flat epdm gasket 8001504
FLAT EPDM GASKET
0,86 €

excl. Shipping costs

immediately available

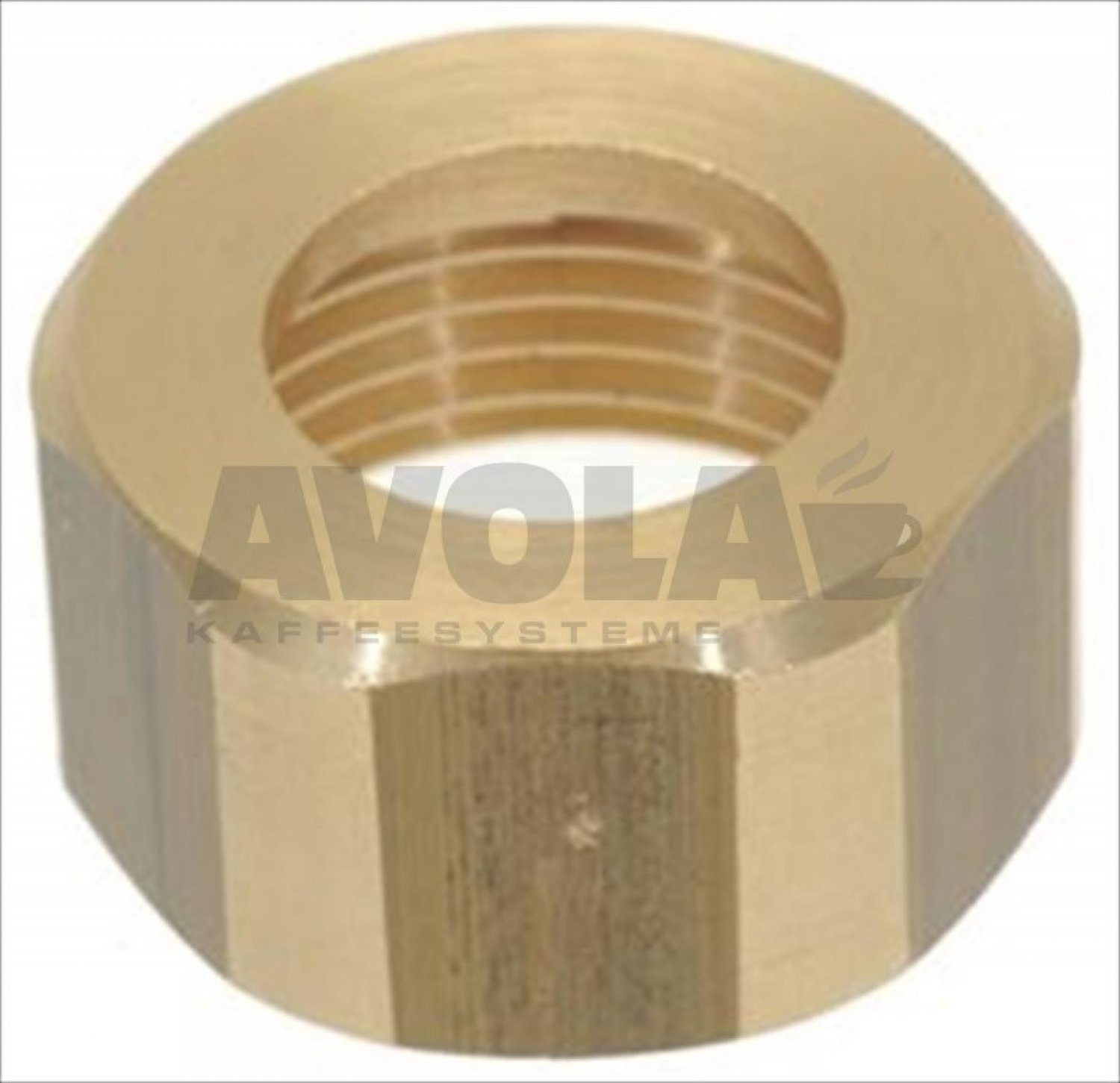

5glass fastening nut 8007281
GLASS FASTENING NUT
5,62 €

excl. Shipping costs

Delivery time 4-6 weeks..
6level glass o 11x150 mm 8007035
LEVEL GLASS ø 11x150 mm
6,18 €

excl. Shipping costs

immediately available, 1 available
7flat red silicone gasket 8001913
Flat red silicone gasket
2,84 €

excl. Shipping costs

Delivery time
is determined
9nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 9 available
11green lamp receptacle 8015689
GREEN LAMP RECEPTACLE
2,44 €

excl. Shipping costs

immediately available, 1 available

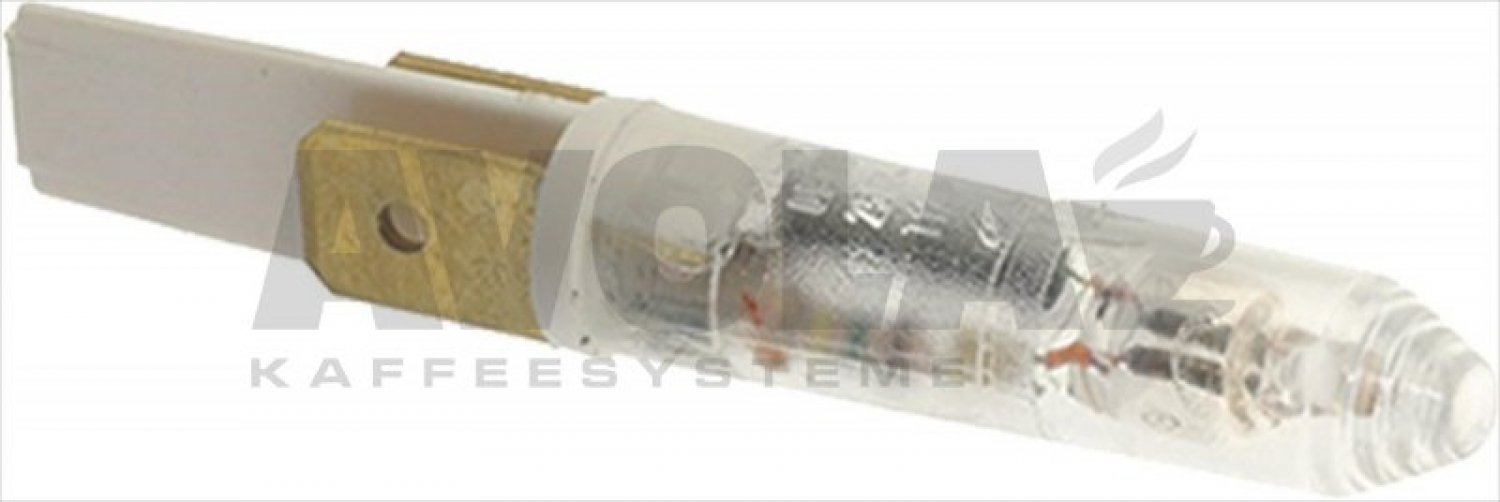

12signalleuchte neutral 230v 8002731
SIGNALLEUCHTE NEUTRAL 230V
Price on request
14nut o 1 2 8005857
NUT ø 1/2
2,77 €

excl. Shipping costs

immediately available, 6 available
19pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
62,26 €
62,26 €

excl. Shipping costs

immediately available, 11 available

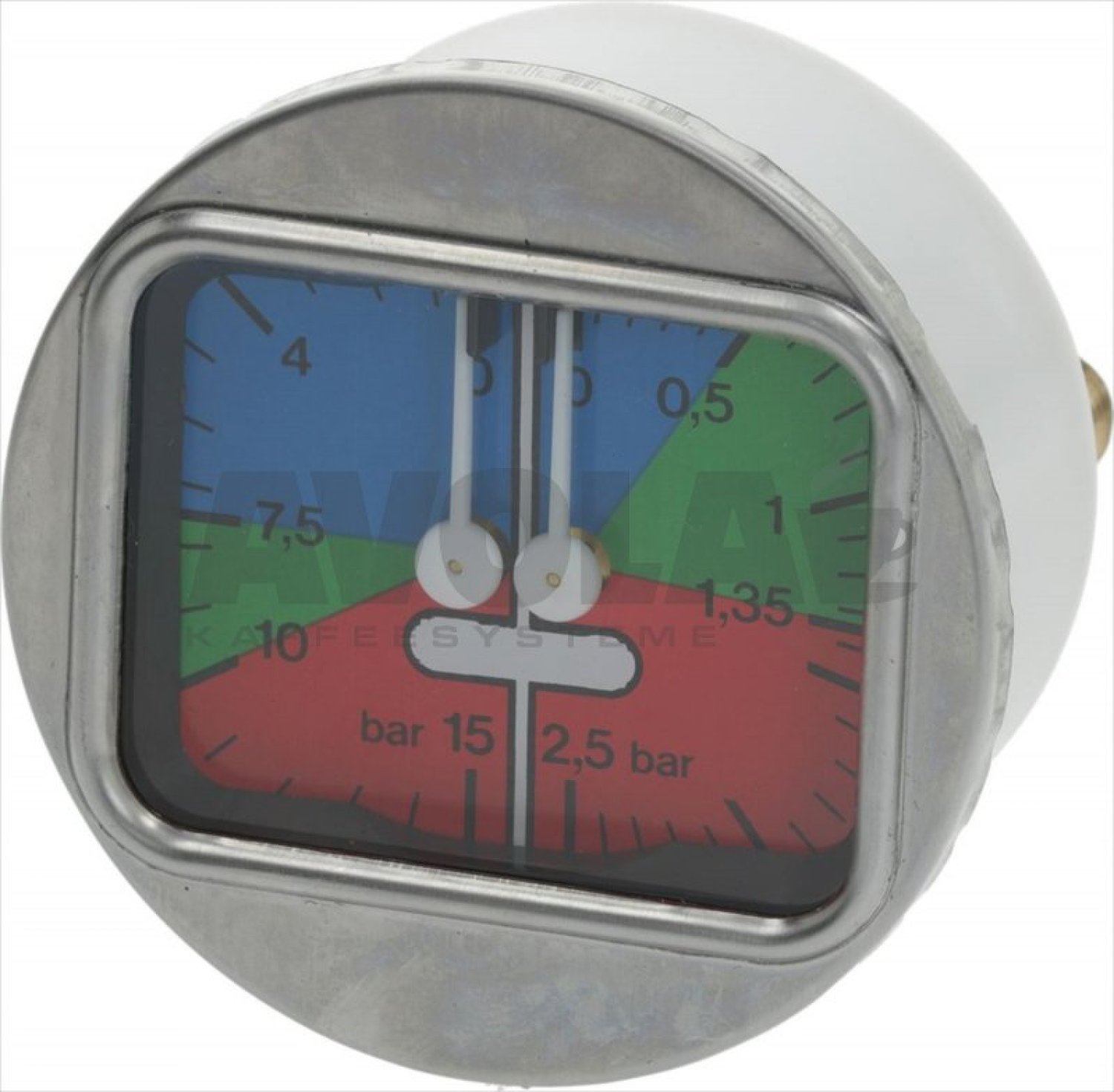

29boiler pump pressure gauge 8003472
BOILER-PUMP PRESSURE GAUGE
65,32 €

excl. Shipping costs

Delivery time
is determined
33nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 12 available

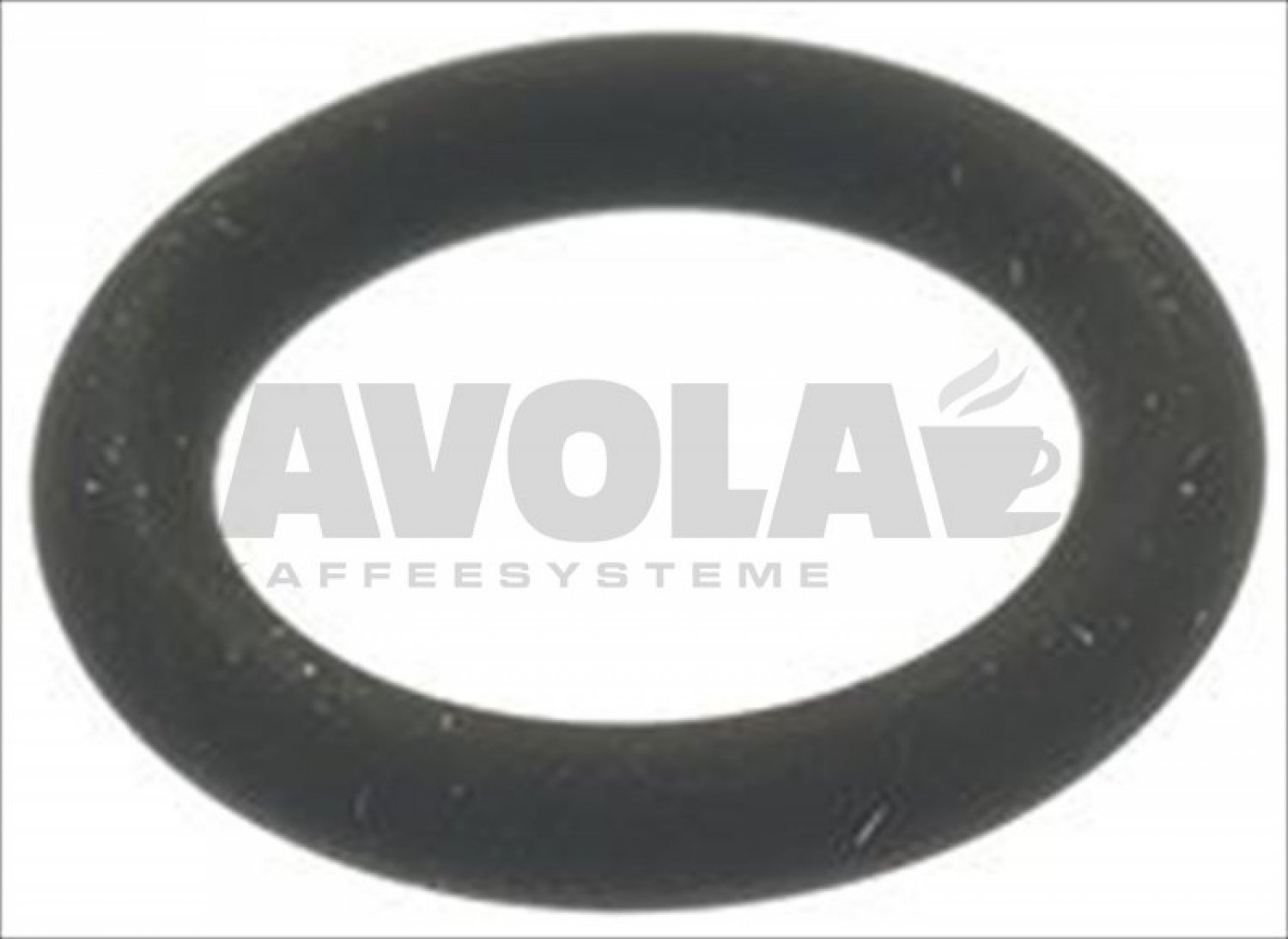

34o ring 0115 viton 8001890
O-RING 0115 VITON
1,49 €

excl. Shipping costs

immediately available
35spring 8x30 mm 8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs

immediately available, 17 available
36triangular non return valve 8007062
TRIANGULAR NON-RETURN VALVE
3,49 €

excl. Shipping costs

Delivery time
is determined

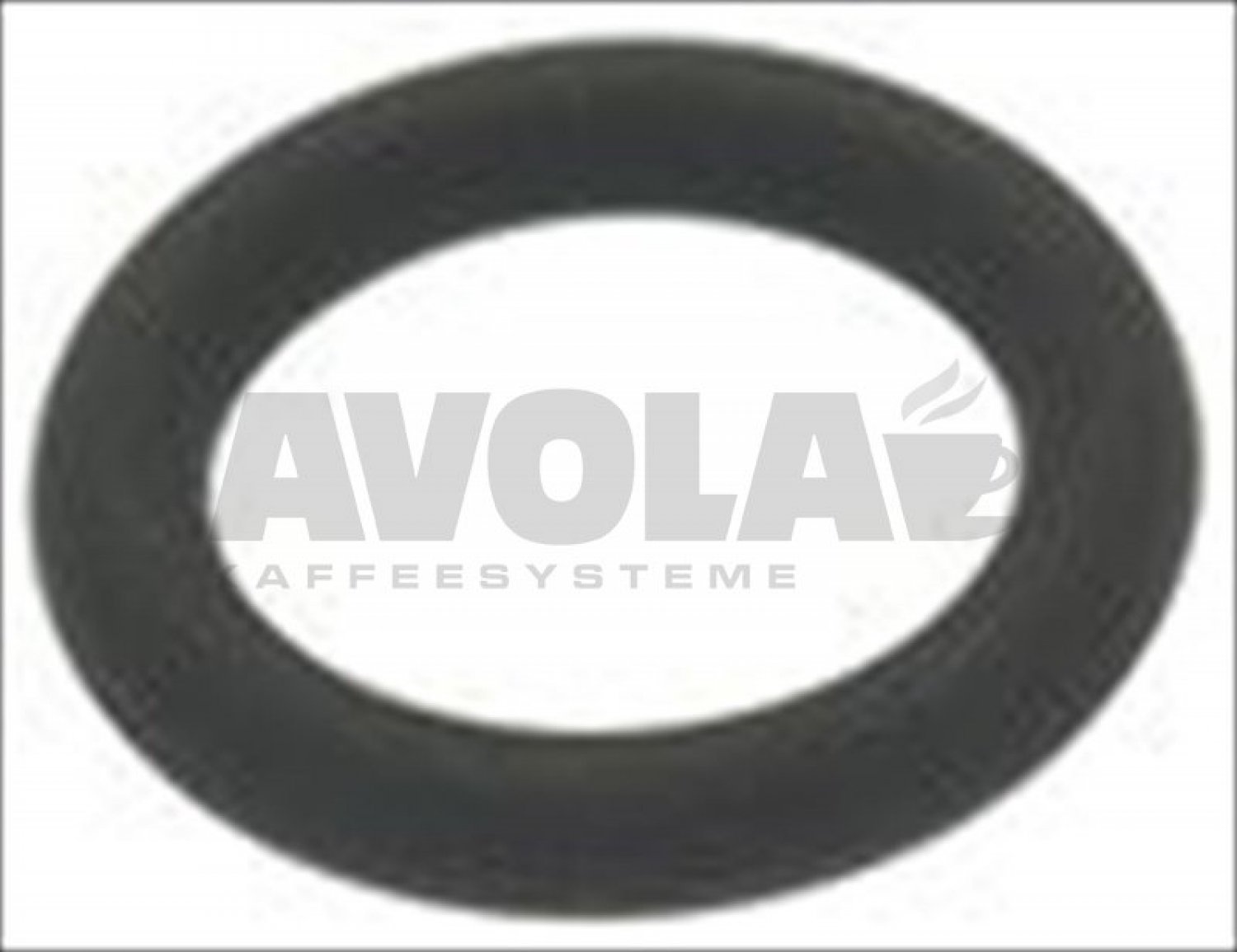

37o ring 02031 viton 8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs

immediately available, 9 available
38la spaziale non return valve body 8007059
La Spaziale NON-RETURN VALVE BODY
22,97 €

excl. Shipping costs

Delivery time 4-6 weeks..
39blind gasket o 11 5x2 mm 8001909
BLIND GASKET ø 11,5x2 mm
0,92 €

excl. Shipping costs

immediately available, 1 available
40expansion valve o 1 4 rime 8007160
EXPANSION VALVE ø 1/4″
16,04 €

excl. Shipping costs

immediately available, 7 available
42flat epdm gasket 8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs

immediately available
43gasket holder for tap 8001873
GASKET HOLDER FOR TAP
5,72 €

excl. Shipping costs

Delivery time
is determined
45viton o ring r9 0121 8001522
VITON O-RING R9 0121
1,40 €

excl. Shipping costs

immediately available, 13 available
48flex hose o 3 8 fp x fc l 30 cm 8006839
FLEX HOSE ø 3/8 Fp x Fc L.30 cm
13,64 €

excl. Shipping costs

immediately available, 7 available
52fitting o 1 8 a 1 8 a 8005709
FITTING ø 1/8 A-1/8 A
2,34 €

excl. Shipping costs

immediately available, 10 available
53stainless steel water filter 8001034
STAINLESS STEEL WATER FILTER
2,78 €

excl. Shipping costs

immediately available, 14 available
552 way solenoid valve parker 240v 50 60hz 8000813
2-WAY SOLENOID VALVE PARKER 240V 50/60Hz
64,76 €

excl. Shipping costs

Delivery time
is determined
57outlet tank 8007236
OUTLET TANK
33,43 €

excl. Shipping costs

Delivery time
is determined
59fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 13 available
60o ring 0114 viton 8001910
O-RING 0114 VITON
1,04 €

excl. Shipping costs

immediately available
61water filter o 7 mm 8001121
WATER FILTER ø 7 mm
2,88 €

excl. Shipping costs

immediately available, 12 available
62jet spring o 6 5x13 mm 8003689
JET SPRING ø 6,5x13 mm
2,88 €

excl. Shipping costs

immediately available, 1 available
63nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 9 available
64volumetric flowmeter gicar 24v 8006911
VOLUMETRIC FLOWMETER GICAR 24V
66,56 €

excl. Shipping costs

immediately available, 2 available
65jet group 8006964
JET GROUP
2,99 €

excl. Shipping costs

immediately available, 4 available
66flat ptfe gasket 8001898
FLAT PTFE GASKET
1,34 €

excl. Shipping costs

Delivery time
is determined
69t hose end fitting 11 5 mm 8020160
T HOSE-END FITTING 11.5 mm
6,26 €

excl. Shipping costs

Delivery time
is determined

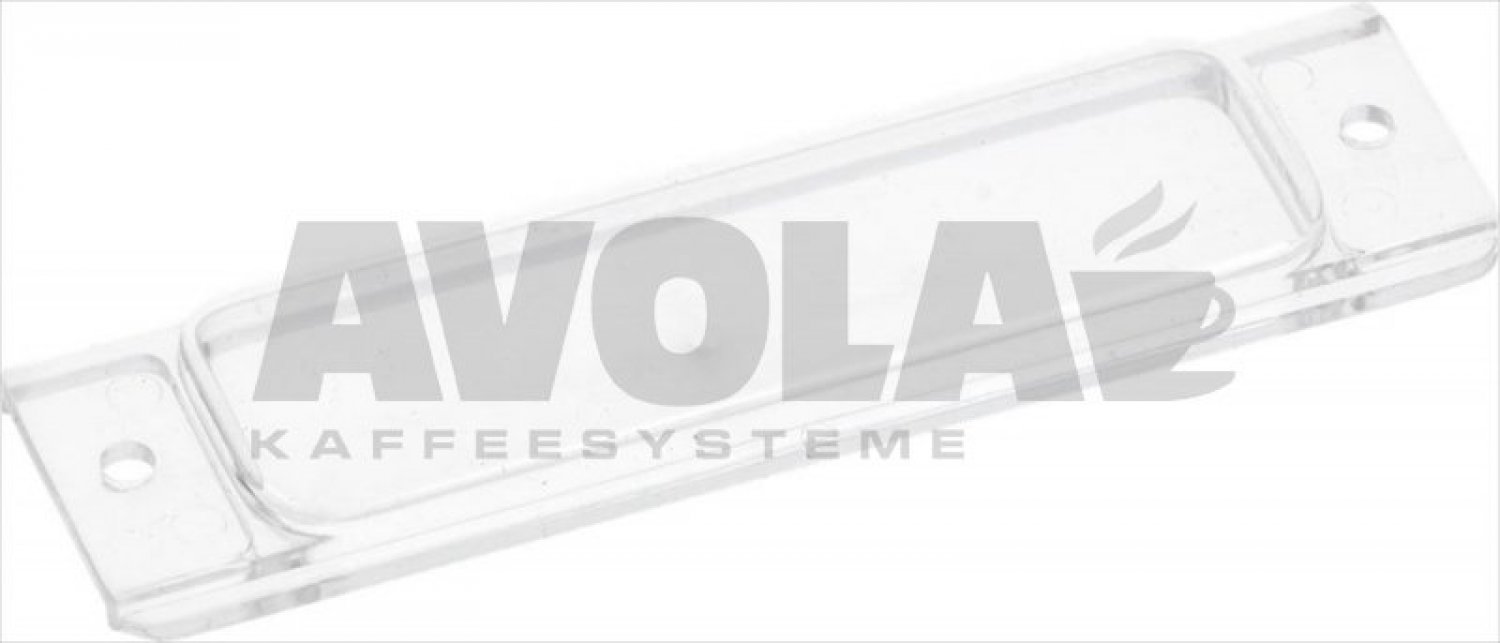

70level plate 30x110 mm 8002682
LEVEL PLATE 30x110 mm
7,03 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
