VIBIEMME CHIMAERA CUBO REPLICA - WASSER-DAMPFHÄHNE

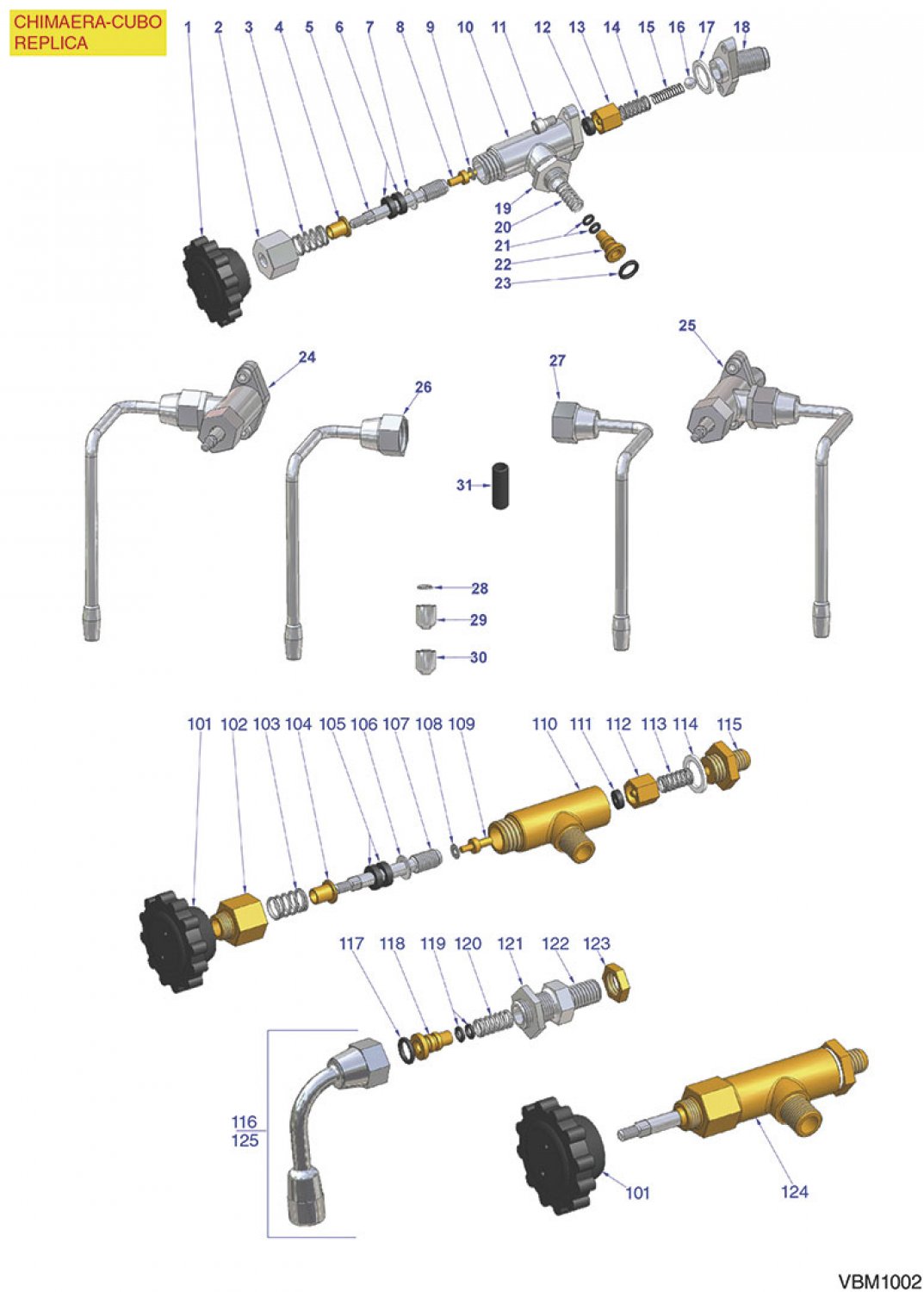

Drawing number 8063015

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1water steam tap knob 8003330
WATER/STEAM TAP KNOB
16,08 €

excl. Shipping costs

immediately available, 3 available
2chrome plated nut for tap 8063130
CHROME-PLATED NUT FOR TAP
8,50 €

excl. Shipping costs

Delivery time
is determined

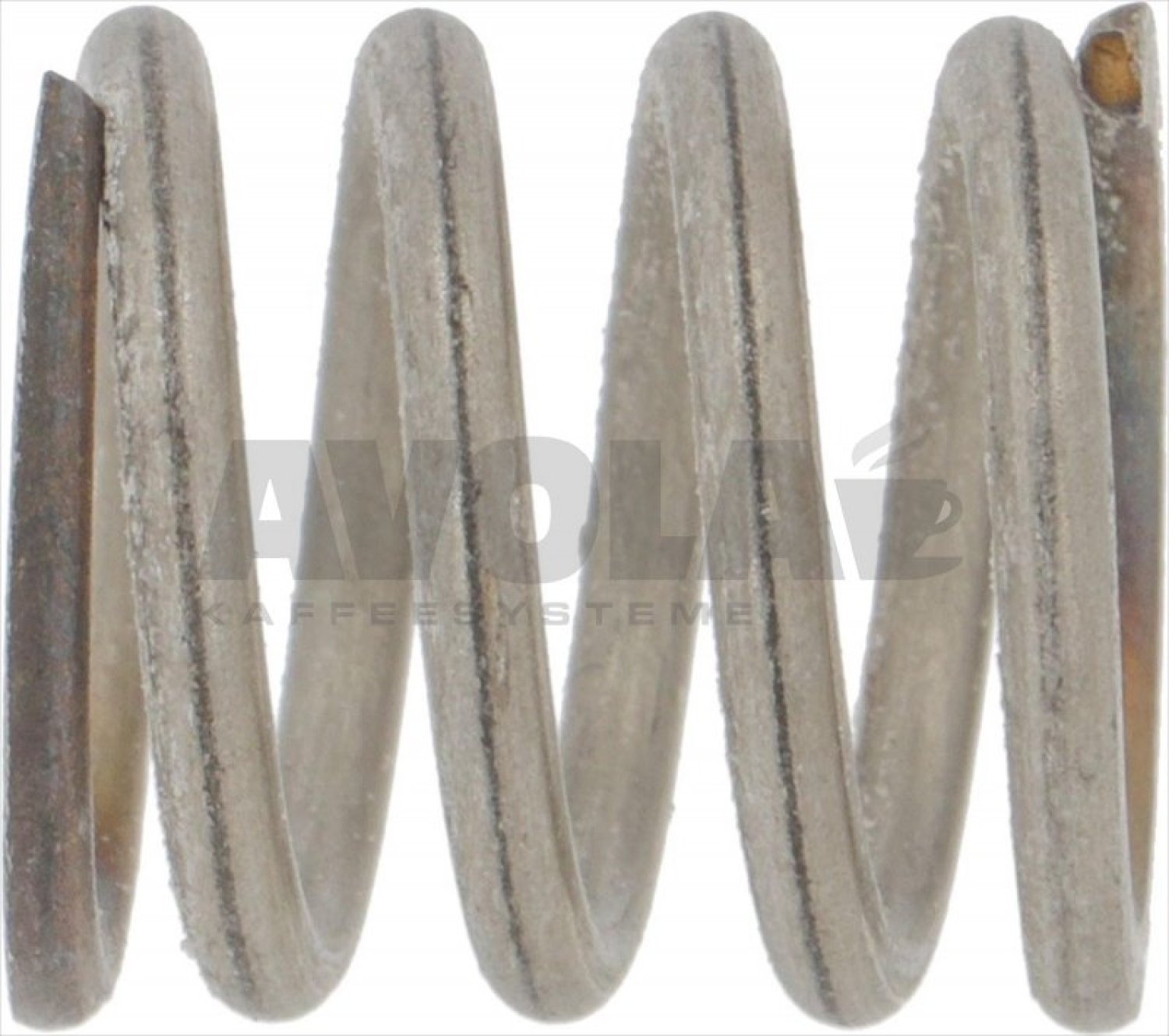

3spring o 15x17 mm 8003815
SPRING ø 15x17 mm
1,54 €

excl. Shipping costs

immediately available, 9 available
4tap rod bushing 8001578
TAP ROD BUSHING
1,68 €

excl. Shipping costs

immediately available, 5 available
5tap handle spindle 8005155
TAP HANDLE SPINDLE
11,77 €

excl. Shipping costs

immediately available, 3 available
6epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
7washer 15x8 4x1 mm 8001912
WASHER 15x8,4x1 mm
0,80 €

excl. Shipping costs

immediately available, 14 available
8tap spindle 8005110
TAP SPINDLE
5,26 €

excl. Shipping costs

immediately available, 5 available
9scheibe d 4 3x9x0 8 ix 8075594
SCHEIBE D.4,3X9X0,8 IX
Price on request
10steam tap 8005474
STEAM TAP
47,48 €

excl. Shipping costs

immediately available, 3 available
11low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,50 €

excl. Shipping costs

immediately available, 12 available
12nbr flat gasket o 13x4x4 mm 8001569
NBR FLAT GASKET ø 13x4x4 mm
0,50 €

excl. Shipping costs

immediately available
13gasket holder for tap 8001420
GASKET HOLDER FOR TAP
4,80 €

excl. Shipping costs

immediately available, 16 available
14tap spring o 12 5x30 mm 8003671
TAP SPRING ø 12,5x30 mm
3,01 €

excl. Shipping costs

immediately available
15spring 8x30 mm 8003708
SPRING 8x30 mm
1,96 €

excl. Shipping costs

immediately available, 11 available
16stainless steel ball o 8 mm 8005084
STAINLESS STEEL BALL ø 8 mm
2,69 €

excl. Shipping costs

immediately available, 5 available
17ptfe flat gasket o 24x18x2 mm 8001579
PTFE FLAT GASKET ø 24x18x2 mm
1,70 €

excl. Shipping costs

immediately available, 11 available
18flange o 3 8 8064213
FLANGE ø 3/8
15,58 €

excl. Shipping costs

Delivery time 4-6 weeks..
20spring o 10 5x27 mm 8003604
Spring ø 10,5x27 mm
3,57 €

excl. Shipping costs

immediately available, 7 available
21o ring r6 epdm 8001771
O-RING R6 EPDM
1,14 €

excl. Shipping costs

immediately available
22steam pipe bushing 8005523
STEAM PIPE BUSHING
4,27 €

excl. Shipping costs

immediately available, 8 available
23o ring 03043 viton 8001513
O-RING 03043 VITON
1,19 €

excl. Shipping costs

immediately available

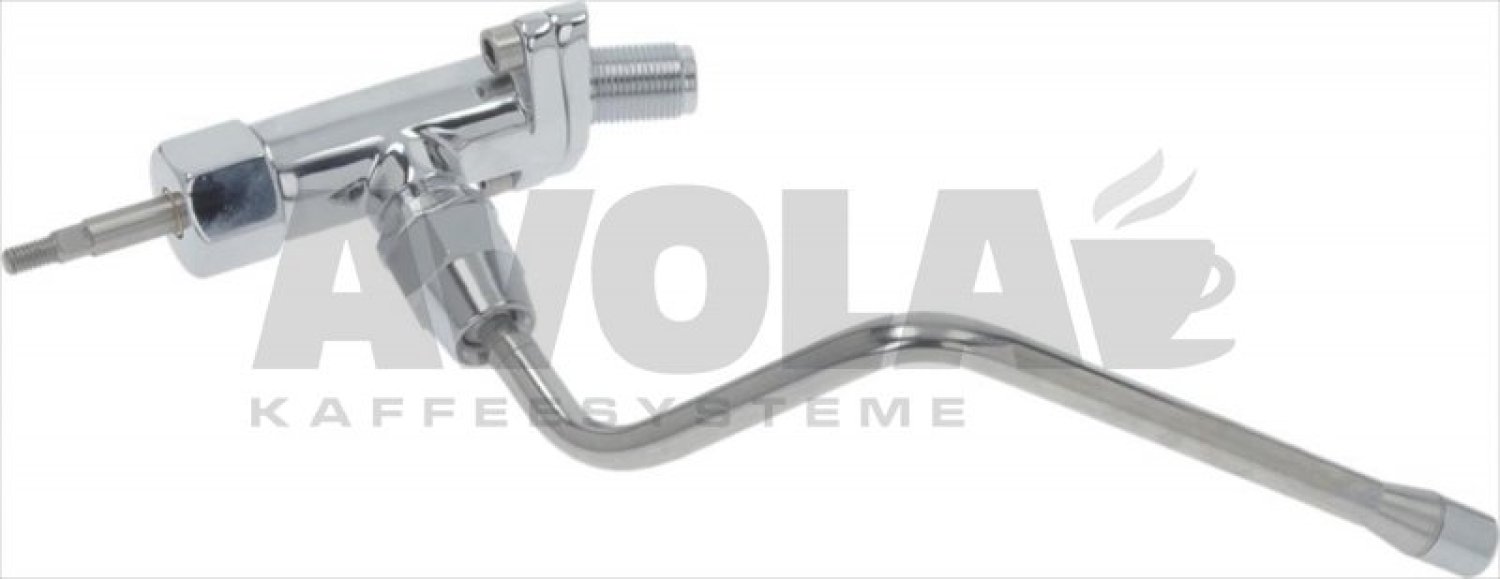

24lh complete steam tap 8064204
LH COMPLETE STEAM TAP
137,94 €

excl. Shipping costs

Delivery time
is determined
24lh complete steam tap 8064205
LH COMPLETE STEAM TAP
Price on request
25steam tap assy 8005624
STEAM TAP ASSY
This article is no longer available

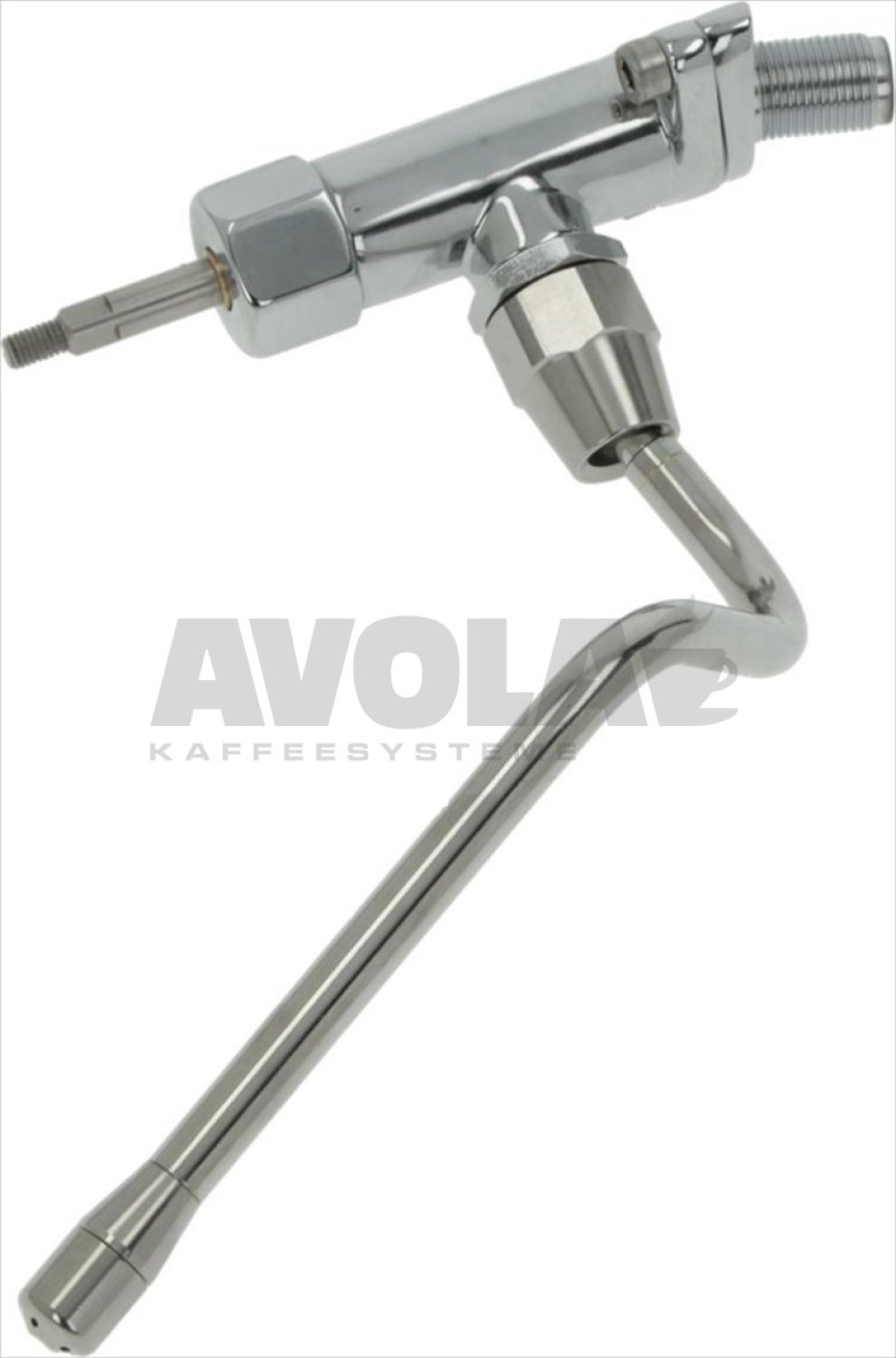

25rh complete steam tap 8064202
RH COMPLETE STEAM TAP
137,93 €

excl. Shipping costs

Delivery time
is determined

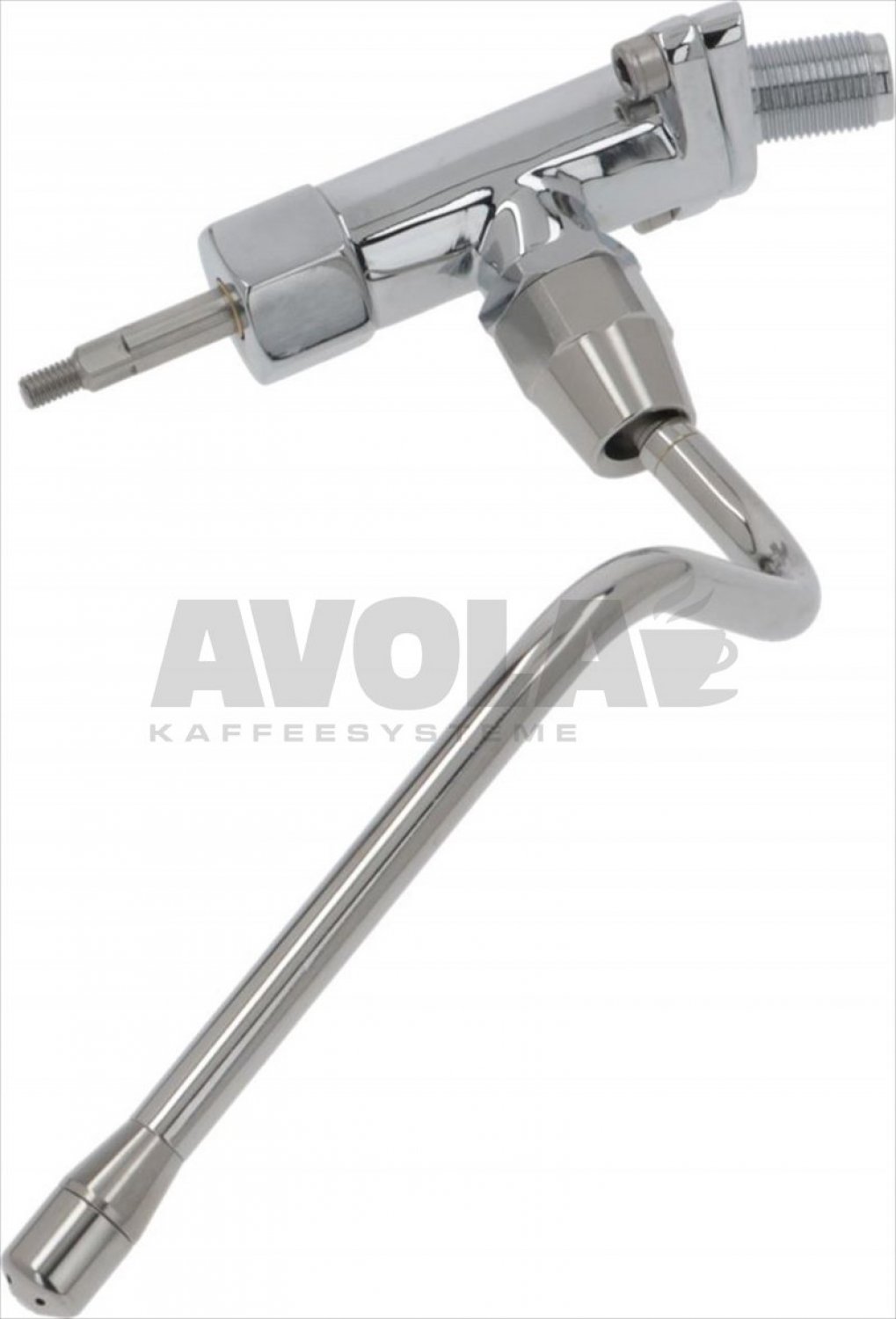

25rh complete steam tap 8064203
RH COMPLETE STEAM TAP
130,45 €

excl. Shipping costs

Delivery time 4-6 weeks..

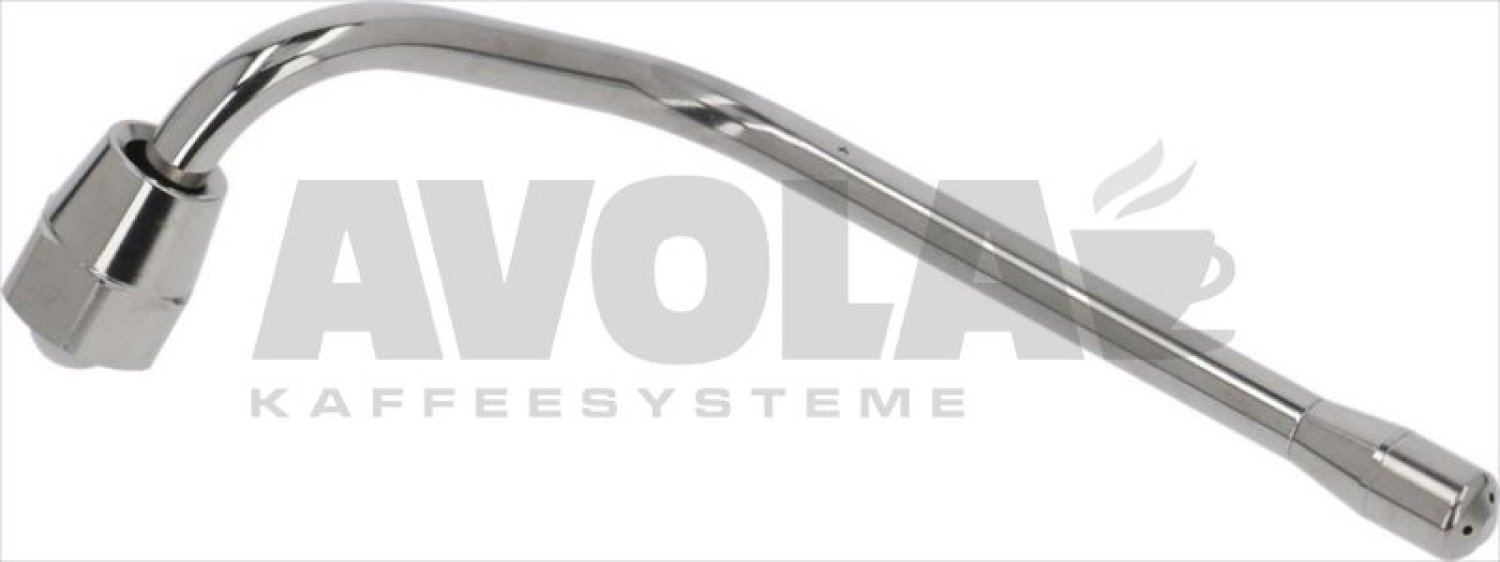

26complete lh steam pipe 8064239
COMPLETE LH STEAM PIPE
Price on request

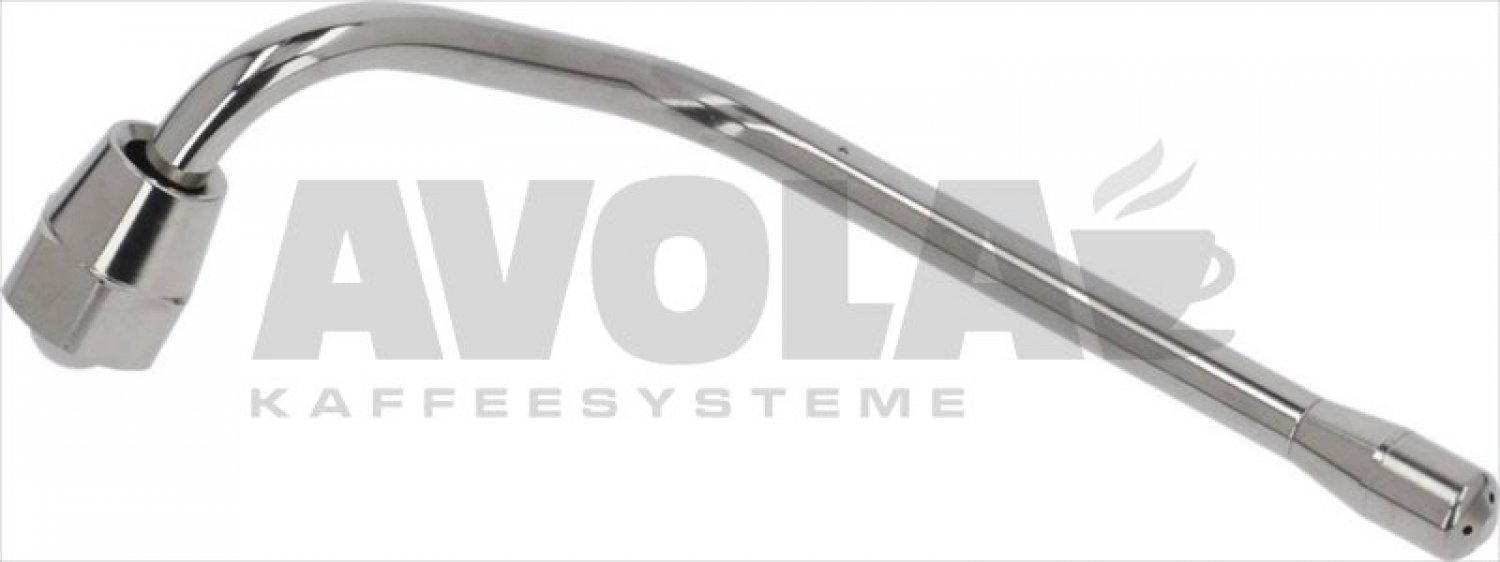

26dampflanze komplett edelstahl links o10mm 8077980
Dampflanze komplett Edelstahl links ø10mm
61,09 €

excl. Shipping costs

Delivery time
is determined
27vibiemme steam pipe complete 8006885
Vibiemme STEAM PIPE COMPLETE
27,43 €

excl. Shipping costs

Delivery time 4-6 weeks
27complete water pipe 8006886
COMPLETE WATER PIPE
This article is no longer available
27complete chrome plat steam pipe rh 8066751
COMPLETE CHROME-PLAT.STEAM PIPE RH
54,59 €

excl. Shipping costs

immediately available, 1 available
27vibiemme dampfrohr komplett rechts o 8 mm nicht mehr lieferbar 8036380
VIBIEMME DAMPFROHR KOMPLETT RECHTS ø 8 mm (nicht mehr lieferbar)
This article is no longer available
28flat gasket 12x10x1 mm 8001374
FLAT GASKET 12x10x1 mm
1,07 €

excl. Shipping costs

immediately available
29steam sprinkler 8006555
STEAM SPRINKLER
4,43 €

excl. Shipping costs

immediately available, 5 available
30steam sprinkler 8064241
STEAM SPRINKLER
7,41 €

excl. Shipping costs

immediately available, 9 available
31burn preventing pipe handgrip o 8 mm 8002158
BURN PREVENTING PIPE HANDGRIP ø 8 mm
2,45 €

excl. Shipping costs

immediately available, 13 available
101water steam tap knob 8003330
WATER/STEAM TAP KNOB
16,08 €

excl. Shipping costs

immediately available, 3 available
102rubberpiece holding standard fitting 8005681
RUBBERPIECE HOLDING STANDARD FITTING
Price on request
103spring o 15x17 mm 8003815
SPRING ø 15x17 mm
1,54 €

excl. Shipping costs

immediately available, 9 available
104tap rod bushing 8001578
TAP ROD BUSHING
1,68 €

excl. Shipping costs

immediately available, 5 available
105epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
106washer 15x8 4x1 mm 8001912
WASHER 15x8,4x1 mm
0,80 €

excl. Shipping costs

immediately available, 14 available
107tap handle spindle 8005155
TAP HANDLE SPINDLE
11,77 €

excl. Shipping costs

immediately available, 3 available
108scheibe d 4 3x9x0 8 ix 8075594
SCHEIBE D.4,3X9X0,8 IX
Price on request
109tap spindle 8005110
TAP SPINDLE
5,26 €

excl. Shipping costs

immediately available, 5 available
111nbr flat gasket o 13x4x4 mm 8001569
NBR FLAT GASKET ø 13x4x4 mm
0,50 €

excl. Shipping costs

immediately available
112gasket holder for tap 8001420
GASKET HOLDER FOR TAP
4,80 €

excl. Shipping costs

immediately available, 16 available
113tap spring o 12 5x30 mm 8003671
TAP SPRING ø 12,5x30 mm
3,01 €

excl. Shipping costs

immediately available
114ptfe flat gasket o 24x18x2 mm 8001579
PTFE FLAT GASKET ø 24x18x2 mm
1,70 €

excl. Shipping costs

immediately available, 11 available
115tap coupling 8005807
TAP COUPLING
Price on request
116complete water pipe 8006768
COMPLETE WATER PIPE
19,52 €

excl. Shipping costs

Delivery time 4-6 weeks..
117o ring 03043 viton 8001513
O-RING 03043 VITON
1,19 €

excl. Shipping costs

immediately available
118steam pipe bushing 8005523
STEAM PIPE BUSHING
4,27 €

excl. Shipping costs

immediately available, 8 available
119o ring r6 epdm 8001771
O-RING R6 EPDM
1,14 €

excl. Shipping costs

immediately available
120spring 10 8x30 mm 8073577
SPRING 10,8x30 mm
2,37 €

excl. Shipping costs

Delivery time
is determined
121nut 8005806
NUT
2,64 €

excl. Shipping costs

immediately available, 8 available
122fitting adapter 3 8 zoll x 1 4 zoll 8069474
Fitting Adapter 3/8 ZOLL x 1/4 ZOLL
14,29 €

excl. Shipping costs

immediately available, 5 available
124wasser dampfhahn 8074026
WASSER-/DAMPFHAHN
96,82 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
