Vibiemme

VIBIEMME EVOLUTION KOMETA MINIMAX REVOLUTION SILVER - WASSER-DAMPFHÄHNE

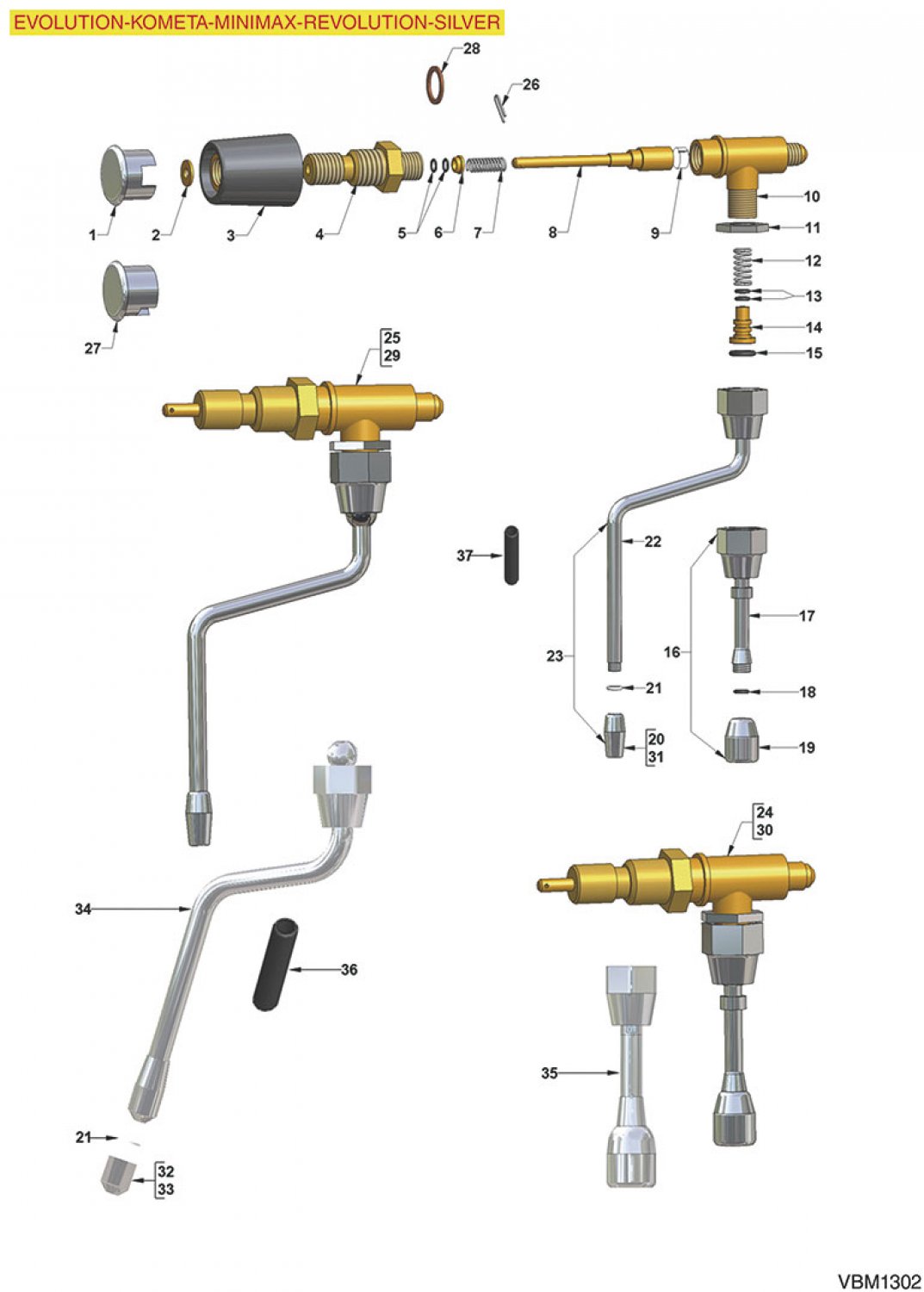

Drawing number 8063017

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1steam cap for knob8003164
STEAM CAP FOR KNOB
4,01 €

excl. Shipping costs
immediately available, 6 available
4nut o 1 28005857
NUT ø 1/2
2,77 €

excl. Shipping costs
immediately available, 8 available
5o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
7tap spring8003795
TAP SPRING
1,80 €

excl. Shipping costs
immediately available, 12 available
8water steam tap pin8005137
WATER/STEAM TAP PIN
17,02 €

excl. Shipping costs
immediately available, 3 available
12spring o 12x15 mm8003667
SPRING ø 12x15 mm
2,94 €

excl. Shipping costs
immediately available, 12 available
13o ring r6 epdm8001771
O-RING R6 EPDM
1,13 €

excl. Shipping costs
immediately available
14steam pipe articulation bushing8001858
STEAM PIPE ARTICULATION BUSHING
1,45 €

excl. Shipping costs
immediately available, 9 available
15o ring 03043 viton8001513
O-RING 03043 VITON
1,18 €

excl. Shipping costs
immediately available

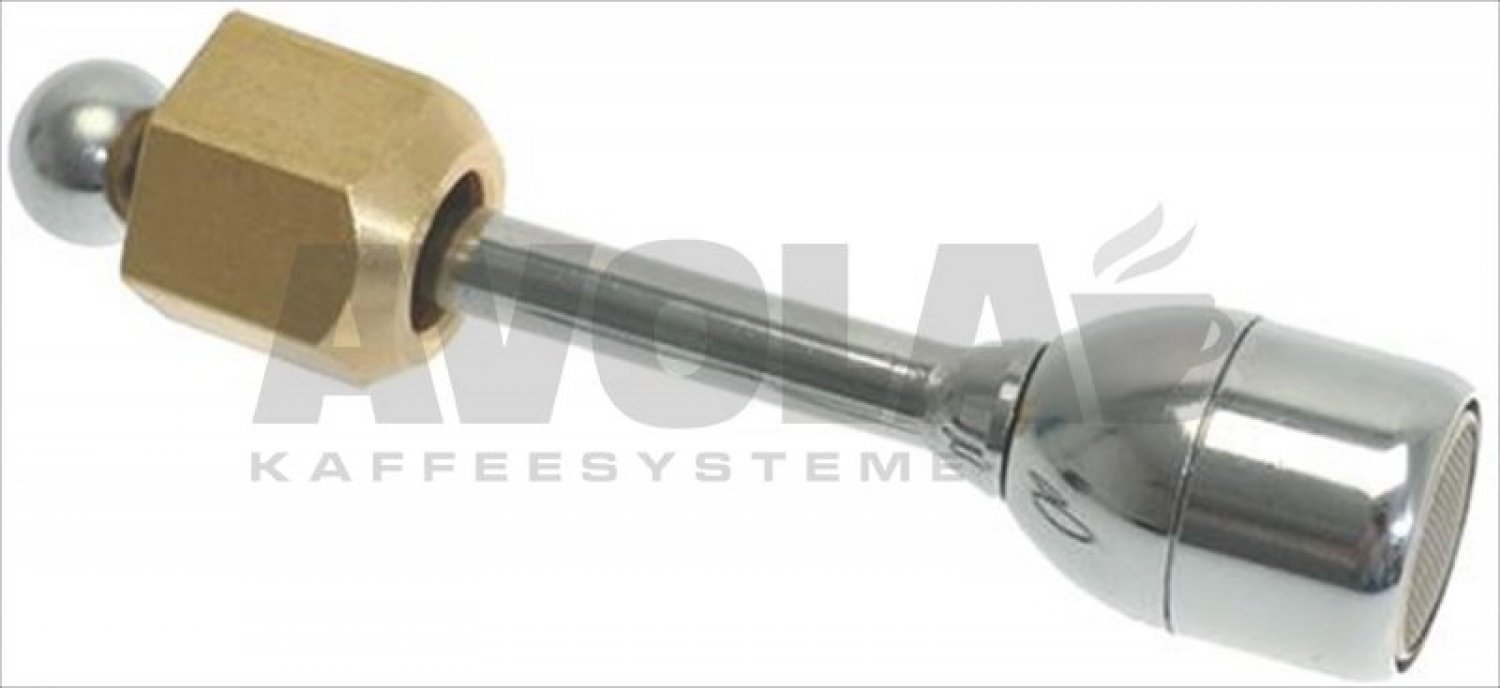

16complete water pipe8006590
COMPLETE WATER PIPE
This article is no longer available
19water pipe nozzle 1 88006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs
immediately available, 5 available
21flat gasket 12x10x1 mm8001374
FLAT GASKET 12x10x1 mm
1,02 €

excl. Shipping costs
immediately available

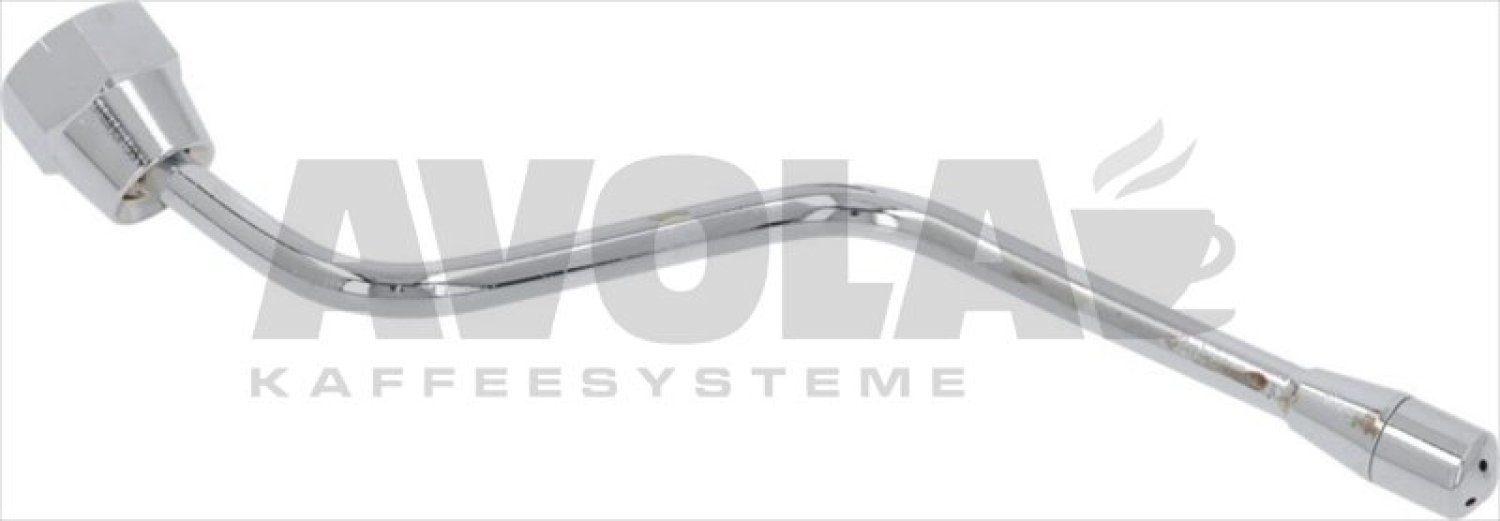

23complete steam pipe8006593
COMPLETE STEAM PIPE
27,10 €

excl. Shipping costs
immediately available, 2 available
26s steel pin o 2x20 mm uni 13368006241
S/STEEL PIN ø 2x20 mm UNI 1336
0,48 €

excl. Shipping costs
immediately available, 13 available
27water cap for knob8003165
WATER CAP FOR KNOB
2,96 €

excl. Shipping costs
immediately available, 12 available
37burn preventing pipe handgrip o8 10 mm8002158
BURN PREVENTING PIPE HANDGRIP ø8-10 mm
2,44 €

excl. Shipping costs
immediately available, 9 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
