VIBIEMME KOMETA MERCURY SILVER - WASSEREINLAUFHAHN

Drawing number 8063022

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

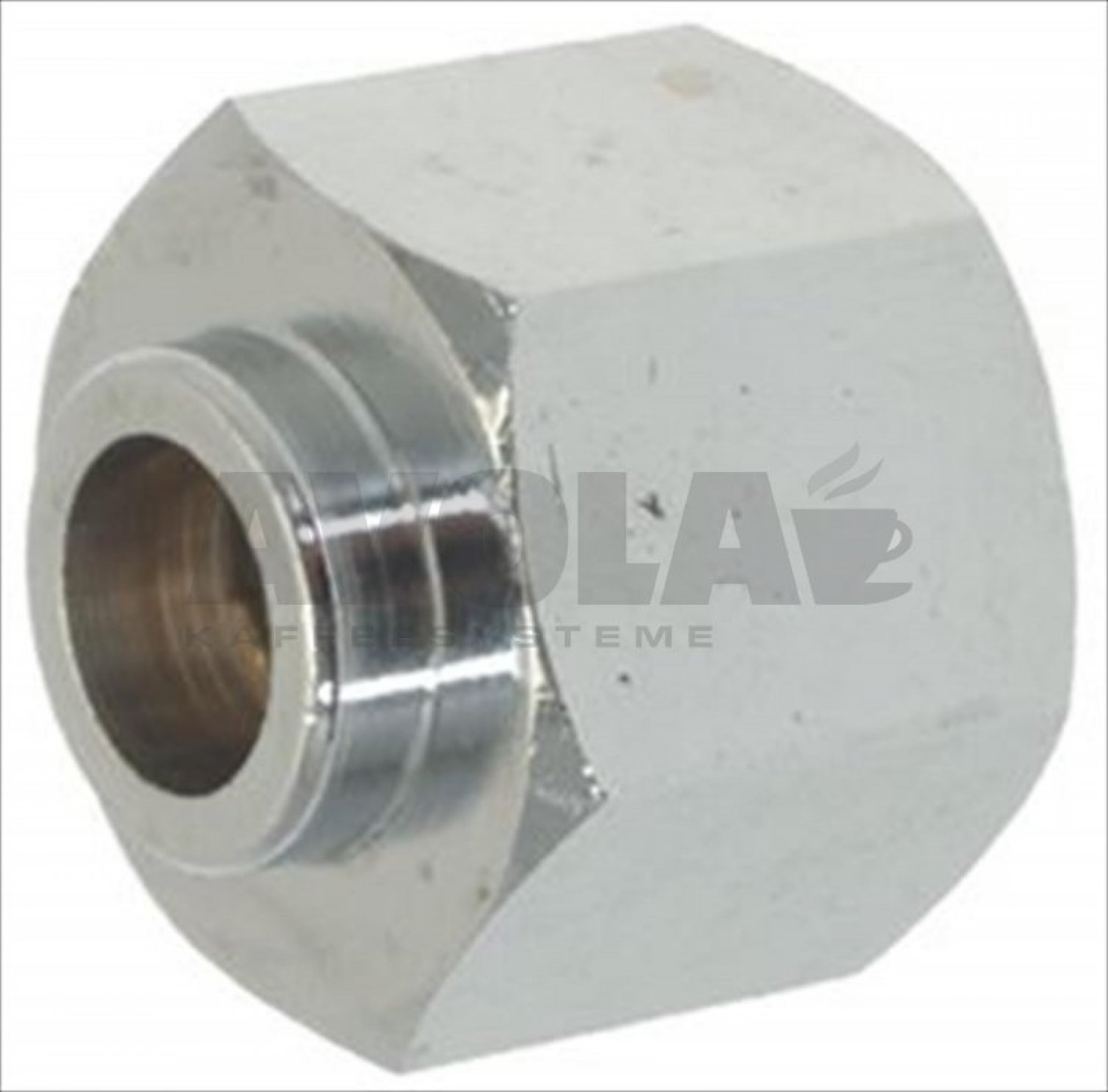

1vorderanschluss fuer einlaufhahn 8063054
VORDERANSCHLUSS FÜR EINLAUFHAHN
5,24 €

excl. Shipping costs

Delivery time 4-6 weeks..

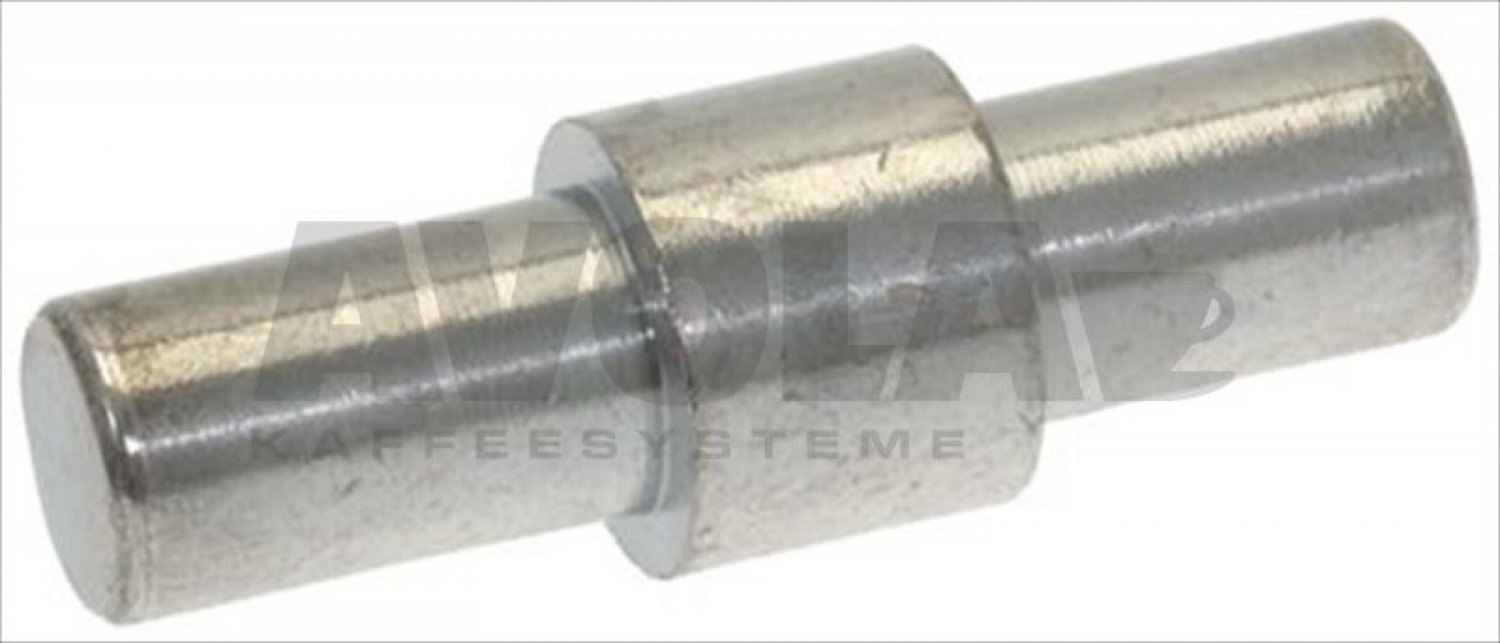

2stift fuer einlaufhahn 8005162
STIFT FÜR EINLAUFHAHN
7,85 €

excl. Shipping costs

Delivery time 4-6 weeks..
3feder o 14x22 mm fuer hahnwelle 8003630
FEDER ø 14x22 mm FÜR HAHNWELLE
0,95 €

excl. Shipping costs

Delivery time 4-6 weeks..
4o ring 03043 viton 8001513
O-RING 03043 VITON
1,18 €

excl. Shipping costs

immediately available
6square pin 12 1 mm 6x6 mm m3 8005113
SQUARE PIN 12.1 mm 6x6 mm M3
1,90 €

excl. Shipping costs

immediately available, 6 available
7brass washer 6x3x0 5 mm 8001584
BRASS WASHER 6x3x0,5 mm
0,68 €

excl. Shipping costs

immediately available, 17 available
8nbr flat gasket o 13x4x4 mm 8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs

immediately available
9gasket holder bushing 8001568
GASKET HOLDER BUSHING
3,26 €

excl. Shipping costs

immediately available, 12 available
10tap spring o 12 5x30 mm 8003671
TAP SPRING ø 12,5x30 mm
2,98 €

excl. Shipping costs

immediately available, 9 available
11spring 8x30 mm 8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs

immediately available, 17 available
12stainless steel ball o 8 mm 8005084
STAINLESS STEEL BALL ø 8 mm
2,46 €

excl. Shipping costs

immediately available, 6 available
13ptfe flat gasket o 24x18x2 mm 8001579
PTFE FLAT GASKET ø 24x18x2 mm
1,46 €

excl. Shipping costs

immediately available, 18 available
14tap coupling 8005807
TAP COUPLING
Price on request
16o ring 0108 epdm 8001655
O-RING 0108 EPDM
0,79 €

excl. Shipping costs

immediately available
19inlet tap body 8005469
INLET TAP BODY
36,22 €

excl. Shipping costs

Delivery time 4-6 weeks..
20flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
21e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
22feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
23einstellbolzen fuer ventil 8063055
EINSTELLBOLZEN FÜR VENTIL
10,12 €

excl. Shipping costs

Delivery time 4-6 weeks..

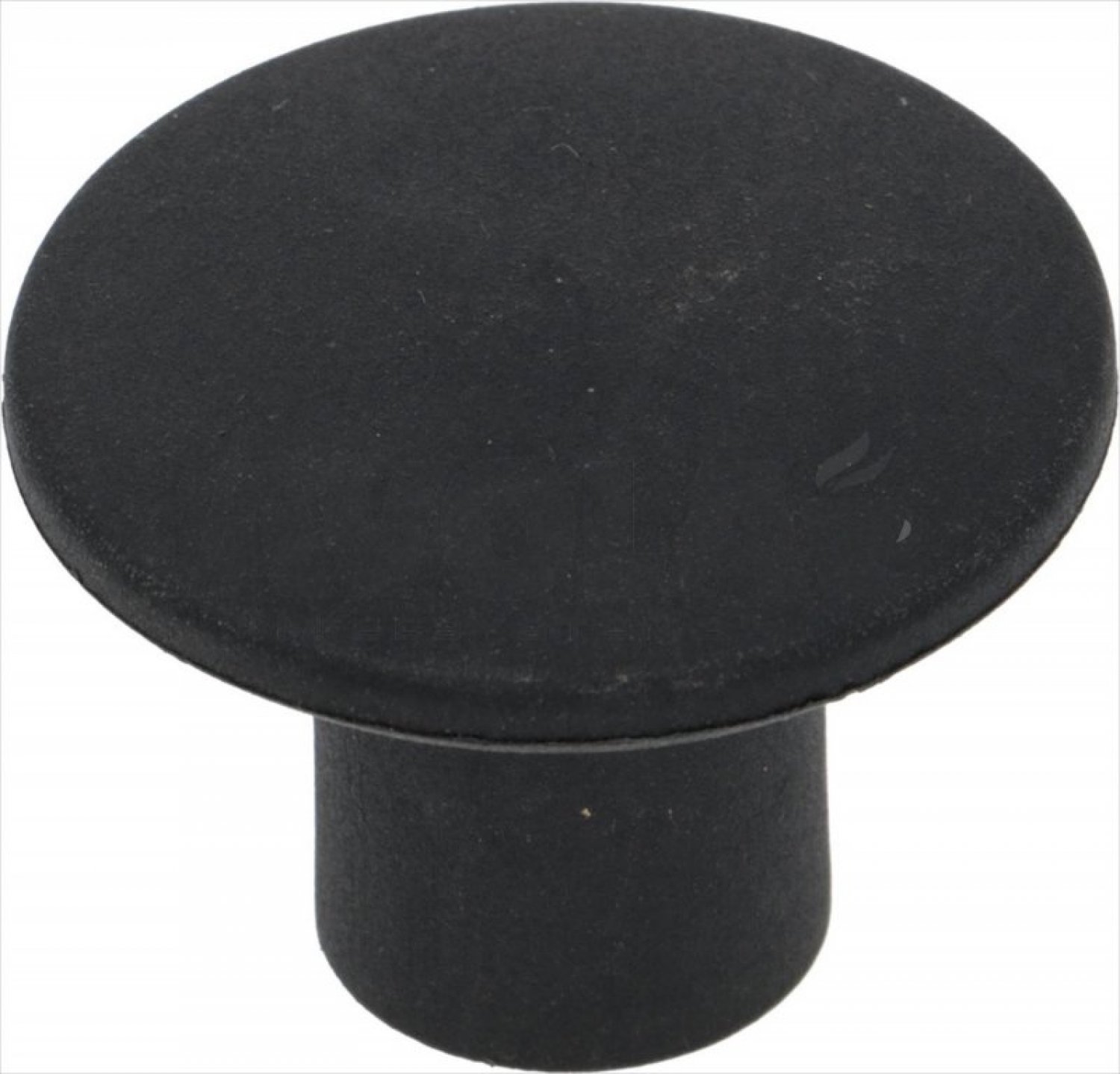

30water inlet tap knob 8003261
WATER INLET TAP KNOB
5,56 €

excl. Shipping costs

Delivery time 4-6 weeks..
31nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 13 available
33tap spindle 8005120
TAP SPINDLE
14,76 €

excl. Shipping costs

Delivery time 4-6 weeks
35inlet valve 8007108
INLET VALVE
4,95 €

excl. Shipping costs

immediately available
36triangular non return valve 8007062
TRIANGULAR NON-RETURN VALVE
3,49 €

excl. Shipping costs

Delivery time
is determined
40water inlet tap 8005476
WATER INLET TAP
33,25 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
