VICTORIA ARDUINO - ATHENA HEBEL-AUSLAUFGRUPPE

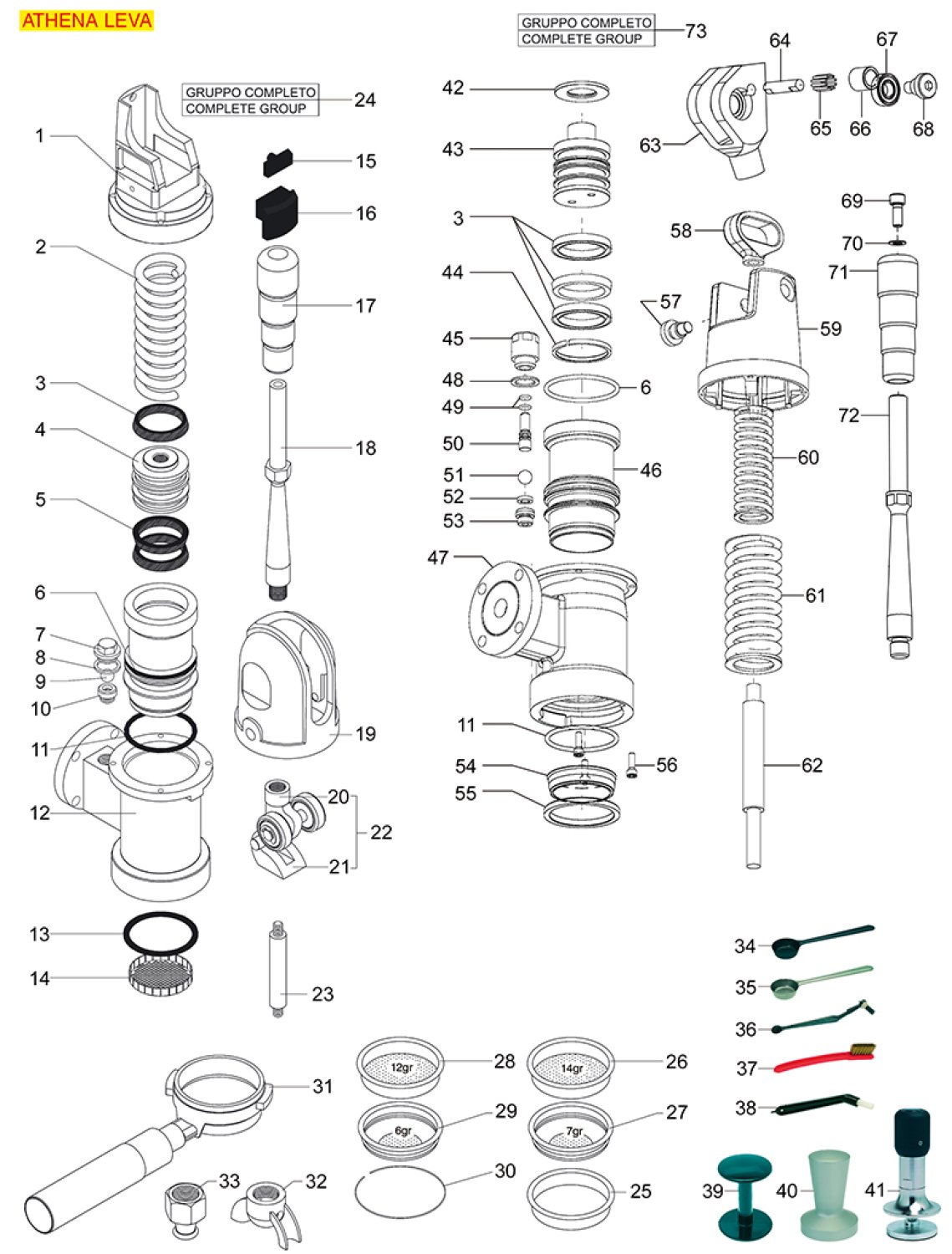

Drawing number 8063173

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

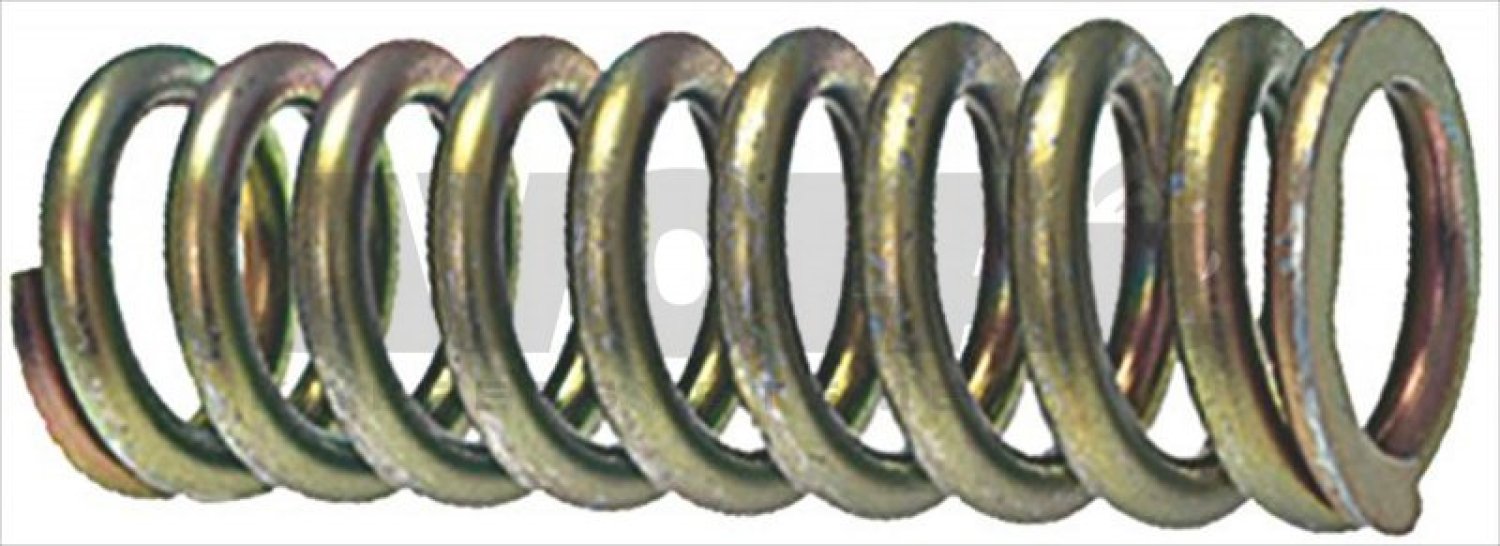

2lever group spring 46x141mm 8003807
LEVER GROUP SPRING 46x141MM
18,14 €

excl. Shipping costs

immediately available, 1 available

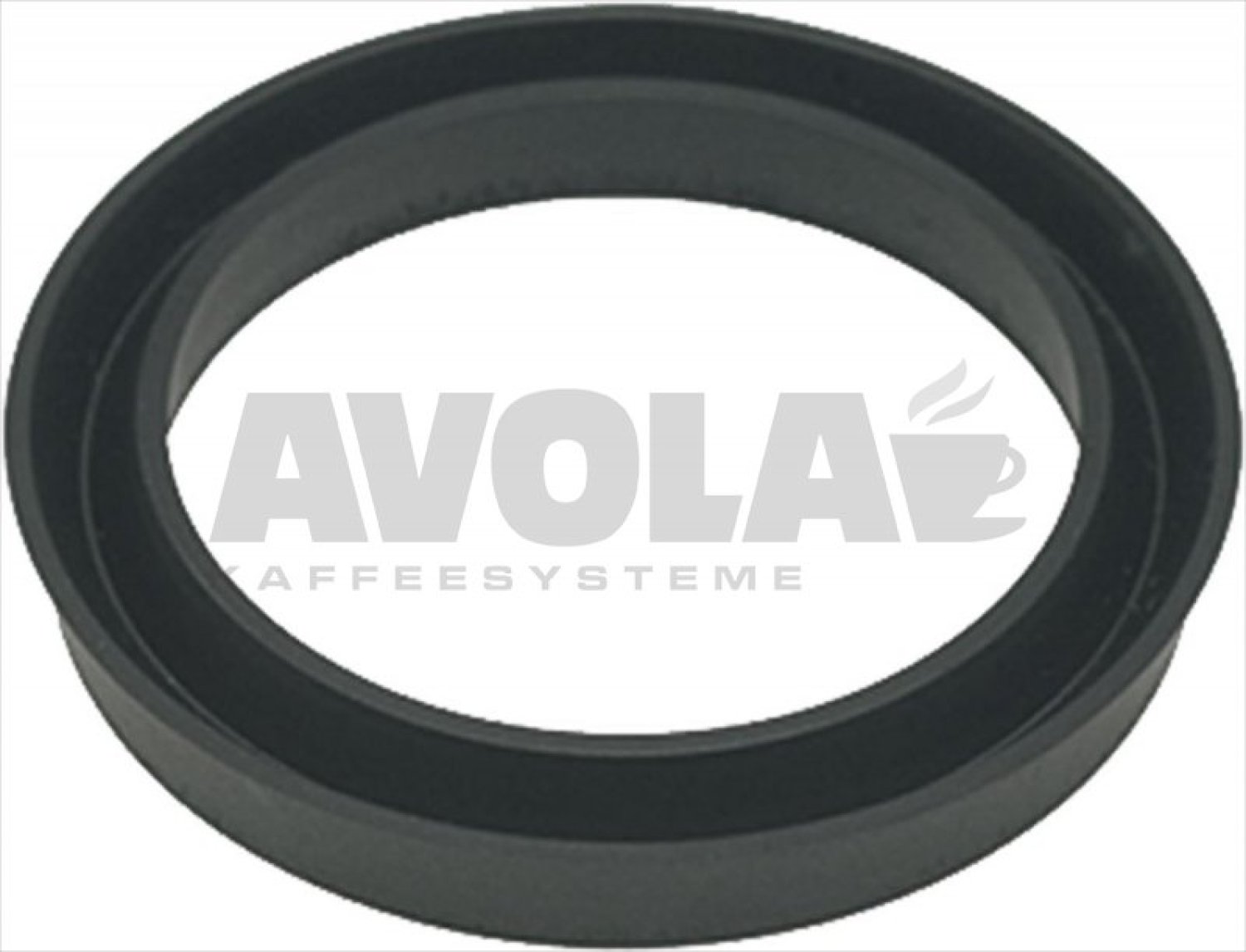

3lip seal o 52x40x7 mm 8001482
LIP SEAL ø 52x40x7 mm
2,95 €

excl. Shipping costs

immediately available, 18 available

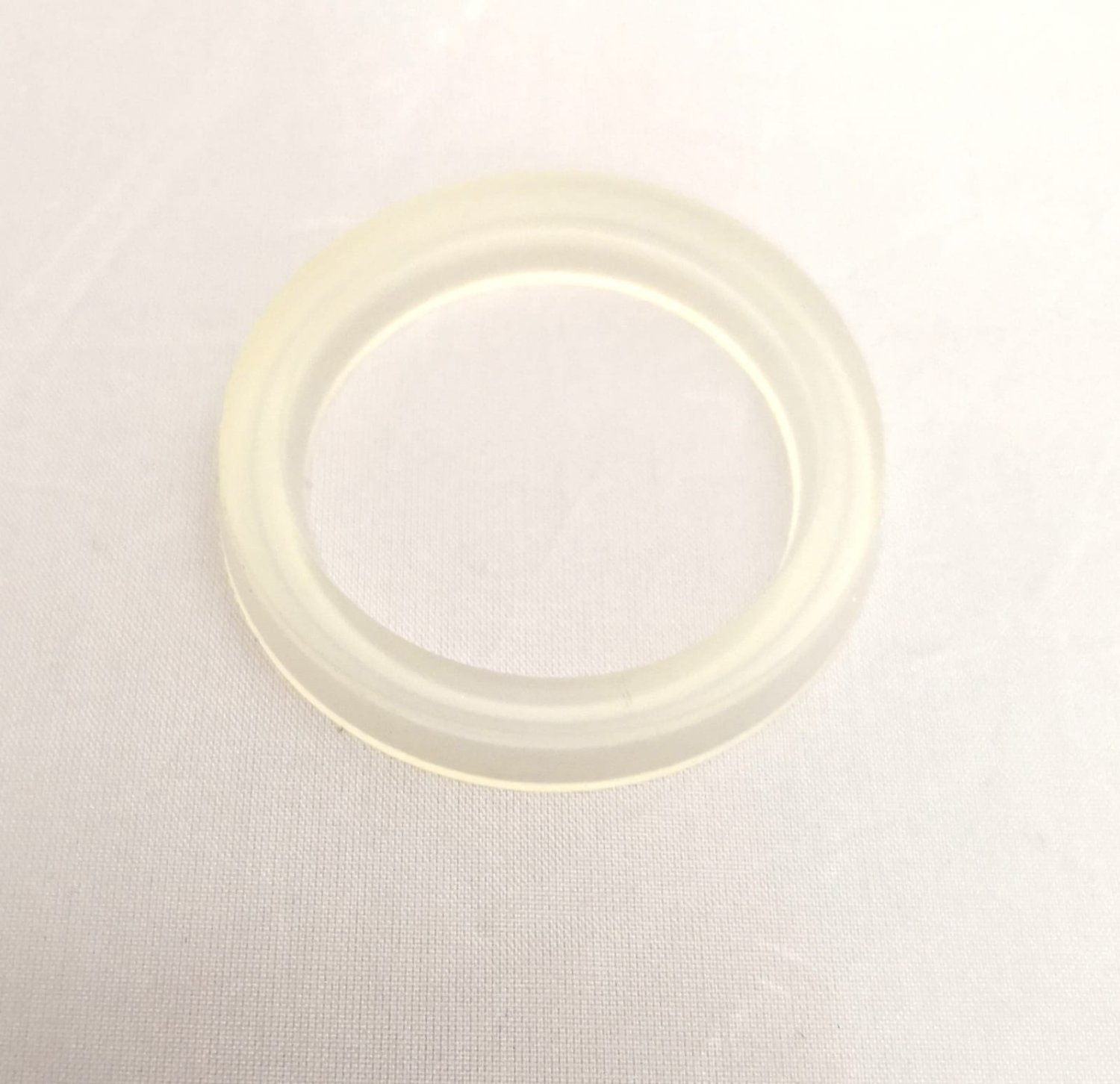

3lippendichtung handhebelgruppe o 52x40x7 mm silikon profitec 8137175
Lippendichtung Handhebelgruppe ø 52x40x7 mm Silikon Profitec
4,50 €

excl. Shipping costs

immediately available

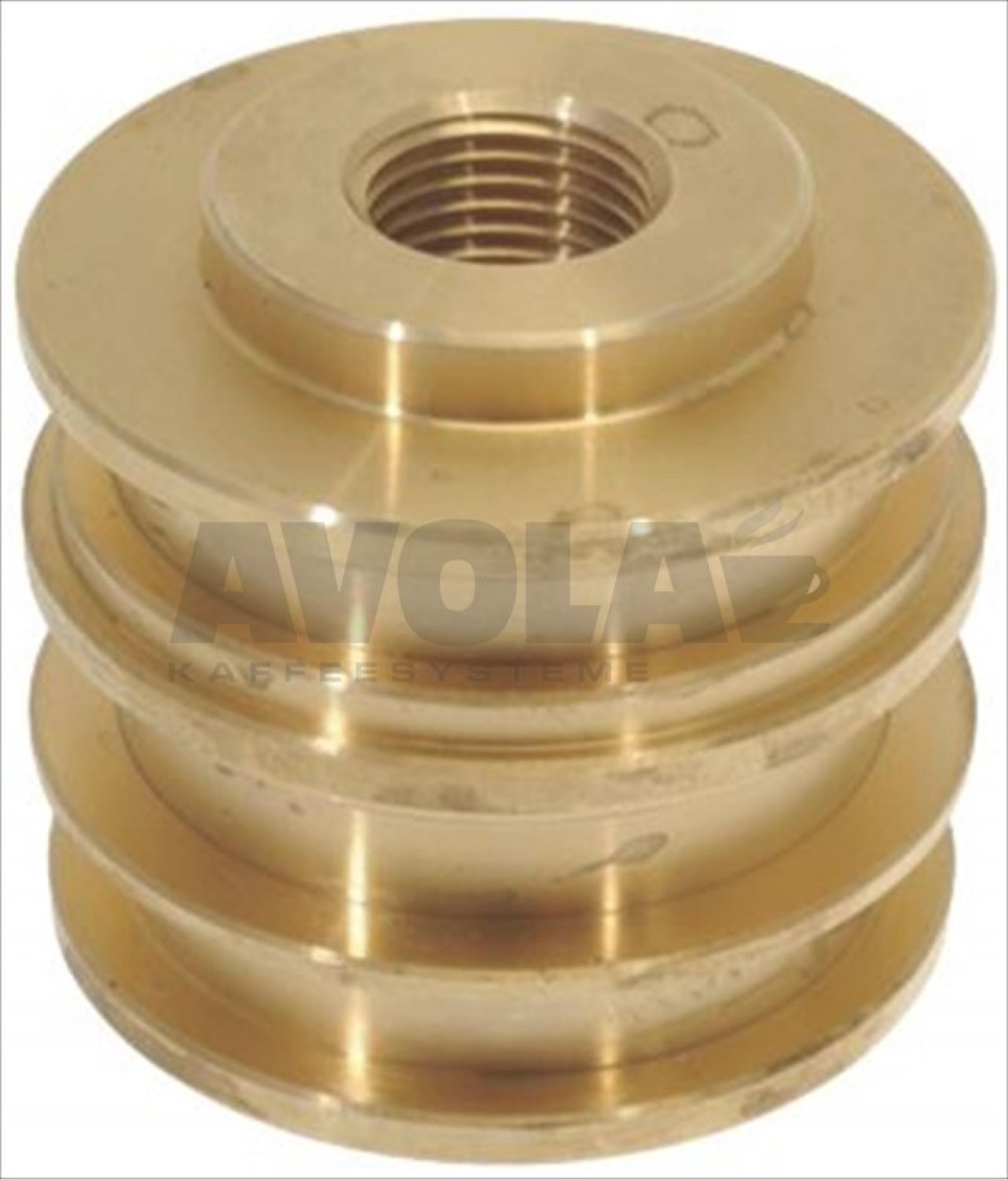

4kolben fuer hebelgruppe 8001295
KOLBEN FÜR HEBELGRUPPE
78,62 €

excl. Shipping costs

Delivery time 4-6 weeks..
5lip seal o 52x40x7 mm 8001482
LIP SEAL ø 52x40x7 mm
2,95 €

excl. Shipping costs

immediately available, 18 available
5lippendichtung handhebelgruppe o 52x40x7 mm silikon profitec 8137175
Lippendichtung Handhebelgruppe ø 52x40x7 mm Silikon Profitec
4,50 €

excl. Shipping costs

immediately available

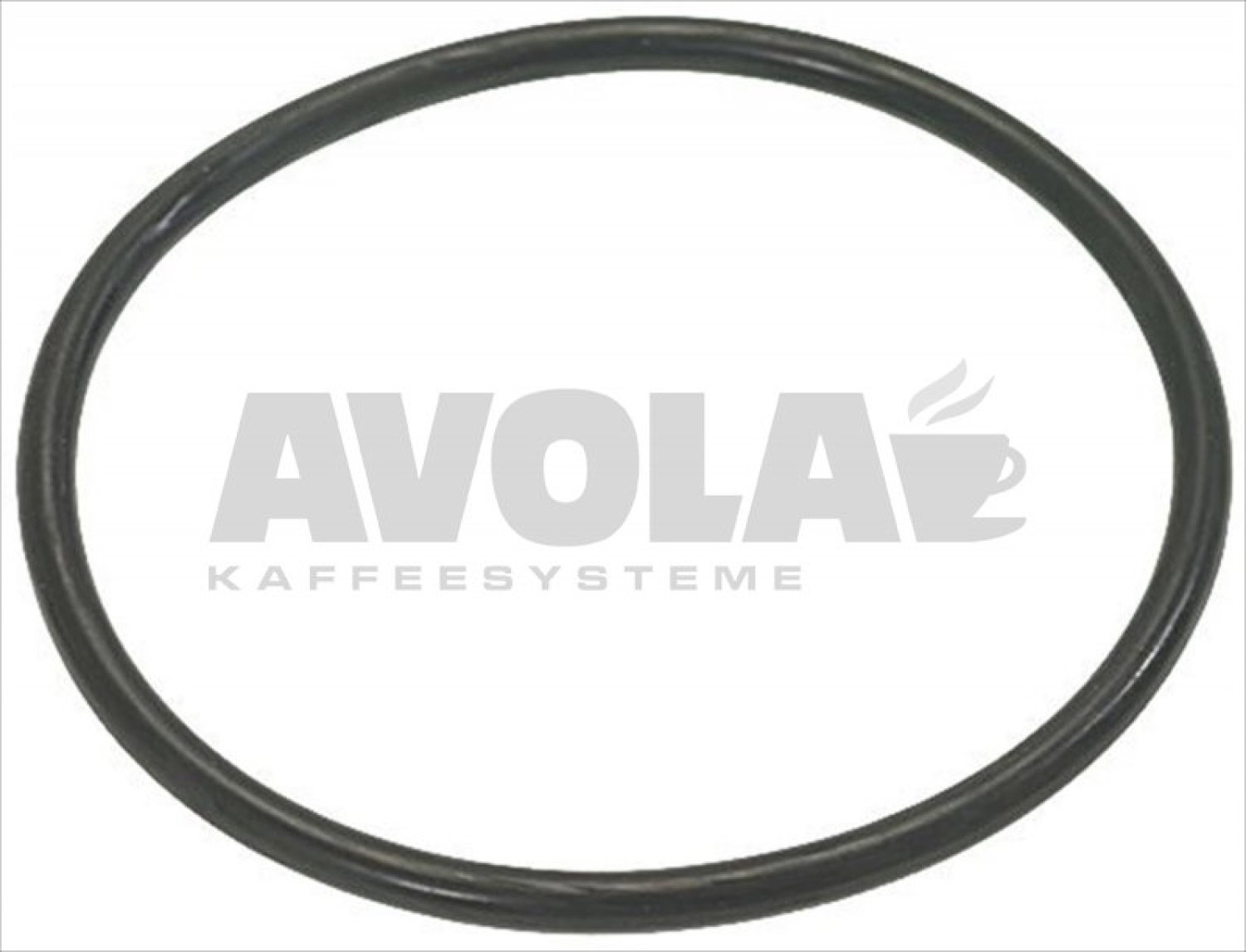

6o ring 0162 epdm 8001484
O-RING 0162 EPDM
4,01 €

excl. Shipping costs

immediately available
6lippendichtung handhebelgruppe o 52x40x7 mm silikon profitec 8137175
Lippendichtung Handhebelgruppe ø 52x40x7 mm Silikon Profitec
4,50 €

excl. Shipping costs

immediately available

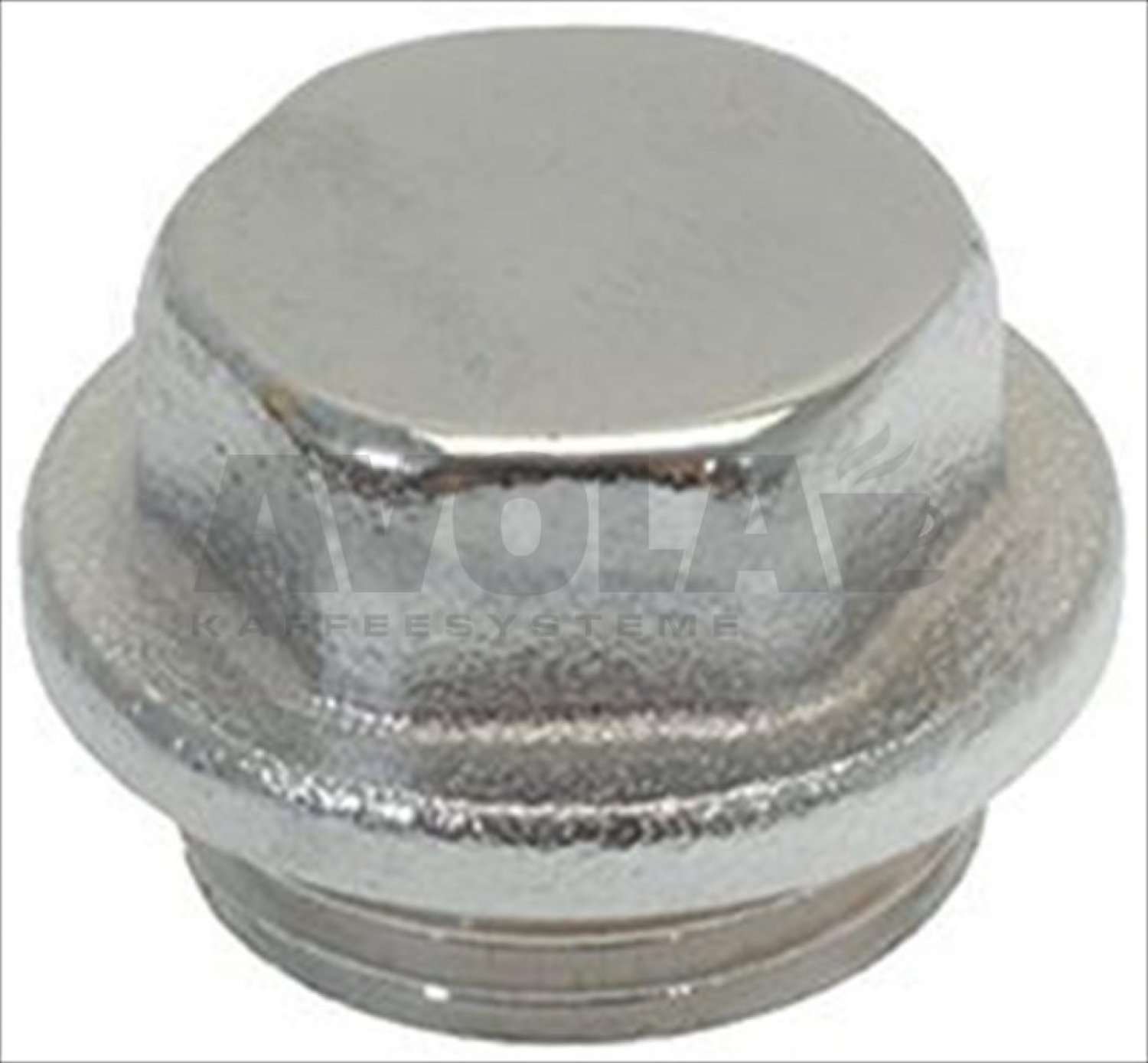

7cap 8006411
CAP
13,16 €

excl. Shipping costs

Delivery time 4-6 weeks..

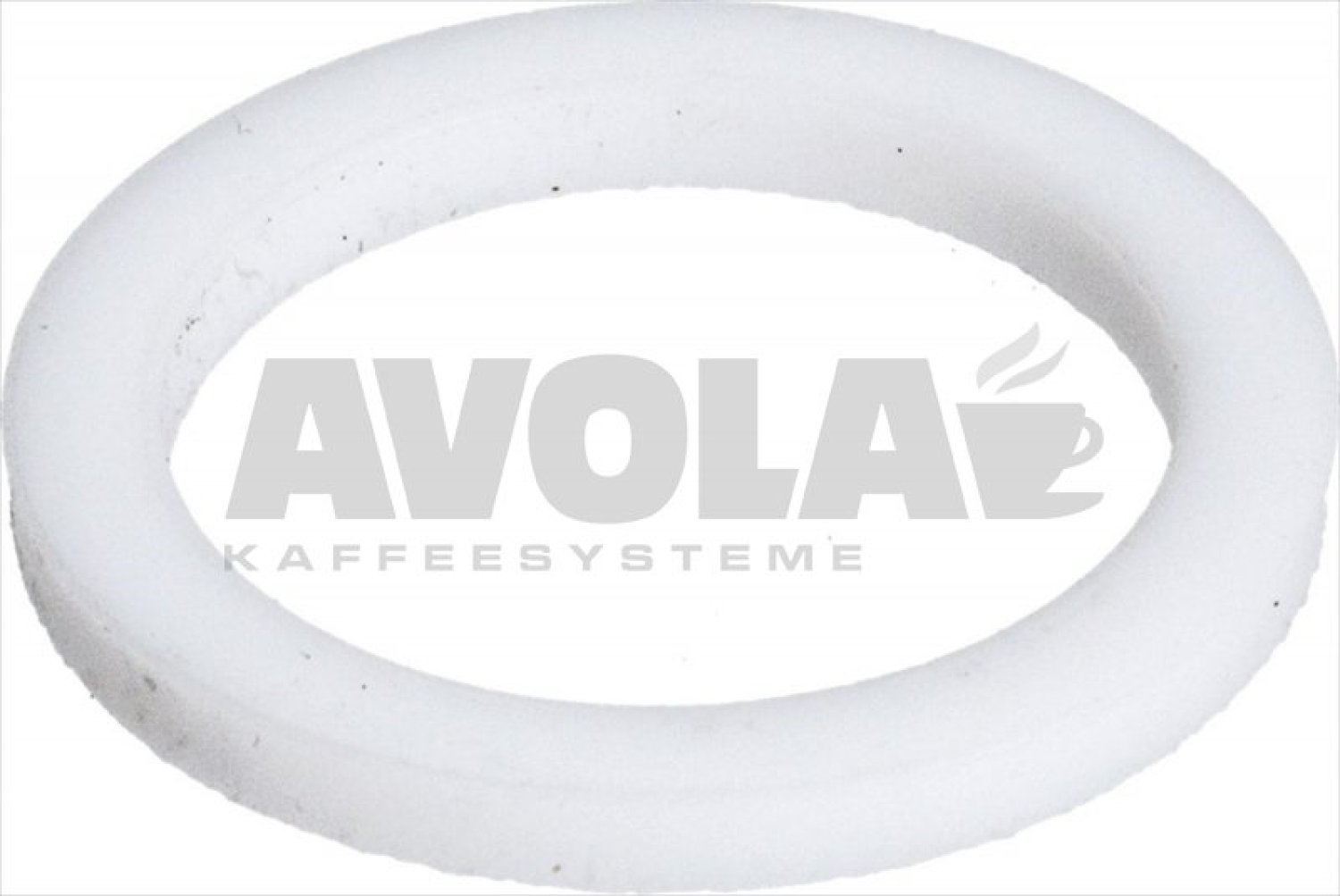

8ptfe flat gasket o 24x18x2 mm 8001579
PTFE FLAT GASKET ø 24x18x2 mm
1,70 €

excl. Shipping costs

immediately available, 11 available

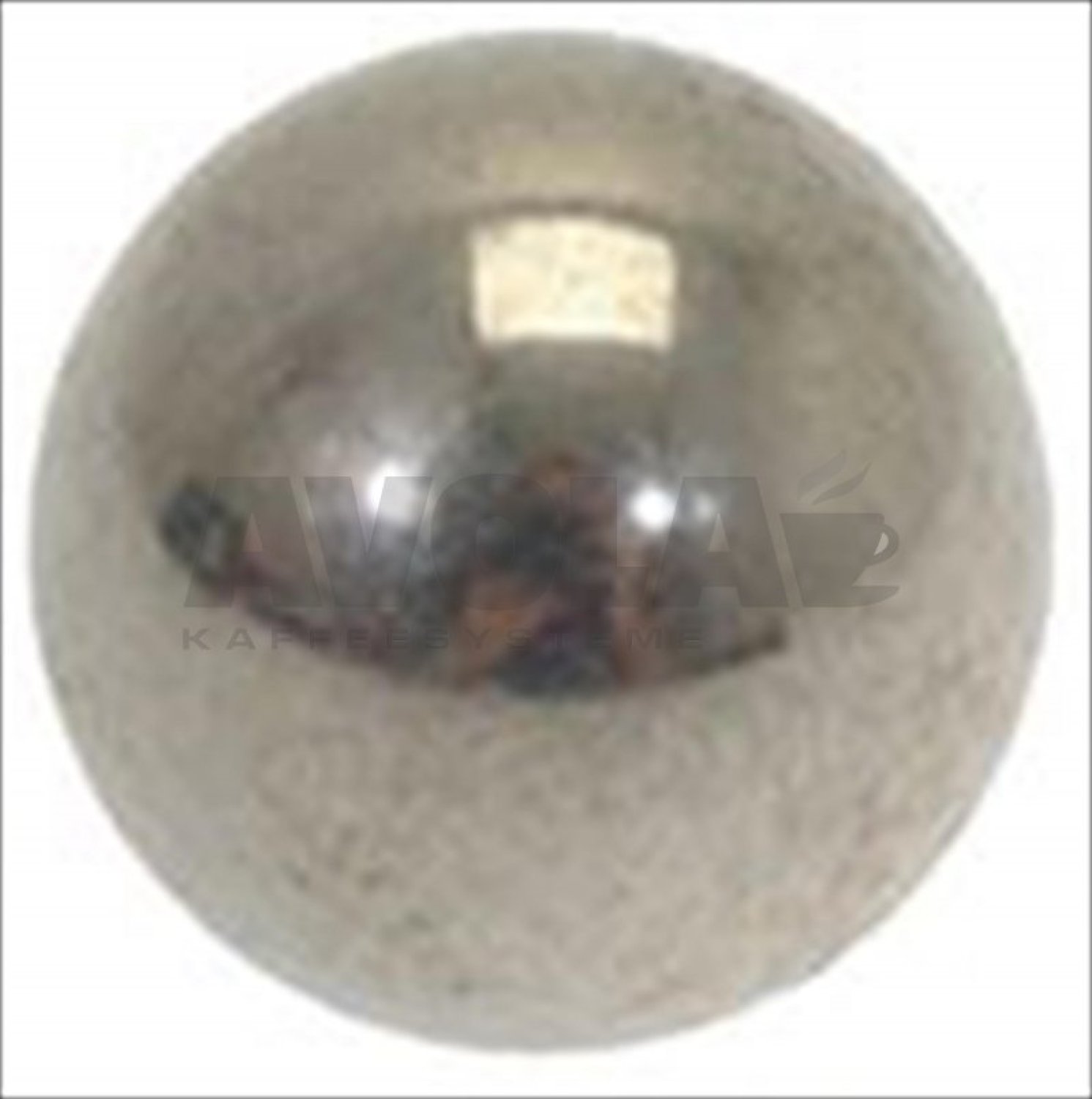

9stainless steel ball 8005088
STAINLESS STEEL BALL
7,98 €

excl. Shipping costs

immediately available, 5 available
10non return valve 1 4 8007101
NON-RETURN VALVE 1/4
11,58 €

excl. Shipping costs

immediately available, 3 available

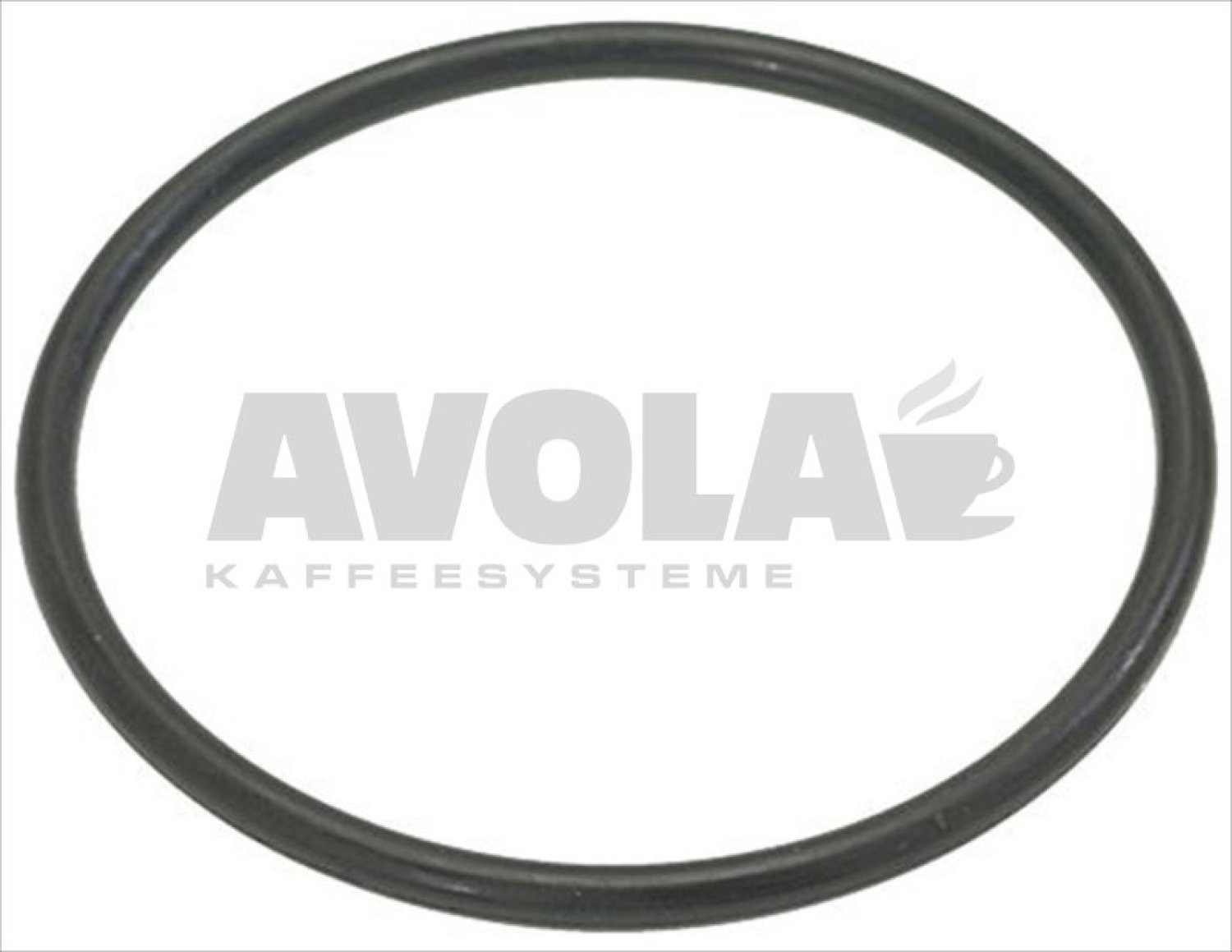

11o ring 0161 epdm 8001483
O-RING 0161 EPDM
2,17 €

excl. Shipping costs

immediately available

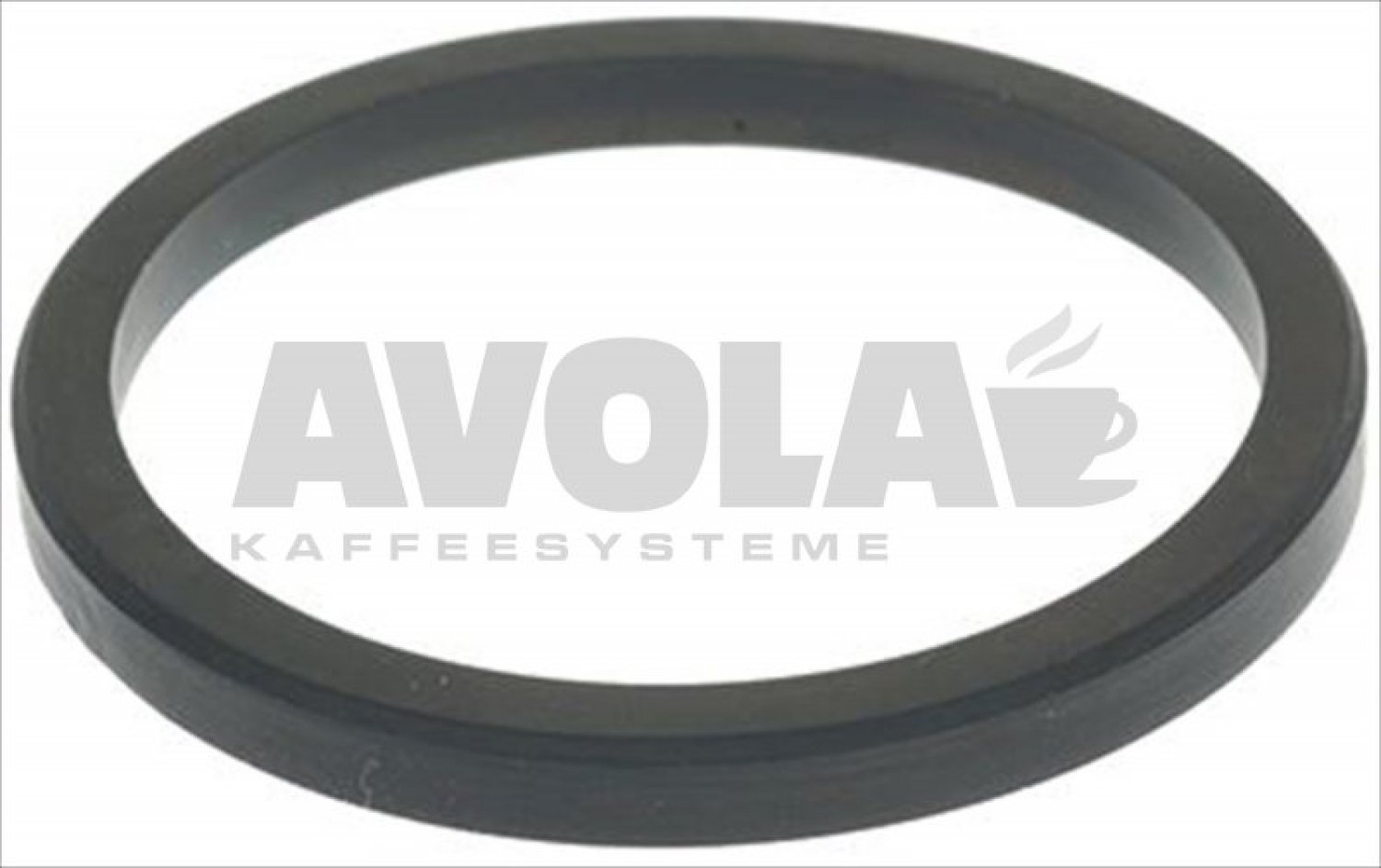

13filter holder gasket o 66x56x6 mm 8001848
FILTER HOLDER GASKET ø 66x56x6 mm
5,72 €

excl. Shipping costs

immediately available

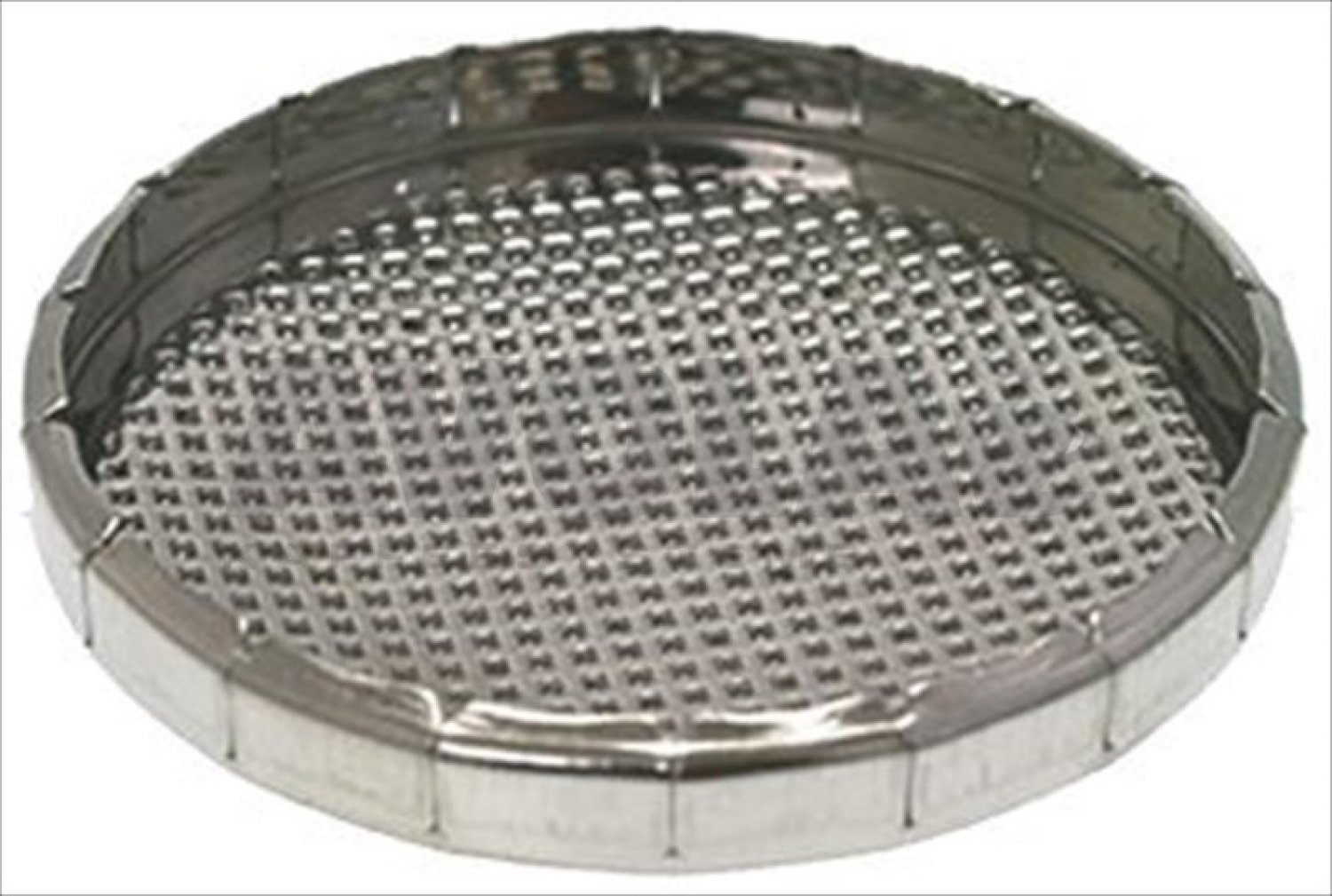

14shower screen o 57 5 mm 8000548
SHOWER SCREEN ø 57,5 mm
8,91 €

excl. Shipping costs

immediately available, 7 available

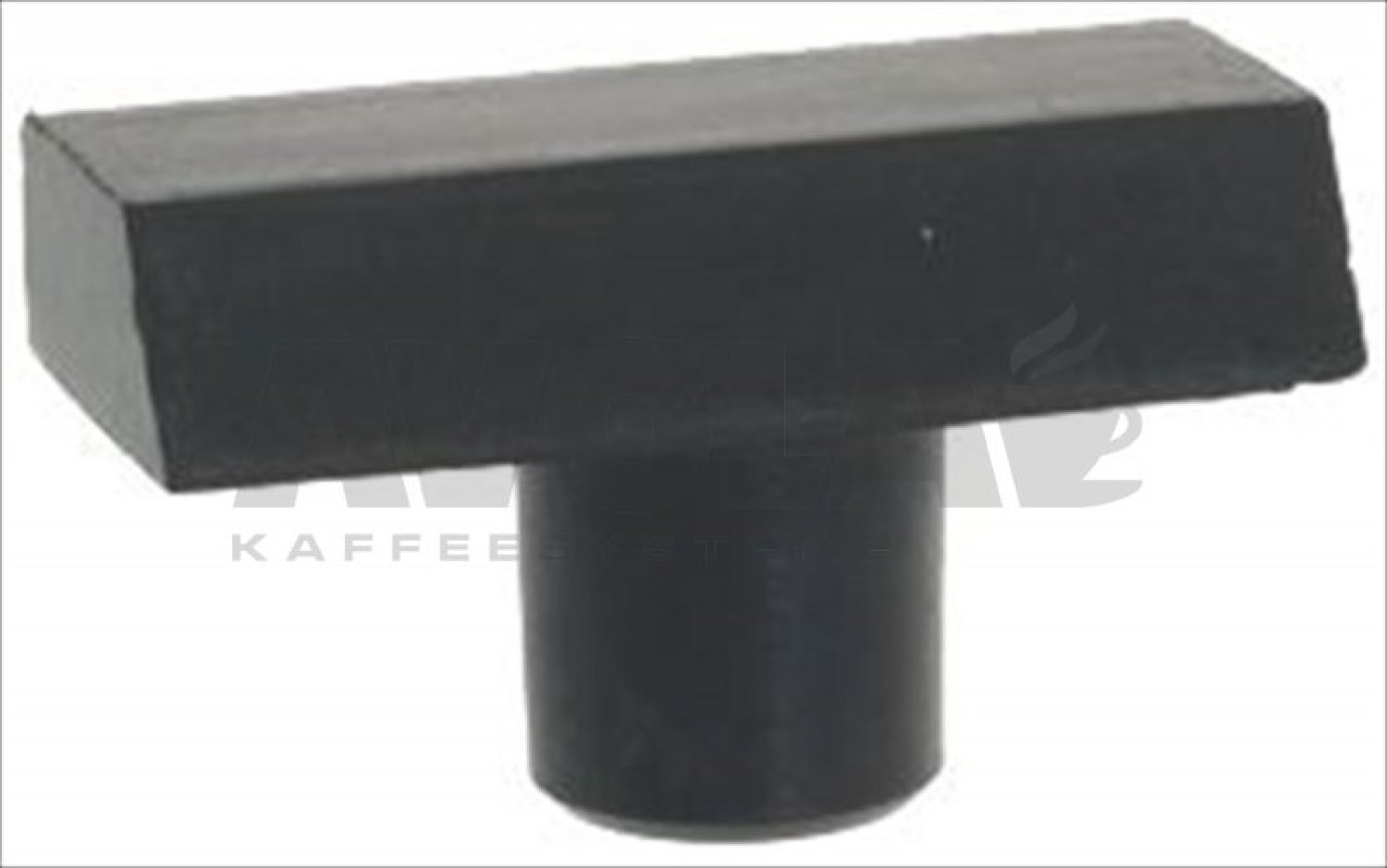

15rubber shock absorber 8001488
RUBBER SHOCK ABSORBER
4,27 €

excl. Shipping costs

immediately available, 4 available

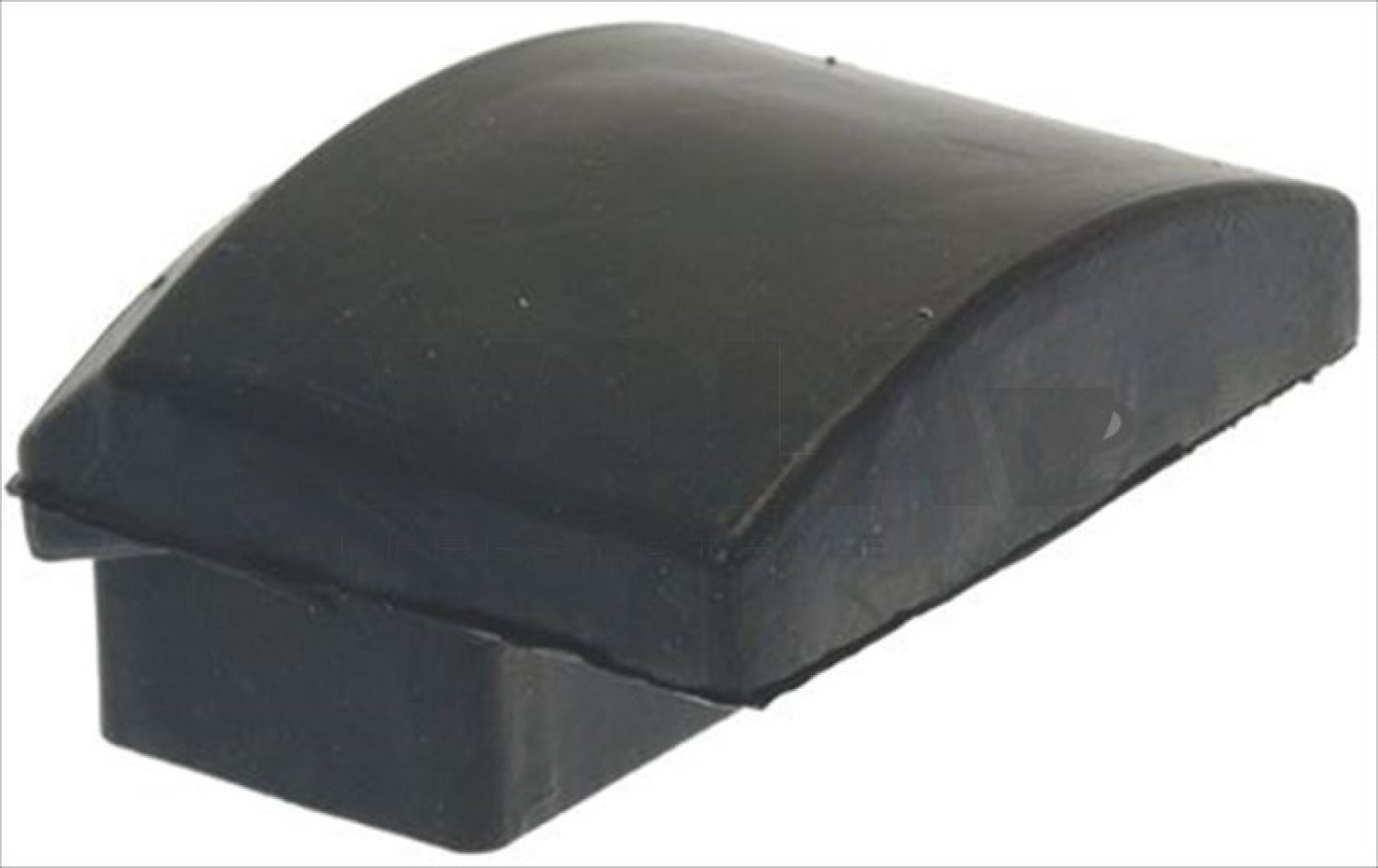

16rubber shock absorber 8001361
RUBBER SHOCK ABSORBER
7,75 €

excl. Shipping costs

immediately available, 5 available

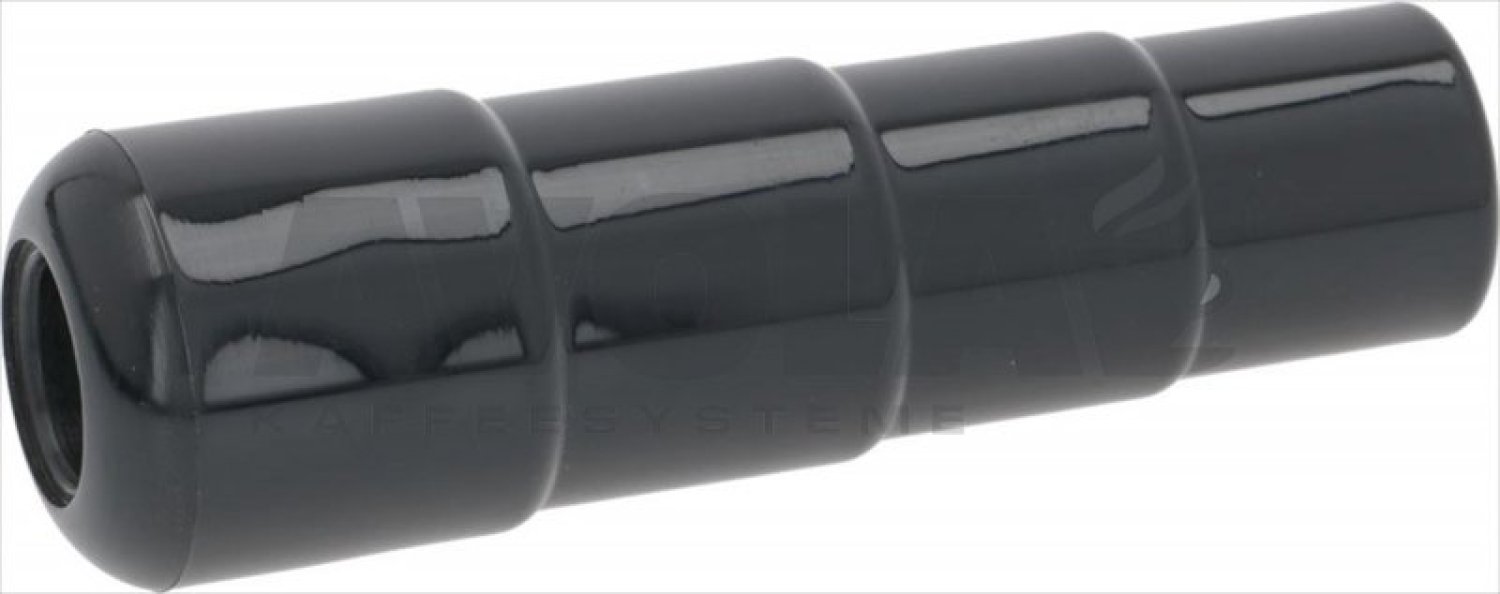

17lever group handle 8003246
LEVER GROUP HANDLE
11,39 €

excl. Shipping costs

Delivery time
is determined

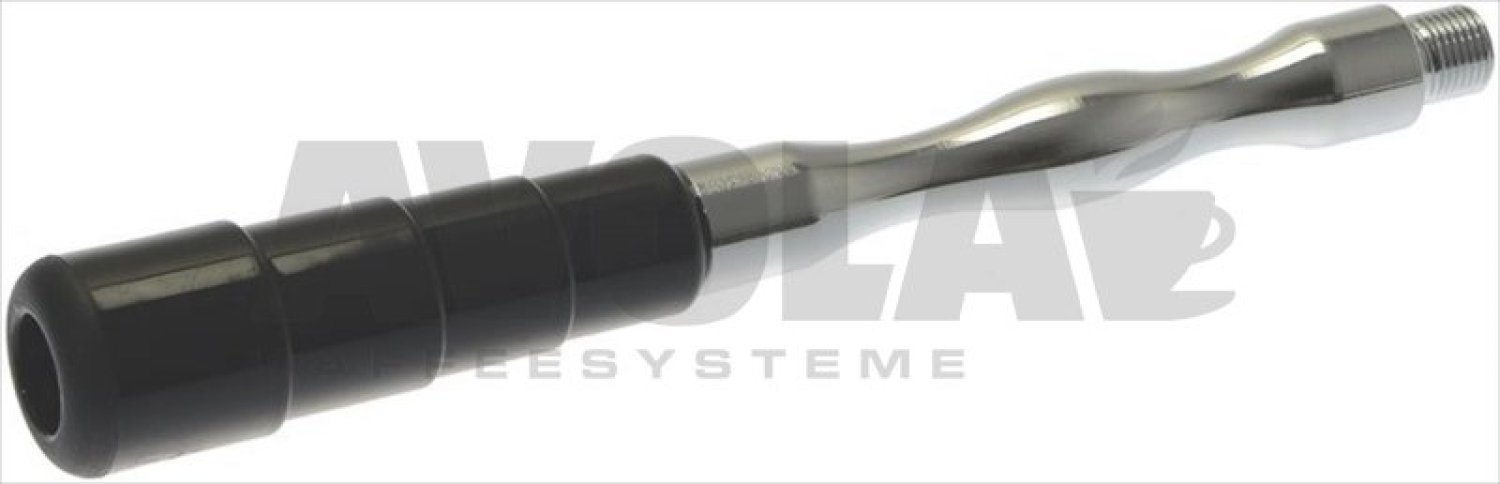

18drehknopf komplett hebelgruppe 8073817
DREHKNOPF KOMPLETT HEBELGRUPPE
65,63 €

excl. Shipping costs

Delivery time 4-6 weeks..

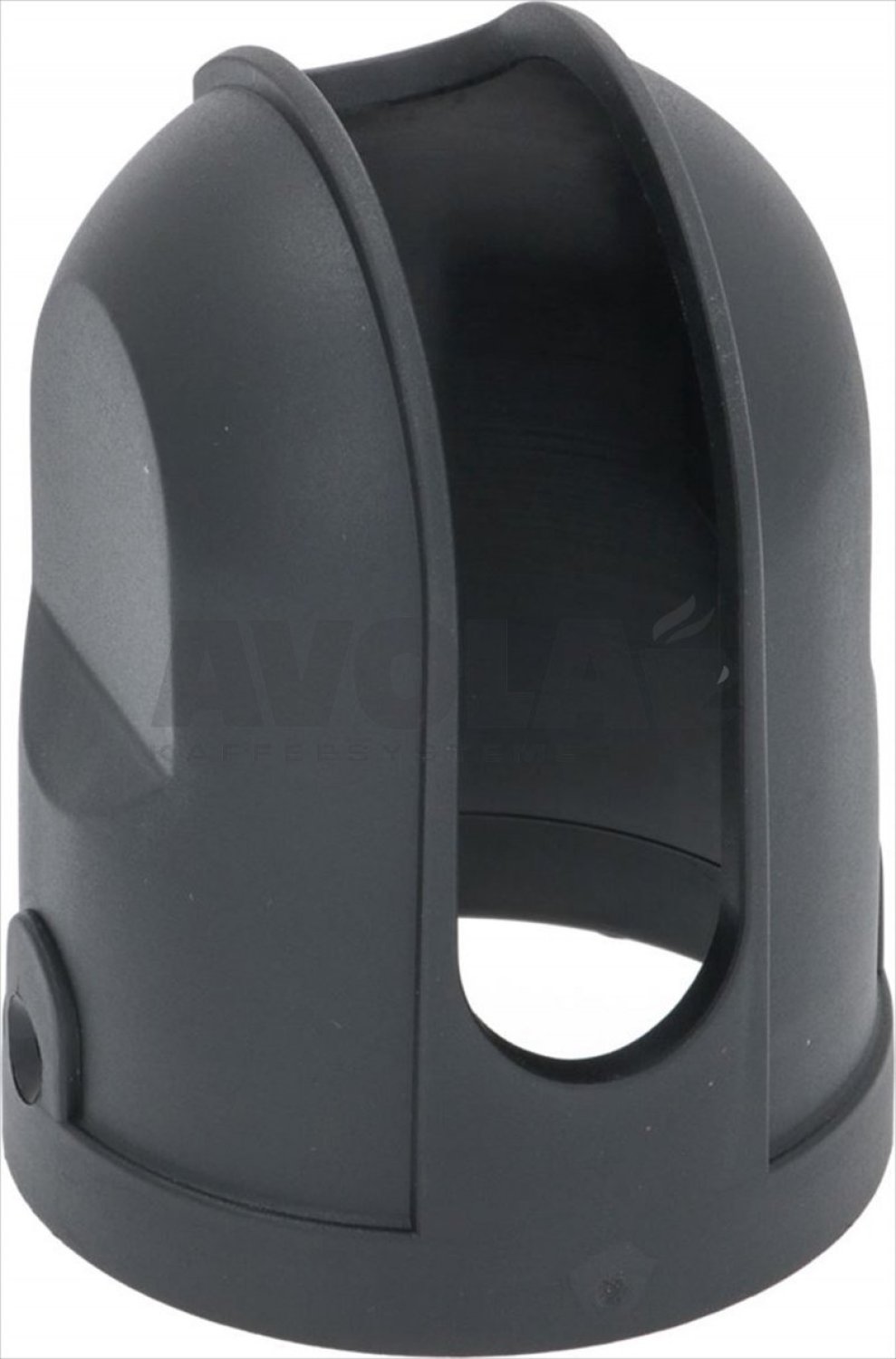

19cap for coffee group 8002263
CAP FOR COFFEE GROUP
12,84 €

excl. Shipping costs

immediately available, 3 available

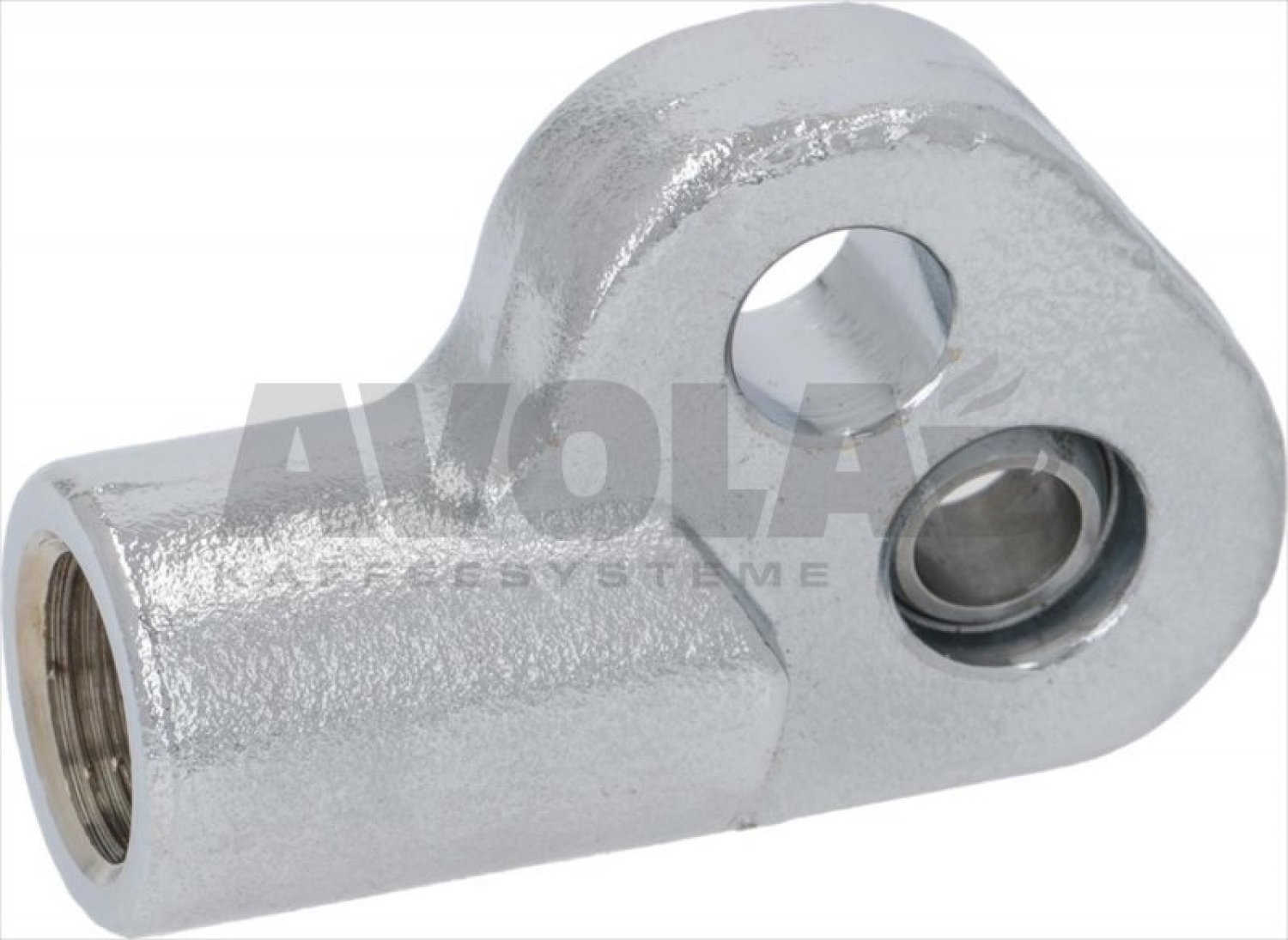

20chromium plated fork for lever group 8002264
CHROMIUM-PLATED FORK FOR LEVER GROUP
52,71 €

excl. Shipping costs

immediately available, 1 available

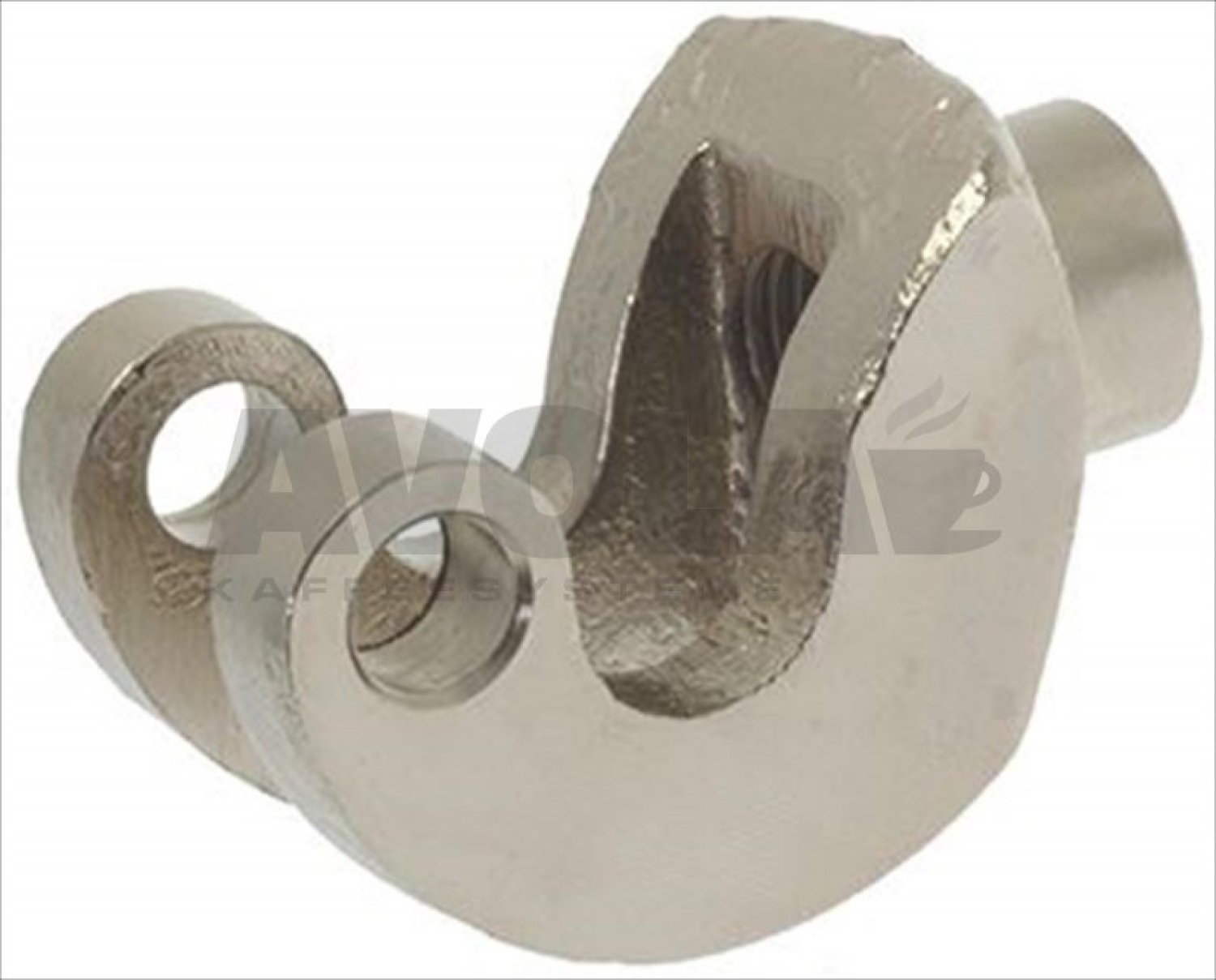

21gabel chromiert fuer hebelgruppe 8002195
GABEL CHROMIERT FÜR HEBELGRUPPE
34,71 €

excl. Shipping costs

Delivery time 4-6 weeks..

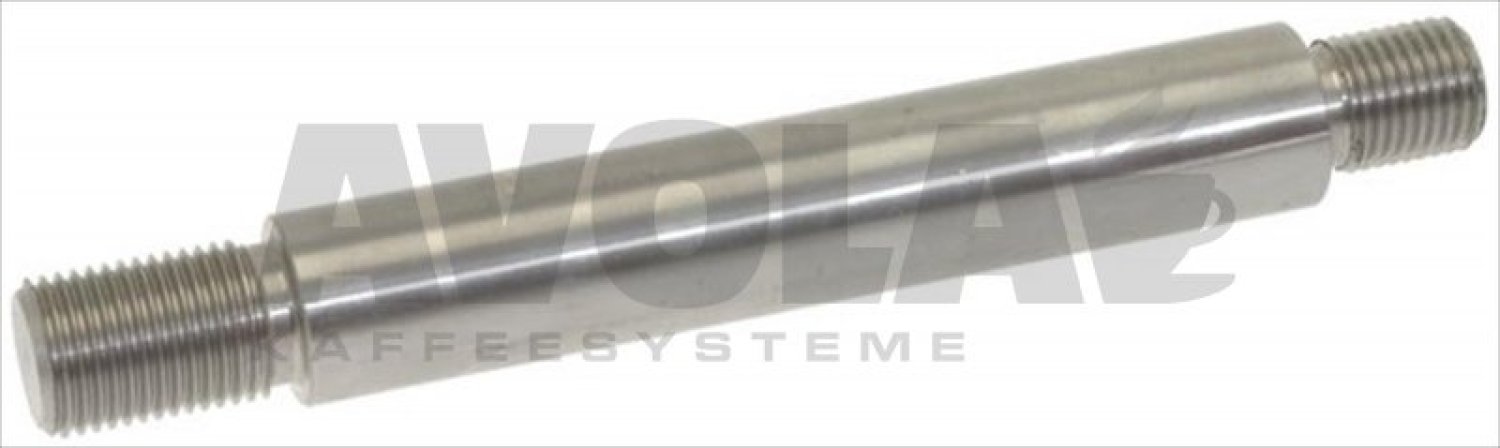

23welle fuer hebelgruppegabel 8005130
WELLE FÜR HEBELGRUPPEGABEL
Price on request
25blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,58 €

excl. Shipping costs

immediately available
262 cups filter 14 gr o 70x24 5 mm 8001058
2 Cups Filter 14 gr ø 70x24,5 mm
5,53 €

excl. Shipping costs

immediately available, 10 available
282 cups filter 12 gr 8001064
2 CUPS FILTER 12 gr
6,32 €

excl. Shipping costs

immediately available, 7 available
291 cup filter 6 gr 8001063
1 CUP FILTER 6 gr
Price on request
30filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,06 €

excl. Shipping costs

immediately available

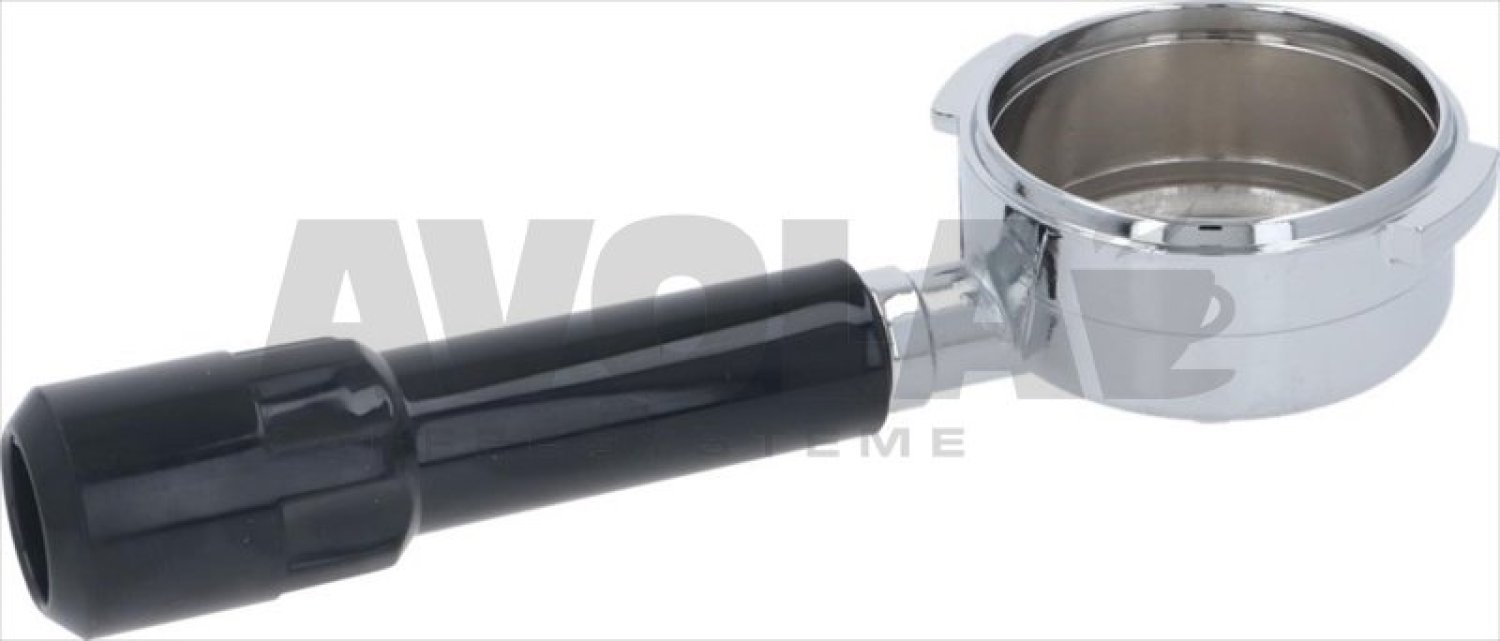

31complete filter holder victoria arduino 8063477
COMPLETE FILTER HOLDER VICTORIA ARDUINO
Price on request

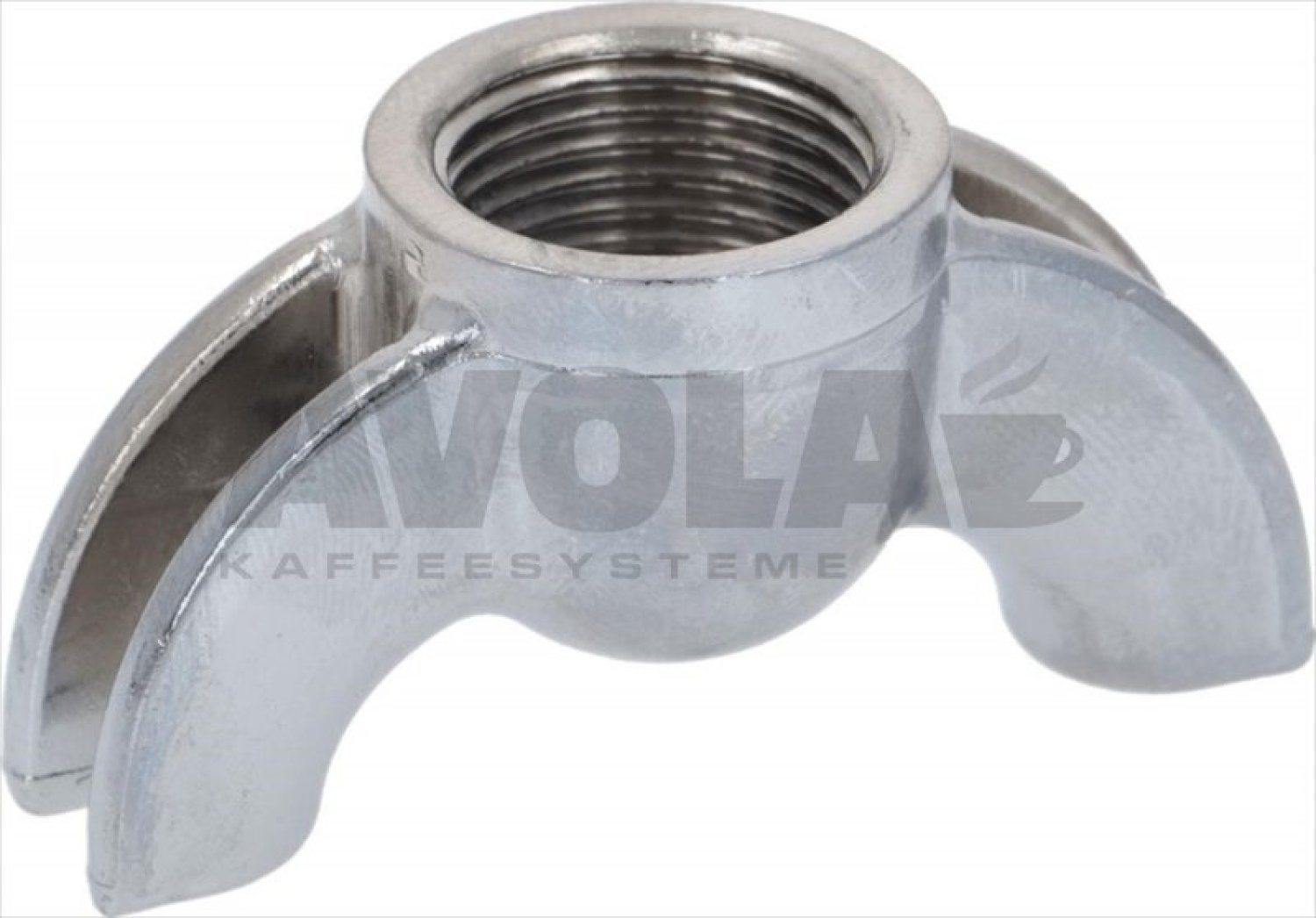

32double spout o 3 8 25 00mm 8000123
DOUBLE SPOUT ø 3/8 - 25,00mm
7,18 €

excl. Shipping costs

immediately available, 6 available

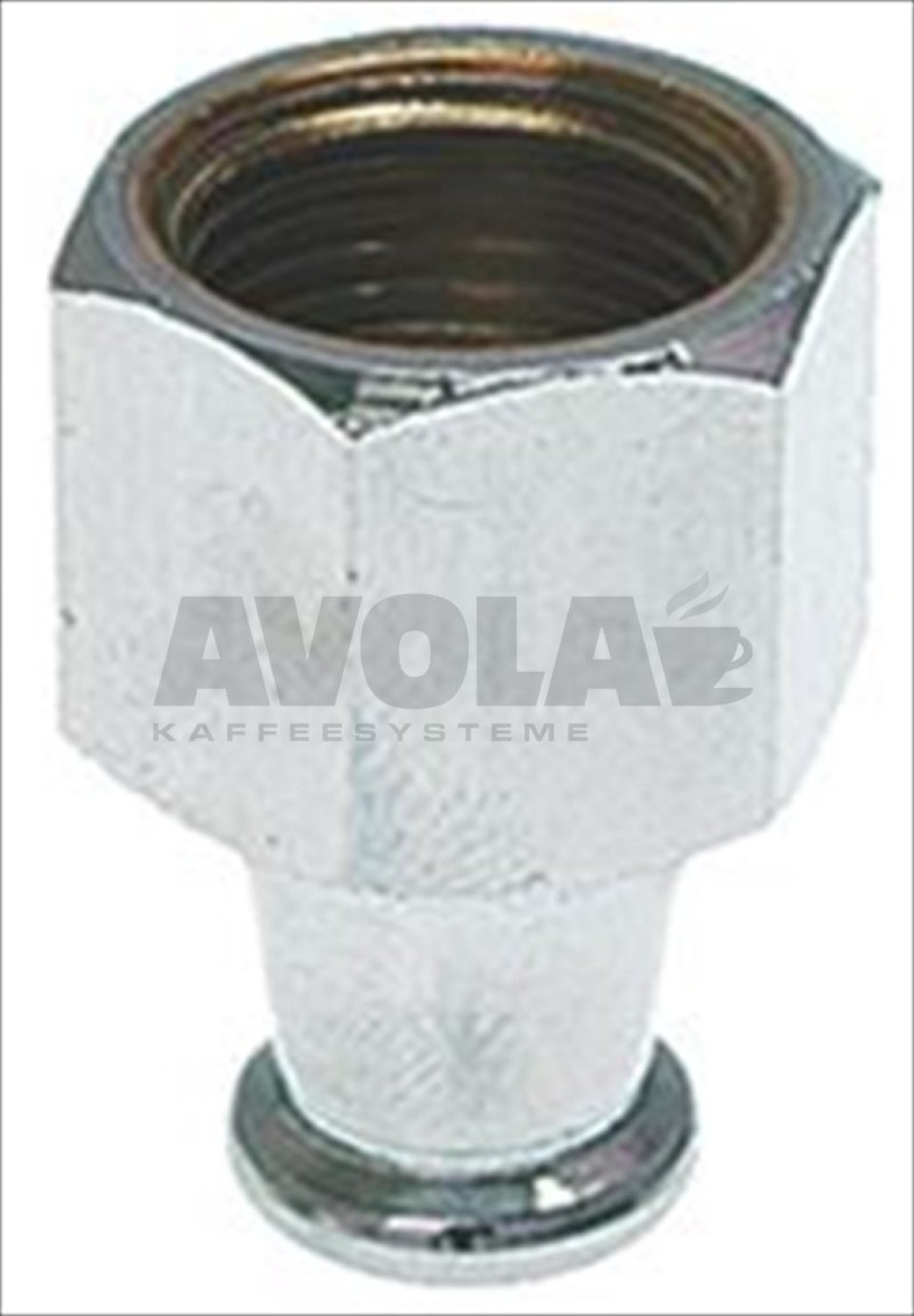

331 cup straight short spout 8064590
1-CUP STRAIGHT SHORT SPOUT
3,07 €

excl. Shipping costs

immediately available, 6 available

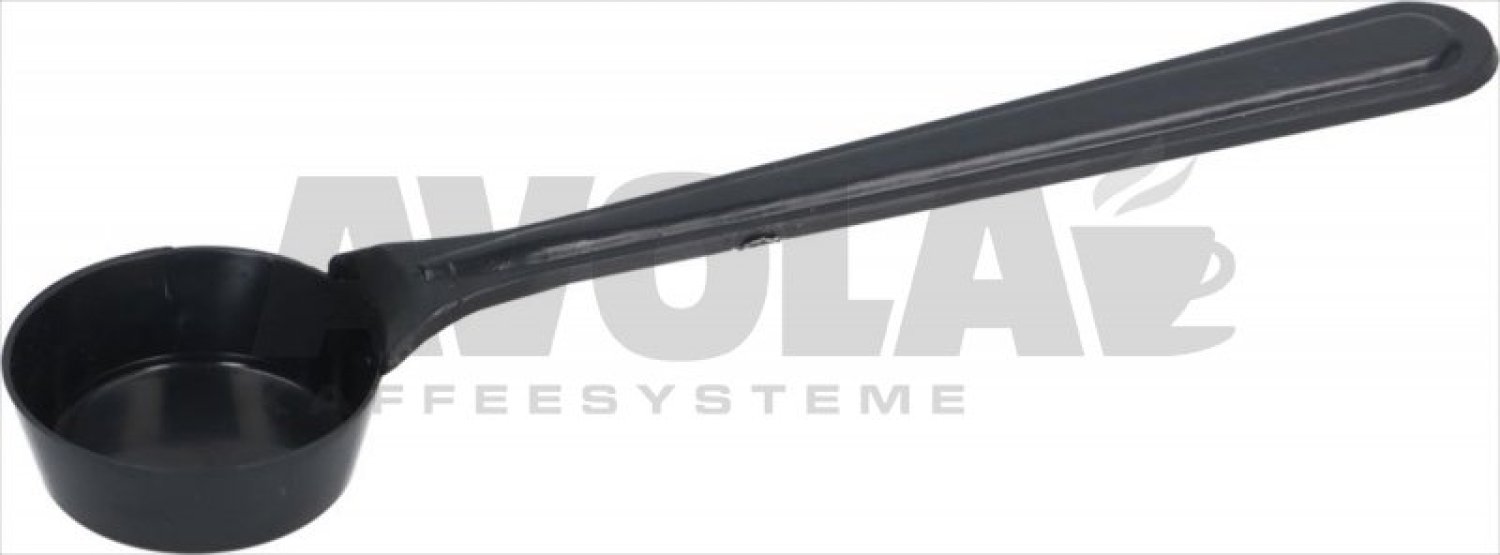

34plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,74 €

excl. Shipping costs

immediately available, 15 available

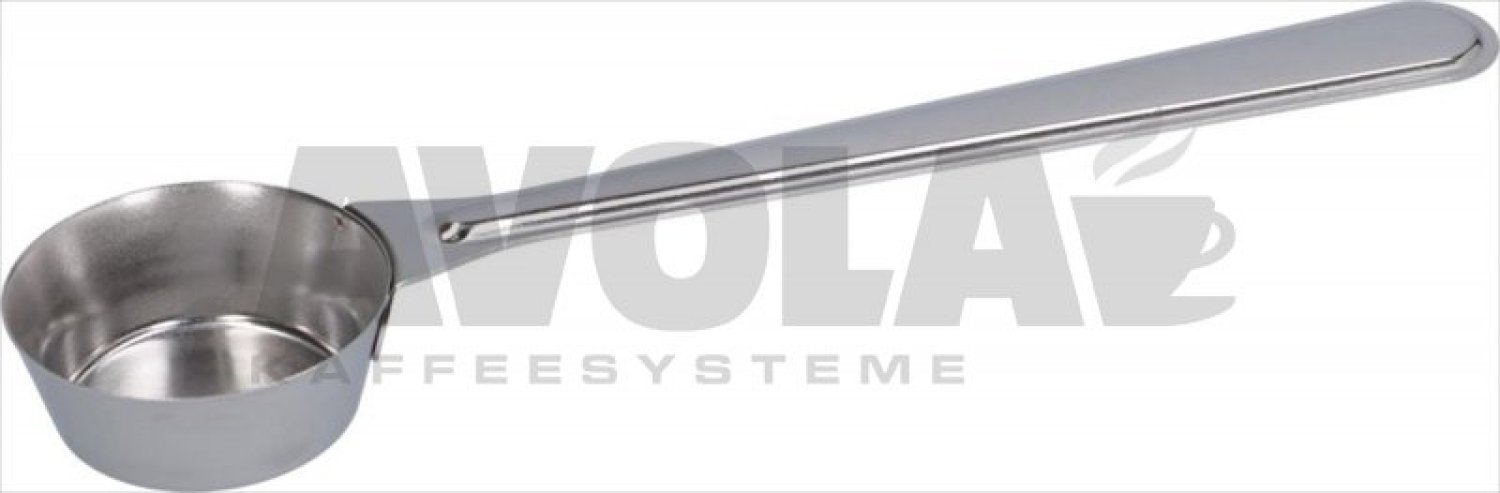

35stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
5,06 €

excl. Shipping costs

Delivery time
is determined

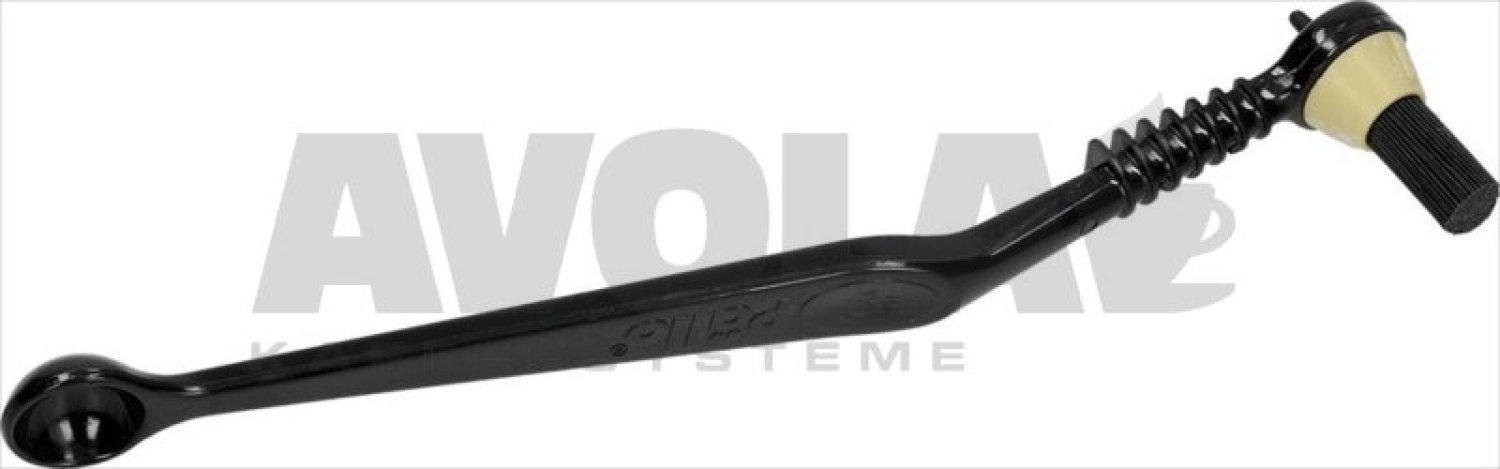

36black shower cleaning brush 8006155
BLACK SHOWER CLEANING BRUSH
14,21 €

excl. Shipping costs

immediately available, 4 available

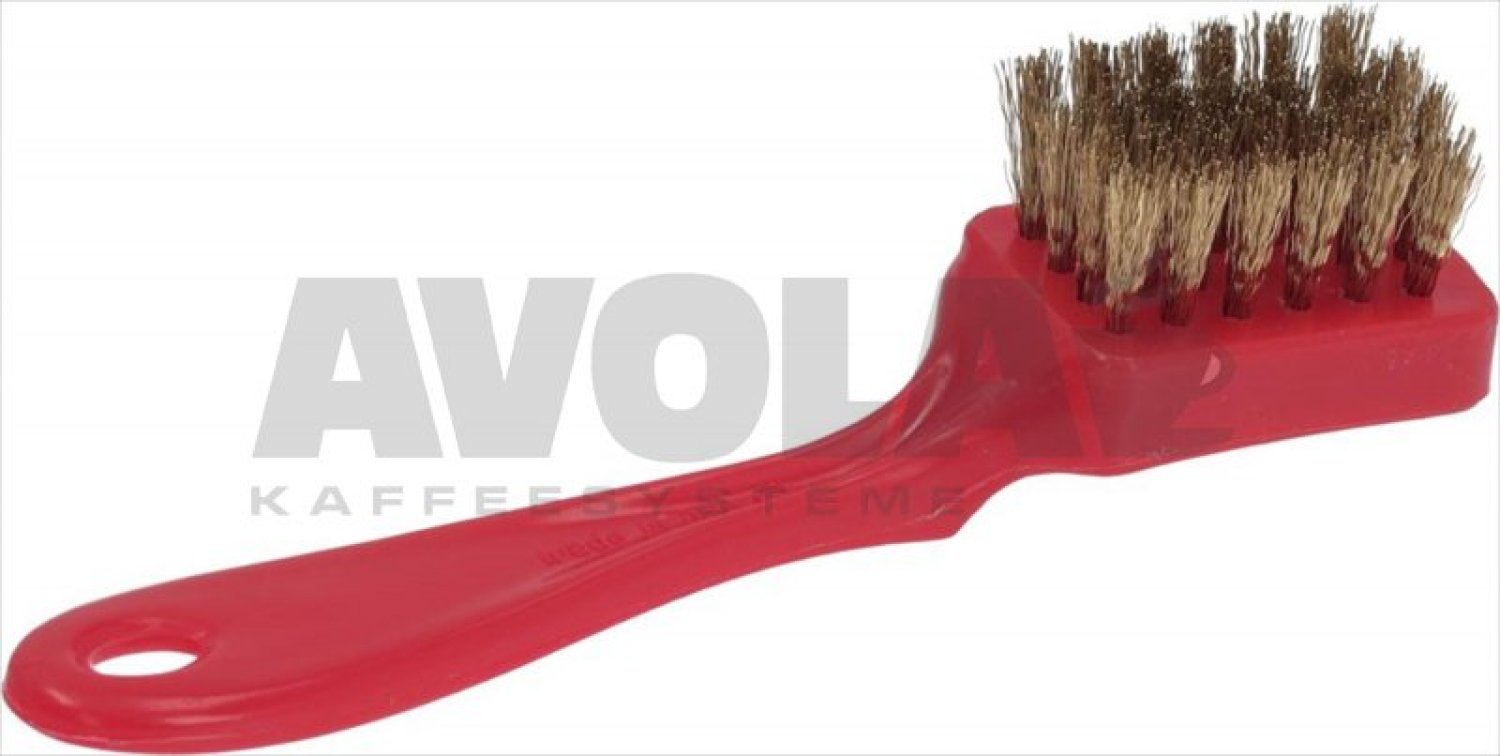

37brush for maintenance 8006154
BRUSH FOR MAINTENANCE
4,56 €

excl. Shipping costs

immediately available, 7 available
38brush for coffee shower 8006153
BRUSH FOR COFFEE SHOWER
3,94 €

excl. Shipping costs

immediately available
39nylon coffee tamper 8006165
NYLON COFFEE TAMPER
2,77 €

excl. Shipping costs

immediately available, 10 available

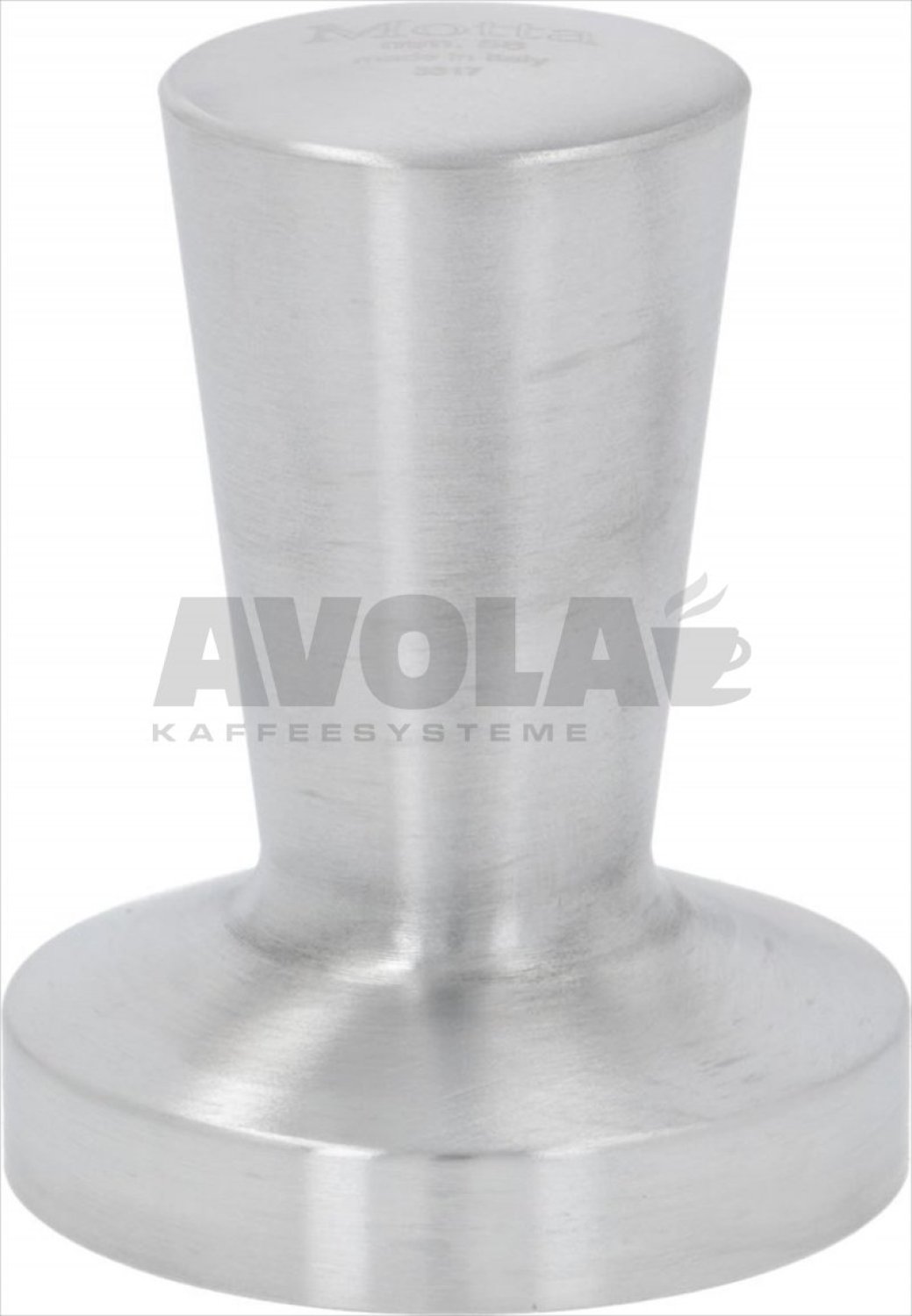

40anodised aluminum tamper o 58 mm 8006191
ANODISED ALUMINUM TAMPER ø 58 mm
37,41 €

excl. Shipping costs

Delivery time
is determined
41dynamometric manual coffee tamper 8006217
DYNAMOMETRIC MANUAL COFFEE TAMPER
197,31 €

excl. Shipping costs

Delivery time 4-6 weeks..
43vibiemme lever group piston 8063547
Vibiemme LEVER GROUP PISTON
59,20 €

excl. Shipping costs

Delivery time
is determined

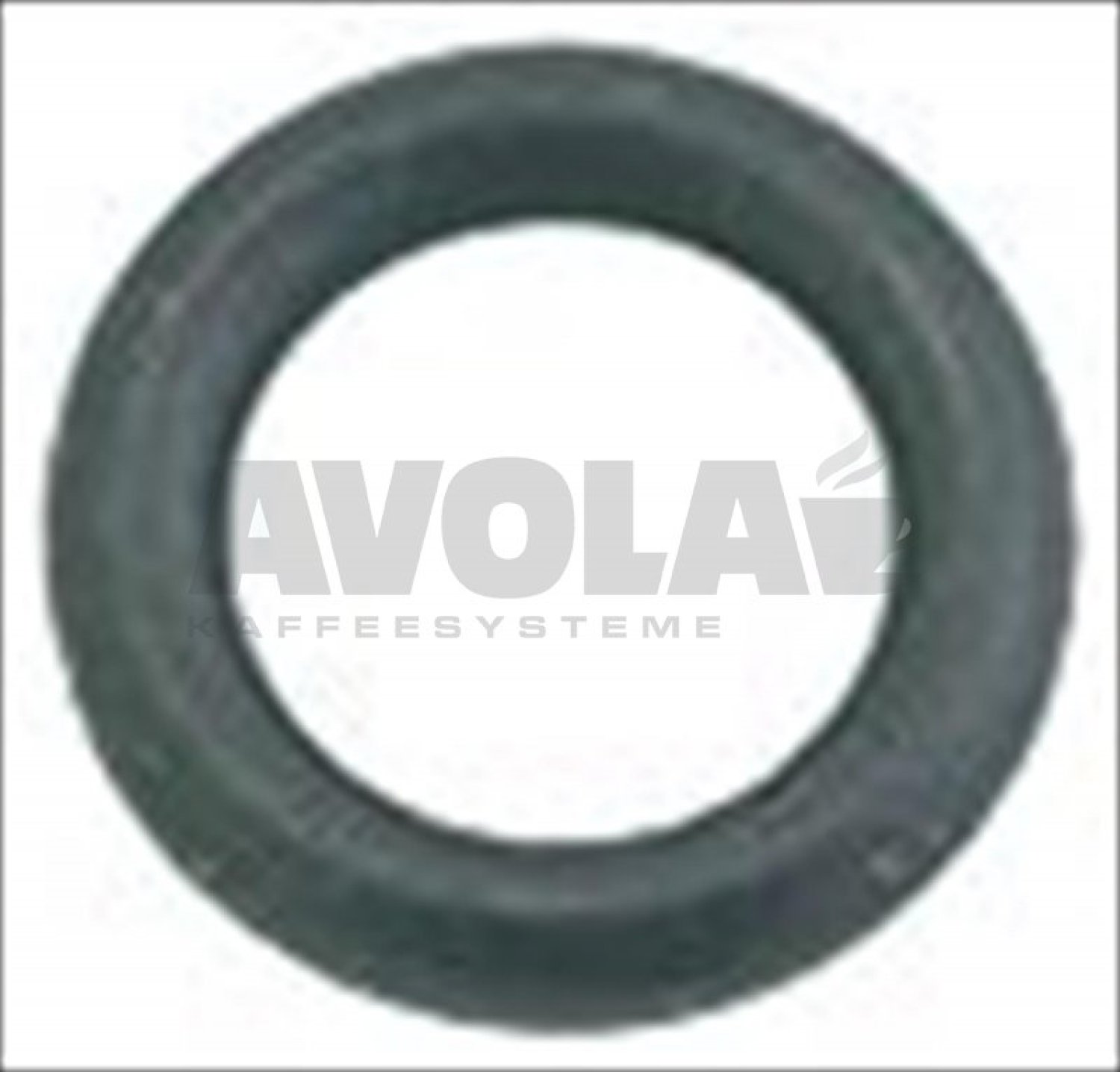

49o ring 106 viton 8001666
O-RING 106 VITON
1,04 €

excl. Shipping costs

immediately available, 19 available
51stainless steel ball 8005088
STAINLESS STEEL BALL
7,98 €

excl. Shipping costs

immediately available, 5 available
54shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
3,90 €

excl. Shipping costs

immediately available
56cylinder head screw m5x16 8069602
CYLINDER HEAD SCREW M5x16
1,82 €

excl. Shipping costs

immediately available
62lever for cooffee group 8063591
LEVER FOR COOFFEE GROUP
38,70 €

excl. Shipping costs

Delivery time 4-6 weeks..

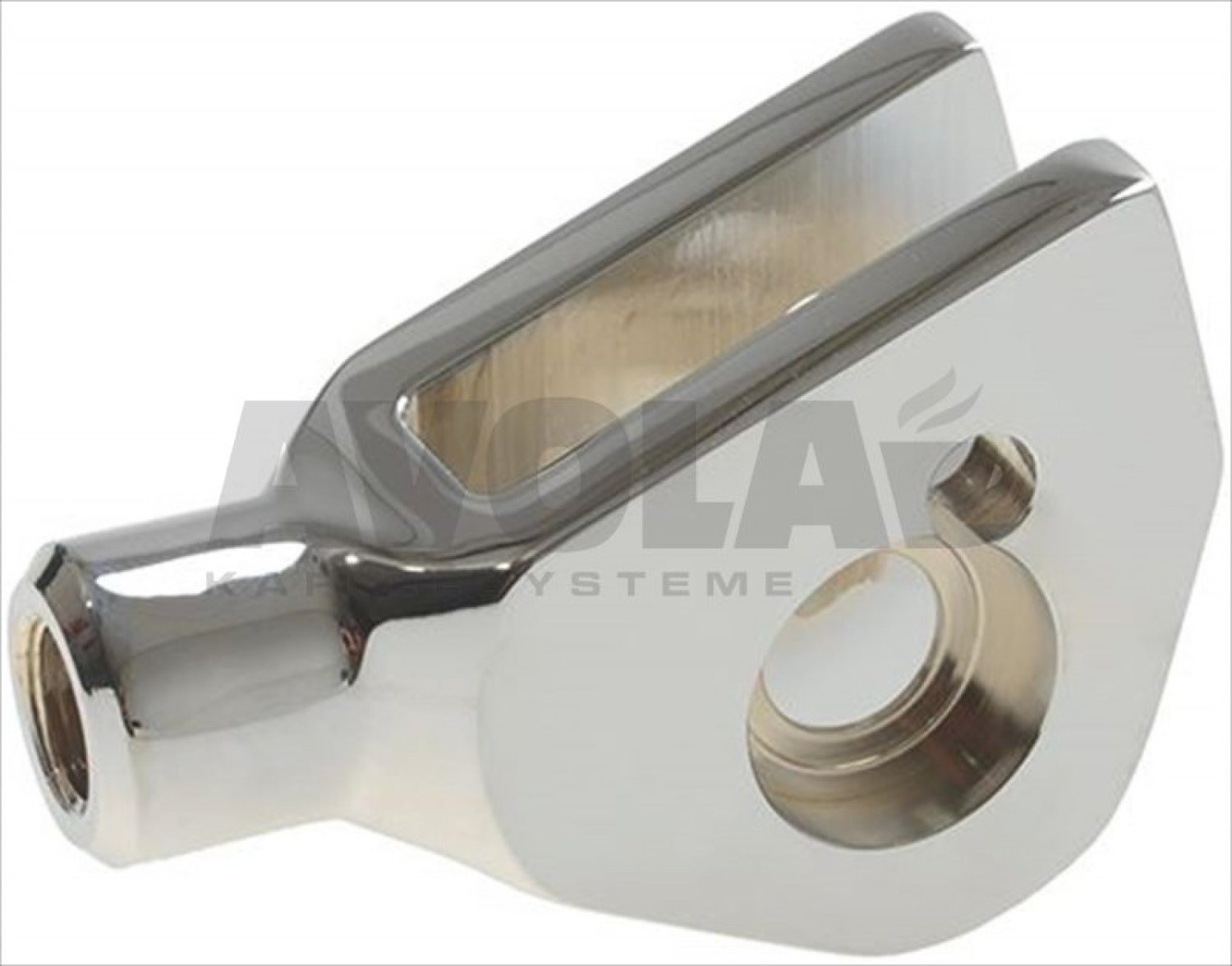

63chrome plated fork for lever group 8063536
CHROME-PLATED FORK FOR LEVER GROUP
82,50 €

excl. Shipping costs

Delivery time
is determined

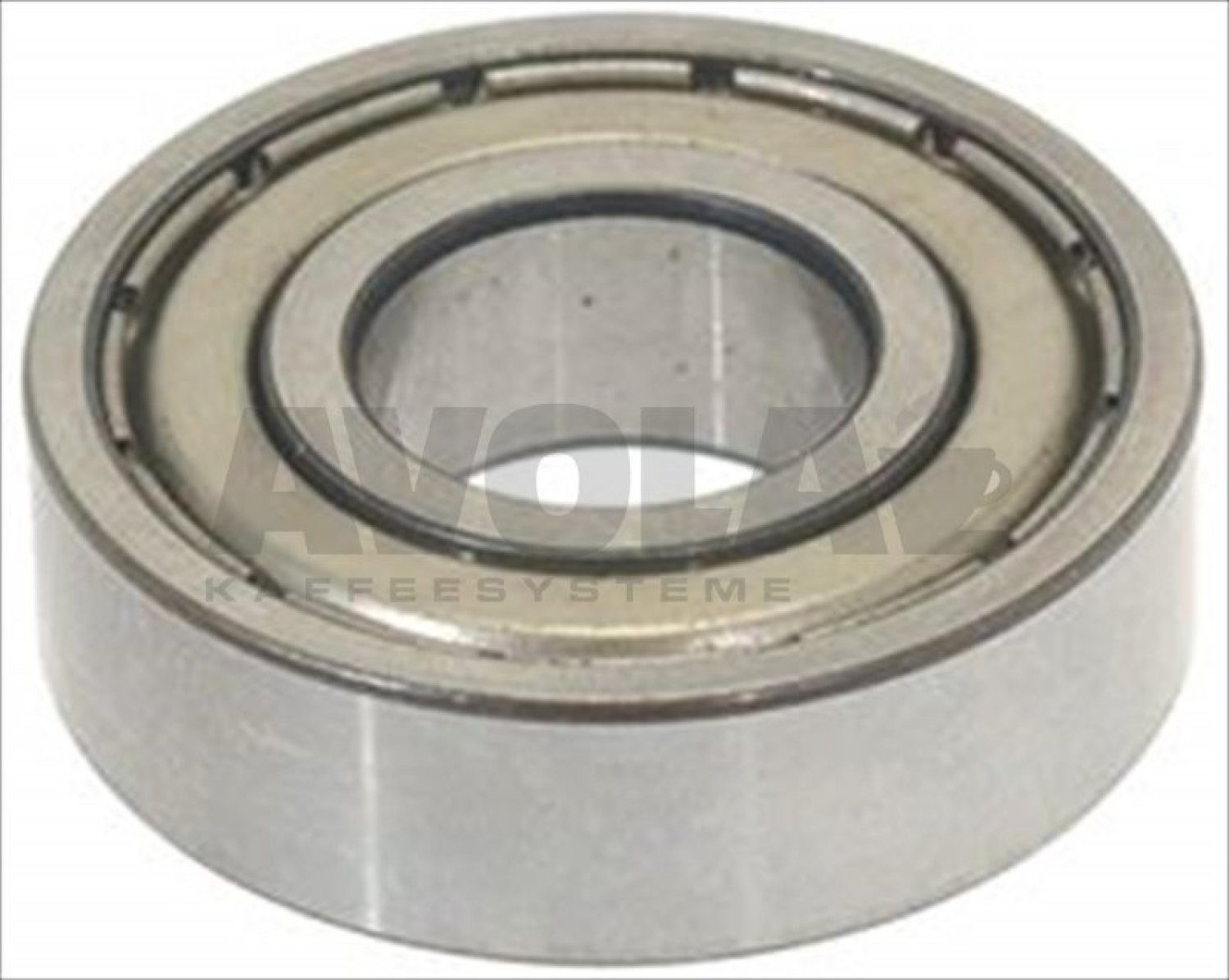

67bearing 6001 zz nsk 8002414
BEARING 6001 ZZ NSK
12,69 €

excl. Shipping costs

Delivery time
is determined
72control lever for delivery group 8063546
CONTROL LEVER FOR DELIVERY GROUP
54,84 €

excl. Shipping costs

Delivery time 4-6 weeks..

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
