VICTORIA ARDUINO - ATHENA S KESSEL

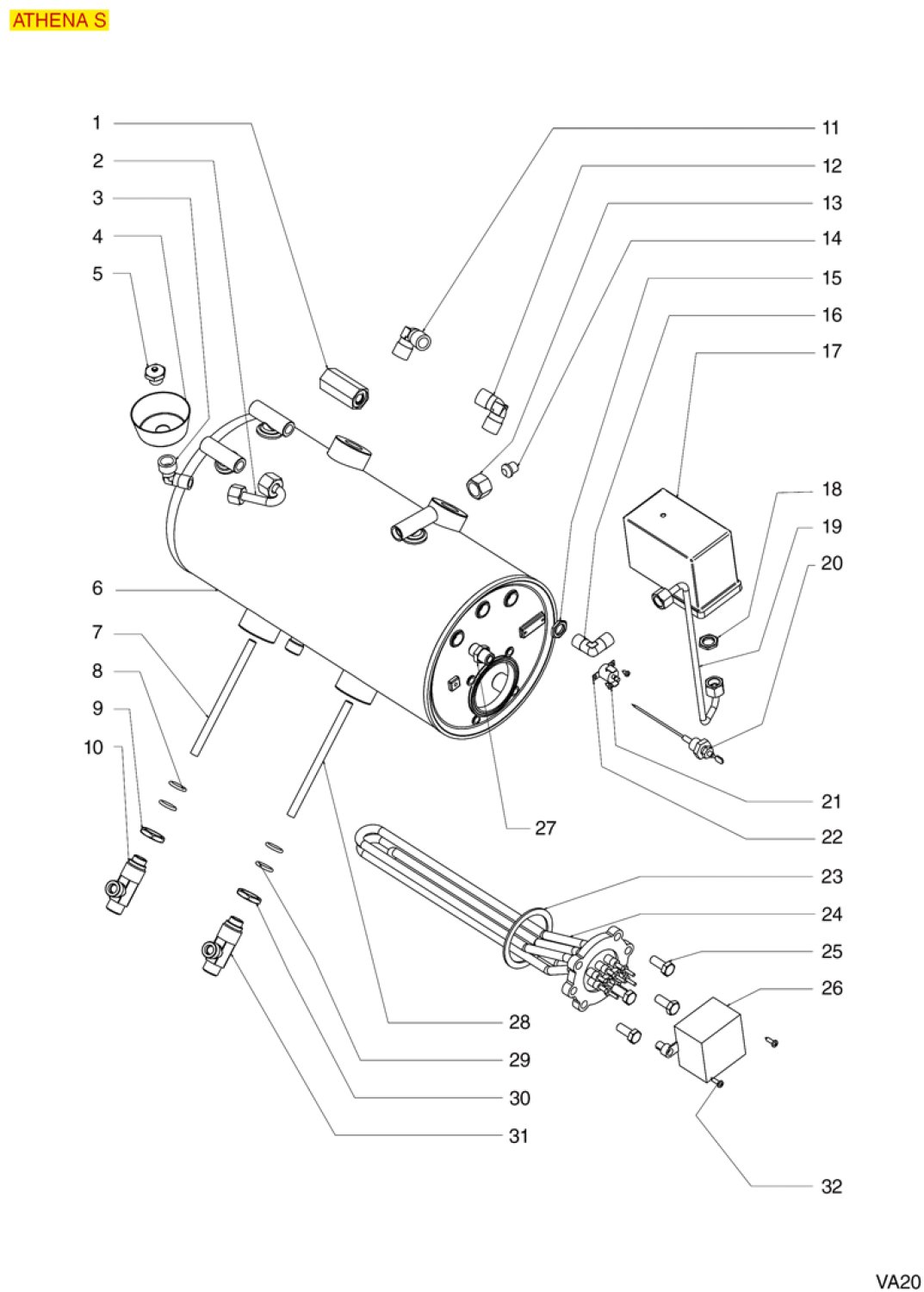

Drawing number 8063179

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
5boiler valve o 1 4 rime 8007149
BOILER VALVE ø 1/4″
7,96 €

excl. Shipping costs

immediately available

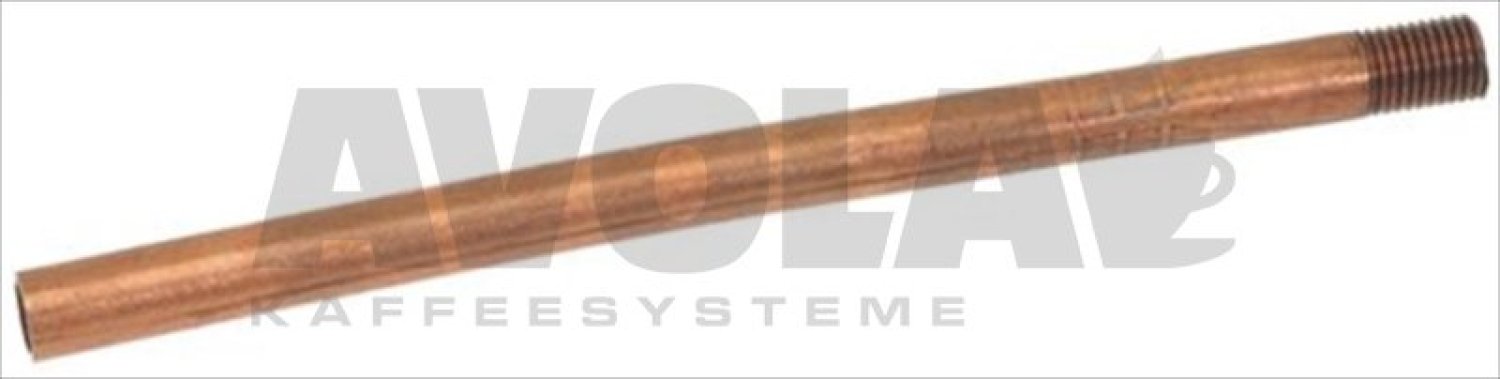

7injector pipe m8 8006571
INJECTOR PIPE M8
9,25 €

excl. Shipping costs

Delivery time
is determined
8o ring 0117 epdm 8018537
O-RING 0117 EPDM
0,74 €

excl. Shipping costs

immediately available
9nut o 1 2 8005857
NUT ø 1/2
3,05 €

excl. Shipping costs

immediately available, 6 available

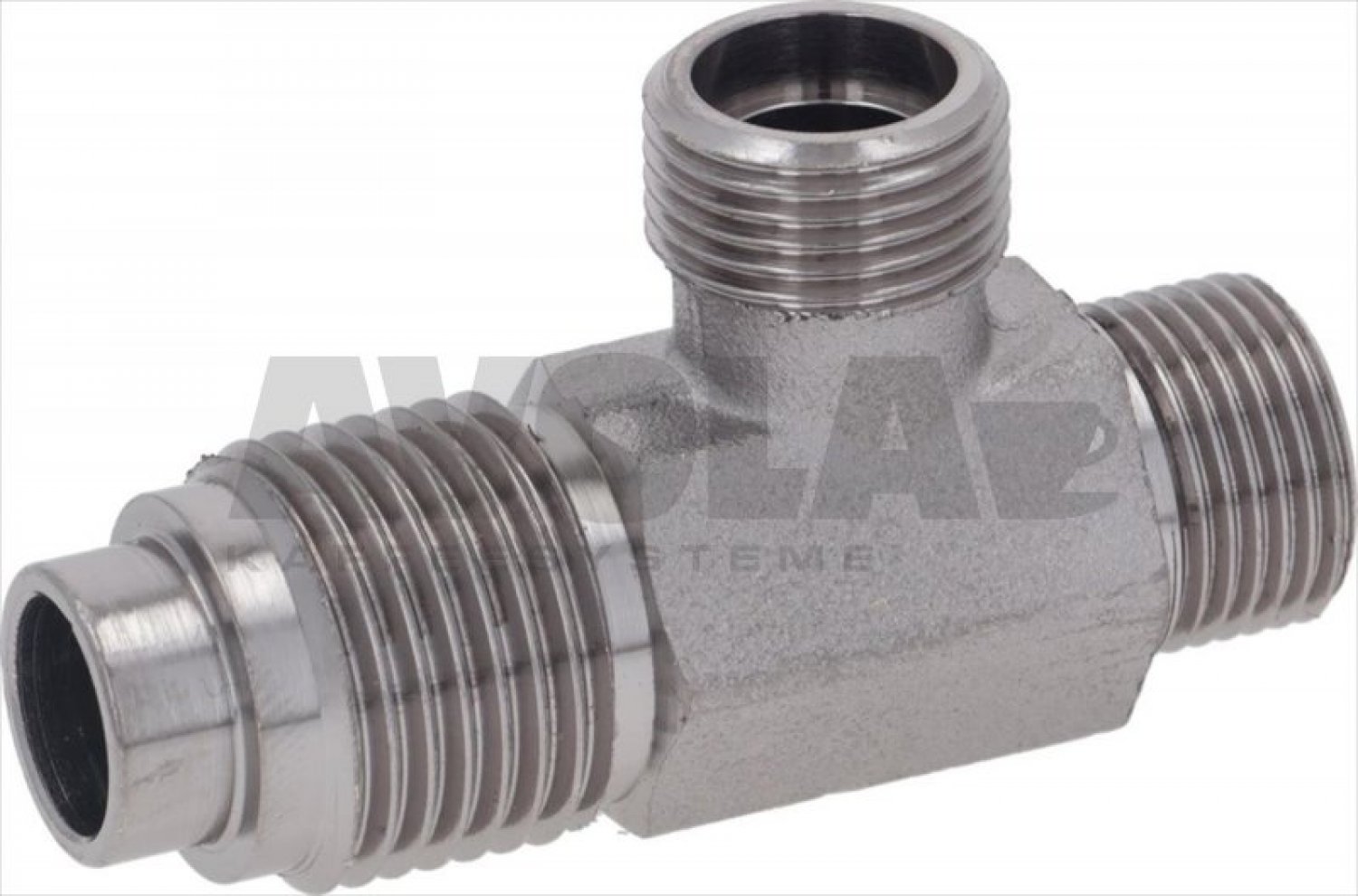

10boiler coupling 8005657
BOILER COUPLING
16,77 €

excl. Shipping costs

immediately available, 2 available
11l fitting o 3 8 a 3 8 a 8005876
L-FITTING ø 3/8 A-3/8 A
5,05 €

excl. Shipping costs

immediately available, 15 available
17pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
63,37 €
63,37 €

excl. Shipping costs

immediately available, 15 available
17pressure switch parker 8005072
PRESSURE SWITCH PARKER
87,56 €

excl. Shipping costs

immediately available, 1 available

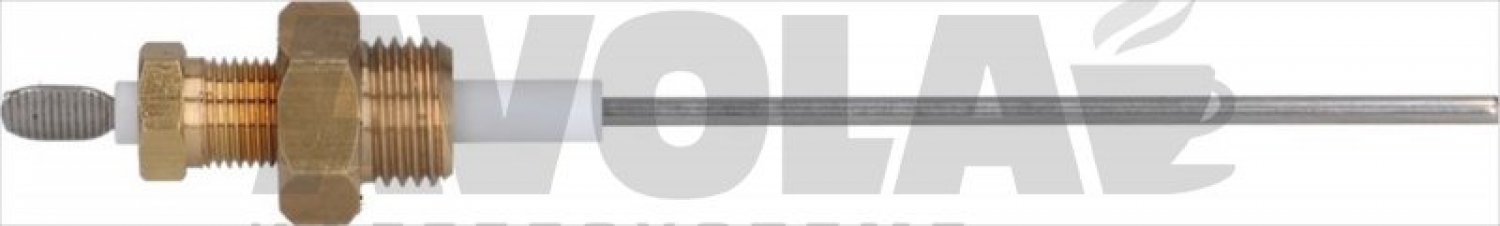

20level probe o 1 4 m 130 mm 8005288
LEVEL PROBE ø 1/4 M-130 mm
18,69 €

excl. Shipping costs

Delivery time
is determined

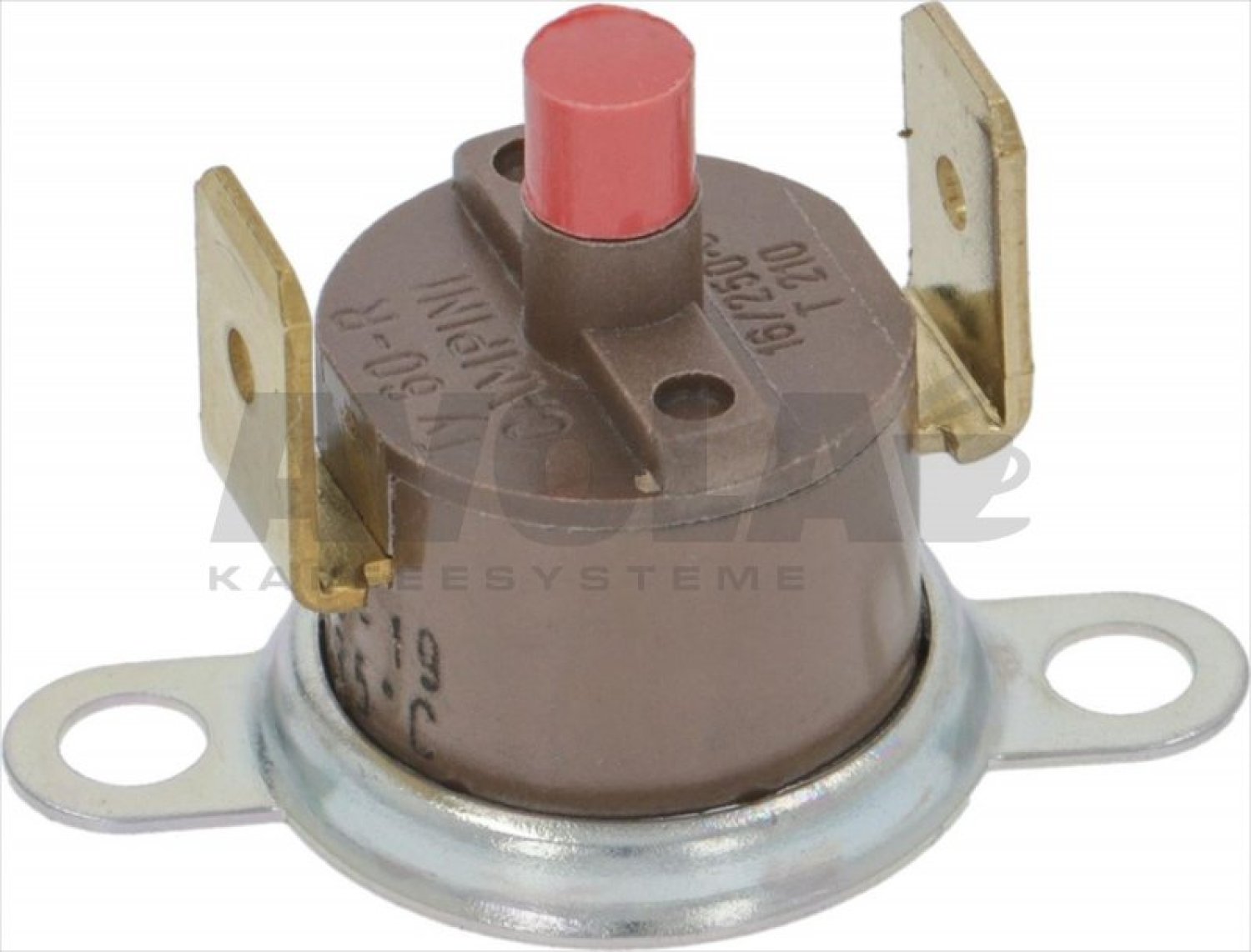

22contact thermostat 135 8006522
CONTACT THERMOSTAT 135
15,01 €

excl. Shipping costs

immediately available, 2 available

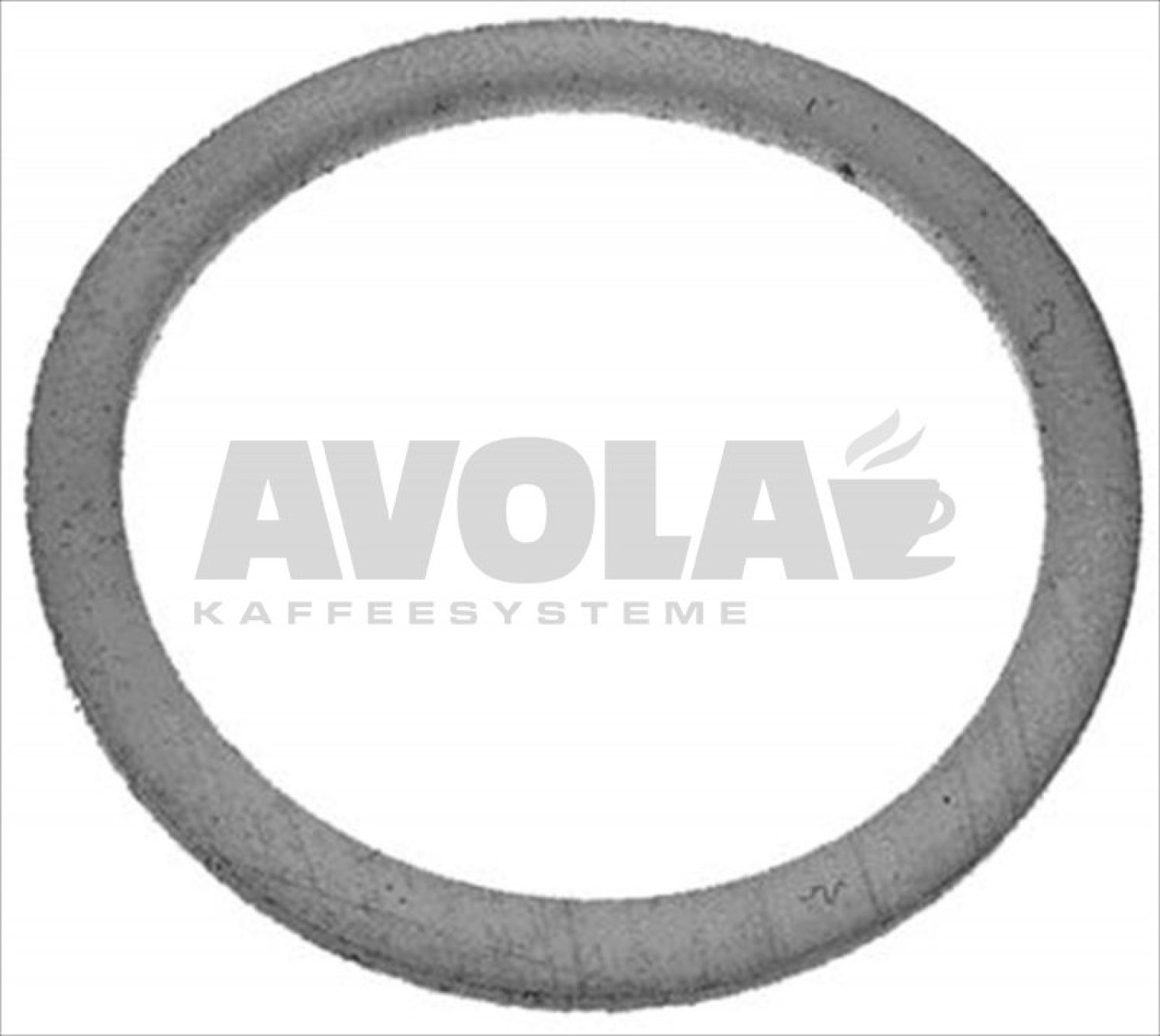

23flat carbo gasket 67x55x3 mm 8001832
FLAT CARBO GASKET 67x55x3 mm
4,59 €

excl. Shipping costs

immediately available, 6 available
24heating element 3000w 220 380v 8007501
HEATING ELEMENT 3000W 220/380V
80,94 €

excl. Shipping costs

immediately available, 2 available
27fitting o 1 4 8005710
Fitting ø 1/4
3,68 €

excl. Shipping costs

immediately available, 9 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
