Victoria Arduino

VICTORIA ARDUINO - VENUS BAR 2006 AUSLAUFGRUPPE

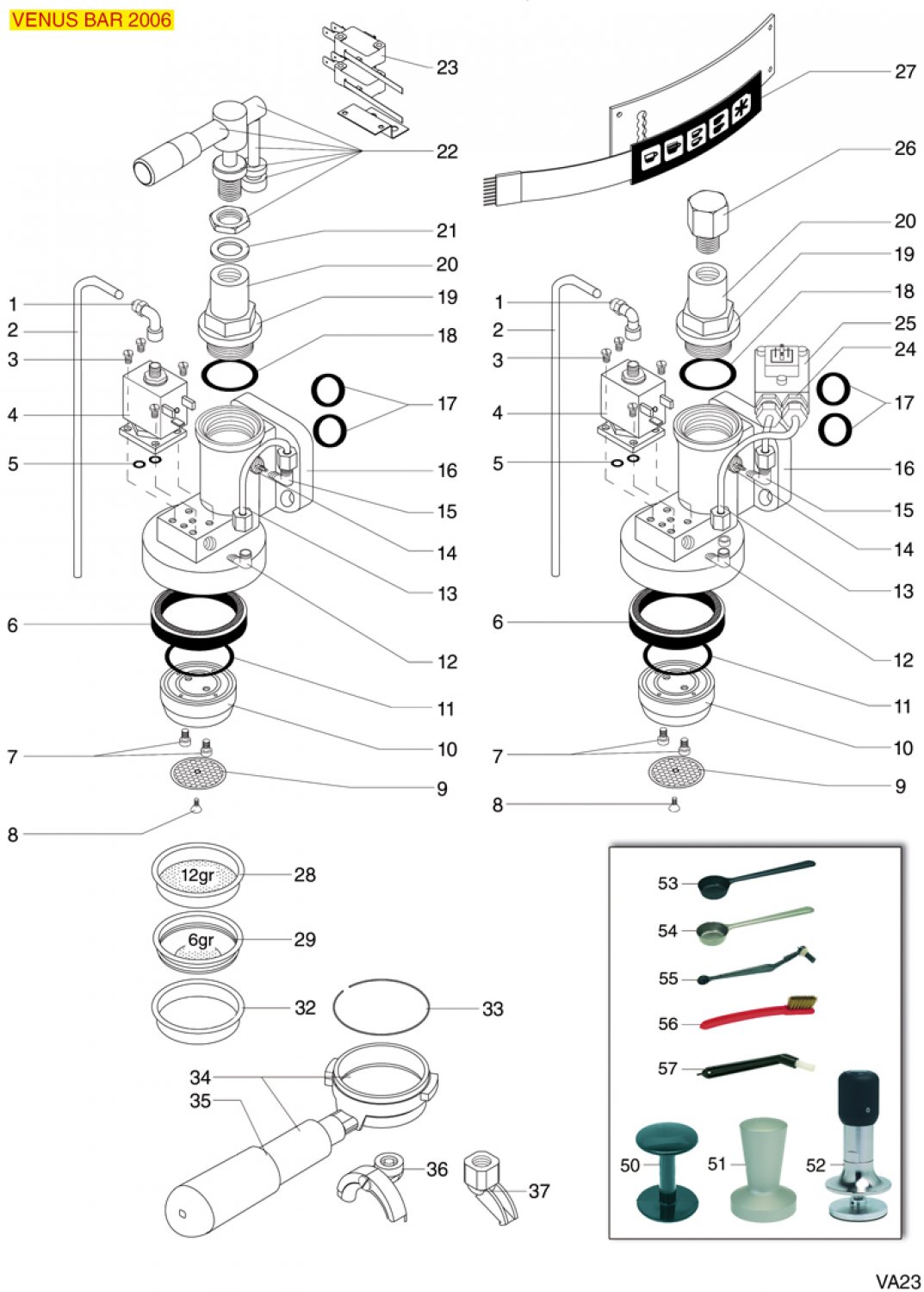

Drawing number 8063183

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
2teflon pipe o 4x6 mm 1 m8006801
TEFLON PIPE ø 4x6 mm - 1 M
5,50 €

excl. Shipping costs
immediately available, 8.5 available
3low cylinder head screw m4x128001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs
immediately available
43 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 8 available
43 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 10 available
5red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
6siebtraegerdichtung o 71x56x9 konisch8073779
Siebträgerdichtung ø 71x56x9 konisch
5,46 €

excl. Shipping costs
immediately available, 11 available
7low cylinder head screw m6x10 uni 93278001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs
immediately available
9shower 51 50 mm8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs
immediately available
11o ring 03187 epdm8013757
O-RING 03187 EPDM
2,08 €

excl. Shipping costs
immediately available

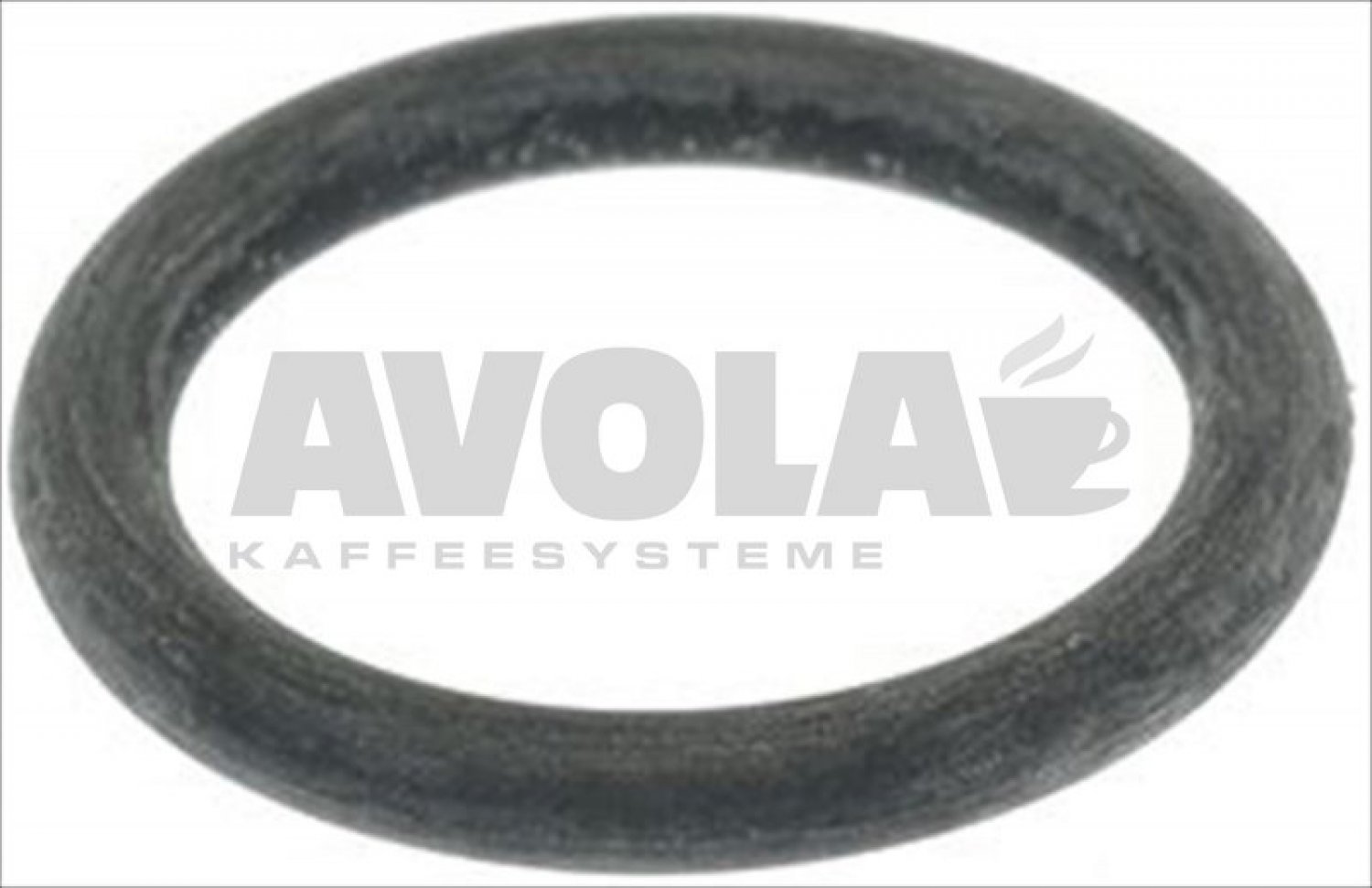

17epdm o ring r188064346
EPDM O-RING R18
5,68 €

excl. Shipping costs
Delivery time
is determined
24fitting o 1 48005710
Fitting ø 1/4
3,64 €

excl. Shipping costs
immediately available, 17 available

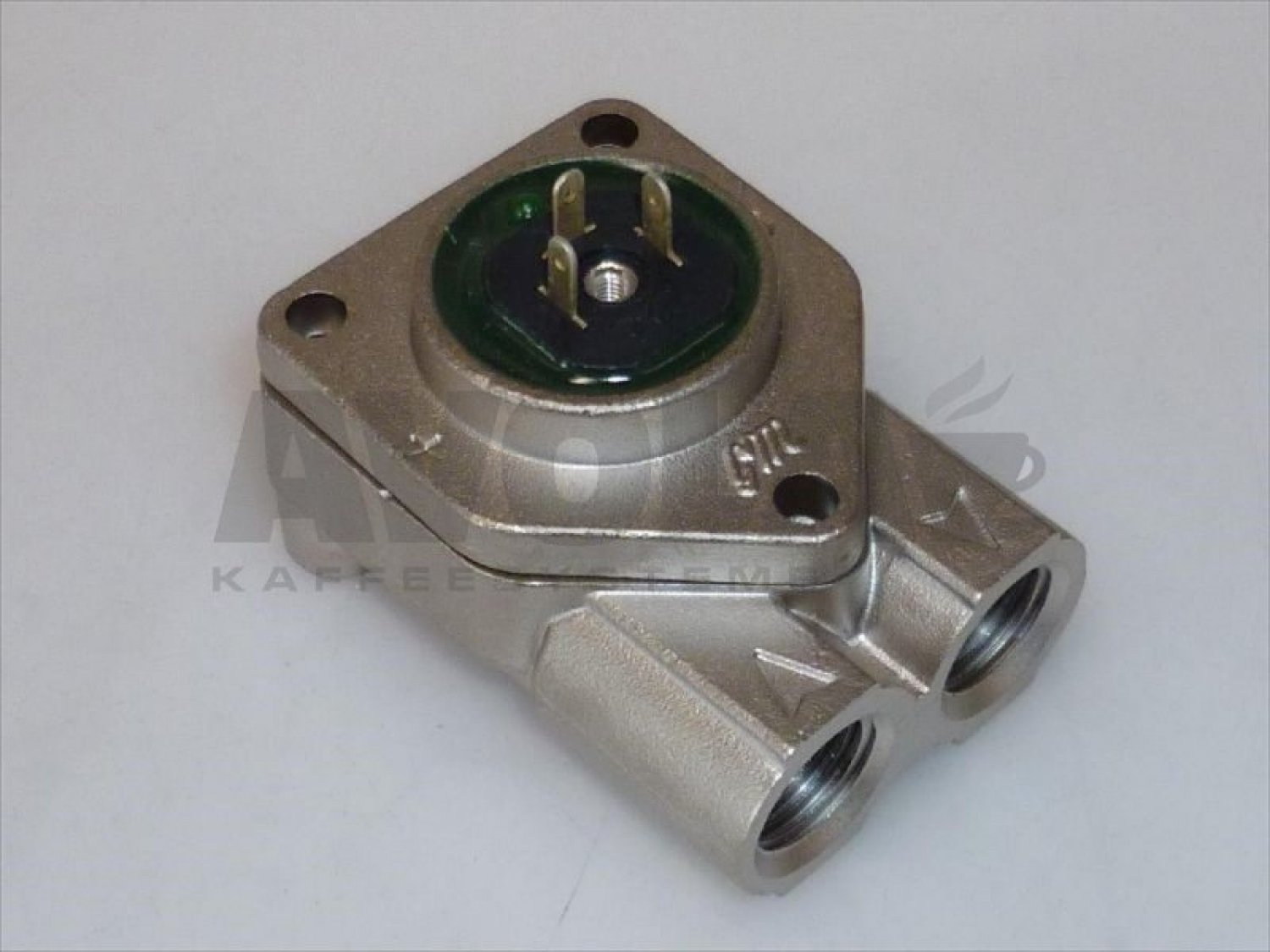

25volumetric flowmeter gm8063184
VOLUMETRIC FLOWMETER GM
Price on request
282 cup filter 14 grams8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs
immediately available
291 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 19 available
32blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
33filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available

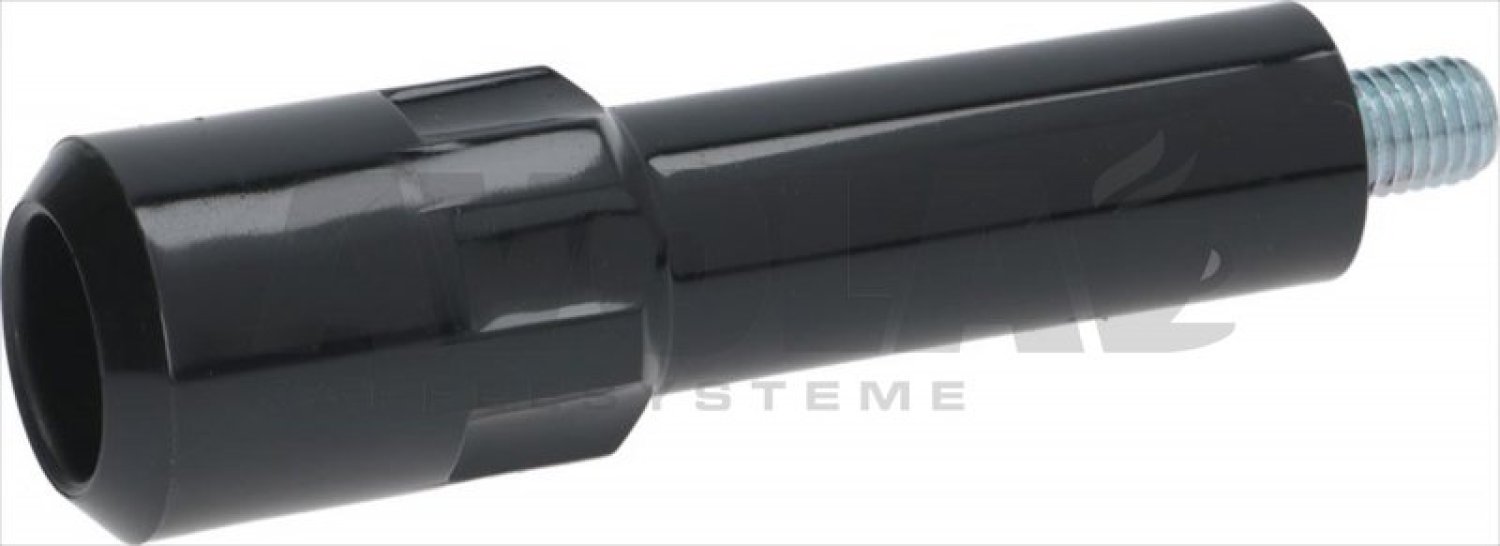

35filter knob m128003171
FILTER KNOB M12
10,16 €

excl. Shipping costs
Delivery time
is determined
36lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
36double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 7 available
37single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 13 available

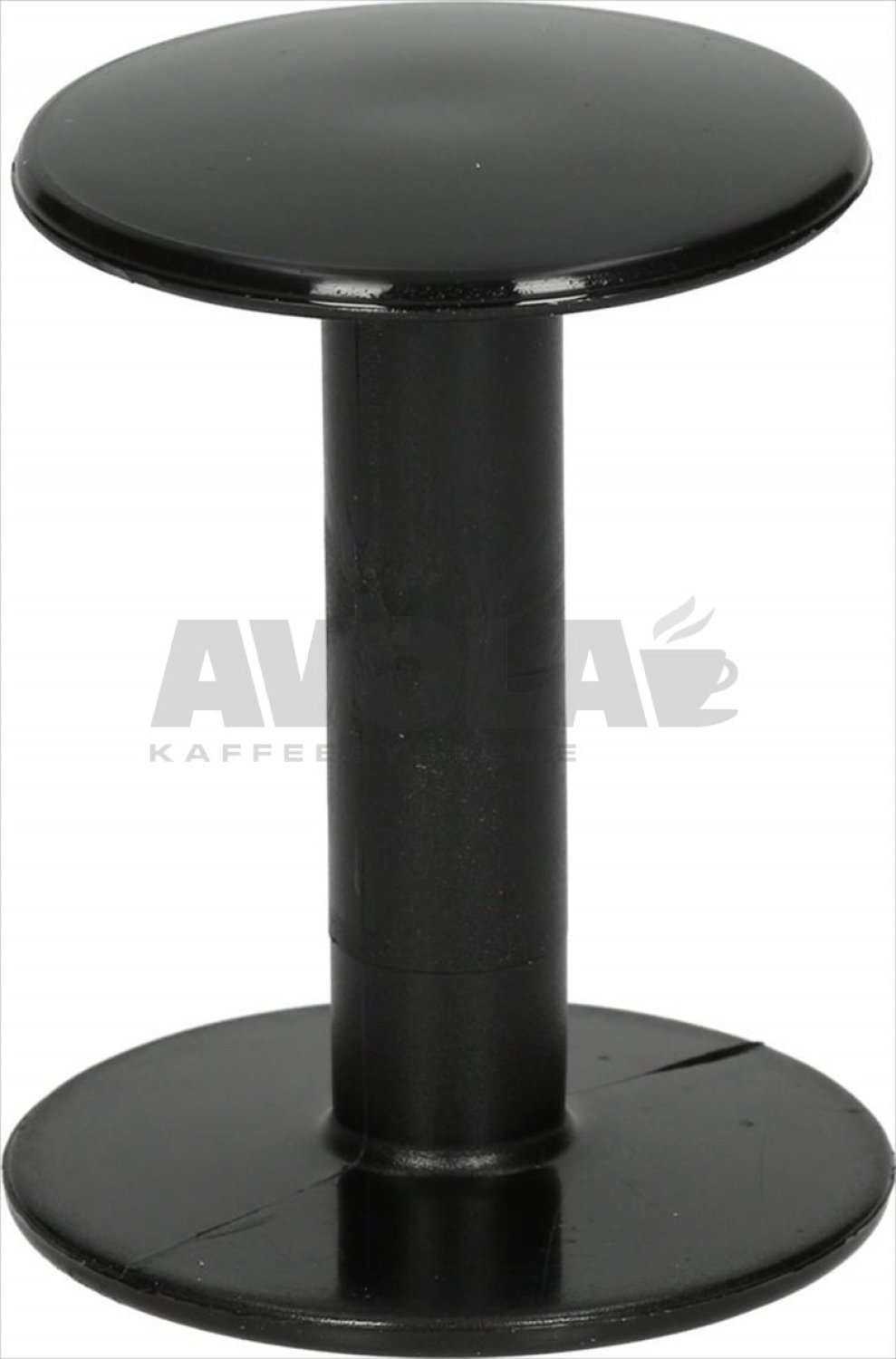

50nylon tamper o 50 52 mm8006163
NYLON TAMPER ø 50/52 mm
4,56 €

excl. Shipping costs
immediately available, 9 available

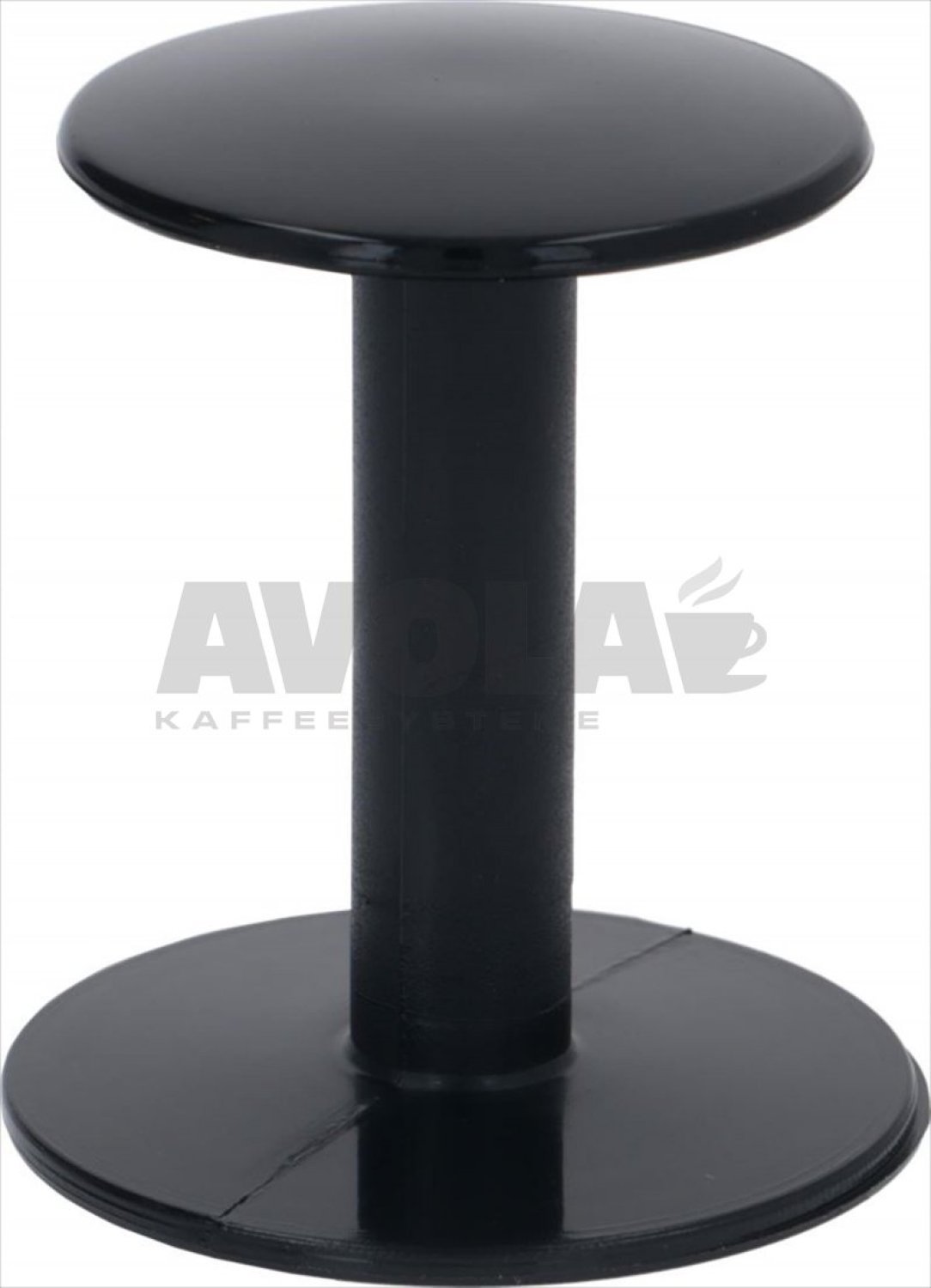

50nylon coffee tamper8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs
immediately available, 8 available
57brush for coffee shower8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs
immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
