Cimbali Grinder

CIM09 DOSIERMAHLWERK 6S

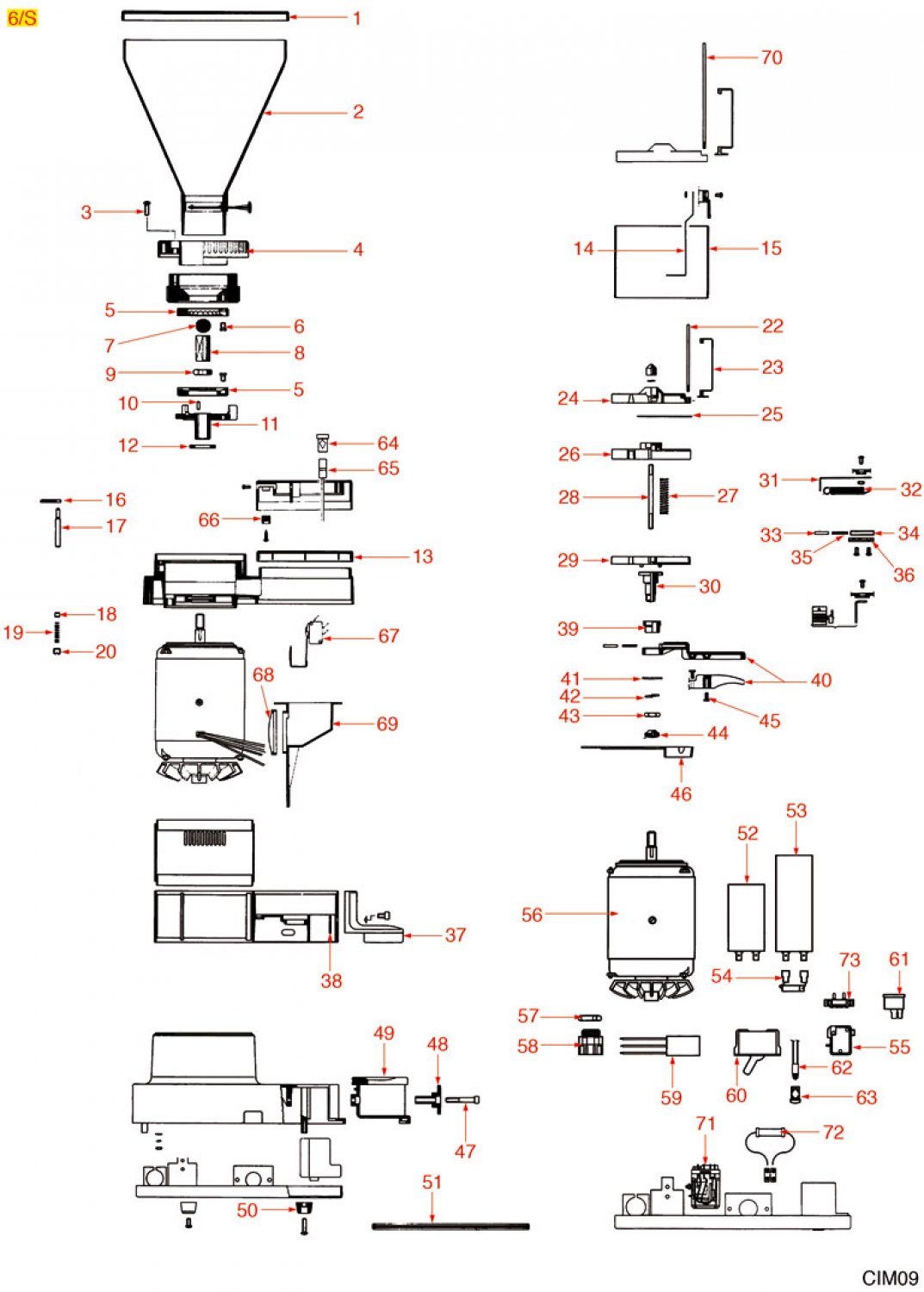

Drawing number 8038712

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

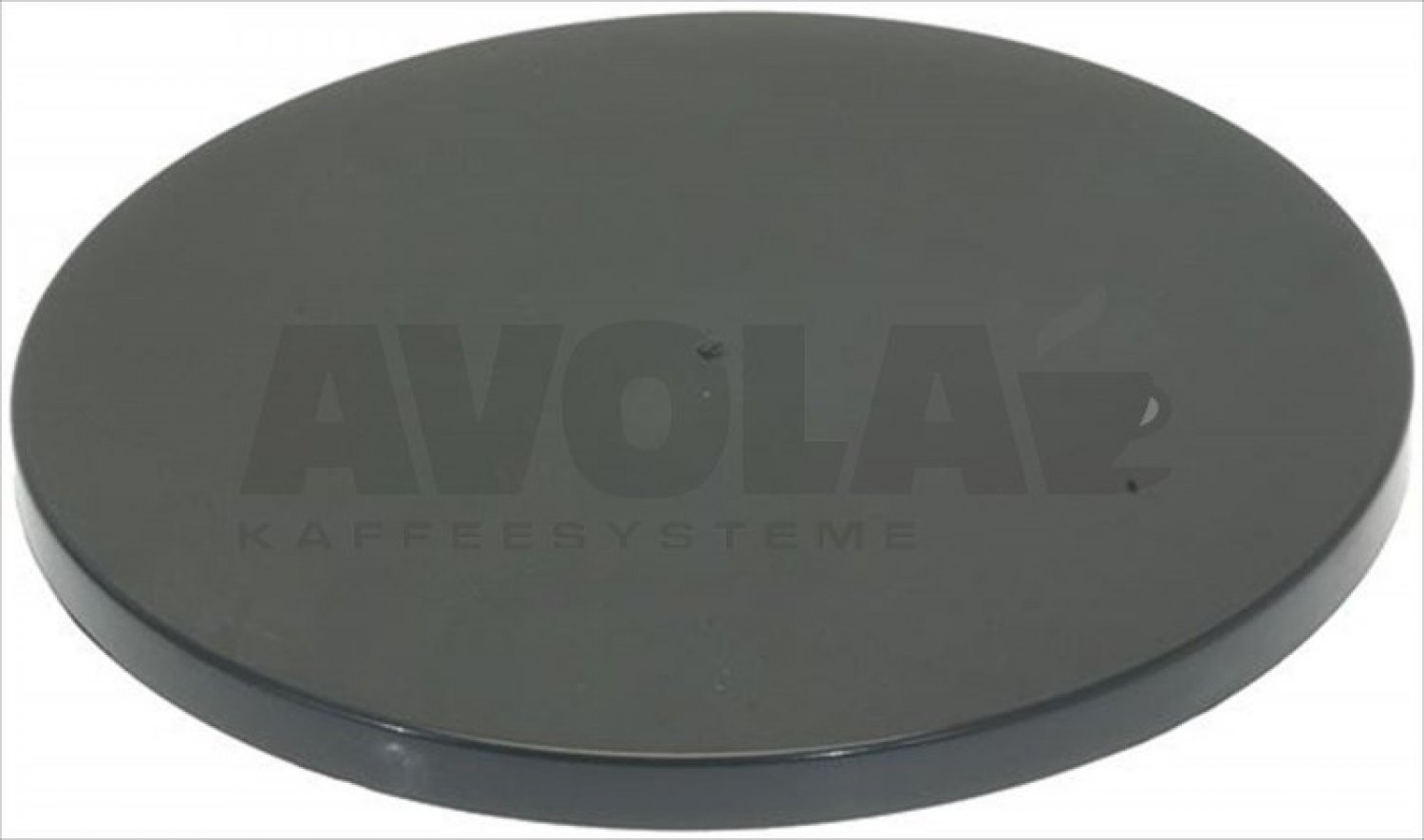

1coffee hopper lid 8004250
COFFEE HOPPER LID
17,36 €

excl. Shipping costs

Delivery time
is determined
2coffee hopper 8000392
COFFEE HOPPER
59,51 €

excl. Shipping costs

Delivery time
is determined
3cylinder head screw m5x14 8007251
CYLINDER HEAD SCREW M5x14
1,18 €

excl. Shipping costs

immediately available
4adjustment ring nut 8004330
ADJUSTMENT RING NUT
18,04 €

excl. Shipping costs

Delivery time
is determined
5mahlscheiben flach cimbali o 64 mm 8101612
Mahlscheiben flach Cimbali ø 64 mm
232,11 €

excl. Shipping costs

Delivery time
is determined
11grinding burrs bottom holder 8003920
GRINDING BURRS BOTTOM HOLDER
80,37 €

excl. Shipping costs

Delivery time 4-6 weeks..
13doser lid 8004276
DOSER LID
11,31 €

excl. Shipping costs

Delivery time
is determined
14mixer rod 8004253
MIXER ROD
12,53 €

excl. Shipping costs

Delivery time 4-6 weeks..
15doser cylinder 8004252
DOSER CYLINDER
22,47 €

excl. Shipping costs

Delivery time 4-6 weeks..
16adjustment button 8004333
ADJUSTMENT BUTTON
6,62 €

excl. Shipping costs

Delivery time
is determined
17adjustment pin 8004365
ADJUSTMENT PIN
8,32 €

excl. Shipping costs

Delivery time
is determined
19adjustment rod spring 8003626
ADJUSTMENT ROD SPRING
7,76 €

excl. Shipping costs

Delivery time
is determined
22mixer rod 8004319
MIXER ROD
15,67 €

excl. Shipping costs

Delivery time 4-6 weeks..
23rod spring 8003637
ROD SPRING
14,05 €

excl. Shipping costs

Delivery time
is determined
24top star 8005357
TOP STAR
14,39 €

excl. Shipping costs

Delivery time 4-6 weeks..

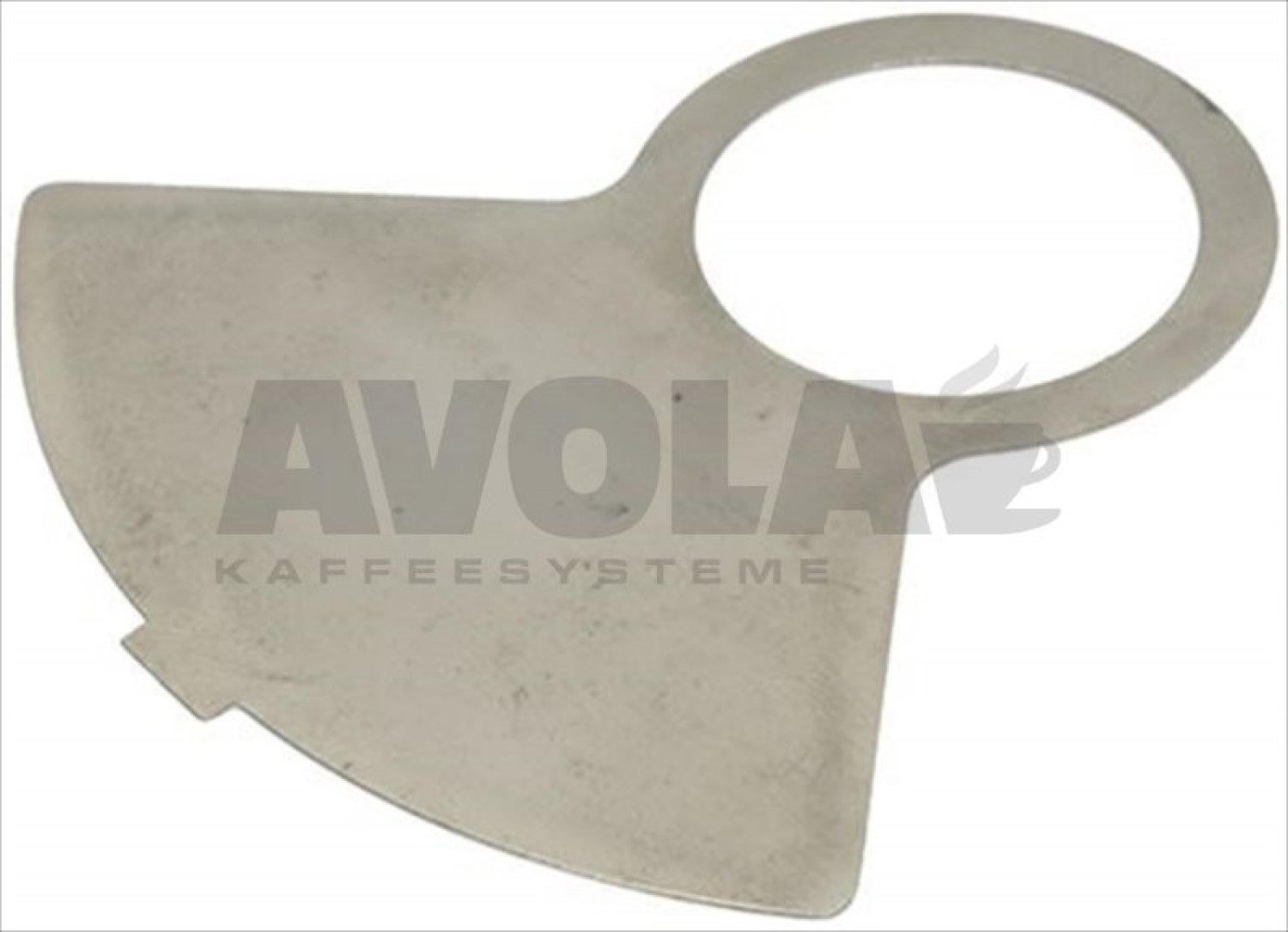

25doser sheet 8004366
DOSER SHEET
19,91 €

excl. Shipping costs

Delivery time
is determined
26middle star 8005358
MIDDLE STAR
14,15 €

excl. Shipping costs

Delivery time
is determined
27dose adjustment spring 8003635
DOSE ADJUSTMENT SPRING
5,75 €

excl. Shipping costs

Delivery time
is determined
29bottom star 8005352
BOTTOM STAR
13,41 €

excl. Shipping costs

Delivery time
is determined

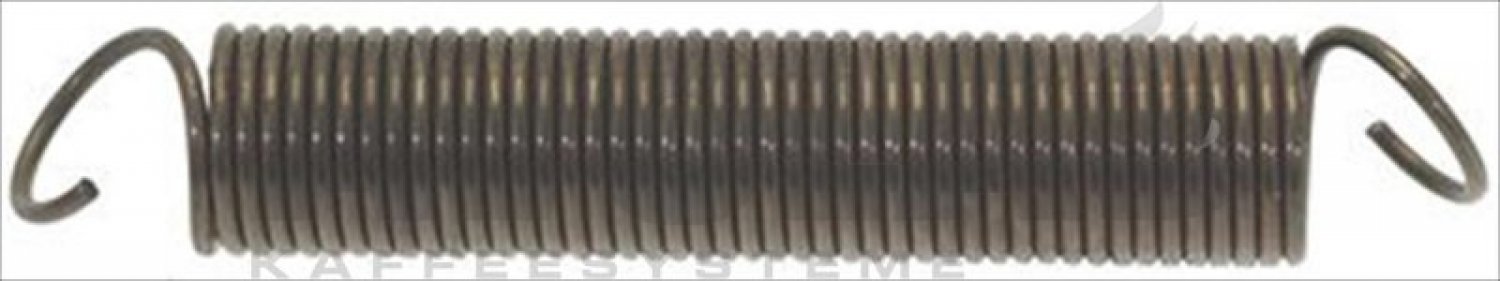

32doser lever return spring 8003642
DOSER LEVER RETURN SPRING
34,69 €

excl. Shipping costs

Delivery time
is determined

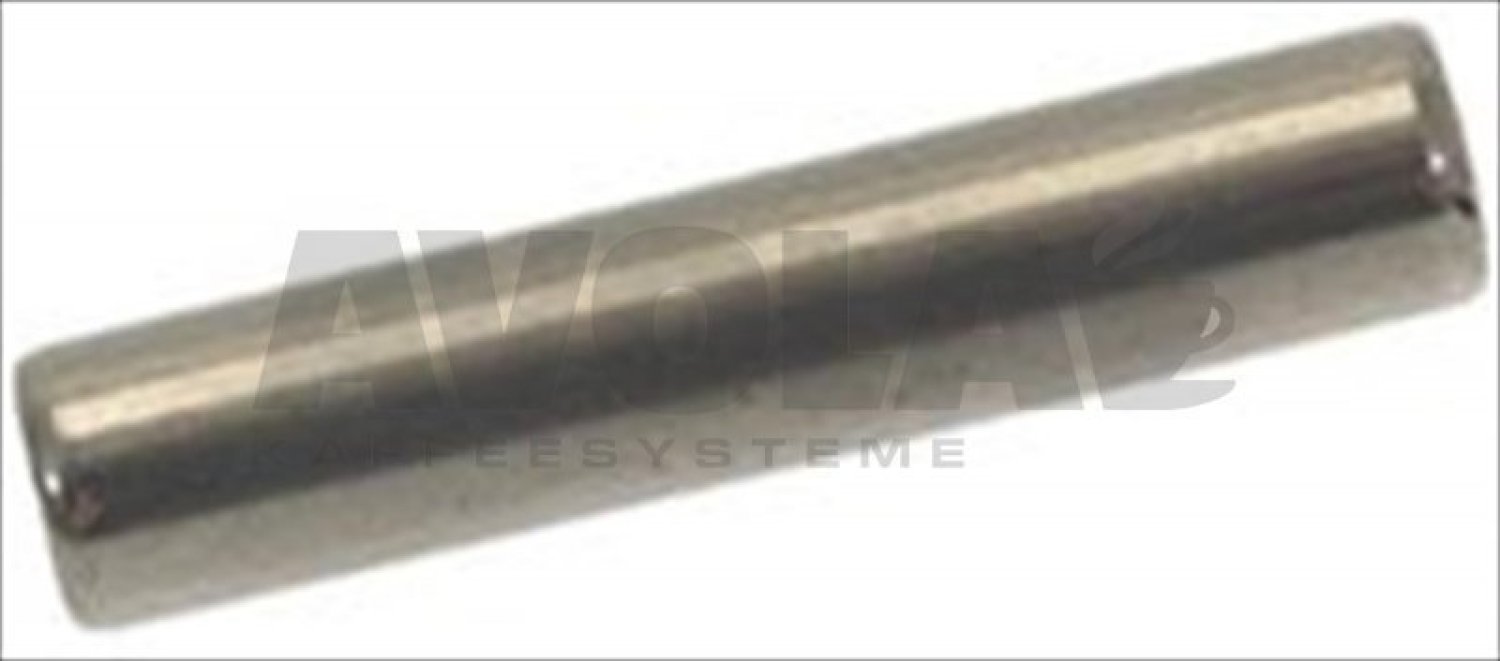

33pawl clasp 8004368
PAWL CLASP
4,63 €

excl. Shipping costs

Delivery time
is determined
35pin spring 8003627
PIN SPRING
6,22 €

excl. Shipping costs

Delivery time 4-6 weeks..
37coffee tamper 8006171
COFFEE TAMPER
40,01 €

excl. Shipping costs

Delivery time
is determined
39pawl coffee grinder doser 8004367
PAWL COFFEE GRINDER/DOSER
Price on request
40doser lever righthand 8004258
DOSER LEVER RIGHTHAND
134,60 €

excl. Shipping costs

Delivery time 4-6 weeks..

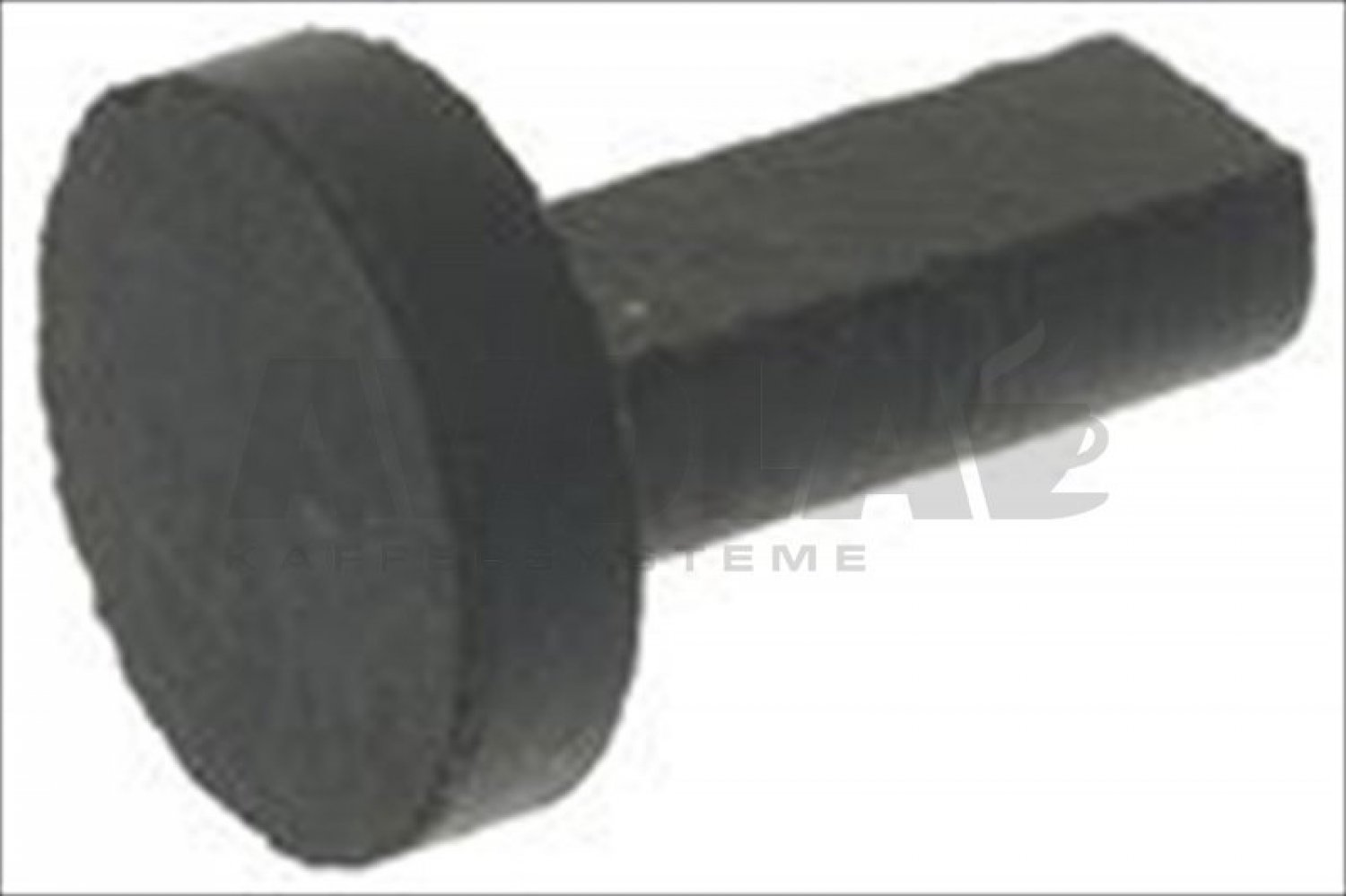

45puffer fuer dosiersgeraetshebel 8004296
PUFFER FÜR DOSIERSGERÄTSHEBEL
3,64 €

excl. Shipping costs

Delivery time 4-6 weeks
55circuit interrupter md50 4211 new 8004507
CIRCUIT INTERRUPTER MD50 4211 - NEW
27,58 €

excl. Shipping costs

Delivery time
is determined
60three pole lever switch 16a 400v 8004782
THREE-POLE LEVER SWITCH 16A 400V
177,23 €

excl. Shipping costs

Delivery time
is determined
62green indicator lamp 220v 8002724
GREEN INDICATOR LAMP 220V
15,53 €

excl. Shipping costs

Delivery time
is determined
63lampentraeger gruen 8002730
LAMPENTRÄGER GRÜN
Price on request
64red lamp receptacle 8015590
RED LAMP RECEPTACLE
5,27 €

excl. Shipping costs

immediately available, 5 available
67microswitch 6a 250v 8002877
MICROSWITCH 6A 250V
115,53 €

excl. Shipping costs

Delivery time
is determined
68micro box lid for doser 8004299
MICRO BOX LID FOR DOSER
36,02 €

excl. Shipping costs

Delivery time 4-6 weeks..
69microswitch box 8004256
MICROSWITCH BOX
21,69 €

excl. Shipping costs

Delivery time 4-6 weeks..
71power relay finder 62 83 8 230 0000 8022754
POWER RELAY FINDER 62.83.8.230.0000
36,89 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
