FAEMA WASSEREINLAUFHAHN STAR

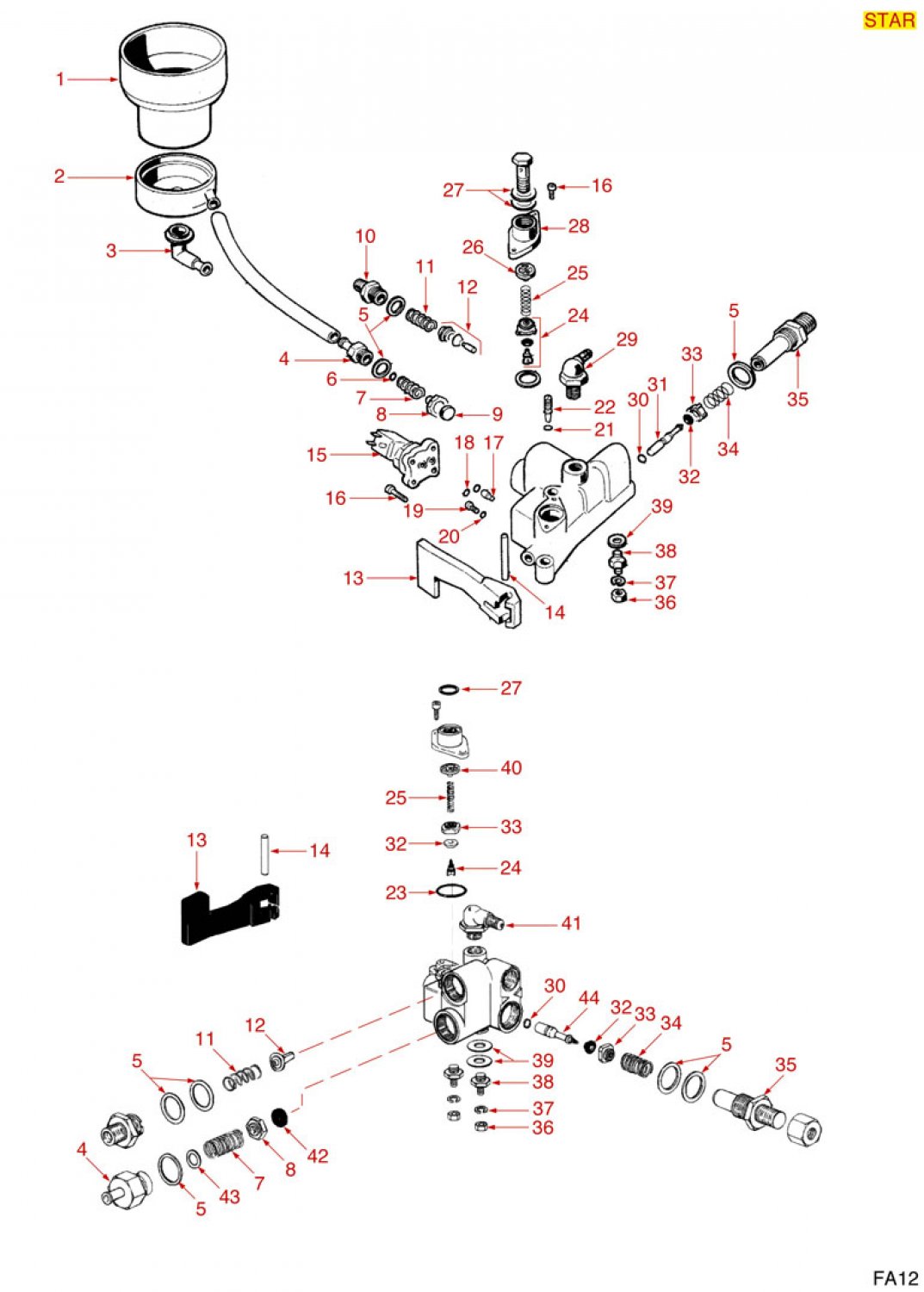

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8007221		8007221 PLASRIC TANK	excl. Shipping costs Delivery time is determined	8,39 €	8,39 € excl. Shipping costs Delivery time is determined
2	8007222		8007222 LOWER TANK - PLASTIC			This article is no longer available
3	8005855		8005855 OUTLET FITTING	excl. Shipping costs Delivery time is determined	22,30 €	22,30 € excl. Shipping costs Delivery time is determined
5	8001425		8001425 PTFE FLAT GASKET ø 27x20x0,5 mm		Price on request
6	8001576		8001576 BRASS WASHER	excl. Shipping costs immediately available, 17 available	1,50 €	1,50 € excl. Shipping costs immediately available, 17 available
7	8281551		8281551 Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen	excl. Shipping costs immediately available	2,68 €	2,68 € excl. Shipping costs immediately available
8	8001429		8001429 GASKET HOLDER FOR TAP	excl. Shipping costs Delivery time is determined	1,95 €	1,95 € excl. Shipping costs Delivery time is determined
9	8001570		8001570 EPDM flat gasket 15,5x7,5x4 mm	excl. Shipping costs immediately available	0,90 €	0,90 € excl. Shipping costs immediately available
11	8003677		8003677 VALVE SPRING	excl. Shipping costs immediately available, 8 available	3,43 €	3,43 € excl. Shipping costs immediately available, 8 available
12	8007111		8007111 NON-RETURN VALVE	excl. Shipping costs Delivery time is determined	11,63 €	11,63 € excl. Shipping costs Delivery time is determined
13	8002800		8002800 INLET TAP LEVER	excl. Shipping costs Delivery time 4-6 weeks..	8,89 €	8,89 € excl. Shipping costs Delivery time 4-6 weeks..
15	8000956		8000956 2-WAY SOLENOID VALVE LUCIFER 240V 50Hz	excl. Shipping costs immediately available, 2 available	53,36 €	53,36 € excl. Shipping costs immediately available, 2 available
16	8061180		8061180 Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912	excl. Shipping costs immediately available	0,68 €	0,68 € excl. Shipping costs immediately available
18	8001809		8001809 RED SILICONE O-RING R5 GASKET	excl. Shipping costs immediately available	1,36 €	1,36 € excl. Shipping costs immediately available
18	8001810		8001810 O-RING 02025 VITON	excl. Shipping costs immediately available	0,87 €	0,87 € excl. Shipping costs immediately available
21	8001932		8001932 O-RING 02018 VITON	excl. Shipping costs immediately available, 11 available	1,95 €	1,95 € excl. Shipping costs immediately available, 11 available
23	8001669		8001669 O-RING GASKET 0132 EPDM	excl. Shipping costs immediately available, 5 available	1,07 €	1,07 € excl. Shipping costs immediately available, 5 available
24	8007110		8007110 NON-RETURN VALVE	excl. Shipping costs immediately available, 2 available	62,18 €	62,18 € excl. Shipping costs immediately available, 2 available
25	8003676		8003676 NON-RETURN VALVE SPRING ø 6.5x20 mm	excl. Shipping costs immediately available, 13 available	2,51 €	2,51 € excl. Shipping costs immediately available, 13 available
26	8003678		8003678 TAP SPRING GUIDE	excl. Shipping costs immediately available, 5 available	4,50 €	4,50 € excl. Shipping costs immediately available, 5 available
27	8001814		8001814 COPPER FLAT GASKET ø 18x14x1,5 mm	excl. Shipping costs immediately available	1,20 €	1,20 € excl. Shipping costs immediately available
30	8036617		8036617 O-RING 0040-20 EPDM	excl. Shipping costs immediately available	0,86 €	0,86 € excl. Shipping costs immediately available
32	8001426		8001426 CONICAL EPDM SEAL ø 12x4x4 mm	excl. Shipping costs immediately available, 19 available	1,33 €	1,33 € excl. Shipping costs immediately available, 19 available
33	8001730		8001730 GASKET HOLDER FOR TAP	excl. Shipping costs immediately available, 1 available	4,34 €	4,34 € excl. Shipping costs immediately available, 1 available
34	8003674		8003674 PIN SPRING ø 14x23 mm	excl. Shipping costs immediately available, 13 available	3,19 €	3,19 € excl. Shipping costs immediately available, 13 available
40	8003675		8003675 Faema TAP SPRING GUIDE	excl. Shipping costs immediately available, 11 available	2,99 €	2,99 € excl. Shipping costs immediately available, 11 available
41	8005632		8005632 ELBOW FITTING	excl. Shipping costs immediately available, 5 available	8,98 €	8,98 € excl. Shipping costs immediately available, 5 available
42	8001427		8001427 FLAT EPDM GASKET	excl. Shipping costs immediately available	1,07 €	1,07 € excl. Shipping costs immediately available
43	8001566		8001566 BRASS WASHER ø 10x5x1 mm	excl. Shipping costs immediately available	1,09 €	1,09 € excl. Shipping costs immediately available
44	8005112		8005112 PIN FOR VALVE		Price on request

If your article is not listed, please use the following form and enter the desired numbers.
