ECM Heidelberg

ECM Profi Kessel

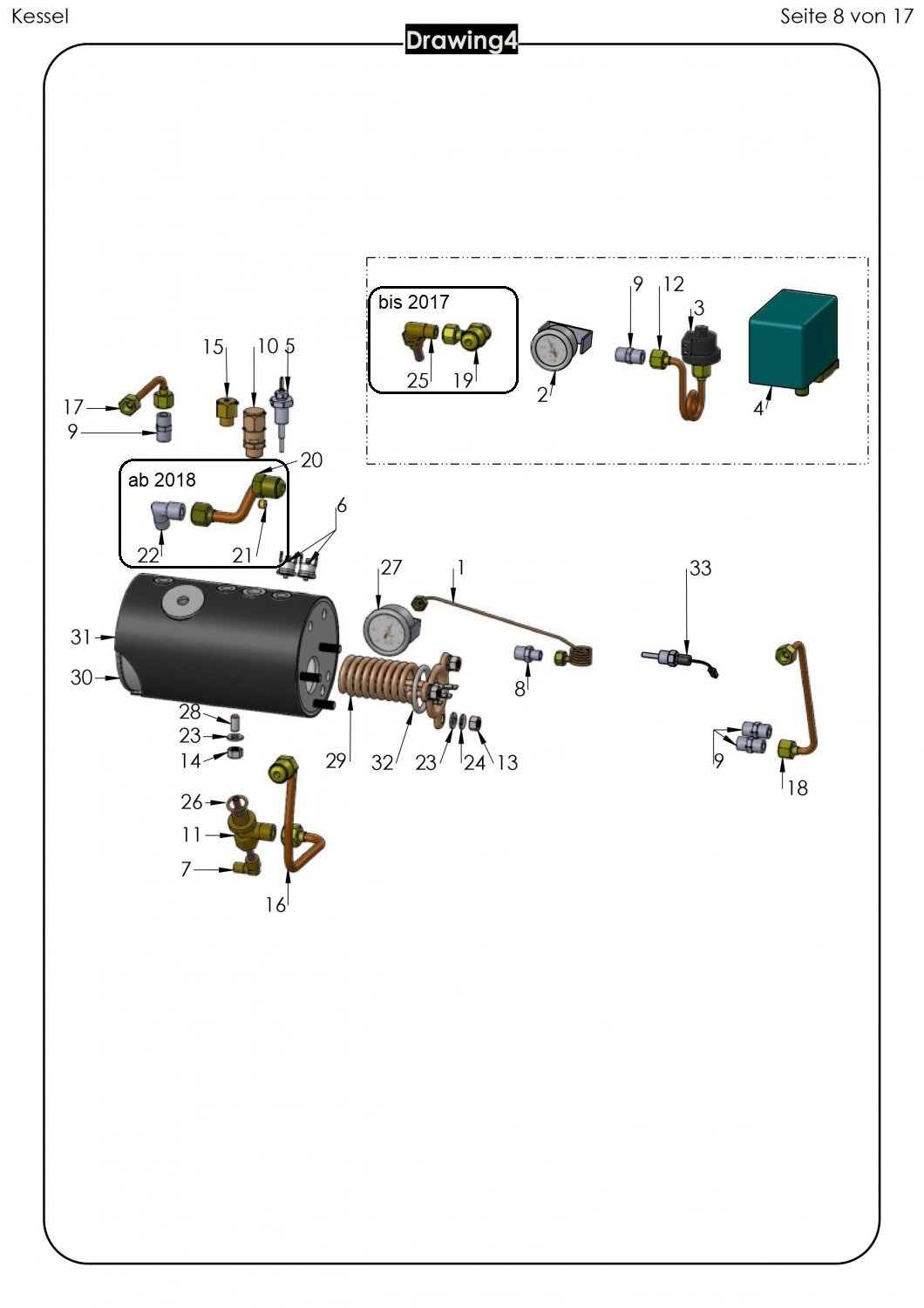

Drawing number 8144524

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1ecm profitec kapillarrohr manometer 0 5m 1 8f x 1 8f 8073670
ECM - Profitec Kapillarrohr Manometer 0,5M 1/8F x 1/8F
14,90 €

excl. Shipping costs

immediately available, 14 available
2ecm boiler pressure gauge with ecm logo 0 3bar o 39 mm 8079308
ECM BOILER PRESSURE GAUGE WITH ECM LOGO 0-3BAR ø 39 mm
31,90 €

excl. Shipping costs

immediately available, 8 available
3pressure switch xp110 125 0 5 1 5 bar 1 4 8062916
Pressure Switch XP110 125 0.5-1.5 BAR 1/4
21,30 €

excl. Shipping costs

immediately available
4pressure switch p303t01 3 poles 20a 1 4 8005077
PRESSURE SWITCH P303T01 3-POLES 20A 1/4
89,50 €
89,50 €

excl. Shipping costs

immediately available, 1 available
5niveausonde o 1 4 m 80 mm 8073951
Niveausonde ø 1/4 M-80 mm
21,30 €
17,26 €

excl. Shipping costs

immediately available, 3 available
6contact thermostat 135 deg c 145 deg c 8069003
CONTACT THERMOSTAT 135°C / 145°C
9,90 €

excl. Shipping costs

immediately available
7ecm technika injektorrohr 8079607
ECM Technika Injektorrohr
9,52 €

excl. Shipping costs

immediately available, 2 available
8fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 15 available
9doppelnippel ecm rocket anschluss o 1 4 aussengewinde 1 stueck 8101400
Doppelnippel ECM Rocket Anschluss ø 1/4 Außengewinde (1 Stück)
5,95 €

excl. Shipping costs

immediately available
10boiler valve 8064144
BOILER VALVE
12,90 €

excl. Shipping costs

immediately available, 5 available
11kesselfitting t anschluss 3 8a x 3 8a x 1 4i 8069498
Kesselfitting T-Anschluss 3/8A x 3/8A x 1/4I
22,90 €

excl. Shipping costs

immediately available, 6 available
12ecm kupferrohr fuer druckwaechter pressostat 8101344
ECM Kupferrohr für Druckwächter Pressostat
16,72 €

excl. Shipping costs

immediately available, 3 available
13sechskantmutter m8 messing 8164416
Sechskantmutter M8 Messing
1,05 €

excl. Shipping costs

immediately available
14hexagonal nut m8 medium 8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs

immediately available, 4 available
15fluid o tech 1 4 quot bsp unterdruckventil antivakuumventil edelstahl 8393315
Fluid-o-tech 1/4" BSP Unterdruckventil Antivakuumventil Edelstahl
34,90 €

excl. Shipping costs

immediately available, 14 available
15o 1 4 rime boiler valve 8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs

immediately available

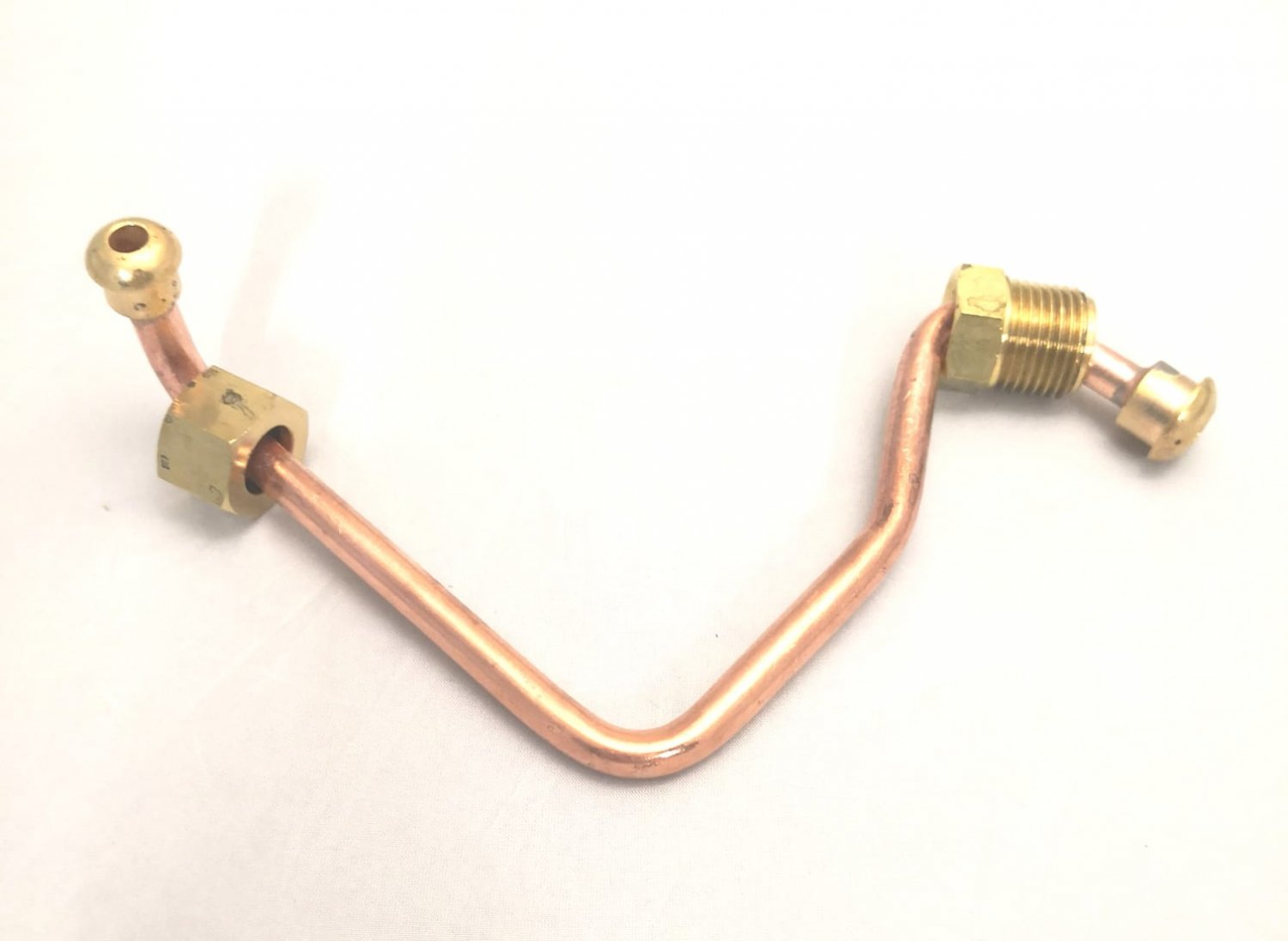

16rohr ecm edelstahlkessel waermetauscher zu gruppe unten 8105712
Rohr ECM Edelstahlkessel Wärmetauscher zu Gruppe unten
23,80 €

excl. Shipping costs

immediately available, 6 available
17ecm rohr edelstahlkessel zu dampfventil 8105714
ECM Rohr Edelstahlkessel zu Dampfventil
15,47 €

excl. Shipping costs

immediately available, 4 available
18rohr ecm kessel zum heisswasserventil 8105713
Rohr ECM Kessel zum Heisswasserventil
11,50 €

excl. Shipping costs

immediately available, 5 available
19ecm rohr waermetauscher oben zur gruppe mechanika iv technika rota 8079526
ECM Rohr Wärmetauscher oben zur Gruppe Mechanika IV Technika Rota
19,10 €

excl. Shipping costs

immediately available, 14 available
20ecm rohr waermetauscher zur gruppe oben ab baujahr 2018 8164439
ECM Rohr Wärmetauscher zur Gruppe oben (ab Baujahr 2018)
17,85 €

excl. Shipping costs

immediately available, 2 available
21stauscheibe 2 5mm drossel ecm 8164440
Stauscheibe 2,5mm Drossel ECM
1,96 €

excl. Shipping costs

immediately available
22ecm l verbindungsstueck 3 8 quot m 1 4 quot m 8118537
ECM L-Verbindungsstück 3/8"M 1/4"M
8,27 €

excl. Shipping costs

immediately available, 5 available
23ecm unterlegscheibe 8 4x16 1 6 8118545
ECM Unterlegscheibe 8,4x16,1,6
0,65 €

excl. Shipping costs

immediately available, 16 available
24federring m8 edelstahl din127 8080604
Federring M8 Edelstahl DIN127
0,92 €

excl. Shipping costs

immediately available, 13 available
25ecm l stueck winkel waermetauscher mit tauchrohr 8079527
ECM L - Stück Winkel Wärmetauscher mit Tauchrohr
10,70 €

excl. Shipping costs

immediately available, 2 available
26copper seal 3 8 rime 8118549
Copper seal 3/8″
1,84 €

excl. Shipping costs

immediately available

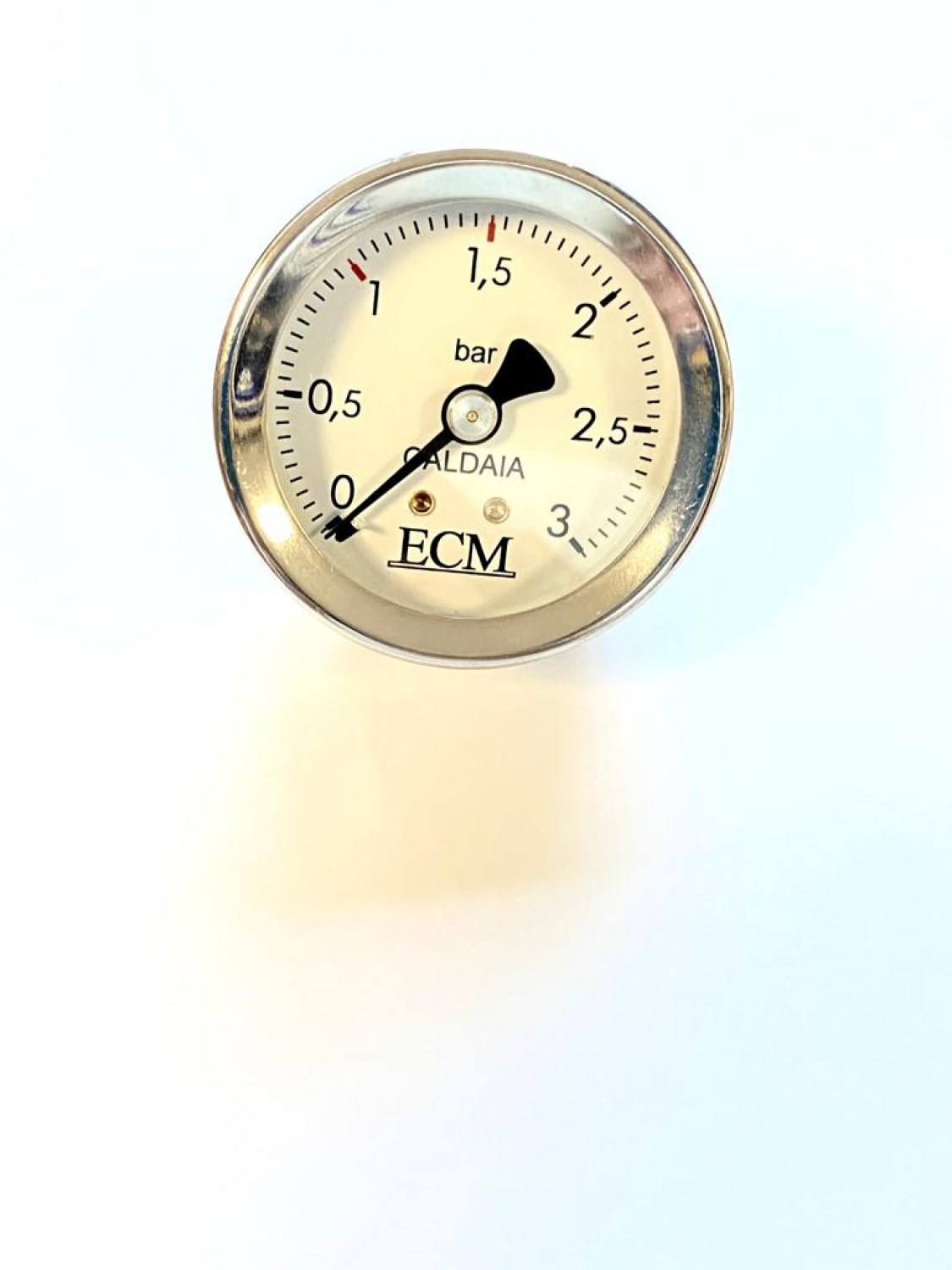

27ecm kesseldruckmanometer v ab 2019 1 8 quot 50mm 8164515
ECM Kesseldruckmanometer V (ab 2019) 1/8" 50mm
40,09 €

excl. Shipping costs

Delivery time: 2-3 weeks
28gewindestift innensechskant m8x1 25 16mm laenge 1 stueck 8105750
Gewindestift Innensechskant M8x1,25 16mm Länge (1 Stück)
1,96 €

excl. Shipping costs

immediately available, 3 available
29heating element 1400w 230v 8069443
HEATING ELEMENT 1400W 230V
46,90 €

excl. Shipping costs

immediately available, 5 available
30ecm edelstahlkessel 8080705
ECM Edelstahlkessel
209,90 €

excl. Shipping costs

immediately available, 2 available
31ecm kesselisolierung edelstahlkessel 8073638
ECM Kesselisolierung Edelstahlkessel
29,75 €

excl. Shipping costs

immediately available, 2 available
32o ring dichtung fuer heizung mit 3 loch flansch ecm profitec 8014608
O-Ring Dichtung für Heizung mit 3-Loch-Flansch ECM Profitec
4,34 €

excl. Shipping costs

immediately available
33temperature probe ecm controvento profitec pro700 1 4 8073551
TEMPERATURE PROBE ECM CONTROVENTO PROFITEC PRO700 1/4
44,16 €

excl. Shipping costs

immediately available, 8 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
