ECM Heidelberg

ECM Serie II KAFFEEGRUPPE

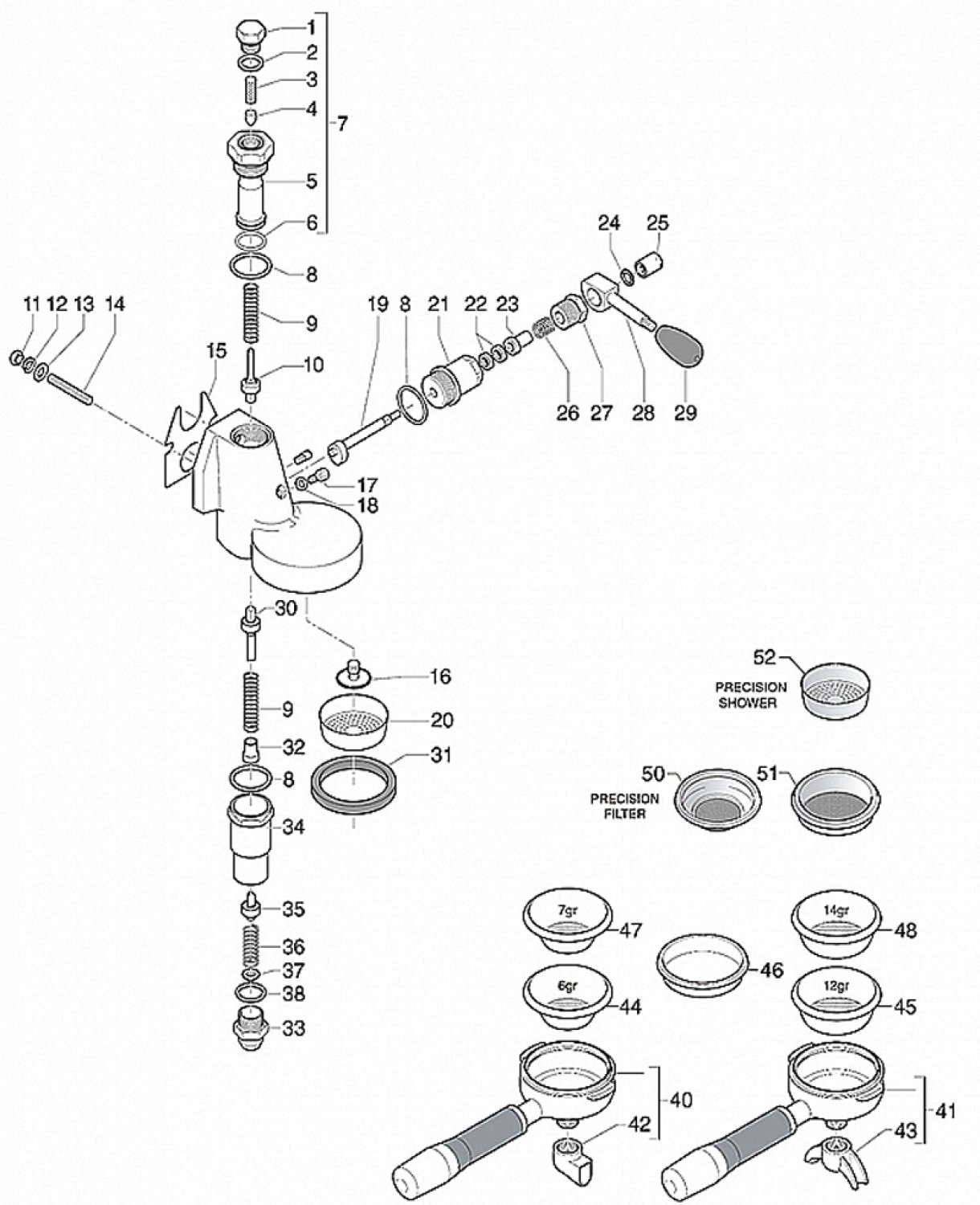

Drawing number 8079451

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
0e61 bruehgruppe revisionsset kit ecm bfc sab u v m 8079664
E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - u.v.m.
49,90 €

excl. Shipping costs

immediately available, 3 available
1deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 13 available
2ptfe flat gasket o 22x17x2 mm 8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs

immediately available
3water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
4nozzle m6x1 hole 8006984
NOZZLE M6x1 HOLE
3,27 €

excl. Shipping costs

immediately available, 8 available
5chromium plated upper sleeve 8063314
CHROMIUM-PLATED UPPER SLEEVE
39,00 €
39,00 €

excl. Shipping costs

immediately available, 3 available
6o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
8ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
9spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
10complete spout valve 8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs

immediately available
11hexagonal nut m8 medium 8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs

immediately available, 4 available
15ecm gasket group 75x68x2 mm 8069492
ECM GASKET GROUP 75x68x2 mm
5,02 €

excl. Shipping costs

immediately available, 8 available
16group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available
17low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs

immediately available
18ptfe flat gasket o10x6x1 mm 8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs

immediately available, 19 available
19cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
20shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
21ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs

immediately available, 3 available
22epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
23cam guide bushing 8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs

immediately available, 14 available

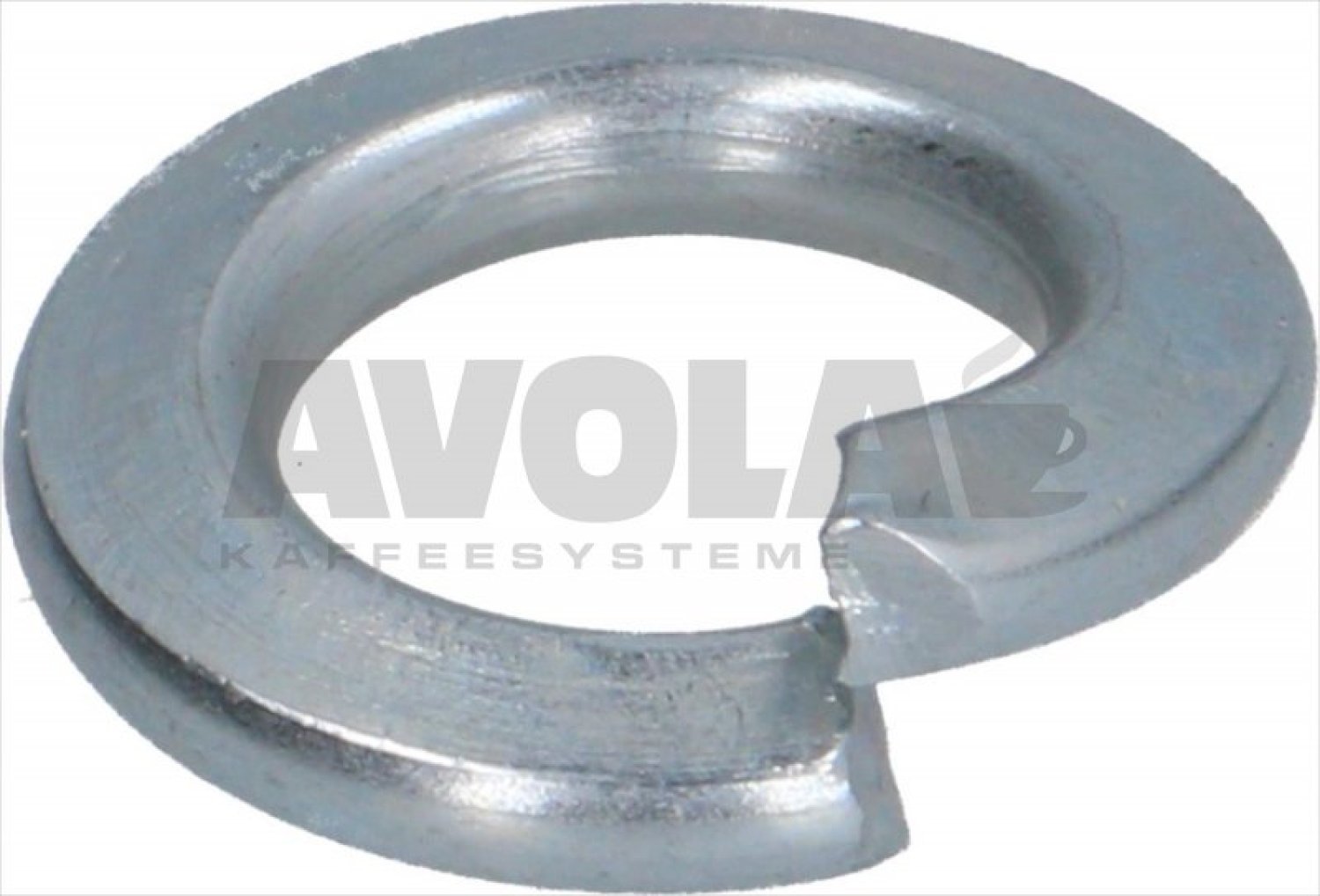

24washer elastic spiral m6 8001672
WASHER ELASTIC SPIRAL M6
1,64 €

excl. Shipping costs

immediately available
25chromium plated cap m6 8002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs

immediately available, 7 available
26spring o 14 6x21 mm 8003547
SPRING ø 14,6x21 mm
6,89 €

excl. Shipping costs

immediately available
27e61 verschraubung nockenwelle 8080935
E61 Verschraubung Nockenwelle
4,89 €

excl. Shipping costs

immediately available, 5 available
28micro control lever 8073574
MICRO CONTROL LEVER
41,95 €

excl. Shipping costs

immediately available, 5 available
30complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available

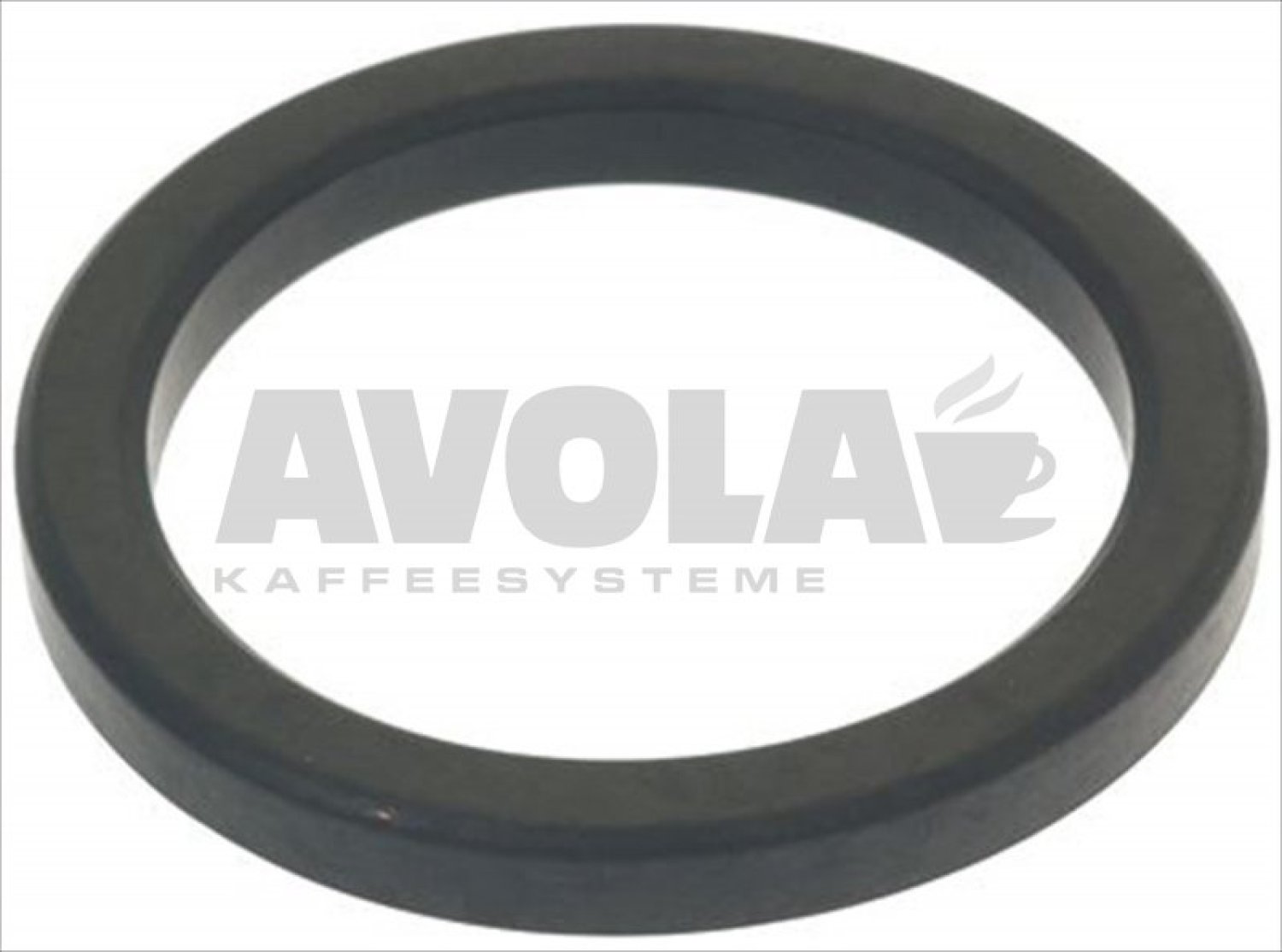

31rubber 73x57x8 5 mm for e61 brew unit 8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs

immediately available
31cafelat e61 siebtraegerdichtung 73x57x8 5 mm blau 8081203
Cafelat E61 Siebträgerdichtung 73x57x8,5 mm blau
5,95 €

excl. Shipping costs

immediately available
32spring guide bushing 8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs

immediately available, 5 available
33drain chromium plated fitting 8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs

immediately available, 3 available
34chrome plated drain sleeve 8063549
CHROME-PLATED DRAIN SLEEVE
40,35 €

excl. Shipping costs

Delivery time
is determined
35e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
36feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
37drain jet swirl 8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs

immediately available, 6 available
38flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available

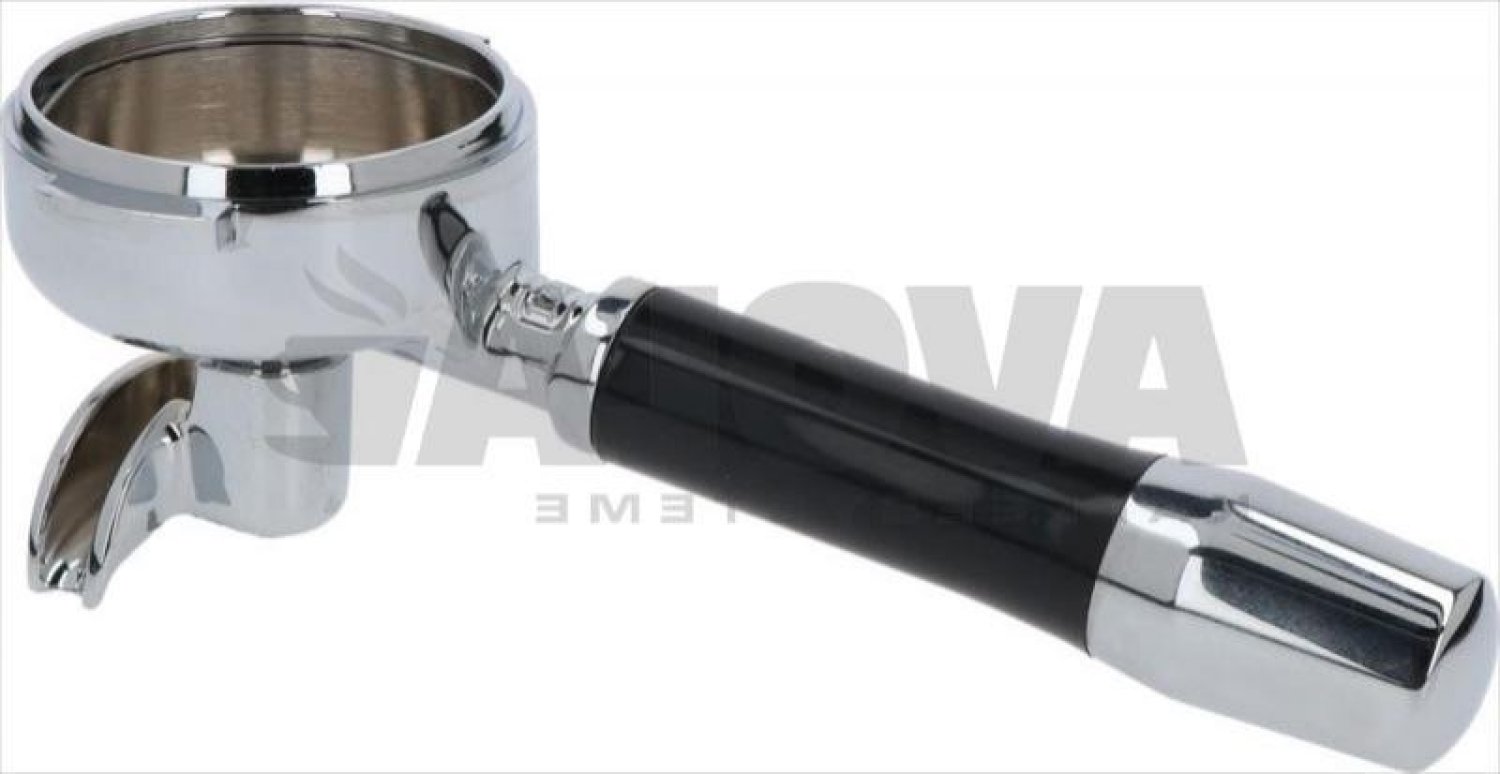

40filter holder complete 1 cup profi ecm germany 8069459
FILTER HOLDER COMPLETE 1 CUP PROFI ECM GERMANY
67,50 €

excl. Shipping costs

immediately available, 3 available

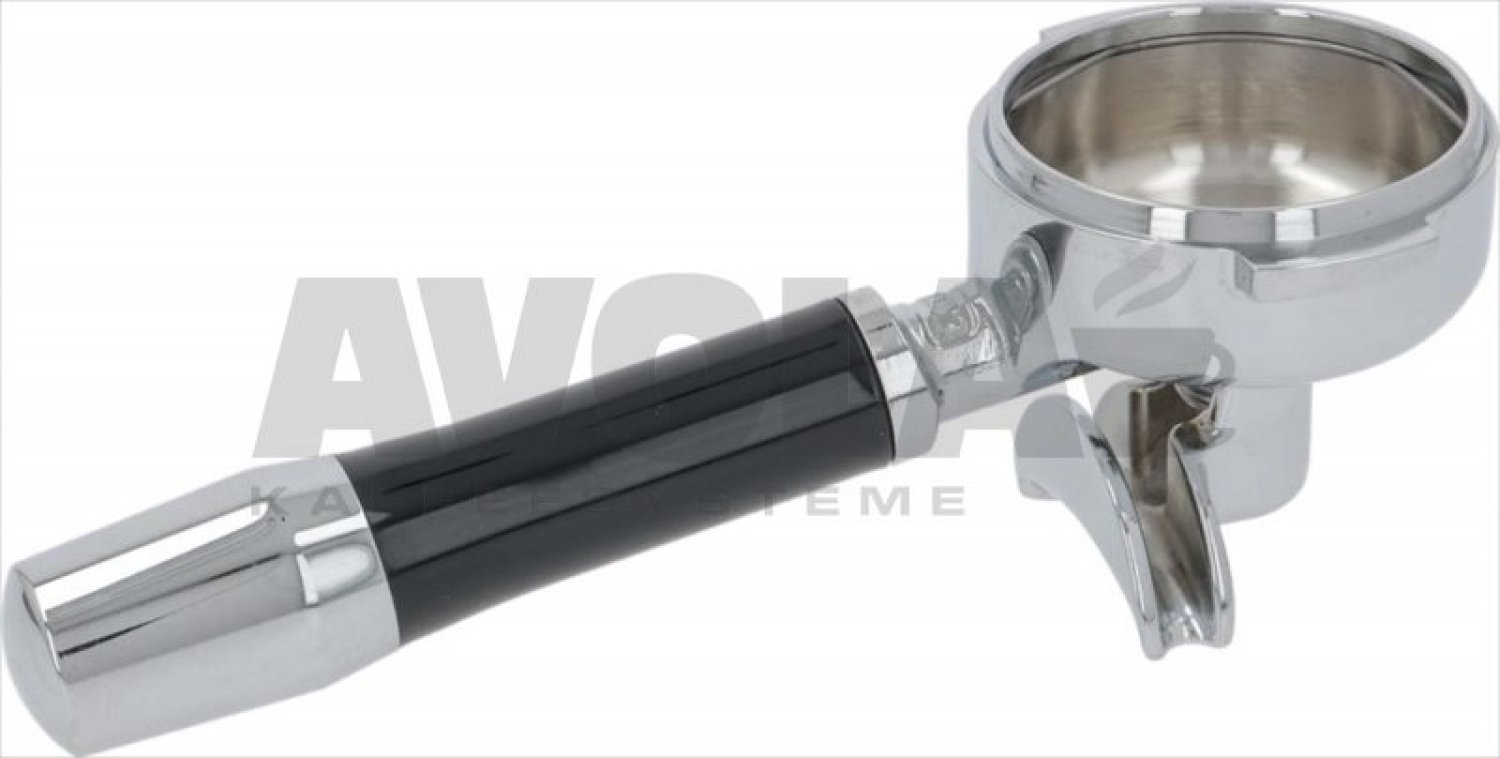

41filter holder complete 2 cups profi ecm german 8069458
FILTER HOLDER COMPLETE 2 CUPS PROFI ECM GERMAN
64,90 €

excl. Shipping costs

immediately available, 4 available
441 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 13 available
452 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 7 available
46blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available, 20 available
471 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 18 available
482 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
50precision filter 1 cup 6 8 g h24 5 8062780
PRECISION FILTER 1 CUP 6/8 g H24.5
20,42 €

excl. Shipping costs

immediately available, 3 available
50precision filter 1 cup 7 9 g h26 5 8062781
PRECISION FILTER 1 CUP 7/9 g H26.5
15,70 €

excl. Shipping costs

immediately available, 10 available
51precision filter 2 cups 12 18 g h24 5 8062782
PRECISION FILTER 2 CUPS 12-18 g H24.5
18,39 €

excl. Shipping costs

immediately available, 2 available
51precision filter 2 cups 18 22 g h28 5 8062784
PRECISION FILTER 2 CUPS 18/22 g H28,5
21,97 €

excl. Shipping costs

immediately available, 2 available
52precision shower screen 8062792
PRECISION SHOWER SCREEN
15,90 €

excl. Shipping costs

immediately available, 4 available
52precision shower screen 8062793
PRECISION SHOWER SCREEN
11,92 €

excl. Shipping costs

immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
