ECM Heidelberg

ECM Serie IV Profi Due Wasserkreislauf

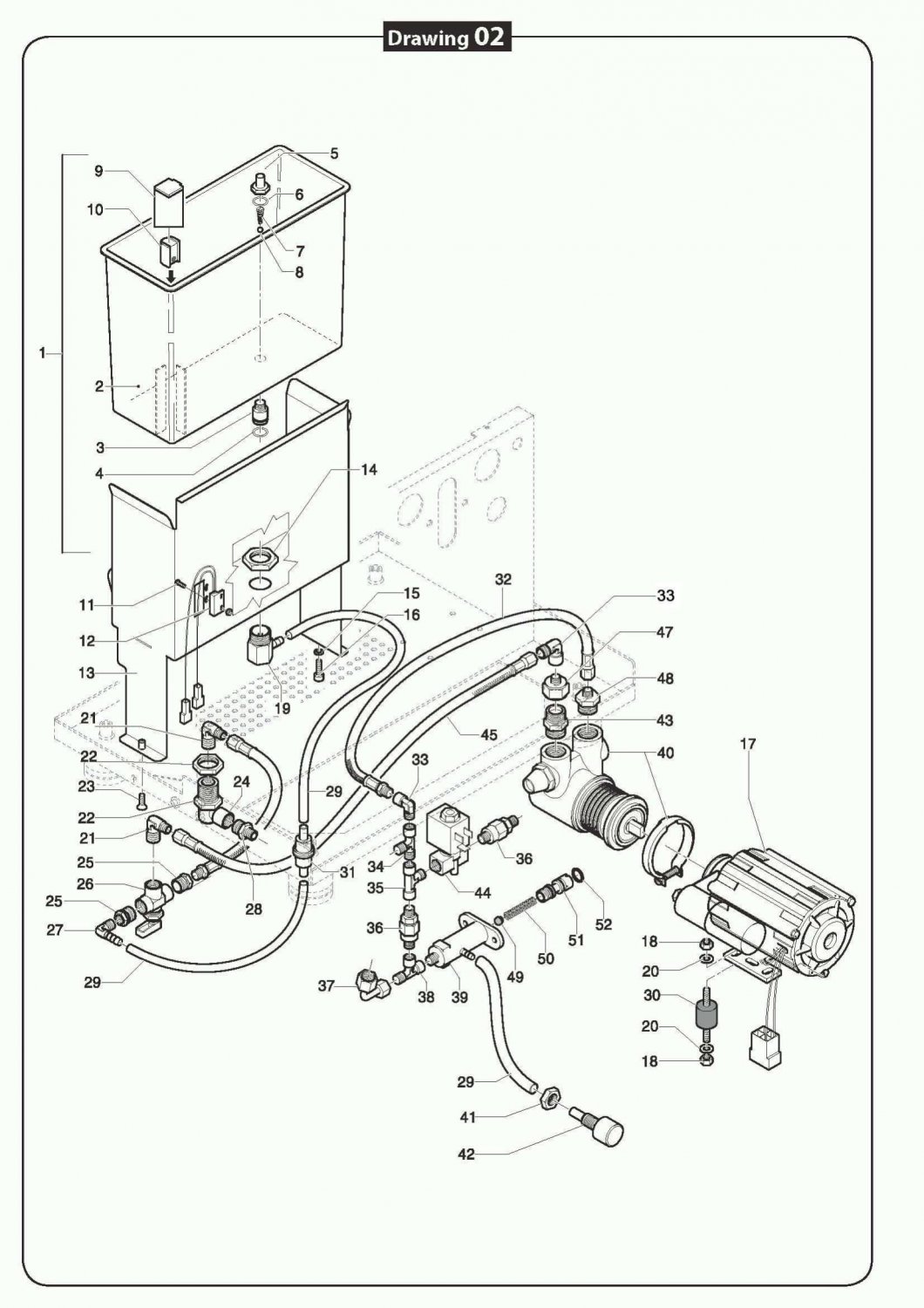

Drawing number 8140932

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1ecm wassertank komplett mechanika technika barista elektronika 8069358
ECM Wassertank komplett Mechanika Technika Barista Elektronika
43,47 €

excl. Shipping costs

immediately available, 12 available
2ecm wassertank 3 0 liter ohne schwimmer und wassertankadapter 8164562
ECM Wassertank 3,0 Liter ohne Schwimmer und Wassertankadapter
35,70 €

excl. Shipping costs

immediately available, 3 available
3wassertankadapter stutzen 8164563
Wassertankadapter Stutzen
6,49 €

excl. Shipping costs

Delivery time
is determined
4o ring wassertankadapter unten ecm profitec 8136877
O-Ring Wassertankadapter unten ECM Profitec
1,32 €

excl. Shipping costs

immediately available
5 8164566
Wassertankadapter Verschraubung
17,73 €

excl. Shipping costs

Delivery time
is determined
6o ring ecm expansionsventil 1 stueck 8080378
O-Ring ECM Expansionsventil - 1 Stück
2,09 €

excl. Shipping costs

immediately available
7ecm feder wassertank 8069352
ECM Feder Wassertank
2,68 €

excl. Shipping costs

immediately available, 13 available
8ecm bezzera kugel wassertank 8069353
ECM BEZZERA Kugel Wassertank
2,26 €

excl. Shipping costs

immediately available, 9 available
9abdeckung fuer schwimmerfuehrung ecm profitec 8101531
Abdeckung für Schwimmerführung ECM Profitec
3,57 €

excl. Shipping costs

immediately available, 15 available
10ecm reed schwimmer wassertank 8069475
ECM Reed Schwimmer Wassertank
6,89 €

excl. Shipping costs

immediately available, 14 available
12ecm fuellstandsone tank reedkontakt reed sensor pic ms 324 1253a 8059519
ECM Füllstandsone Tank Reedkontakt Reed Sensor PIC MS-324/1253A
17,85 €

excl. Shipping costs

immediately available, 7 available
13ecm technika mechanika iv tankaufnahme 8080516
ECM Technika Mechanika IV Tankaufnahme
82,11 €

excl. Shipping costs

Delivery time
is determined
14 8101742
Edelstahlmutter Wassertankadapter ECM (nicht mehr lieferbar)
This article is no longer available
15scheibe edelstahl o 4 3 mm a2 din 125 8062377
Scheibe Edelstahl Ø 4,3 mm A2 Din 125
0,64 €

excl. Shipping costs

immediately available, 3 available
16schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
18sechskantmutter edelstahl m6 a2 din 934 8061377
Sechskantmutter Edelstahl M6 A2 Din 934
0,26 €

excl. Shipping costs

immediately available, 14 available
20ecm unterlegscheibe 6 4x12 0x1 6 8118552
ECM Unterlegscheibe 6,4x12,0x1,6
0,24 €

excl. Shipping costs

immediately available, 10 available
21l stueck o 1 8a 1 4a ecm 8118765
L-Stück ø 1/8A - 1/4A ECM
5,95 €

excl. Shipping costs

immediately available, 4 available
22ecm run 1 4 1 2 8081183
ECM run 1/4 - 1/2
12,50 €

excl. Shipping costs

immediately available, 4 available
23schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
24ecm turnable elbow for water connection technika iv mechanika iv 8081182
ECM turnable elbow for water connection Technika IV Mechanika IV
19,50 €

excl. Shipping costs

immediately available, 4 available
25 8140727
ECM Reduzierung 1/4M 1/8F
9,52 €

excl. Shipping costs

immediately available, 10 available
26ecm 3 wege wasserventil festwasser tank 1 4 wahlventil 8079483
ECM 3-Wege Wasserventil Festwasser Tank 1/4 Wahlventil
24,89 €

excl. Shipping costs

immediately available, 7 available
28fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 13 available
29silicone hose o 5x8 shore 60 1m 8006817
Silicone hose ø 5x8 SHORE 60 - 1m
3,95 €

excl. Shipping costs

immediately available
30ecm fuss motor rotationspumpe 8118644
ECM Fuß Motor Rotationspumpe
3,57 €

excl. Shipping costs

immediately available, 5 available
31wasserfilter ecm tankfilter partikelfilter 8102293
Wasserfilter ECM Tankfilter Partikelfilter
5,26 €

excl. Shipping costs

Delivery time
is determined
32ecm flexschlauch 17 cm 1 8 quot m 1 8 quot f p8012 8069568
ECM Flexschlauch 17 cm 1/8"M-1/8"F - P8012
12,90 €

excl. Shipping costs

immediately available
33l fitting o 1 8 8005885
L-FITTING ø 1/8
5,46 €

excl. Shipping costs

immediately available, 15 available
34verbindung t stueck 1 8 quot mmf 8079608
Verbindung T Stück 1/8 " MMF
6,90 €

excl. Shipping costs

immediately available, 9 available
35t anschluss o 1 8 i 1 8a 1 8 i vernickelt 8005873
T- Anschluss ø 1/8 I-1/8a-1/8 I vernickelt
7,15 €

excl. Shipping costs

immediately available, 7 available
36ecm rueckschlagventil o 1 8 quot m 1 8 8393687
ECM Rückschlagventil ø 1/8 " M-1/8
23,80 €

excl. Shipping costs

immediately available, 19 available
37 8164557
Verbindungsrohr Pressostat
10,42 €

excl. Shipping costs

Delivery time
is determined
39expansion valve 8069467
EXPANSION VALVE
37,90 €

excl. Shipping costs

immediately available, 12 available
40rotationspumpe ecm 100l nuert prs 10az2n mgna 8101393
Rotationspumpe ECM 100l Nuert PRS 10AZ2N_MGNA
144,49 €

excl. Shipping costs

immediately available, 2 available
41sechskantmutter edelstahl m10 a2 din 934 8061376
Sechskantmutter Edelstahl M10 A2 Din 934
2,74 €

excl. Shipping costs

immediately available
42ecm ablaufduese 8079484
ECM Ablaufdüse
16,78 €

excl. Shipping costs

immediately available, 5 available

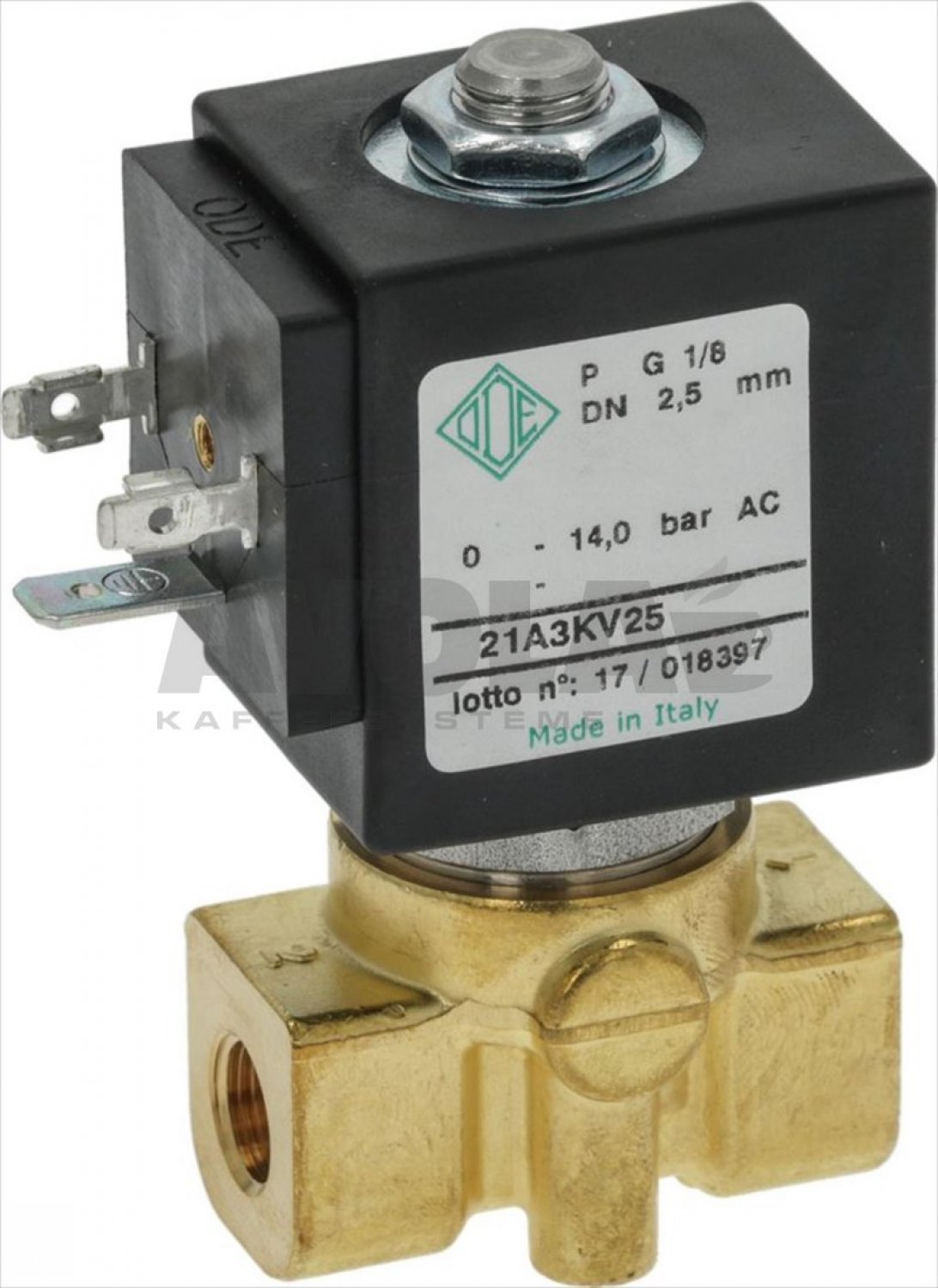

44magnetventil ode 2 wege 2 5 230v 1 8 quot 8101492
Magnetventil ODE 2-wege 2,5 230V 1/8"
46,41 €

excl. Shipping costs

immediately available, 2 available
44 8164645
Magnetventil 2-Wege 1/8"FF 110V/60Hz
60,87 €

excl. Shipping costs

Delivery time
is determined
45ecm metallschlauch flex 1 8 quot ff l 500 konisch beidseitig 8118676
ECM Metallschlauch flex 1/8"FF, l=500 Konisch beidseitig
15,35 €

excl. Shipping costs

immediately available, 4 available
47ecm reduzierung 3 8 quot f 1 8 quot m 8118645
ECM Reduzierung 3/8"F 1/8"M
4,95 €

excl. Shipping costs

immediately available, 1 available
48 8118554
ECM Nippel 1/8"M 3/8"M
4,95 €

excl. Shipping costs

Delivery time
is determined
49silicone mushroom gasket 8007697
SILICONE MUSHROOM GASKET
1,50 €

excl. Shipping costs

immediately available
50feder ecm expansionsventil neue version 8080377
Feder ECM Expansionsventil (neue Version)
2,55 €

excl. Shipping costs

immediately available, 15 available
51 8164578
Pressure adjustment expansion valve
14,34 €

excl. Shipping costs

Delivery time
is determined
52o ring ecm expansionsventil 1 stueck 8080378
O-Ring ECM Expansionsventil - 1 Stück
2,09 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
