ECM Heidelberg

ECM TECHNIKA IV KESSEL (KUPFER)

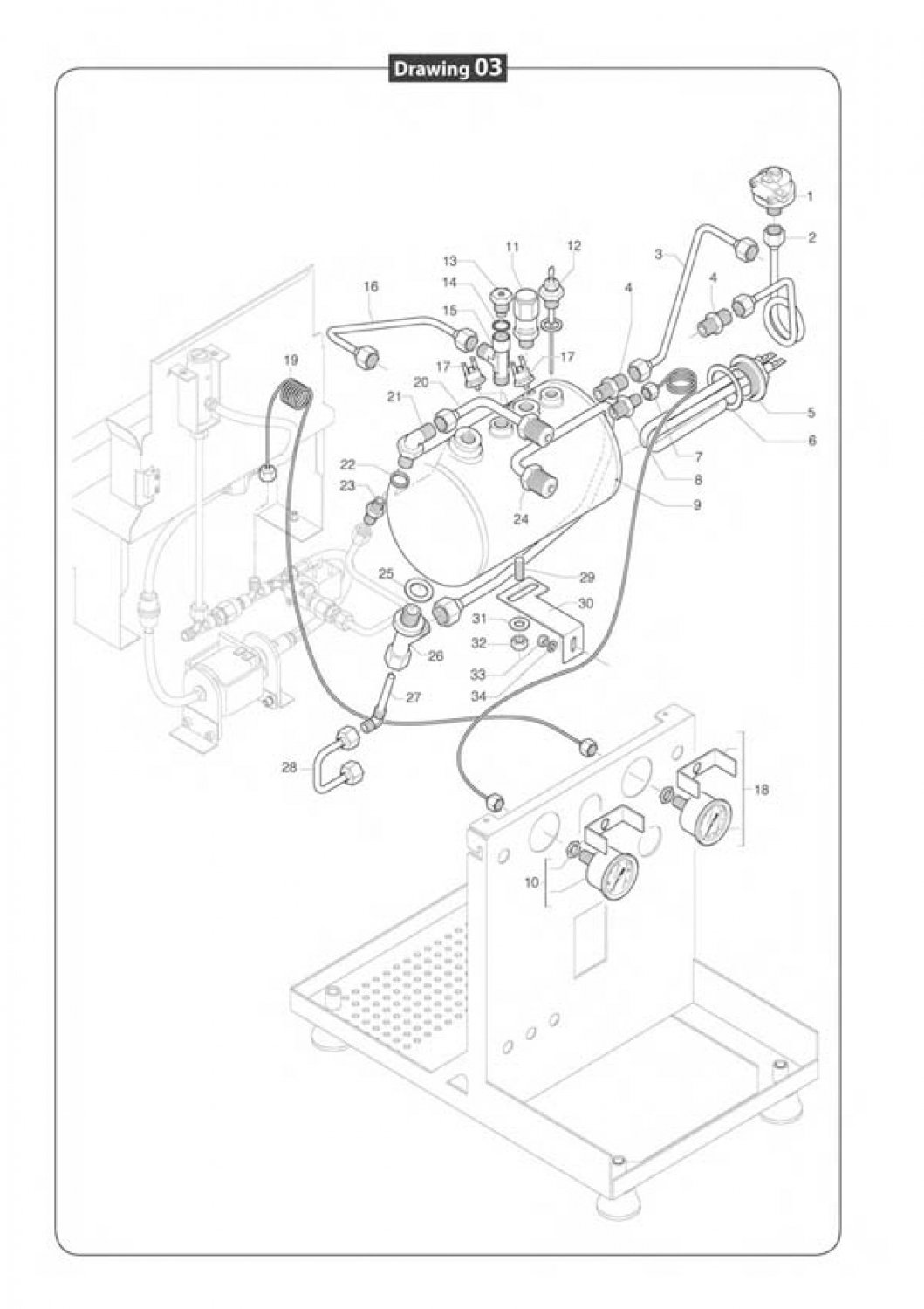

Drawing number 8069141

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1pressure switch xp110 125 0 5 1 5 bar 1 4 8062916
Pressure Switch XP110 125 0.5-1.5 BAR 1/4
21,30 €

excl. Shipping costs

immediately available
3rohr ecm kessel zum heisswasserventil 8105713
Rohr ECM Kessel zum Heisswasserventil
11,50 €

excl. Shipping costs

immediately available, 5 available
4doppelnippel ecm rocket anschluss o 1 4 aussengewinde 1 stueck 8101400
Doppelnippel ECM Rocket Anschluss ø 1/4 Außengewinde (1 Stück)
5,95 €

excl. Shipping costs

immediately available
5ecm original heating element 1200w 230v 8069527
ECM original heating element 1200W 230V
39,50 €

excl. Shipping costs

immediately available, 7 available
6teflondichtung fuer heizung 40 5x33 3x3 mm 8139595
Teflondichtung für Heizung 40,5x33,3x3 mm
2,38 €

excl. Shipping costs

immediately available
8fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 15 available
9ecm kupferkessel 8073684
ECM Kupferkessel
214,20 €

excl. Shipping costs

immediately available, 2 available
10boiler pressure gauge o 39 mm 0 divide 3bar 8069644
BOILER PRESSURE GAUGE ø 39 mm 0÷3bar
23,80 €

excl. Shipping costs

immediately available, 3 available
10ecm boiler pressure gauge with ecm logo 0 3bar o 39 mm 8079308
ECM BOILER PRESSURE GAUGE WITH ECM LOGO 0-3BAR ø 39 mm
31,90 €

excl. Shipping costs

immediately available, 8 available
11boiler valve 8064144
BOILER VALVE
12,90 €

excl. Shipping costs

immediately available, 5 available
12level probe o 1 4 m 75 mm 8021718
LEVEL PROBE ø 1/4 M-75 mm
20,50 €

excl. Shipping costs

immediately available, 3 available
12ptfe flat gasket o18x13x2 mm 8001641
PTFE FLAT GASKET Ø18x13x2 mm
2,21 €

excl. Shipping costs

immediately available
13boiler valve o 1 4 rime 8007149
BOILER VALVE ø 1/4″
7,90 €

excl. Shipping costs

immediately available, 20 available
14copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
17contact thermostat 135 deg c 145 deg c 8069003
CONTACT THERMOSTAT 135°C / 145°C
9,90 €

excl. Shipping costs

immediately available
18pump pressure gauge o 39 mm 0 divide 16 bar 8069894
PUMP PRESSURE GAUGE ø 39 mm 0÷16 Bar
19,19 €

excl. Shipping costs

immediately available, 13 available
18ecm pump pressure gauge with ecm logo 0 16bar o 39 mm 8079309
ECM PUMP PRESSURE GAUGE WITH ECM LOGO 0-16BAR ø 39 mm
29,90 €

excl. Shipping costs

immediately available, 5 available
21ecm l stueck winkel waermetauscher mit tauchrohr 8079527
ECM L - Stück Winkel Wärmetauscher mit Tauchrohr
10,70 €

excl. Shipping costs

immediately available, 2 available
22copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
23fitting o 1 8 a 1 8 a 8005709
FITTING ø 1/8 A-1/8 A
2,34 €

excl. Shipping costs

immediately available, 13 available
25round copper gasket o 22x16 3x2 75 mm 8001460
ROUND COPPER GASKET ø 22x16,3x2,75 mm
1,15 €

excl. Shipping costs

immediately available
26kesselfitting t anschluss 3 8a x 3 8a x 1 4i 8069498
Kesselfitting T-Anschluss 3/8A x 3/8A x 1/4I
22,90 €

excl. Shipping costs

immediately available, 6 available
27ecm technika injektorrohr 8079607
ECM Technika Injektorrohr
9,52 €

excl. Shipping costs

immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
