ECM Milano

ECM Brühgruppe Technika- Mechanika Profi WT WA, Classika, Controvento, Elektronika

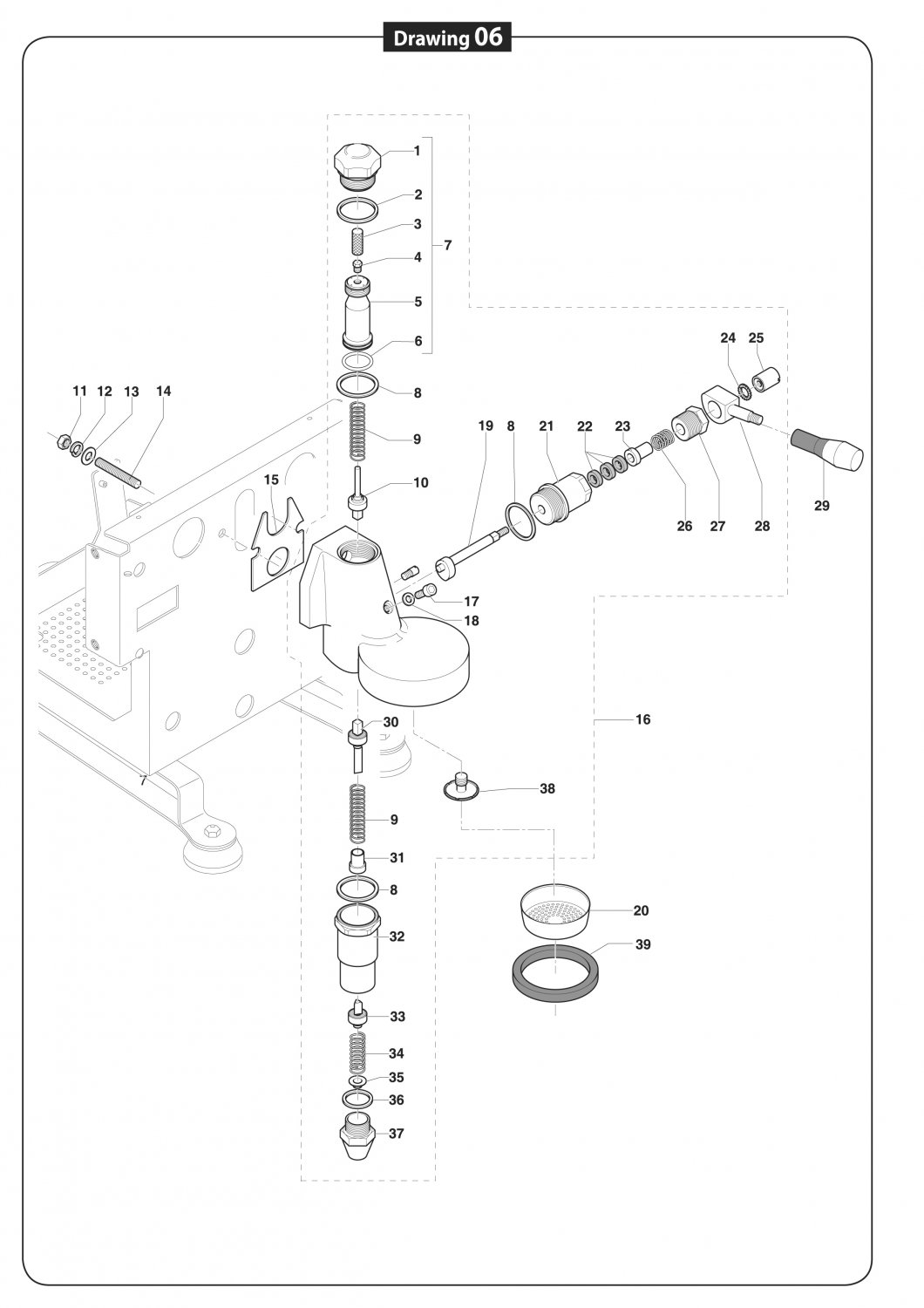

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8080875		8080875 ECM Verschraubung Brühgruppenzylinder			This article is no longer available
2	8001583		8001583 PTFE FLAT GASKET ø 35x30x2 mm	excl. Shipping costs immediately available	1,09 €	1,09 € excl. Shipping costs immediately available
3	8001115		8001115 Water filter ø 8,5x22 mm	excl. Shipping costs immediately available	1,79 €	1,79 € excl. Shipping costs immediately available
4	8006971		8006971 NOZZLE M6x1 HOLE	excl. Shipping costs immediately available	4,56 €	4,56 € excl. Shipping costs immediately available
5	8080876		8080876 ECM Brühgruppenzylinder unten			This article is no longer available
6	8001794		8001794 O-RING 0128 VITON	excl. Shipping costs immediately available	1,68 €	1,68 € excl. Shipping costs immediately available
7	8081134		8081134 Original ECM Kollektor Inox für E61 Brühgruppe Edelstahl Glocke Gruppenpilz (ohne O-Ring)	excl. Shipping costs immediately available, 8 available	74,90 €	74,90 € excl. Shipping costs immediately available, 8 available
8	8001583		8001583 PTFE FLAT GASKET ø 35x30x2 mm	excl. Shipping costs immediately available	1,09 €	1,09 € excl. Shipping costs immediately available
9	8003820		8003820 SPRING ø 14x45 mm	excl. Shipping costs immediately available	1,57 €	1,57 € excl. Shipping costs immediately available
10	8007091		8007091 COMPLETE SPOUT VALVE	excl. Shipping costs immediately available	7,90 €	7,90 € excl. Shipping costs immediately available
11	8011323		8011323 HEXAGONAL NUT M8 MEDIUM	excl. Shipping costs immediately available	1,04 €	1,04 € excl. Shipping costs immediately available
12	8080604		8080604 Federring M8 Edelstahl DIN127	excl. Shipping costs immediately available	0,92 €	0,92 € excl. Shipping costs immediately available
15	8069008		8069008 Rocket Gruppendichtung	excl. Shipping costs immediately available, 8 available	4,64 €	4,64 € excl. Shipping costs immediately available, 8 available
19	8005124		8005124 Cam rod for E61 coffee group	excl. Shipping costs immediately available	11,90 €	11,90 € excl. Shipping costs immediately available
20	8000608		8000608 Shower screen für E61 brew unit	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available
21	8101292		8101292 ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert	excl. Shipping costs Delivery time: 4-6 weeks	19,90 €	19,90 € excl. Shipping costs Delivery time: 4-6 weeks
22	8001570		8001570 EPDM flat gasket 15,5x7,5x4 mm	excl. Shipping costs immediately available	0,90 €	0,90 € excl. Shipping costs immediately available
23	8118529		8118529 ECM E61 Buchse (Gruppe mit Edelstahlpilz) 23mm	excl. Shipping costs immediately available, 4 available	4,76 €	4,76 € excl. Shipping costs immediately available, 4 available
24	8073573		8073573 Zahnscheibe 0,8 Nockenwelle E61	excl. Shipping costs immediately available, 19 available	1,25 €	1,25 € excl. Shipping costs immediately available, 19 available
25	8002794		8002794 CHROMIUM-PLATED CAP M6	excl. Shipping costs immediately available, 9 available	3,84 €	3,84 € excl. Shipping costs immediately available, 9 available
26	8003547		8003547 SPRING ø 14,6x21 mm	excl. Shipping costs immediately available	6,89 €	6,89 € excl. Shipping costs immediately available
27	8080935		8080935 E61 Verschraubung Nockenwelle	excl. Shipping costs immediately available, 5 available	4,89 €	4,89 € excl. Shipping costs immediately available, 5 available
28	8073579		8073579 ECM Hebel Technika IV Profi Mechanika Classika II	excl. Shipping costs immediately available, 3 available	41,65 €	41,65 € excl. Shipping costs immediately available, 3 available
29	8069515		8069515 ECM Handhebel verchromt	excl. Shipping costs immediately available, 9 available	18,90 €	18,90 € excl. Shipping costs immediately available, 9 available
30	8007124		8007124 COMPLETE DRAIN VALVE	excl. Shipping costs immediately available	9,90 €	9,90 € excl. Shipping costs immediately available
31	8001795		8001795 SPRING GUIDE BUSHING	excl. Shipping costs immediately available, 10 available	4,74 €	4,74 € excl. Shipping costs immediately available, 10 available
32	8063549		8063549 CHROME-PLATED DRAIN SLEEVE	excl. Shipping costs Delivery time is determined	51,36 €	51,36 € excl. Shipping costs Delivery time is determined
33	8007125		8007125 E61 drain valve with gasket	excl. Shipping costs immediately available	5,90 €	5,90 € excl. Shipping costs immediately available
34	8281551		8281551 Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen	excl. Shipping costs immediately available	2,68 €	2,68 € excl. Shipping costs immediately available
35	8005864		8005864 DRAIN JET SWIRL	excl. Shipping costs immediately available	2,89 €	2,89 € excl. Shipping costs immediately available
36	8001415		8001415 Flat gasket PTFE ø 26x21x2 mm	excl. Shipping costs immediately available	2,32 €	2,32 € excl. Shipping costs immediately available
37	8073594		8073594 ECM Auslauffitting Brühgruppe E61	excl. Shipping costs immediately available, 3 available	21,69 €	21,69 € excl. Shipping costs immediately available, 3 available
38	8006987		8006987 Group spray nozzle ø 30 mm M10x1 - E61	excl. Shipping costs immediately available	5,90 €	5,90 € excl. Shipping costs immediately available
39	8081202		8081202 Cafelat E61 portafilter gasket 73x57x8 mm red	excl. Shipping costs immediately available	5,95 €	5,95 € excl. Shipping costs immediately available
39	8002056		8002056 RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available
39	8081202		8081202 Cafelat E61 portafilter gasket 73x57x8 mm red	excl. Shipping costs immediately available	5,95 €	5,95 € excl. Shipping costs immediately available
39	8060996		8060996 Gasket 73x57x8 mm - for E61 brew unit	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available

If your article is not listed, please use the following form and enter the desired numbers.
