ECM Milano

ECM TECHNIKA III GROUP TAPS

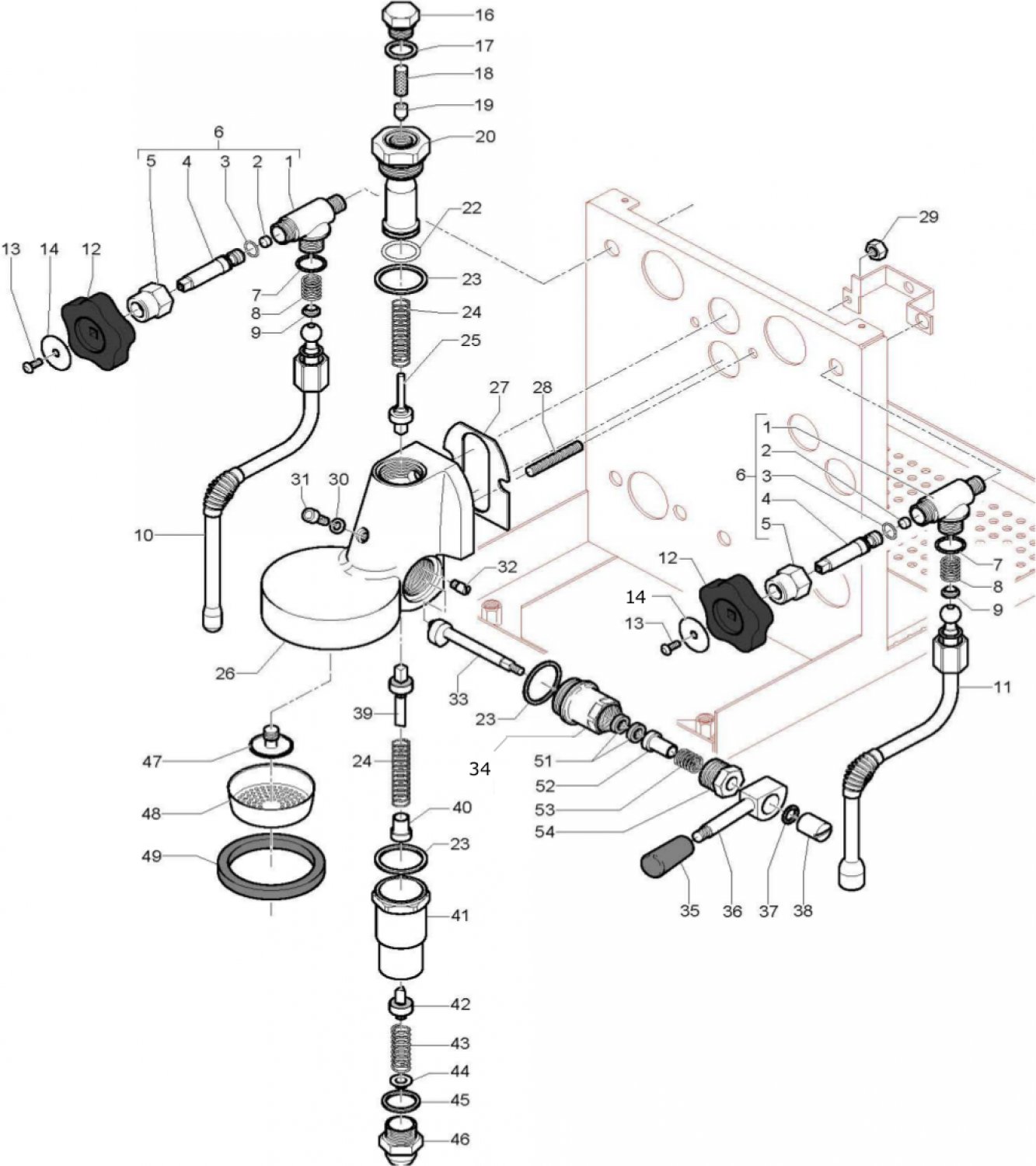

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
2	8001449		8001449 BLIND GASKET 8x4 mm	excl. Shipping costs immediately available	3,55 €	3,55 € excl. Shipping costs immediately available
3	8001600		8001600 O-RING 03030 EPDM	excl. Shipping costs immediately available	0,56 €	0,56 € excl. Shipping costs immediately available
4	8079643		8079643 ECM Technika III Spindel Dampfventil Bezzera Galatea Domus	excl. Shipping costs immediately available, 4 available	17,96 €	17,96 € excl. Shipping costs immediately available, 4 available
6	8080945		8080945 Bezzera Drehventil M13 - verwendbar auch für ECM Baureihe III (siehe Hinweis)	excl. Shipping costs immediately available, 3 available	67,24 €	67,24 € excl. Shipping costs immediately available, 3 available
7	8014882		8014882 O-RING 0121 EPDM	excl. Shipping costs immediately available	1,07 €	1,07 € excl. Shipping costs immediately available
8	8069864		8069864 SPRING ø 11,7x16 mm	excl. Shipping costs immediately available, 16 available	2,12 €	2,12 € excl. Shipping costs immediately available, 16 available
9	8071400		8071400 Dichtungsscheibe für Dampfventil- Heisswasserventil Mutter ECM Mechanika III Technika III Bezzera	excl. Shipping costs immediately available	3,33 €	3,33 € excl. Shipping costs immediately available
10	8069460		8069460 PIPE STEAM COMPLETE SATINLESS STEEL	excl. Shipping costs immediately available, 3 available	40,61 €	40,61 € excl. Shipping costs immediately available, 3 available
12	8069438		8069438 HANDLE TAP WATER/STEAM	excl. Shipping costs immediately available, 6 available	12,20 €	12,20 € excl. Shipping costs immediately available, 6 available
18	8001115		8001115 Water filter ø 8,5x22 mm	excl. Shipping costs immediately available	1,79 €	1,79 € excl. Shipping costs immediately available
19	8006971		8006971 NOZZLE M6x1 HOLE	excl. Shipping costs immediately available	4,56 €	4,56 € excl. Shipping costs immediately available
20	8063314		8063314 CHROMIUM-PLATED UPPER SLEEVE	excl. Shipping costs immediately available, 7 available	39,00 € 39,00 €	39,00 € 39,00 € excl. Shipping costs immediately available, 7 available
22	8001794		8001794 O-RING 0128 VITON	excl. Shipping costs immediately available	1,68 €	1,68 € excl. Shipping costs immediately available
27	8069008		8069008 Rocket Gruppendichtung	excl. Shipping costs immediately available, 8 available	4,64 €	4,64 € excl. Shipping costs immediately available, 8 available
34	8101292		8101292 ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert	excl. Shipping costs Delivery time: 4-6 weeks	19,90 €	19,90 € excl. Shipping costs Delivery time: 4-6 weeks
36	8073574		8073574 MICRO CONTROL LEVER	excl. Shipping costs immediately available, 4 available	41,95 €	41,95 € excl. Shipping costs immediately available, 4 available
48	8000608		8000608 Shower screen für E61 brew unit	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available
49	8081202		8081202 Cafelat E61 portafilter gasket 73x57x8 mm red	excl. Shipping costs immediately available	5,95 €	5,95 € excl. Shipping costs immediately available
49	8060996		8060996 Gasket 73x57x8 mm - for E61 brew unit	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available
49	8002056		8002056 RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available
51	8001570		8001570 EPDM flat gasket 15,5x7,5x4 mm	excl. Shipping costs immediately available	0,90 €	0,90 € excl. Shipping costs immediately available
100	8079664		8079664 E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - Bezzera u.v.m.	excl. Shipping costs immediately available	49,90 €	49,90 € excl. Shipping costs immediately available

If your article is not listed, please use the following form and enter the desired numbers.
