Elektra

Belle Epoque 2GR Model ab 9.2019 Dampfventil

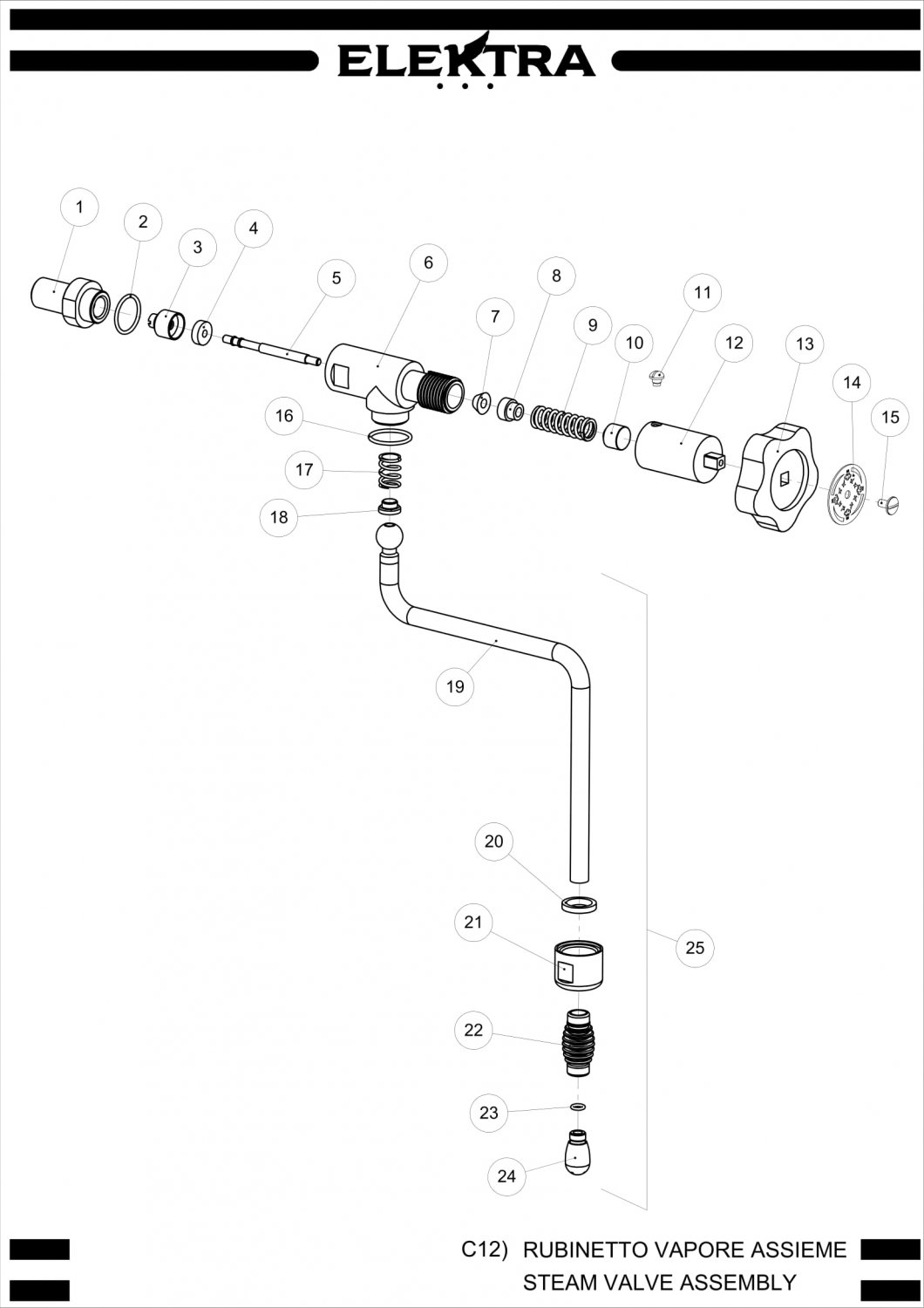

Drawing number 8280029

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1 8123997
HEAD 3/8 GAS UNIVERSAL TAP OT 97 VERNI
47,17 €

excl. Shipping costs

Delivery time: 4-6 weeks
1 8123998
3/8 GAS HEAD UNIV TAP 97 CHROME
32,96 €

excl. Shipping costs

Delivery time: 4-6 weeks
2o ring 02075 green viton 8002092
O-RING 02075 GREEN VITON
2,52 €

excl. Shipping costs

immediately available, 10 available
3gasket holder for tap 8038429
GASKET HOLDER FOR TAP
8,98 €

excl. Shipping costs

immediately available, 4 available
4flat epdm gasket o 13x4x4 mm 8002094
FLAT EPDM GASKET ø 13x4x4 mm
4,74 €

excl. Shipping costs

immediately available, 17 available
5elektra shaft 8123773
Elektra SHAFT
11,13 €

excl. Shipping costs

Delivery time
is determined
6elektra body polished brass 8124189
Elektra BODY - POLISHED BRASS
61,13 €

excl. Shipping costs

Delivery time 4-6 weeks..
6elektra wasserhahn verchromt 8101237
Elektra Wasserhahn verchromt
118,17 €

excl. Shipping costs

Delivery time
is determined
7conical ptfe seal o 12x5x5 mm 8038432
CONICAL PTFE SEAL ø 12x5x5 mm
3,72 €

excl. Shipping costs

immediately available, 15 available
8spring guide 8038433
SPRING GUIDE
7,69 €

excl. Shipping costs

Delivery time
is determined
9internal spring o 12 2x35 mm 8038434
INTERNAL SPRING ø 12,2x35 mm
5,55 €

excl. Shipping costs

immediately available, 12 available
10tie rod head 8038435
TIE ROD HEAD
19,60 €

excl. Shipping costs

immediately available, 1 available
11 8123995
Elektra Schraube CHROME
6,15 €

excl. Shipping costs

Delivery time: 4-6 weeks
12 8123989
PAINTED OT 97 KNOB RING
56,42 €

excl. Shipping costs

Delivery time: 4-6 weeks
12 8123990
CHROME KNOB RING 97
40,66 €

excl. Shipping costs

Delivery time: 4-6 weeks
13 8140304
WOODEN KNOB TAP KNOB 18
47,96 €

excl. Shipping costs

Delivery time: 4-6 weeks
14 8125117
STEAM TAP KNOB PLATE 11 YELLOW
8,07 €

excl. Shipping costs

Delivery time: 4-6 weeks
15large pan head screw m4x8 polished 8007277
LARGE PAN HEAD SCREW M4x8 POLISHED
4,37 €

excl. Shipping costs

immediately available, 13 available
16o ring 02081 black silicone 8001613
O-RING 02081 BLACK SILICONE
1,36 €

excl. Shipping costs

immediately available, 20 available
17elektra joint spring 8124201
Elektra JOINT SPRING
3,45 €

excl. Shipping costs

immediately available, 6 available
18elektra joint seat 8124202
Elektra JOINT SEAT
4,43 €

excl. Shipping costs

immediately available, 8 available
19 8139780
POLISHED VERTICAL STEAM PIPE 2GR 18
75,99 €

excl. Shipping costs

Delivery time: 4-6 weeks
20elektra joint gasket o 19x11x3 mm 8001627
Elektra JOINT GASKET ø 19x11x3 mm
3,12 €

excl. Shipping costs

immediately available, 8 available
21elektra joint nut polished brass 8123987
Elektra JOINT NUT - POLISHED BRASS
47,60 €

excl. Shipping costs

Delivery time 4-6 weeks..
21ueberwurfmutter fuer elektra dampflanze verchromt 8101768
Überwurfmutter für Elektra Dampflanze verchromt
29,35 €

excl. Shipping costs

immediately available, 2 available
22burn preventing rubberpiece o 10 mm 8001467
Burn preventing rubberpiece ø 10 mm
2,64 €

excl. Shipping costs

immediately available, 11 available
23o ring 0050 15 epdm 8062707
O-RING 0050-15 EPDM
0,94 €

excl. Shipping costs

immediately available
24 8140294
SPRAYER HOLES 1.5 STEAM PIPE D.10
28,42 €

excl. Shipping costs

Delivery time: 4-6 weeks
24 8140295
Elektra STEAM NOZZLE 1/8 HOLE SIZE 1
17,85 €

excl. Shipping costs

Delivery time: 4-6 weeks
25 8139781
VERTICAL STEAM PIPE 2GR PAINTED 18
105,52 €

excl. Shipping costs

Delivery time: 4-6 weeks
25 8139782
VERTICAL STEAM PIPE 2GR CHROME 18 AS
95,25 €

excl. Shipping costs

Delivery time: 4-6 weeks
100kit for elektra steam tap hot water tap 8081385
Kit for Elektra steam tap hot water tap
20,22 €

excl. Shipping costs

immediately available, 5 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
