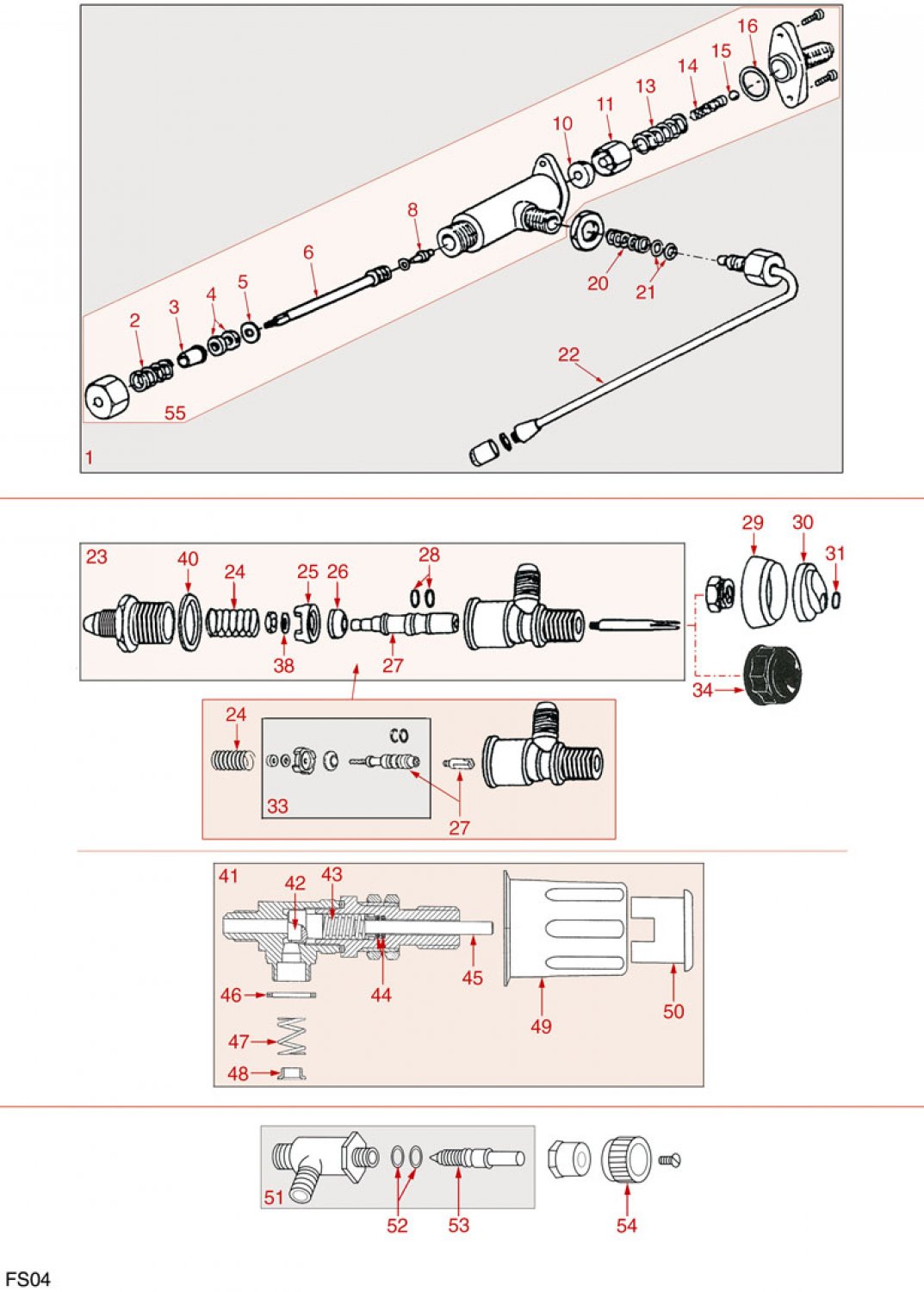

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
Pos.: | Item No.: | Image: | Description: | Shipment: | Price (inkl. 19% VAT): | Qty.: |
---|

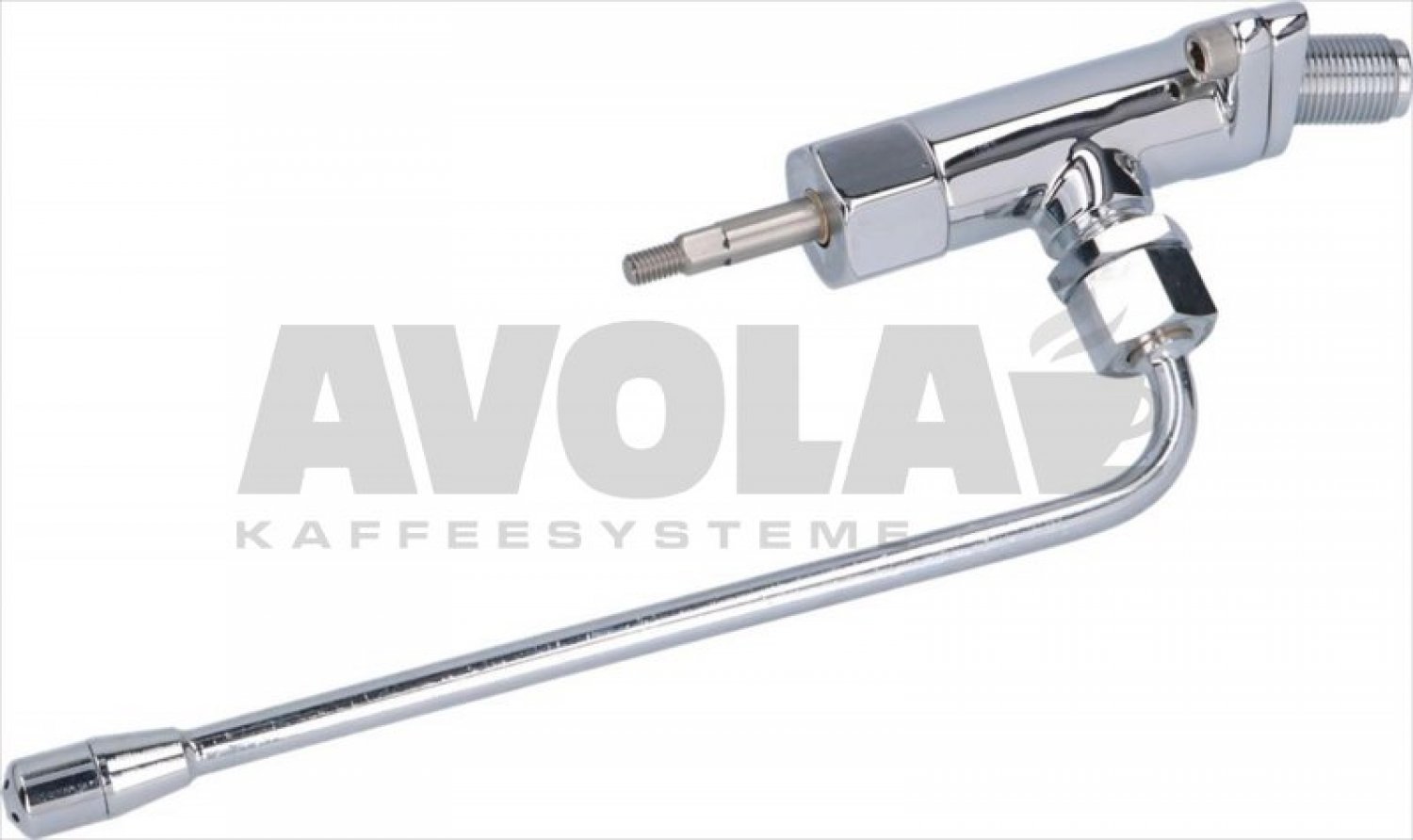

1 | 8005624 | | 8005624 Steam Tap Assy | |
77,35 € | |
2 | 8003815 | | 8003815 Spring | excl. Shipping costs immediately available, 13 available |
1,52 € | |
3 | 8001578 | | 8001578 Tap Rod Bushing | excl. Shipping costs immediately available, 13 available |
1,67 € | |
4 | 8001570 | | 8001570 EPDM Flat Gasket 15,5x7,5x4 mm | excl. Shipping costs immediately available |
0,90 € | |
5 | 8001566 | | 8001566 Brass Washer ø 10x5x1 mm | excl. Shipping costs immediately available, 18 available |
1,08 € | |
6 | 8005155 | | 8005155 Tap Handle Spindle | excl. Shipping costs immediately available, 1 available |
11,65 € | |
8 | 8005110 | | 8005110 Tap Spindle | excl. Shipping costs immediately available, 10 available |
5,24 € | |
10 | 8001569 | | 8001569 NBR Flat Gasket ø 13x4x4 mm | excl. Shipping costs immediately available |
0,49 € | |
11 | 8001420 | | 8001420 Gasket Holder For Tap | excl. Shipping costs immediately available, 17 available |
4,76 € | |
13 | 8003671 | | 8003671 Tap Spring ø 11,5x30 mm | excl. Shipping costs immediately available, 16 available |
2,98 € | |
14 | 8003708 | | 8003708 Spring 8x30 mm | excl. Shipping costs immediately available, 11 available |
1,95 € | |
15 | 8005084 | | 8005084 Stainless Steel Ball ø 8 mm | excl. Shipping costs immediately available, 6 available |
2,46 € | |
16 | 8001579 | | 8001579 PTFE Flat Gasket ø 24x18x2 mm | excl. Shipping costs immediately available, 18 available |
1,46 € | |
20 | 8003604 | | 8003604 Spring ø 10,5x27 mm | excl. Shipping costs immediately available, 10 available |
3,57 € | |
21 | 8001771 | | 8001771 O-RING R6 EPDM | excl. Shipping costs immediately available |
1,13 € | |

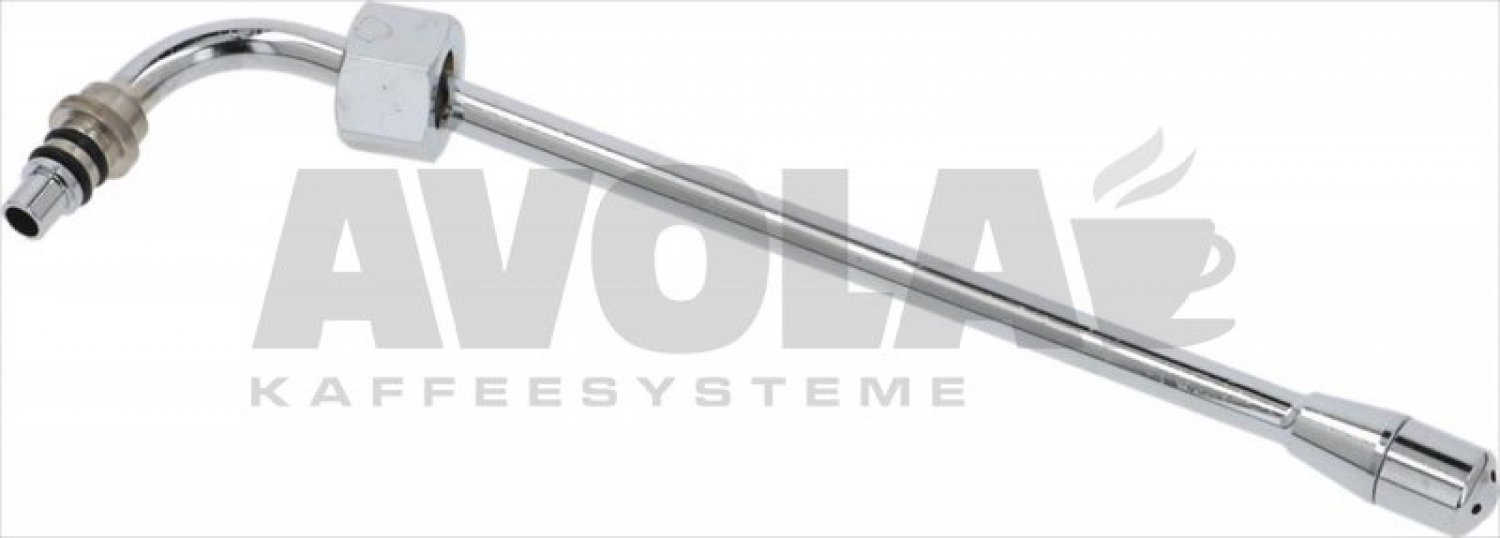

22 | 8006885 | | 8006885 Vibiemme Steam Pipe Complete | excl. Shipping costs Delivery time is determined |
27,43 € | |
23 | 8005532 | | 8005532 Water Inlet Tap | excl. Shipping costs Delivery time 4-6 weeks |
59,32 € | |
24 | 8003819 | | 8003819 Spring ø 13x42 mm | excl. Shipping costs immediately available, 18 available |
3,50 € | |
25 | 8007112 | | 8007112 Non-return Valve | excl. Shipping costs immediately available, 2 available |
9,00 € | |
26 | 8001426 | | 8001426 Conical EPDM Seal ø 12x4x4 mm | excl. Shipping costs immediately available, 10 available |
1,32 € | |
27 | 8005100 | | 8005100 Pin For Inlet Valve | excl. Shipping costs Delivery time is determined |
5,50 € | |
28 | 8036617 | | 8036617 O-RING 0040-20 EPDM | excl. Shipping costs immediately available |
0,84 € | |
29 | 8003343 | | 8003343 Ring Nut For Inlet Tap Knob | excl. Shipping costs Delivery time 4-6 weeks |
2,62 € | |

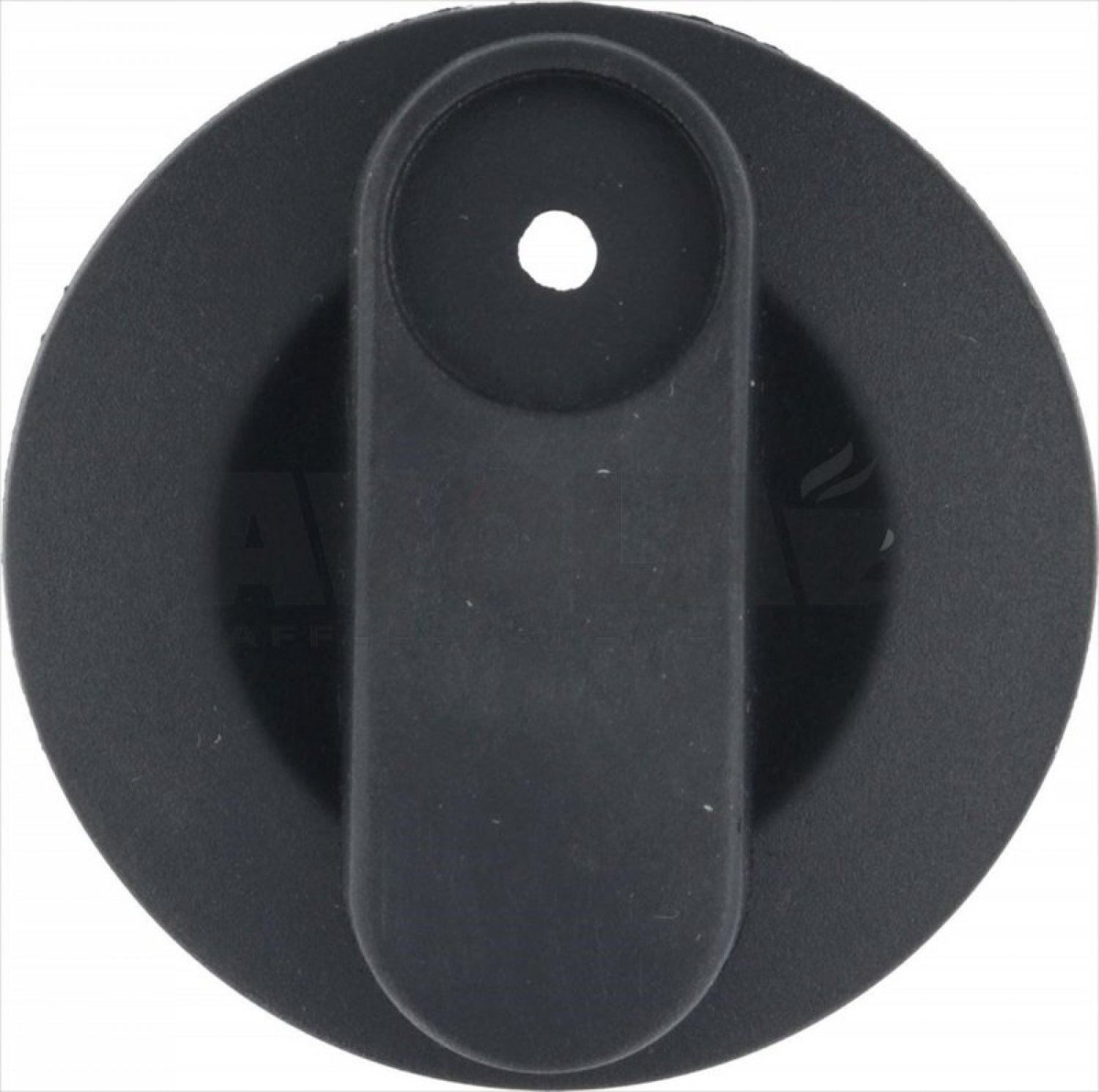

30 | 8003341 | | 8003341 Water Inlet Tap Knob | excl. Shipping costs Delivery time is determined |
5,19 € | |

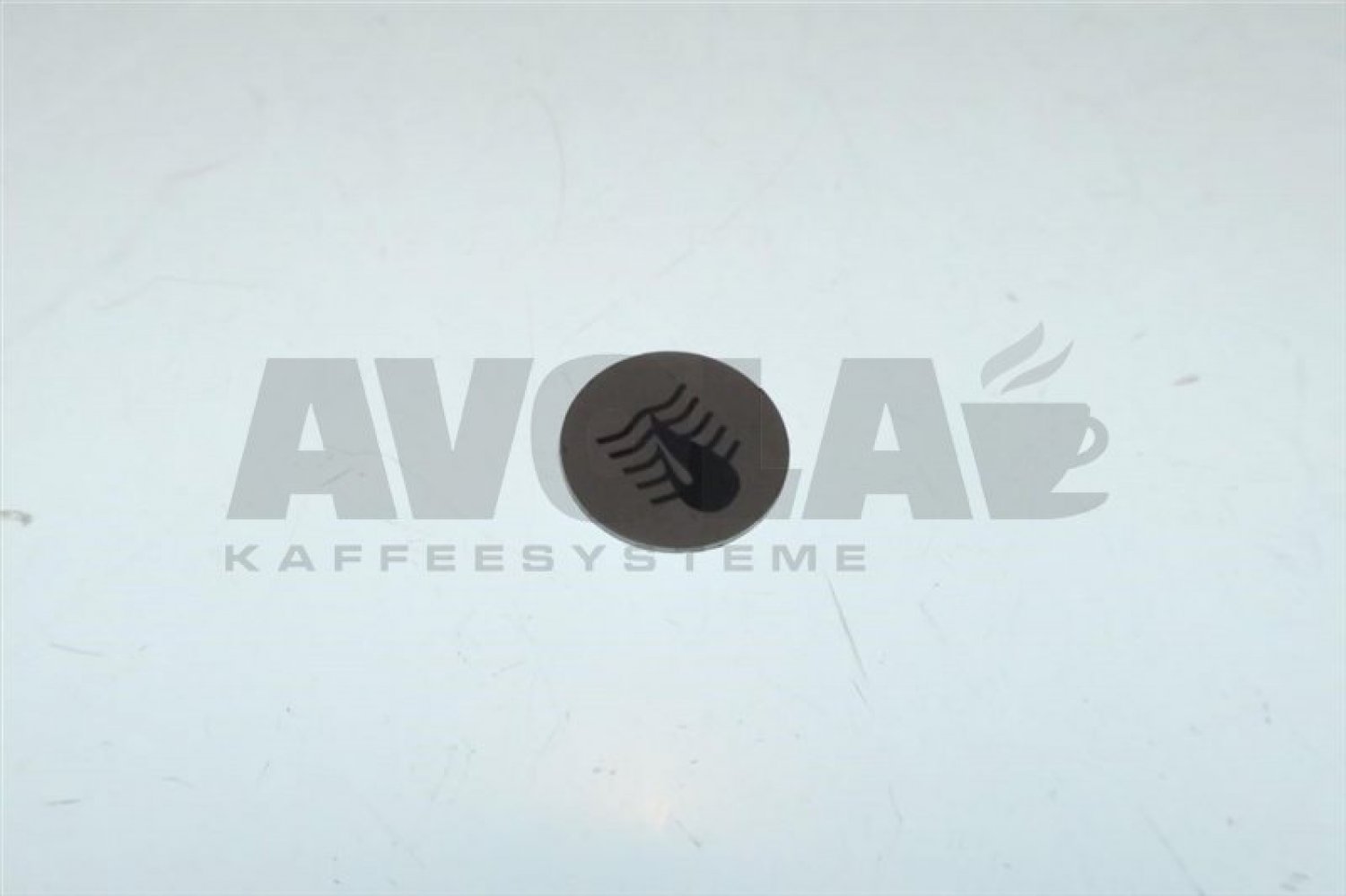

31 | 8003342 | | 8003342 Water Inlet Silk Screen Printing F. Hand | excl. Shipping costs immediately available, 4 available |
| |
33 | 8007128 | | 8007128 Inlet Valve | excl. Shipping costs Delivery time 4-6 weeks |
9,26 € | |

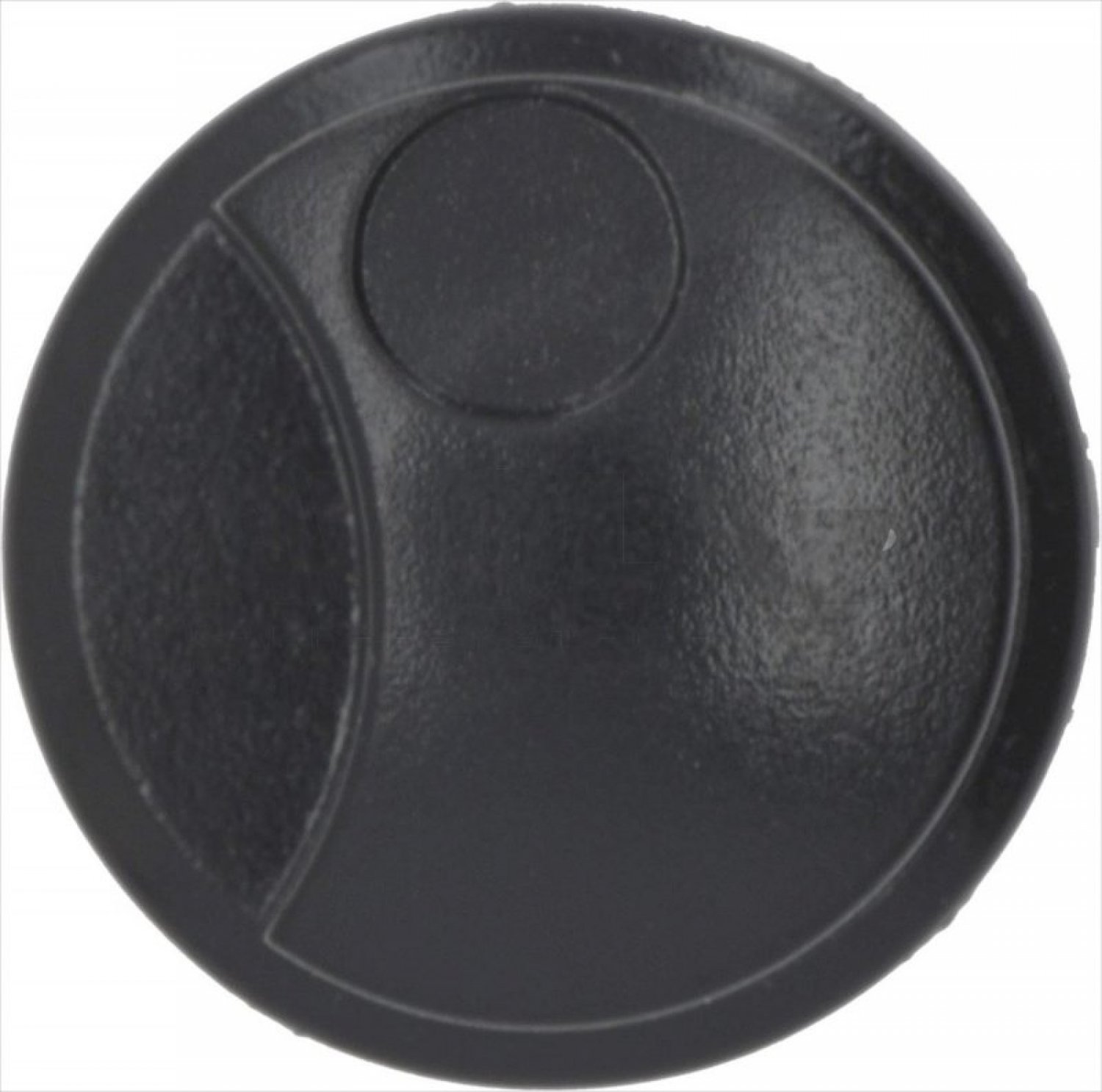

34 | 8003297 | | 8003297 Drain Tap Knob ø 38 mm | excl. Shipping costs Delivery time is determined |
| |
38 | 8001584 | | 8001584 Brass Washer 6x3x0,5 mm | excl. Shipping costs immediately available |
0,68 € | |
40 | 8001515 | | 8001515 O-RING 04081 EPDM | excl. Shipping costs immediately available, 7 available |
1,07 € | |
41 | 8005623 | | 8005623 Steam Tap | excl. Shipping costs immediately available, 1 available |
35,19 € | |
42 | 8001670 | | 8001670 Blond Gasket ø 12x5,8 mm Silicon | excl. Shipping costs immediately available |
1,20 € | |
43 | 8003795 | | 8003795 Tap Spring | excl. Shipping costs immediately available, 11 available |
1,80 € | |
44 | 8001809 | | 8001809 Red Silicone O-RING R5 Gasket | excl. Shipping costs immediately available |
1,34 € | |
45 | 8005137 | | 8005137 Water/steam Tap Pin | excl. Shipping costs immediately available, 3 available |
17,02 € | |
46 | 8001486 | | 8001486 PTFE Flat Gasket 21x16,8x2 mm | excl. Shipping costs immediately available |
1,37 € | |
47 | 8003667 | | 8003667 Spring ø 12x15 mm | excl. Shipping costs immediately available, 6 available |
2,94 € | |
48 | 8001858 | | 8001858 Steam Pipe Articulation Bushing | excl. Shipping costs immediately available, 15 available |
1,45 € | |
49 | 8003258 | | 8003258 Water/steam Tap Handle | excl. Shipping costs immediately available, 3 available |
11,90 € | |
50 | 8003259 | | 8003259 Steam Cap For Knob | excl. Shipping costs immediately available, 4 available |
1,45 € | |

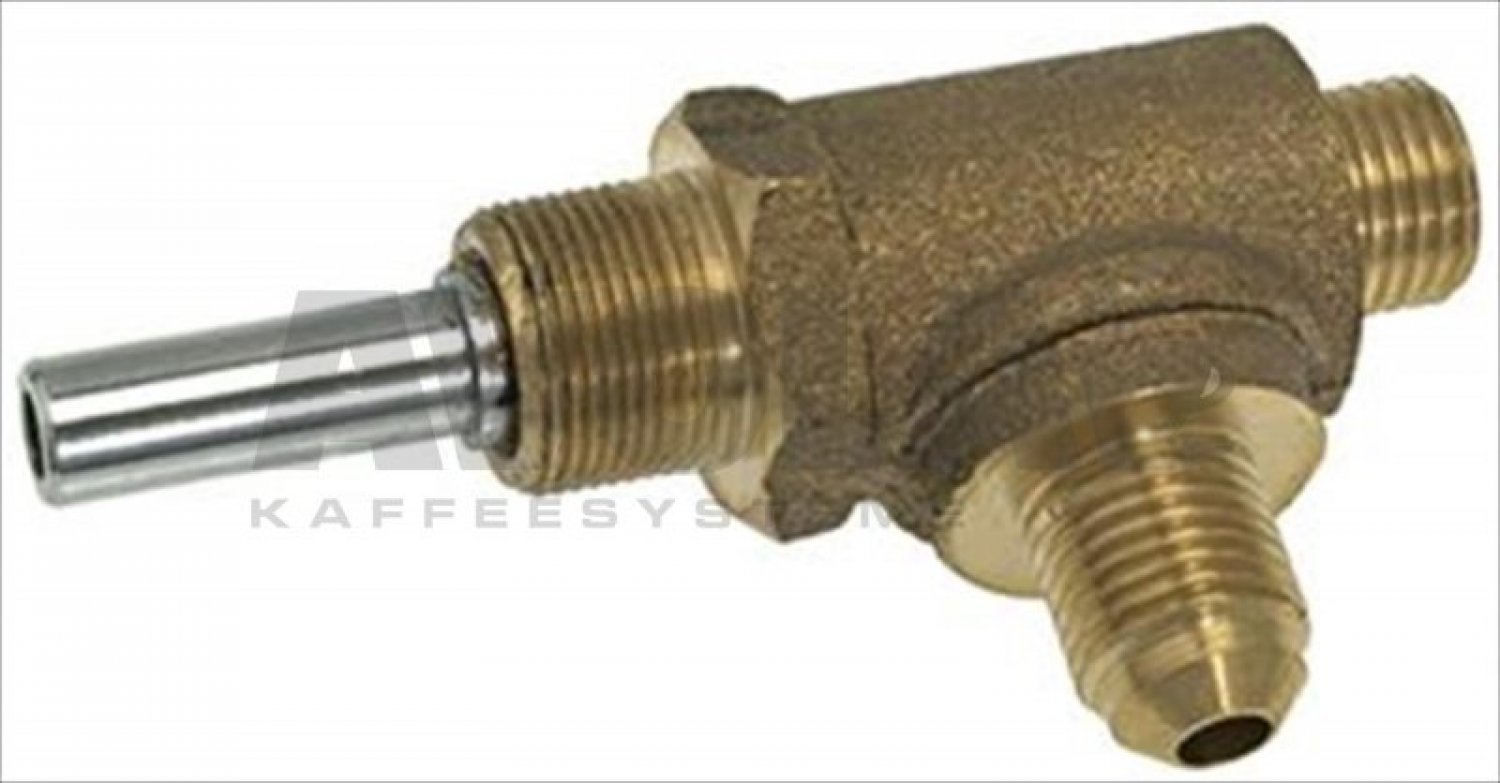

51 | 8005585 | | 8005585 Cup Warmer Tap | excl. Shipping costs Delivery time 4-6 weeks |
| |
52 | 8018501 | | 8018501 O-RING Gasket 0106 EPDM | excl. Shipping costs immediately available |
1,44 € | |

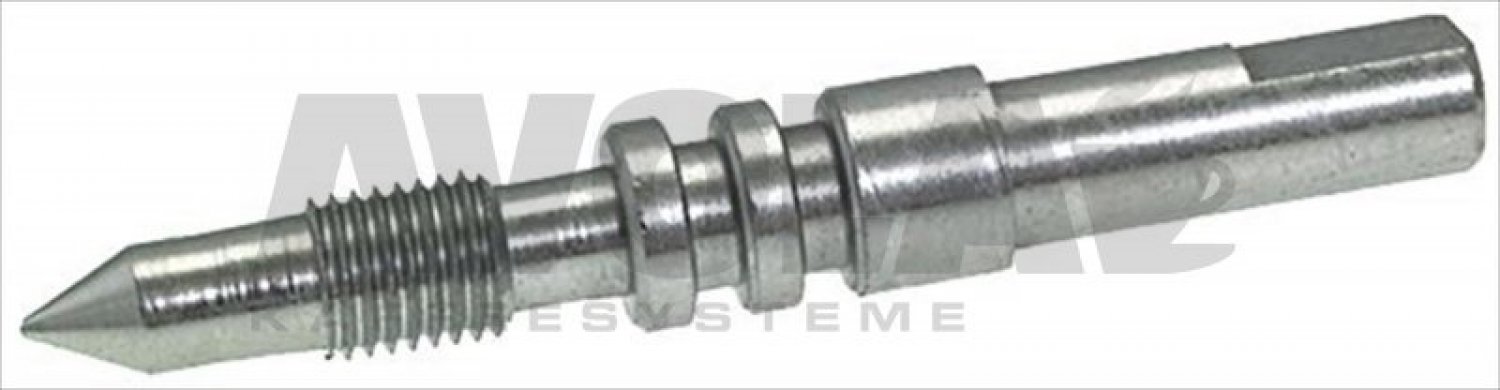

53 | 8005156 | | 8005156 Füllhahnbolzen für Tassenwärmer | excl. Shipping costs Delivery time 4-6 weeks |
| |
54 | 8003340 | | 8003340 Cup Warmer Knob | excl. Shipping costs immediately available, 2 available |
6,38 € | |
55 | 8005474 | | 8005474 Steam Tap | excl. Shipping costs immediately available, 3 available |
47,05 € | |
If your article is not listed, please use the following form and enter the desired numbers.
