Kessel Futurmat Ariete E61 Rimini

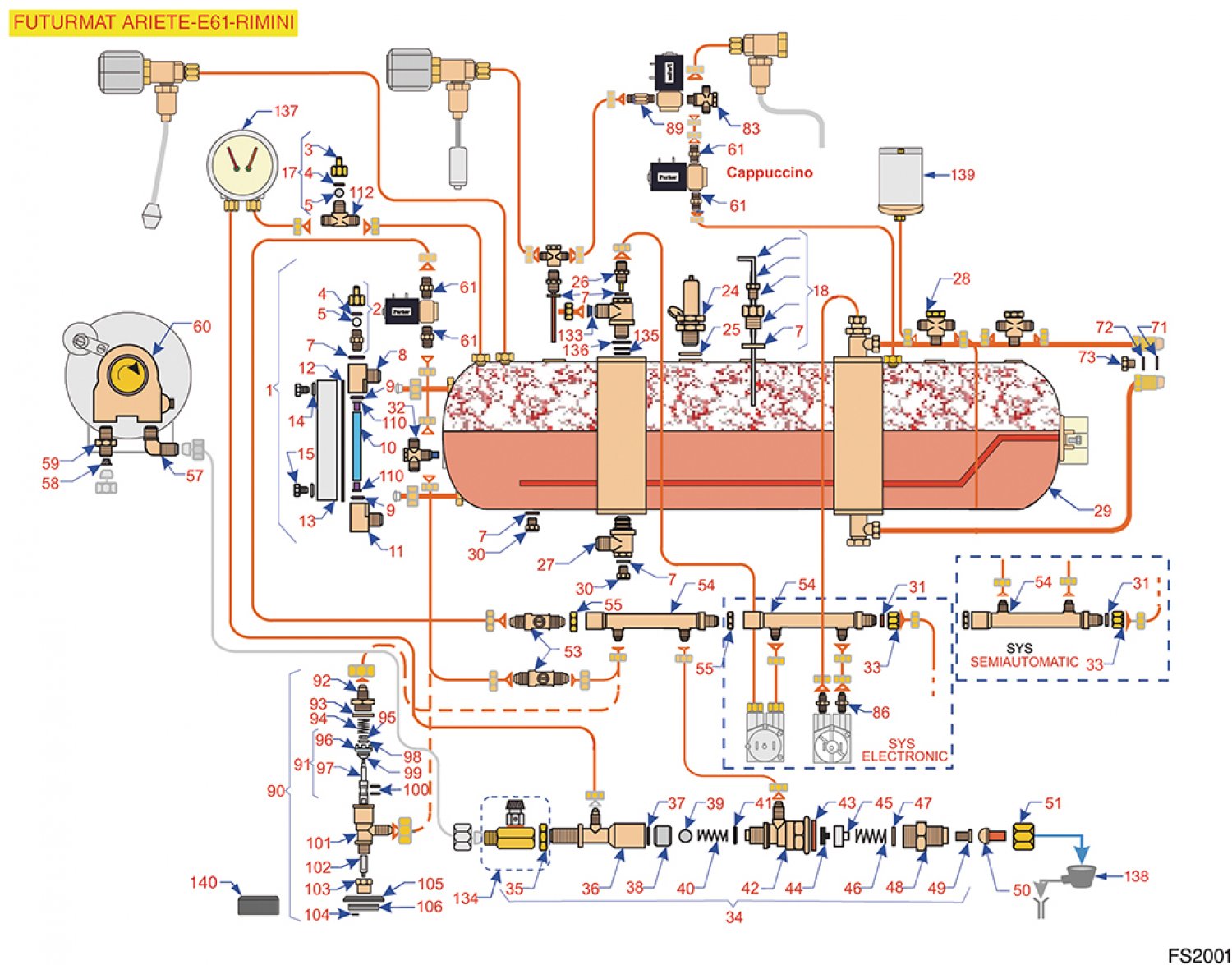

Drawing number 8140443

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1niveauanzeiger komplett 8076686
NIVEAUANZEIGER KOMPLETT
155,27 €

excl. Shipping costs

Delivery time 4-6 weeks..
5stainless steel ball o 8 mm 8005084
STAINLESS STEEL BALL ø 8 mm
2,69 €

excl. Shipping costs

immediately available, 5 available
7copper flat gasket o 19x13 5x1 5 mm 8001510
COPPER FLAT GASKET ø 19x13,5x1,5 mm
1,14 €

excl. Shipping costs

immediately available
9o ring 03043 viton 8001513
O-RING 03043 VITON
1,19 €

excl. Shipping costs

immediately available
10level glass o 11x108 mm 8007032
LEVEL GLASS ø 11x108 mm
7,69 €

excl. Shipping costs

immediately available, 12 available
18level probe o 1 4 m 140 mm 8021672
LEVEL PROBE ø 1/4 M - 140 mm
17,61 €

excl. Shipping costs

immediately available, 2 available
24boiler valve o 3 8 8007150
BOILER VALVE ø 3/8
21,17 €

excl. Shipping costs

immediately available, 5 available
34expansion and non return valve 8007146
EXPANSION AND NON-RETURN VALVE
81,97 €

excl. Shipping costs

immediately available, 1 available
37o ring 0108 epdm 8001655
O-RING 0108 EPDM
0,80 €

excl. Shipping costs

immediately available
39stainless steel ball o 11 mm 8005089
STAINLESS STEEL BALL ø 11 mm
3,02 €

excl. Shipping costs

immediately available, 11 available
40spring 8x30 mm 8003708
SPRING 8x30 mm
1,96 €

excl. Shipping costs

immediately available, 10 available
41or gasket 03037 epdm 8014816
OR GASKET 03037 EPDM
1,84 €

excl. Shipping costs

immediately available, 3 available
44flat epdm gasket 8001427
FLAT EPDM GASKET
1,07 €

excl. Shipping costs

immediately available
45gasket holder for tap 8001429
GASKET HOLDER FOR TAP
1,95 €

excl. Shipping costs

Delivery time
is determined
46spring 8003814
SPRING
8,32 €

excl. Shipping costs

Delivery time
is determined
47copper flat gasket o 13x6x1 mm 8001516
COPPER FLAT GASKET ø 13x6x1 mm
1,44 €

excl. Shipping costs

immediately available, 10 available
60rotary vane pump rotoflow 8005225
ROTARY VANE PUMP ROTOFLOW
89,29 €
89,29 €

excl. Shipping costs

Delivery time
is determined
61conical coupling 8005833
CONICAL COUPLING
12,17 €

excl. Shipping costs

Delivery time
is determined
90water inlet tap 8005532
WATER INLET TAP
90,27 €

excl. Shipping costs

Delivery time 4-6 weeks..
91inlet valve 8007128
INLET VALVE
9,26 €

excl. Shipping costs

Delivery time 4-6 weeks..
94spring o 13x42 mm 8003819
SPRING ø 13x42 mm
3,52 €

excl. Shipping costs

immediately available, 18 available
95brass washer 6x3x0 5 mm 8001584
BRASS WASHER 6x3x0,5 mm
0,71 €

excl. Shipping costs

immediately available, 17 available
97pin for inlet valve 8005100
PIN FOR INLET VALVE
11,14 €

excl. Shipping costs

Delivery time
is determined
98brass washer 6x3x0 5 mm 8001584
BRASS WASHER 6x3x0,5 mm
0,71 €

excl. Shipping costs

immediately available, 17 available
99conical epdm seal o 12x4x4 mm 8001426
CONICAL EPDM SEAL ø 12x4x4 mm
1,33 €

excl. Shipping costs

immediately available
100o ring 0040 20 epdm 8036617
O-RING 0040-20 EPDM
0,86 €

excl. Shipping costs

immediately available
101water inlet tap 8005532
WATER INLET TAP
90,27 €

excl. Shipping costs

Delivery time 4-6 weeks..
104water inlet silk screen printing f hand 8003342
WATER INLET SILK SCREEN PRINTING F. HAND
Price on request
105ring nut for inlet tap knob 8003343
RING NUT FOR INLET TAP KNOB
2,62 €

excl. Shipping costs

Delivery time 4-6 weeks..
106water inlet tap knob 8003341
WATER INLET TAP KNOB
6,76 €

excl. Shipping costs

Delivery time
is determined
135o ring gasket 02062 epdm 8001657
O-RING GASKET 02062 EPDM
0,70 €

excl. Shipping costs

immediately available, 20 available
136o ring 0140 15 fkm 8140442
O-Ring 0140-15 FKM
4,37 €

excl. Shipping costs

Delivery time
is determined
137boiler pump pressure gauge 8003524
BOILER-PUMP PRESSURE GAUGE
30,33 €

excl. Shipping costs

Delivery time
is determined
139pressure switch p302 6 3 poles 30a 8005068
PRESSURE SWITCH P302/6 3-POLES 30A
63,37 €
63,37 €

excl. Shipping costs

immediately available, 15 available
140water inlet tap knob 8003301
WATER INLET TAP KNOB
Price on request
