ISOMAC E61 KAFFEEGRUPPE TEA

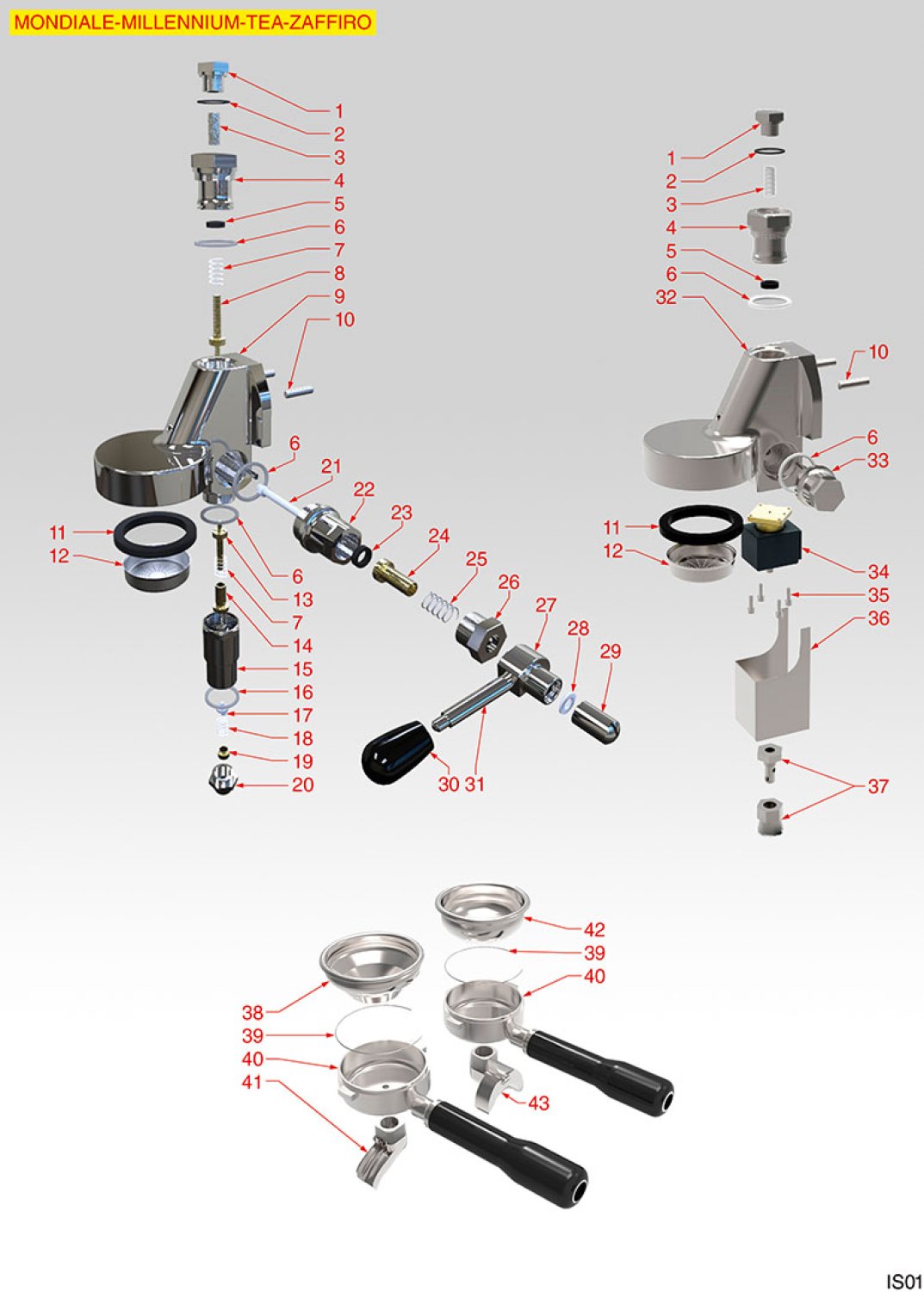

Drawing number 8079552

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
0e61 bruehgruppe revisionsset kit ecm bfc sab u v m 8079664
E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - u.v.m.
49,90 €

excl. Shipping costs

Delivery time
is determined
1deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 13 available
2ptfe flat gasket o 22x17x2 mm 8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs

immediately available, 11 available
3water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available, 4 available
4chromium plated upper sleeve 8063314
CHROMIUM-PLATED UPPER SLEEVE
39,00 €
39,00 €

excl. Shipping costs

immediately available, 9 available
5o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
6ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
7spring o 13x42 mm 8003819
SPRING ø 13x42 mm
3,50 €

excl. Shipping costs

immediately available, 15 available
8complete spout valve 8007123
COMPLETE SPOUT VALVE
8,40 €

excl. Shipping costs

immediately available
10stainless steel m8x25 mm stud 8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs

immediately available, 5 available
11cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available

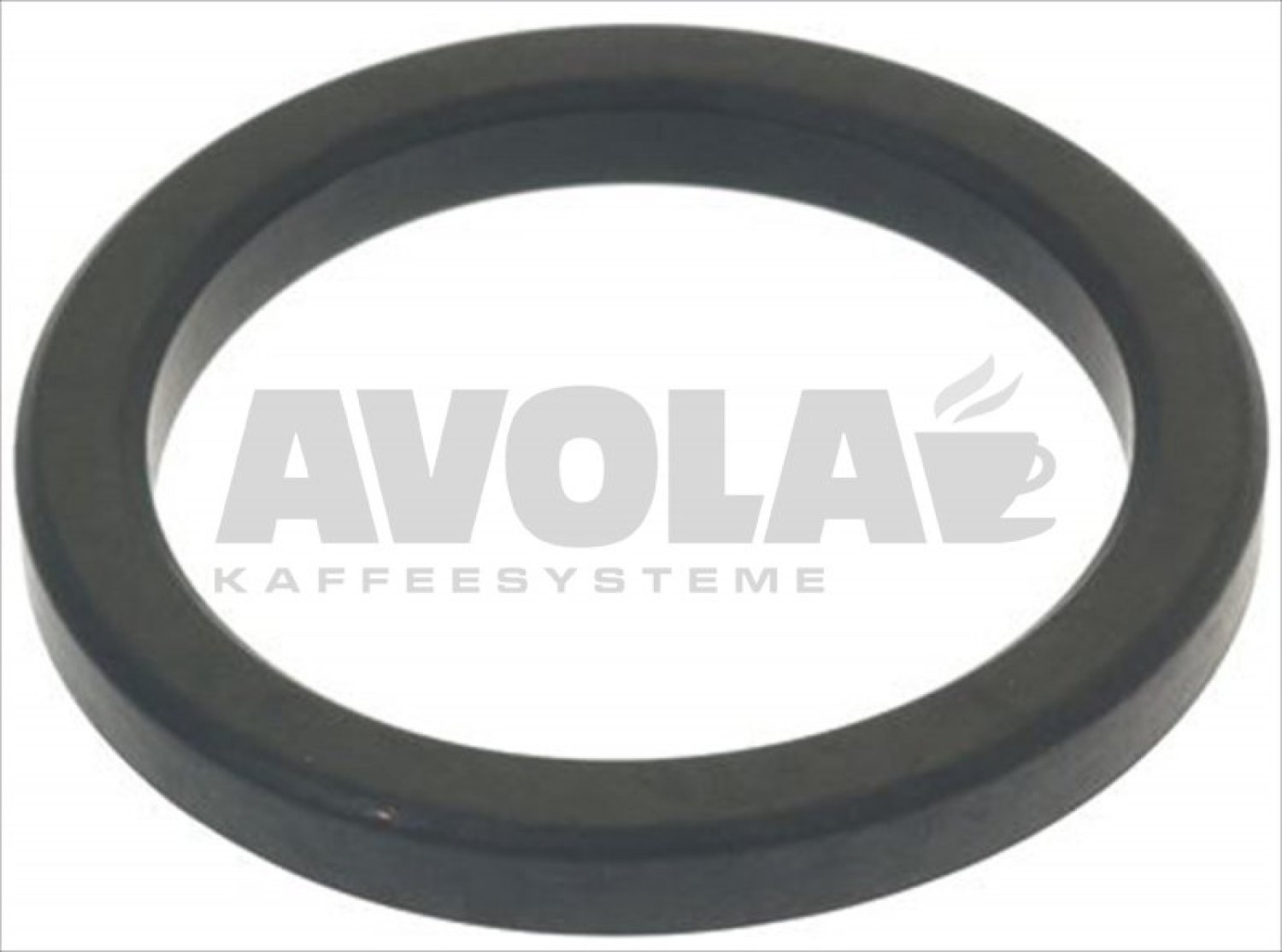

11rubber 73x57x8 5 mm for e61 brew unit 8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs

immediately available
11paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available
11gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available
12shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available, 16 available
12ims matrix dusche e61 duschsieb 1 stueck 8280721
IMS Matrix Dusche E61 Duschsieb (1 Stück)
27,95 €

excl. Shipping costs

immediately available, 3 available
13complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available
14spring guide bushing 8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs

immediately available, 8 available
15chrome plated drain sleeve 8063549
CHROME-PLATED DRAIN SLEEVE
40,35 €

excl. Shipping costs

Delivery time
is determined
16flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
17e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
18feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
19drain jet swirl 8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs

immediately available, 15 available
20drain chromium plated fitting 8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs

immediately available, 3 available
21cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
22ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs

immediately available, 11 available
23epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
24cam guide bushing 8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs

immediately available, 9 available
25spring o 14 6x21 mm 8003547
SPRING ø 14,6x21 mm
6,89 €

excl. Shipping costs

immediately available
26stuffing gland chrome plated fitting 8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs

immediately available, 3 available
27chromium plated cam 8002188
CHROMIUM-PLATED CAM
20,22 €

excl. Shipping costs

immediately available, 4 available
28zahnscheibe 0 8 nockenwelle e61 8073573
Zahnscheibe 0,8 Nockenwelle E61
1,25 €

excl. Shipping costs

immediately available
29chromium plated cap m6 8002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs

immediately available, 4 available
30knob m8x1 8003294
KNOB M8x1
6,56 €

excl. Shipping costs

immediately available, 4 available
31micro control spindle 8002795
MICRO CONTROL SPINDLE
11,54 €

excl. Shipping costs

immediately available, 2 available
33chromium plated side cap 8006380
CHROMIUM-PLATED SIDE CAP
14,96 €

excl. Shipping costs

Delivery time
is determined
343 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 10 available
35schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
37drain chromium plated fitting 8005636
DRAIN CHROMIUM-PLATED FITTING
17,85 €

excl. Shipping costs

immediately available, 3 available
381 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 8 available
39filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available, 11 available
40coffee machine filter holder 8001215
COFFEE MACHINE FILTER HOLDER
23,67 €

excl. Shipping costs

immediately available, 1 available
41single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 9 available
422 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available, 16 available
43lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
43double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 6 available
