LA SCALA BRÜHGRUPPE CARMEN - NUVOLA

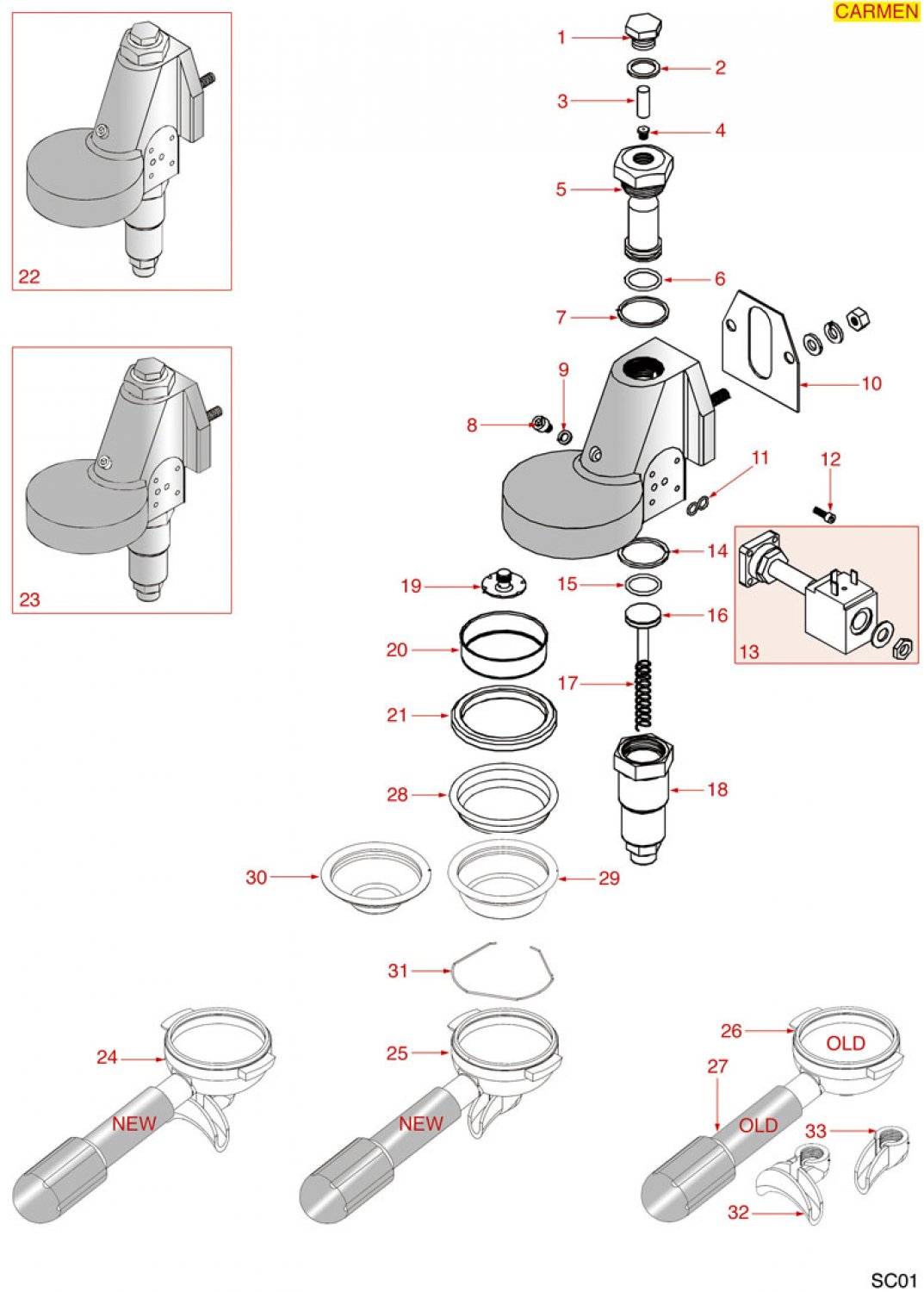

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8006373		8006373 Deckel für Auslaufgruppe ø 16 mm	excl. Shipping costs immediately available, 3 available	8,46 €	8,46 € excl. Shipping costs immediately available, 3 available
2	8001581		8001581 PTFE FLAT GASKET ø 16x22,5x2 mm	excl. Shipping costs immediately available	1,67 €	1,67 € excl. Shipping costs immediately available
3	8001115		8001115 Water Filter Ø8.5x22 mm	excl. Shipping costs immediately available	1,81 €	1,81 € excl. Shipping costs immediately available
4	8006971		8006971 Nozzle M6x0.75 Hole Ø0.7 mm	excl. Shipping costs immediately available	4,61 €	4,61 € excl. Shipping costs immediately available
5	8000148		8000148 Chrome-Plated Upper Collector for Brew Groups with 3-Way Solenoid Valve	excl. Shipping costs immediately available, 6 available	56,80 €	56,80 € excl. Shipping costs immediately available, 6 available
6	8001794		8001794 O-RING 0128 VITON	excl. Shipping costs immediately available	1,69 €	1,69 € excl. Shipping costs immediately available
7	8001567		8001567 PTFE FLAT GASKET 36x30x2 mm	excl. Shipping costs immediately available	1,73 €	1,73 € excl. Shipping costs immediately available
10	8001624		8001624 COFFEE GROUP GASKET 80x70x2 mm	excl. Shipping costs immediately available, 8 available	3,71 €	3,71 € excl. Shipping costs immediately available, 8 available
11	8001809		8001809 RED SILICONE O-RING R5 GASKET	excl. Shipping costs immediately available	1,38 €	1,38 € excl. Shipping costs immediately available
11	8001810		8001810 FKM O-Ring Seal 02025 – 6.07 x 1.78 mm	excl. Shipping costs immediately available	0,88 €	0,88 € excl. Shipping costs immediately available
12	8061180		8061180 Socket Head Cap Screw M4x10 – DIN 912 – Stainless Steel A2-70	excl. Shipping costs immediately available	0,68 €	0,68 € excl. Shipping costs immediately available
13	8000955		8000955 3-WAY SOLENOID VALVE LUCIFER 240V 50Hz	excl. Shipping costs immediately available, 2 available	46,20 €	46,20 € excl. Shipping costs immediately available, 2 available
13	8000960		8000960 Parker 3-Way Solenoid Valve VE128IR 230V 50/60Hz 9W	excl. Shipping costs immediately available, 7 available	53,55 €	53,55 € excl. Shipping costs immediately available, 7 available
14	8001567		8001567 PTFE FLAT GASKET 36x30x2 mm	excl. Shipping costs immediately available	1,73 €	1,73 € excl. Shipping costs immediately available
15	8001582		8001582 O-RING 03081 EPDM	excl. Shipping costs immediately available	1,34 €	1,34 € excl. Shipping costs immediately available
16	8005108		8005108 INFUSER SPINDLE	excl. Shipping costs immediately available, 4 available	13,52 €	13,52 € excl. Shipping costs immediately available, 4 available
17	8003828		8003828 SPRING ø 11x58 mm	excl. Shipping costs immediately available, 18 available	2,33 €	2,33 € excl. Shipping costs immediately available, 18 available
18	8000149		8000149 OUTLET CHROMIUM-PLATED SLEEVE	excl. Shipping costs immediately available, 3 available	30,32 €	30,32 € excl. Shipping costs immediately available, 3 available
19	8006987		8006987 Group Head Diffuser / Spray Nozzle – Ø30 mm – M10x1	excl. Shipping costs immediately available	5,90 €	5,90 € excl. Shipping costs immediately available
20	8000608		8000608 Shower screen für E61 brew unit	excl. Shipping costs immediately available	3,99 €	3,99 € excl. Shipping costs immediately available
21	8001901		8001901 Filter holder gasket ø 74x57,5x8 mm	excl. Shipping costs immediately available, 14 available	3,84 €	3,84 € excl. Shipping costs immediately available, 14 available
21	8002056		8002056 Portafilter Gasket for E61 Brew Group 73x57x8.5 mm	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available
22	8002192		8002192 BREW GROUP E61 LH	excl. Shipping costs immediately available, 1 available	249,15 €	249,15 € excl. Shipping costs immediately available, 1 available
23	8002191		8002191 BREW GROUP E61 RH	excl. Shipping costs Delivery time 4-6 weeks	249,15 €	249,15 € excl. Shipping costs Delivery time 4-6 weeks
26	8001183		8001183 FILTER HOLDER COFFEE MACHINES	excl. Shipping costs immediately available, 2 available	20,33 €	20,33 € excl. Shipping costs immediately available, 2 available
27	8003351		8003351 FILTER HOLDER HANDLE M12	excl. Shipping costs immediately available, 3 available	9,48 €	9,48 € excl. Shipping costs immediately available, 3 available
28	8001103		8001103 BLIND FILTER Ø58mm	excl. Shipping costs immediately available	2,61 €	2,61 € excl. Shipping costs immediately available
29	8001077		8001077 2-CUP FILTER 12 GRAMS	excl. Shipping costs immediately available, 18 available	5,47 €	5,47 € excl. Shipping costs immediately available, 18 available
29	8001101		8001101 Double Filter Basket 14 g – Ø 70 x 24.5 mm	excl. Shipping costs immediately available, 12 available	7,08 €	7,08 € excl. Shipping costs immediately available, 12 available
30	8001076		8001076 Single Coffee Filter Basket 6 g – Ø 70 x 20.5 mm	excl. Shipping costs immediately available, 6 available	5,47 €	5,47 € excl. Shipping costs immediately available, 6 available
30	8001120		8001120 1 CUP FILTER 7 g	excl. Shipping costs immediately available, 18 available	6,56 €	6,56 € excl. Shipping costs immediately available, 18 available
31	8003622		8003622 FILTER BLOCKING SPRING ø 1,00 mm	excl. Shipping costs immediately available	1,07 €	1,07 € excl. Shipping costs immediately available
32	8000120		8000120 LONG DOUBLE SPOUT ø 3/8	excl. Shipping costs immediately available, 3 available	7,26 €	7,26 € excl. Shipping costs immediately available, 3 available
33	8000110		8000110 SINGLE SPOUT ø 3/8	excl. Shipping costs immediately available, 14 available	6,16 €	6,16 € excl. Shipping costs immediately available, 14 available

If your article is not listed, please use the following form and enter the desired numbers.
