Nuova Simonelli

NS0701 WASSER- DAMPFHAHN

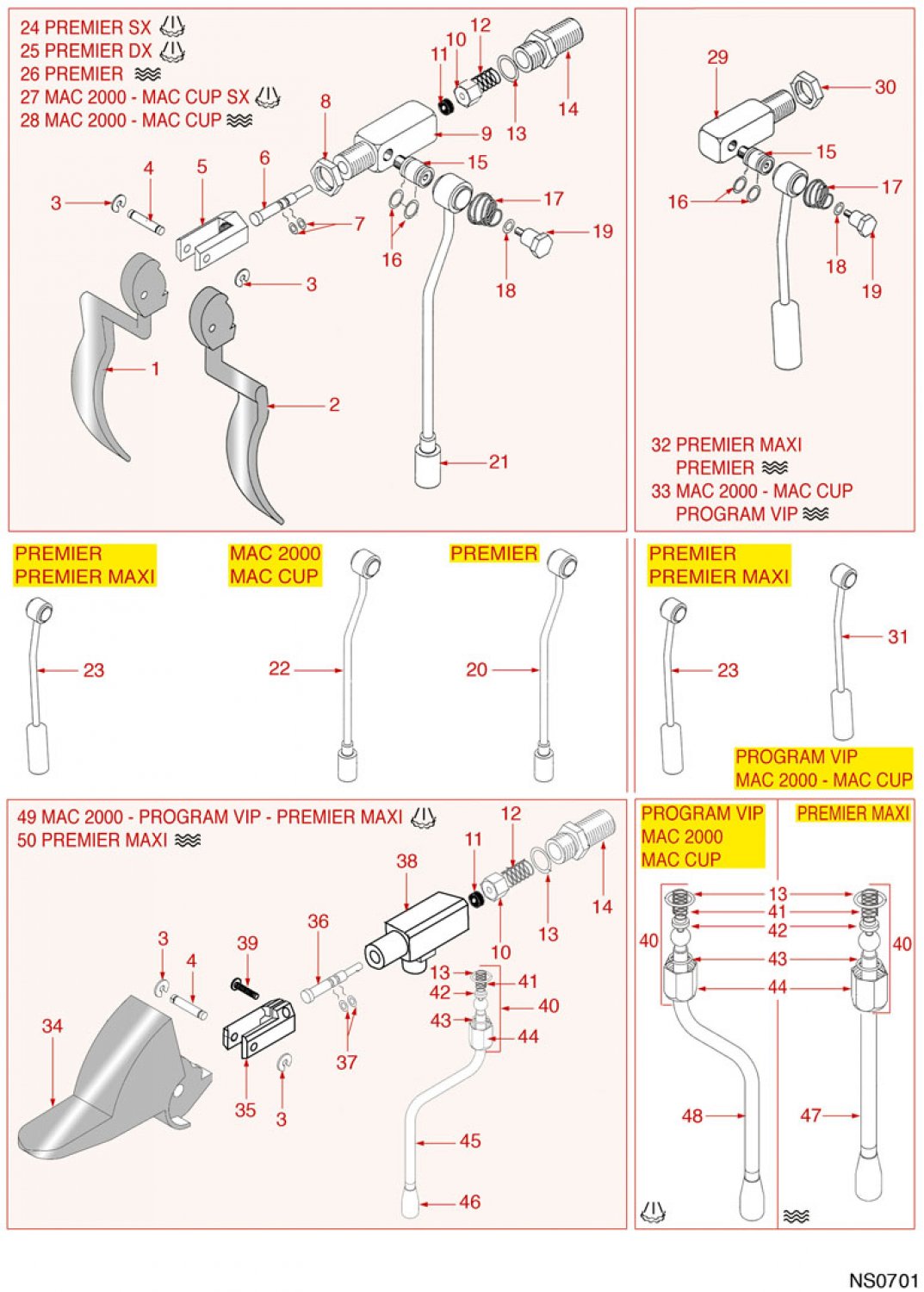

Drawing number 8057361

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1water steam tap knob lh 8003379
WATER/STEAM TAP KNOB LH
This article is no longer available

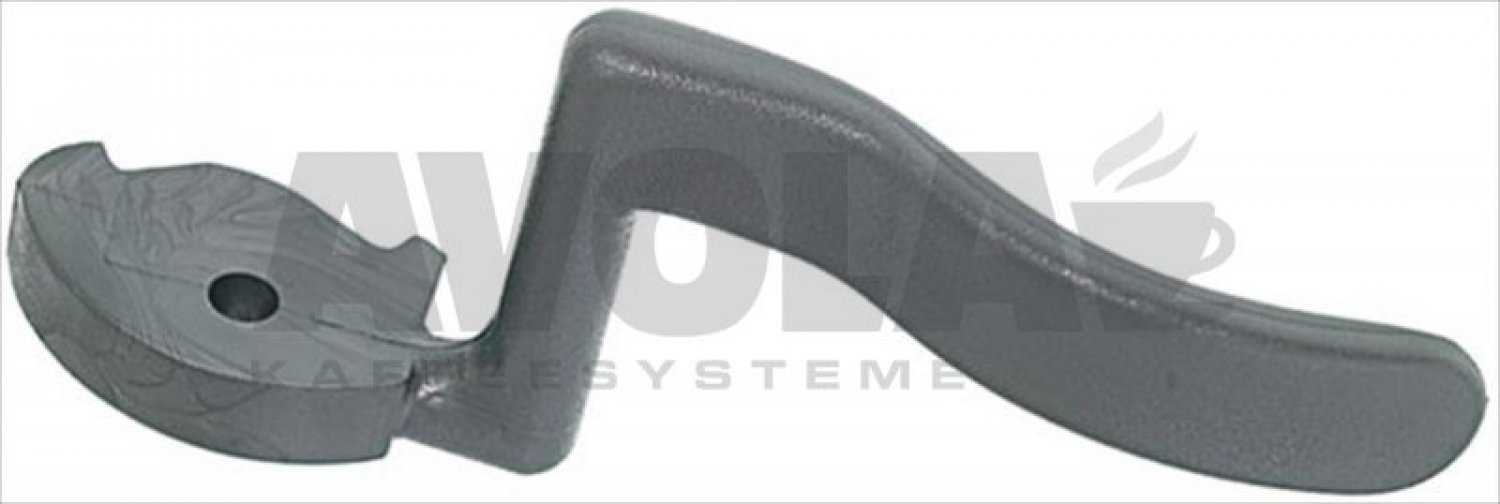

2water steam tap handle rh 8003380
WATER/STEAM TAP HANDLE RH
This article is no longer available
3radial seeger ring 8003556
RADIAL SEEGER RING
1,15 €

excl. Shipping costs

immediately available
4steam tap pin 8005140
STEAM TAP PIN
3,08 €

excl. Shipping costs

immediately available, 2 available
5tap fork 8005459
TAP FORK
18,52 €

excl. Shipping costs

immediately available, 1 available
6tap control spindle 8005105
TAP CONTROL SPINDLE
5,44 €

excl. Shipping costs

Delivery time
is determined
7o ring 02015 silicon 8001735
O-RING 02015 SILICON
1,02 €

excl. Shipping costs

immediately available
8nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 13 available

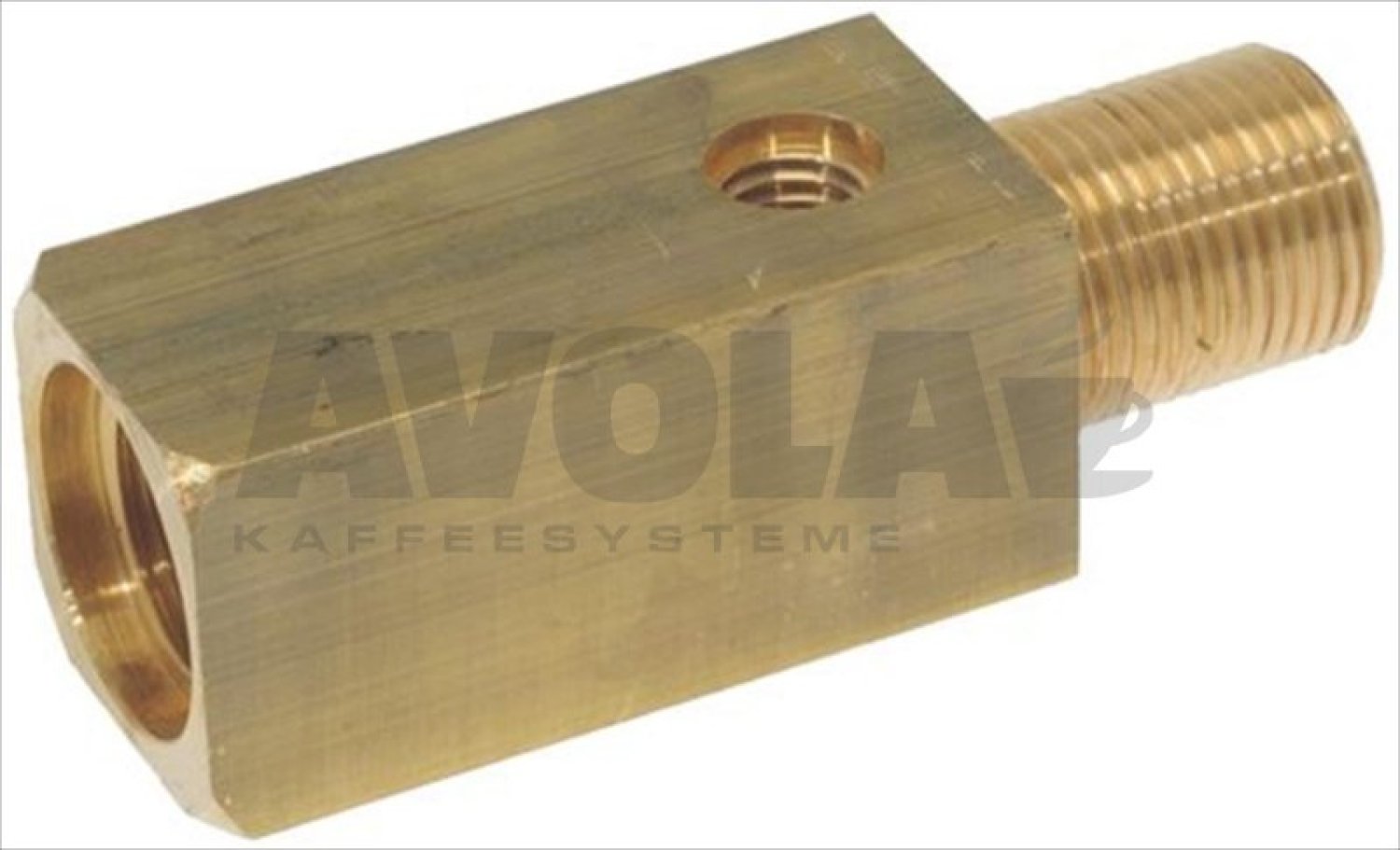

9tap assembly 8005458
TAP ASSEMBLY
20,52 €

excl. Shipping costs

Delivery time
is determined
10nuova simonelli complete gasket holder for tap 8005081
NUOVA SIMONELLI COMPLETE GASKET HOLDER FOR TAP
8,45 €

excl. Shipping costs

immediately available, 6 available
11silicone flat gasket o 12x4 5x4 mm 8001710
SILICONE FLAT GASKET ø 12x4,5x4 mm
1,81 €

excl. Shipping costs

immediately available
12nuova simonelli spring o 11 5x25 mm 8003816
NUOVA SIMONELLI SPRING ø 11,5x25 mm
1,89 €

excl. Shipping costs

immediately available, 8 available
13o ring 0117 epdm 8018537
O-RING 0117 EPDM
0,73 €

excl. Shipping costs

immediately available
14nuova simonelli coupling3 8 8005654
NUOVA SIMONELLI COUPLING3/8
6,96 €

excl. Shipping costs

Delivery time
is determined
15pipe articulation pin 8005106
PIPE ARTICULATION PIN
4,93 €

excl. Shipping costs

Delivery time
is determined
16o ring 0108 epdm 8001655
O-RING 0108 EPDM
0,79 €

excl. Shipping costs

immediately available
17articulation spring 20 4x15 9x16 5 mm 8003817
ARTICULATION SPRING 20.4x15.9x16.5 mm
3,15 €

excl. Shipping costs

immediately available, 6 available
18o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
19spring pin 8005136
SPRING PIN
4,38 €

excl. Shipping costs

immediately available, 5 available
20steam pipe complete 8006893
STEAM PIPE COMPLETE
This article is no longer available
21steam nozzle 8006151
STEAM NOZZLE
6,75 €

excl. Shipping costs

Delivery time 4-6 weeks..

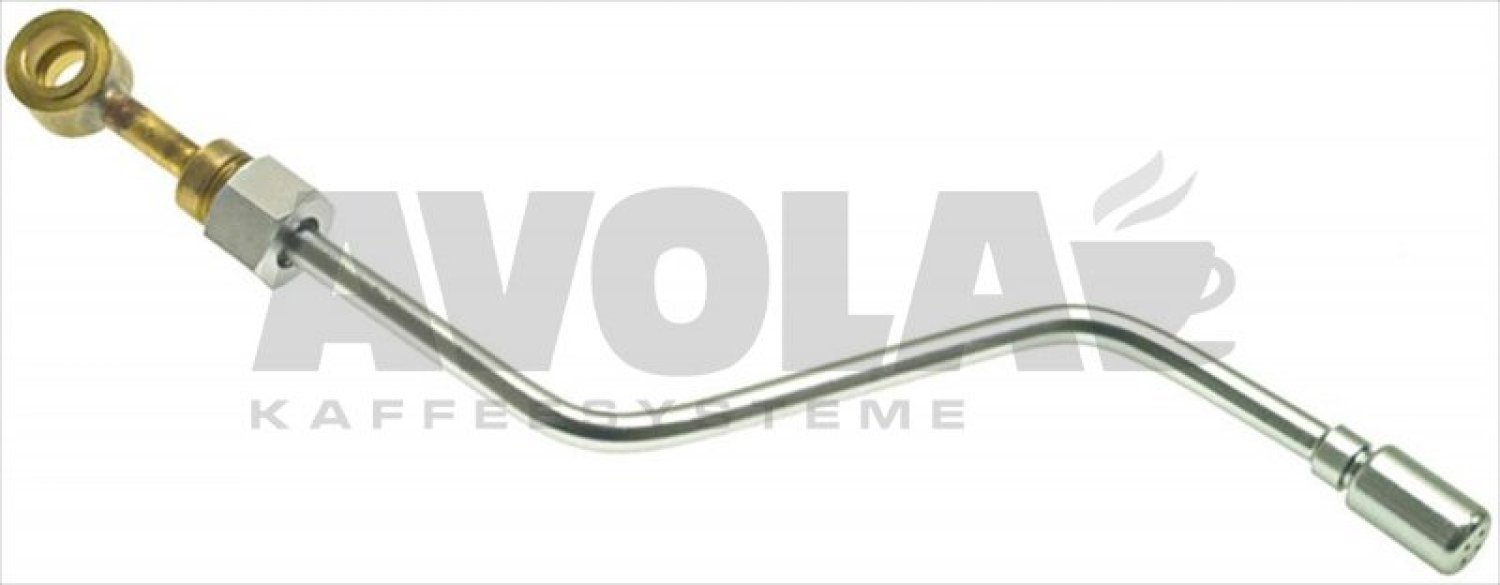

22steam pipe complete 8006894
STEAM PIPE COMPLETE
This article is no longer available
23complete water pipe 8006704
COMPLETE WATER PIPE
This article is no longer available
24left complete steam tap 8005427
LEFT COMPLETE STEAM TAP
This article is no longer available

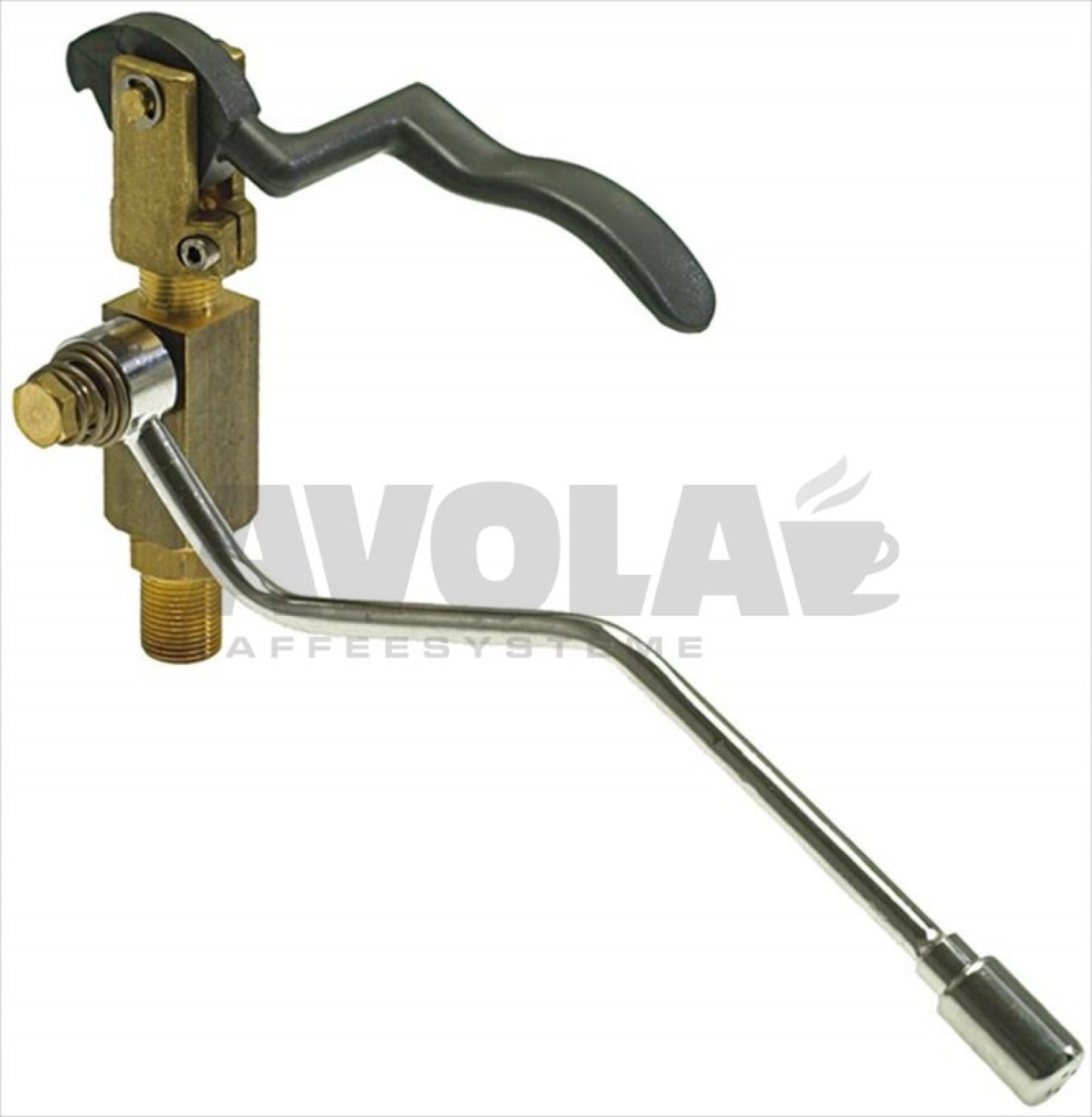

25right complete steam tap 8005428
RIGHT COMPLETE STEAM TAP
44,54 €

excl. Shipping costs

Delivery time 4-6 weeks..
26water tap assembly 8005456
WATER TAP ASSEMBLY
Price on request
27steam tap assembly 8005565
STEAM TAP ASSEMBLY
Price on request
28water tap assembly 8005564
WATER TAP ASSEMBLY
Price on request
31compleye s steel water pipe 8006895
COMPLEYE S/STEEL WATER PIPE
46,09 €

excl. Shipping costs

Delivery time
is determined
32nuova simonelli water tap assembly 8005567
Nuova Simonelli WATER TAP ASSEMBLY
This article is no longer available
33water tap assembly 8005429
WATER TAP ASSEMBLY
85,04 €

excl. Shipping costs

Delivery time 4-6 weeks
34water steam tap knob 8003381
WATER/STEAM TAP KNOB
This article is no longer available
35tap fork 8005459
TAP FORK
18,52 €

excl. Shipping costs

immediately available, 1 available
36nuova simonelli tap stainless steel pin 8005143
NUOVA SIMONELLI TAP STAINLESS STEEL PIN
13,01 €

excl. Shipping costs

immediately available, 1 available
37o ring 02015 silicon 8001735
O-RING 02015 SILICON
1,02 €

excl. Shipping costs

immediately available
38nuova simonelli tap assembly 8005457
NUOVA SIMONELLI TAP ASSEMBLY
17,55 €

excl. Shipping costs

Delivery time
is determined
39low cylinder head screw m4x12 8001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs

immediately available
40nuova simonelli articulation fitting o 3 8 8005861
NUOVA SIMONELLI ARTICULATION FITTING ø 3/8
4,81 €

excl. Shipping costs

Delivery time
is determined
43o ring 0115 epdm 8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs

immediately available
45steam pipe complete 8006567
STEAM PIPE COMPLETE
59,33 €

excl. Shipping costs

Delivery time
is determined
46steam nozzle 8006152
STEAM NOZZLE
22,56 €

excl. Shipping costs

Delivery time
is determined
47complete water pipe 8064216
COMPLETE WATER PIPE
53,17 €

excl. Shipping costs

Delivery time
is determined
48steam pipe complete 8006896
STEAM PIPE COMPLETE
48,53 €

excl. Shipping costs

Delivery time
is determined
49steam tap assembly 8005566
STEAM TAP ASSEMBLY
This article is no longer available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
