Pavoni

LA PAVONI STRADIVARI HANDHEBELGRUPPE

Drawing number 8057377

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

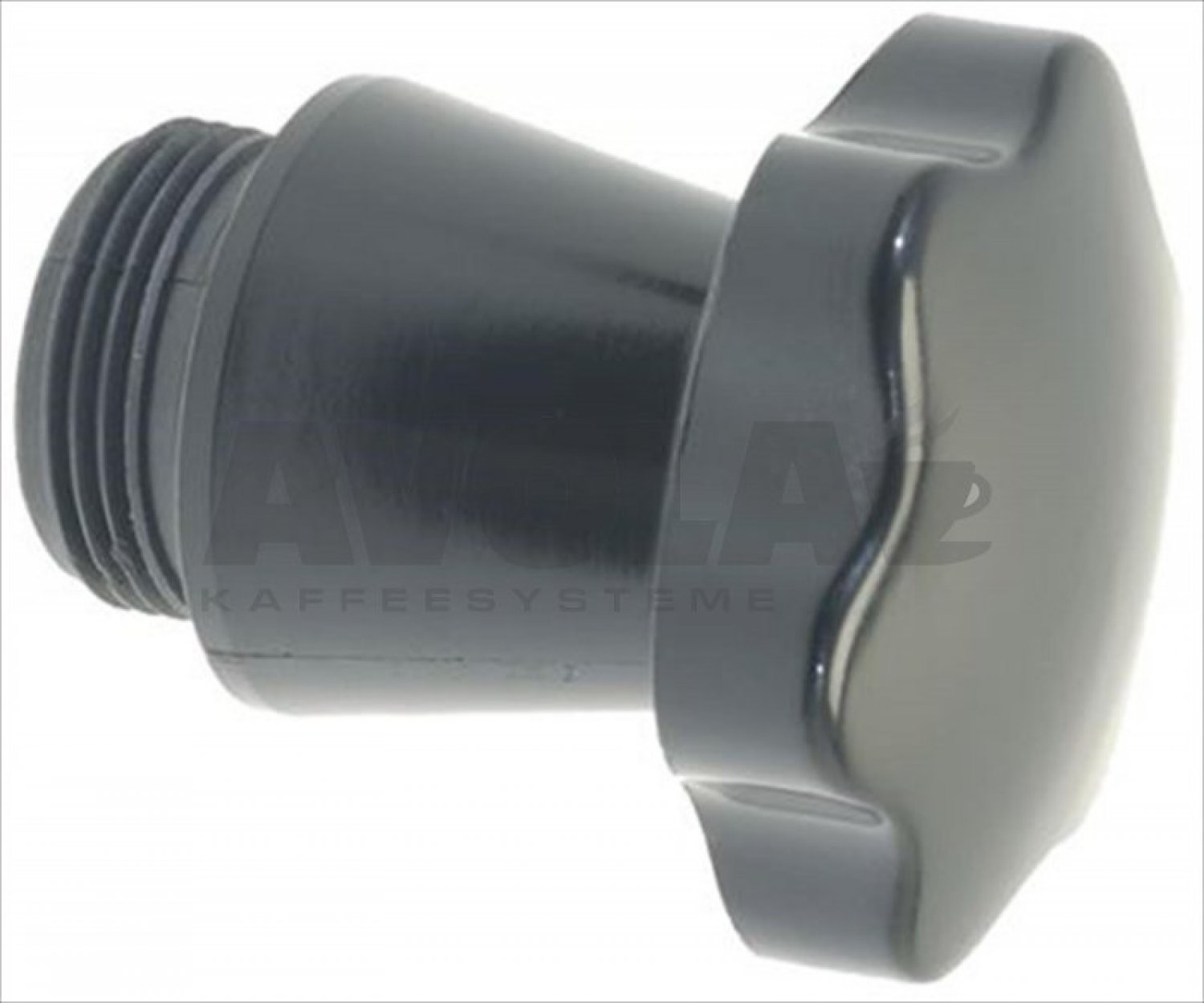

1black boiler cap 8003163
BLACK BOILER CAP
32,61 €

excl. Shipping costs

immediately available, 1 available
2epdm o ring 04112 8001704
EPDM O RING 04112
1,38 €

excl. Shipping costs

immediately available
4boiler gasket o 93x80x2 mm 8001706
BOILER GASKET ø 93x80x2 mm
9,48 €

excl. Shipping costs

immediately available, 16 available
6boiler gasket o 93x80x2 mm 8001706
BOILER GASKET ø 93x80x2 mm
9,48 €

excl. Shipping costs

immediately available, 16 available
7ring 8060999
RING
49,27 €

excl. Shipping costs

immediately available, 2 available
8o ring 0176 epdm 8001835
O-RING 0176 EPDM
2,82 €

excl. Shipping costs

immediately available
9heating element 920 1000w 230 240v 8007416
HEATING ELEMENT 920/1000W 230/240V
42,88 €

excl. Shipping costs

immediately available, 3 available
10cylinder head screw m5x10 8001294
CYLINDER HEAD SCREW M5x10
1,02 €

excl. Shipping costs

immediately available
11pressure switch pipe 8006650
PRESSURE SWITCH PIPE
32,01 €

excl. Shipping costs

immediately available, 2 available
12pressure switch 0 5 1 2 bar 1 4 8005057
PRESSURE SWITCH 0.5-1.2 BAR 1/4
22,50 €

excl. Shipping costs

immediately available, 11 available
13contact thermostat 127 8006426
CONTACT THERMOSTAT 127
13,17 €

excl. Shipping costs

immediately available, 7 available
14pavoni abdeckung fuer thermoastat 8080518
PAVONI Abdeckung für Thermoastat
5,95 €

excl. Shipping costs

immediately available, 11 available
16sechskantmutter m4 messing 8075588
SECHSKANTMUTTER M4 Messing
Price on request
18boiler valve body m12 8007064
BOILER VALVE BODY M12
88,52 €

excl. Shipping costs

immediately available, 2 available
18sicherheitsventil m12 pavoni 8081223
Sicherheitsventil M12 Pavoni
This article is no longer available
19la pavoni small valve for boiler valve 8007052
La Pavoni SMALL VALVE FOR BOILER VALVE
This article is no longer available

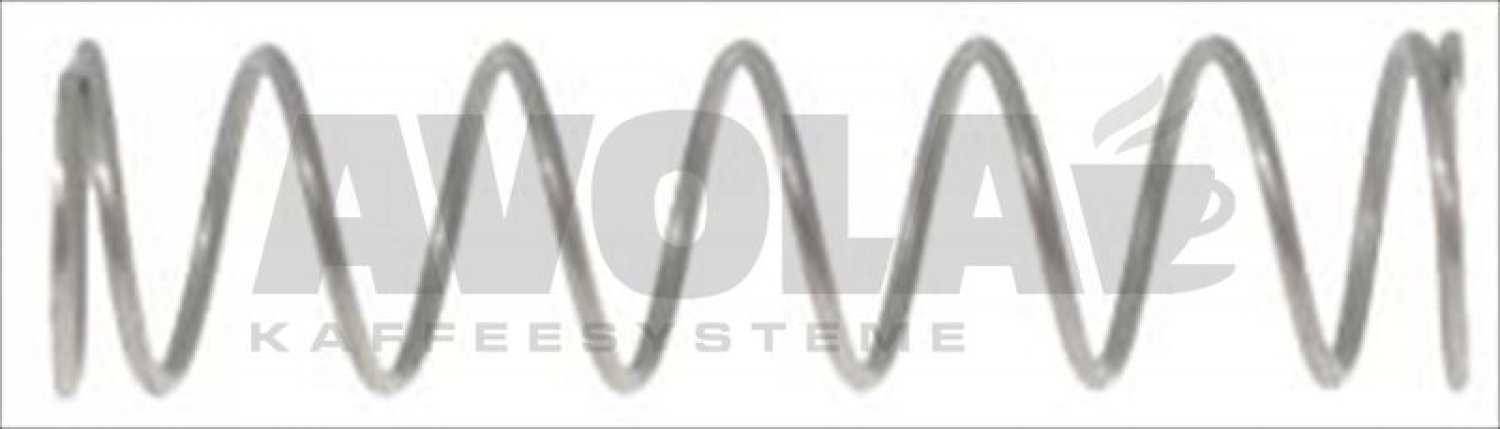

20spring o 7x26 mm 8003575
SPRING ø 7x26 mm
5,81 €

excl. Shipping costs

immediately available, 10 available
21chrome plated condensate tray 8064580
CHROME-PLATED CONDENSATE TRAY
27,54 €

excl. Shipping costs

immediately available, 1 available

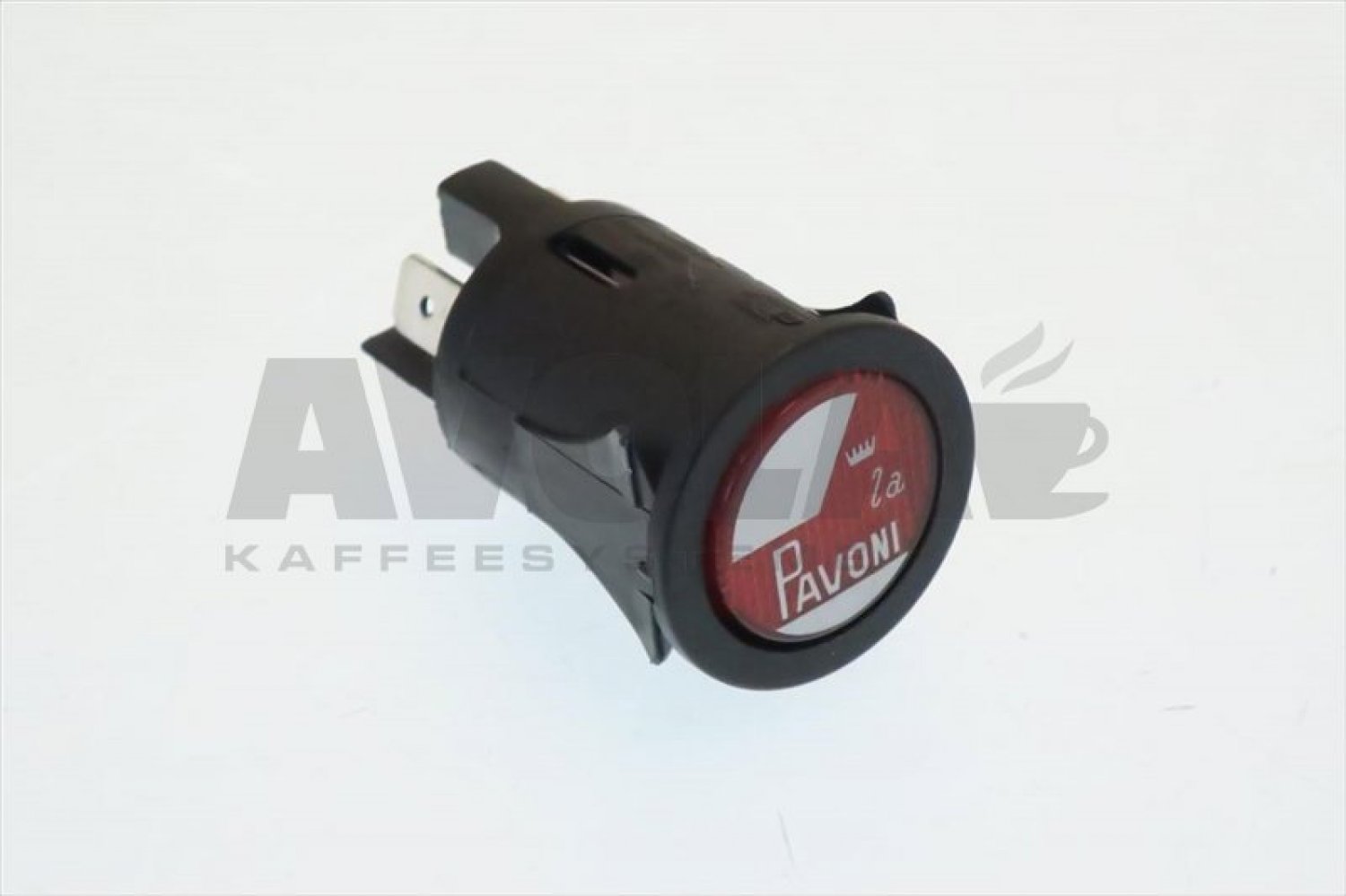

26la pavoni stradivari schalter beleuchtet mit pavoni logo 8137208
La Pavoni Stradivari Schalter beleuchtet mit Pavoni Logo
15,47 €

excl. Shipping costs

immediately available, 8 available
28power cord 16a 250v 1400 mm 8063253
POWER CORD 16A 250V 1400 mm
20,97 €

excl. Shipping costs

immediately available, 8 available

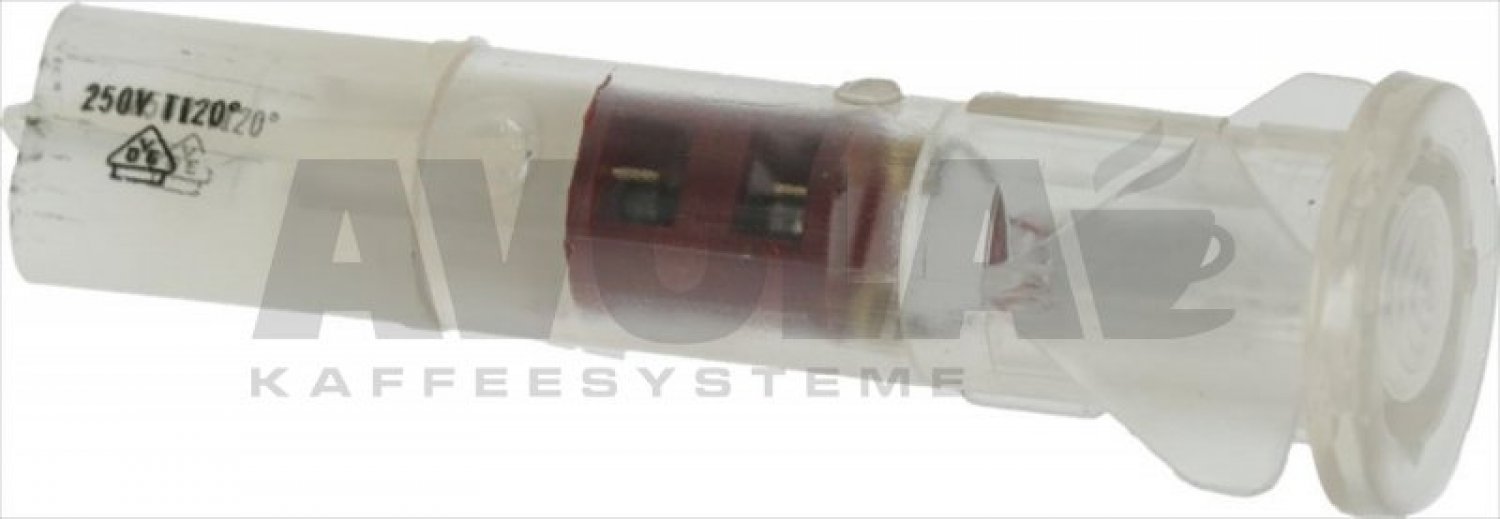

29signallampe gruen 250v 8104473
SIGNALLAMPE GRÜN 250V
6,20 €

excl. Shipping costs

immediately available, 6 available

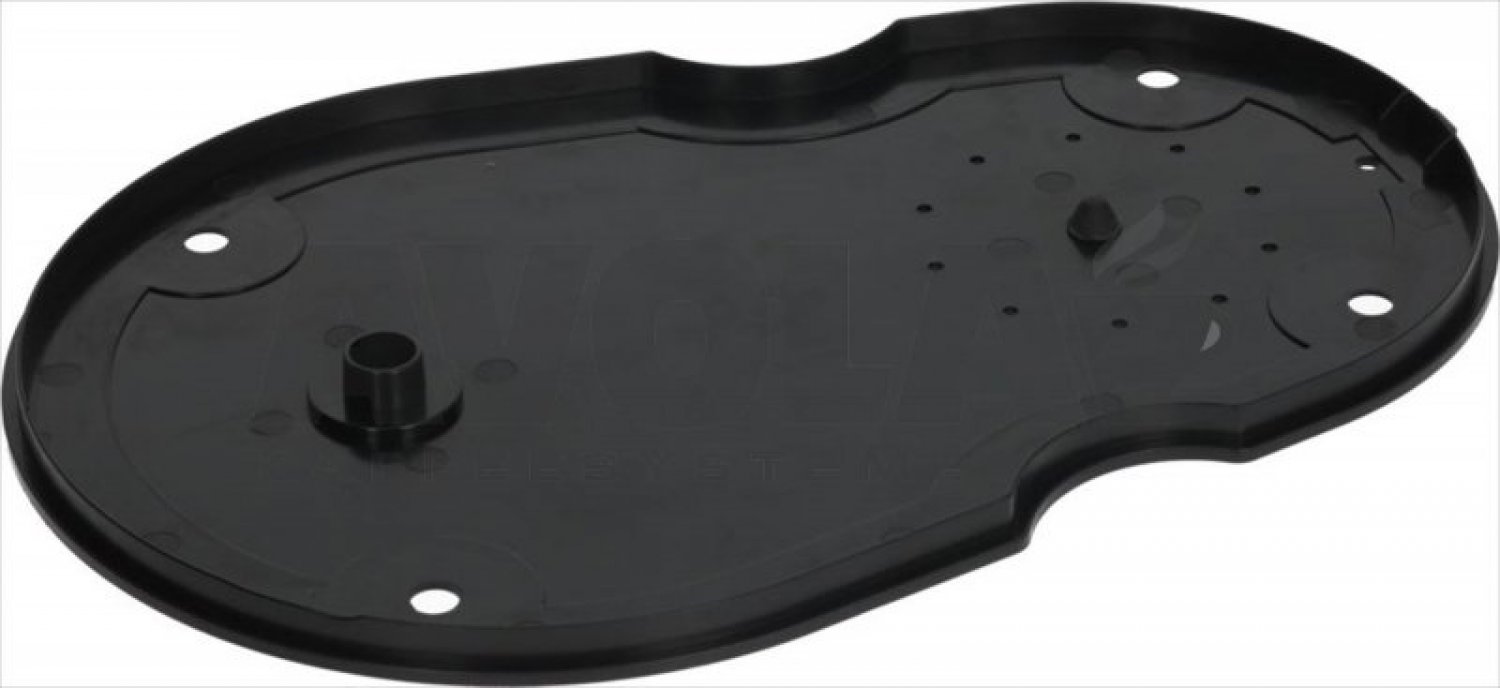

36untersockelschale 8104552
UNTERSOCKELSCHALE
20,43 €

excl. Shipping costs

immediately available, 1 available
37foot 8004586
FOOT
1,88 €

excl. Shipping costs

immediately available, 11 available
40la pavoni tropfschale stradivari 8198488
La Pavoni Tropfschale Stradivari
17,85 €

excl. Shipping costs

Delivery time 4-6 weeks..
43wood and s steel coffee tamper 8006195
WOOD AND S/STEEL COFFEE TAMPER
20,99 €

excl. Shipping costs

immediately available, 1 available
43la pavoni stradivari handhebelgruppe 8057377
LA PAVONI STRADIVARI HANDHEBELGRUPPE
Price on request
44plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,74 €

excl. Shipping costs

immediately available, 6 available
47o ring gasket 0106 epdm 8018501
O-RING GASKET 0106 EPDM
1,45 €

excl. Shipping costs

immediately available
49brass washer flat o 12x7x1 mm 8007268
BRASS WASHER FLAT ø 12x7x1 mm
1,88 €

excl. Shipping costs

immediately available, 12 available
50flat nbr gasket o 12x7x5 mm 8001700
Flat NBR gasket ø 12x7x5 mm
2,94 €

excl. Shipping costs

immediately available, 18 available
52steam tap knob 8003215
STEAM TAP KNOB
20,69 €

excl. Shipping costs

immediately available, 1 available

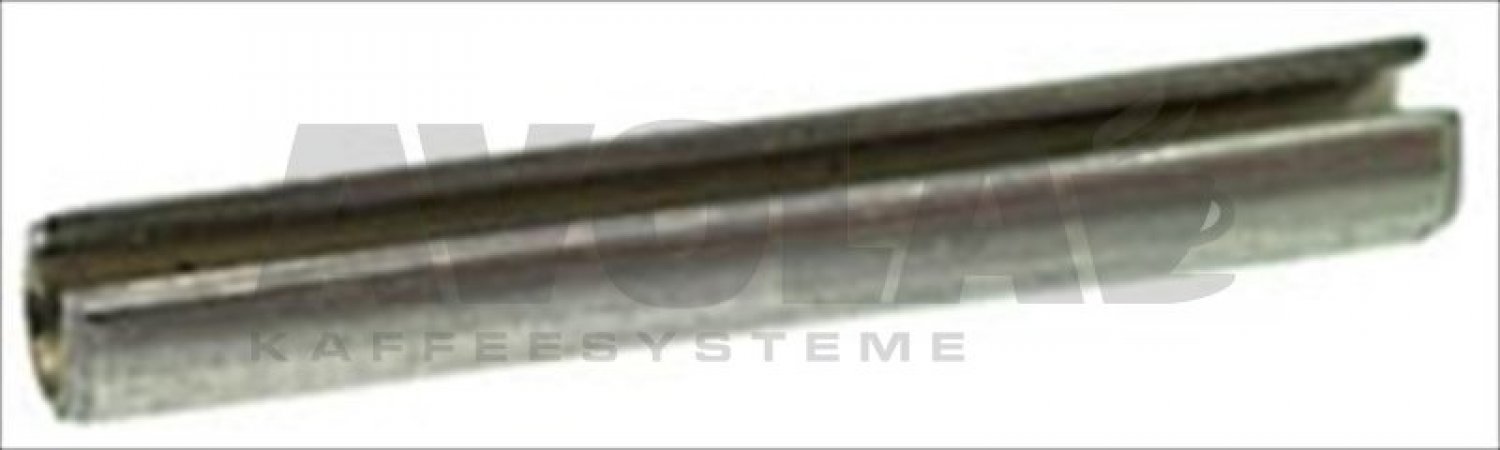

53clasp o 3x22 mm 8009949
CLASP ø 3x22 mm
1,42 €

excl. Shipping costs

immediately available

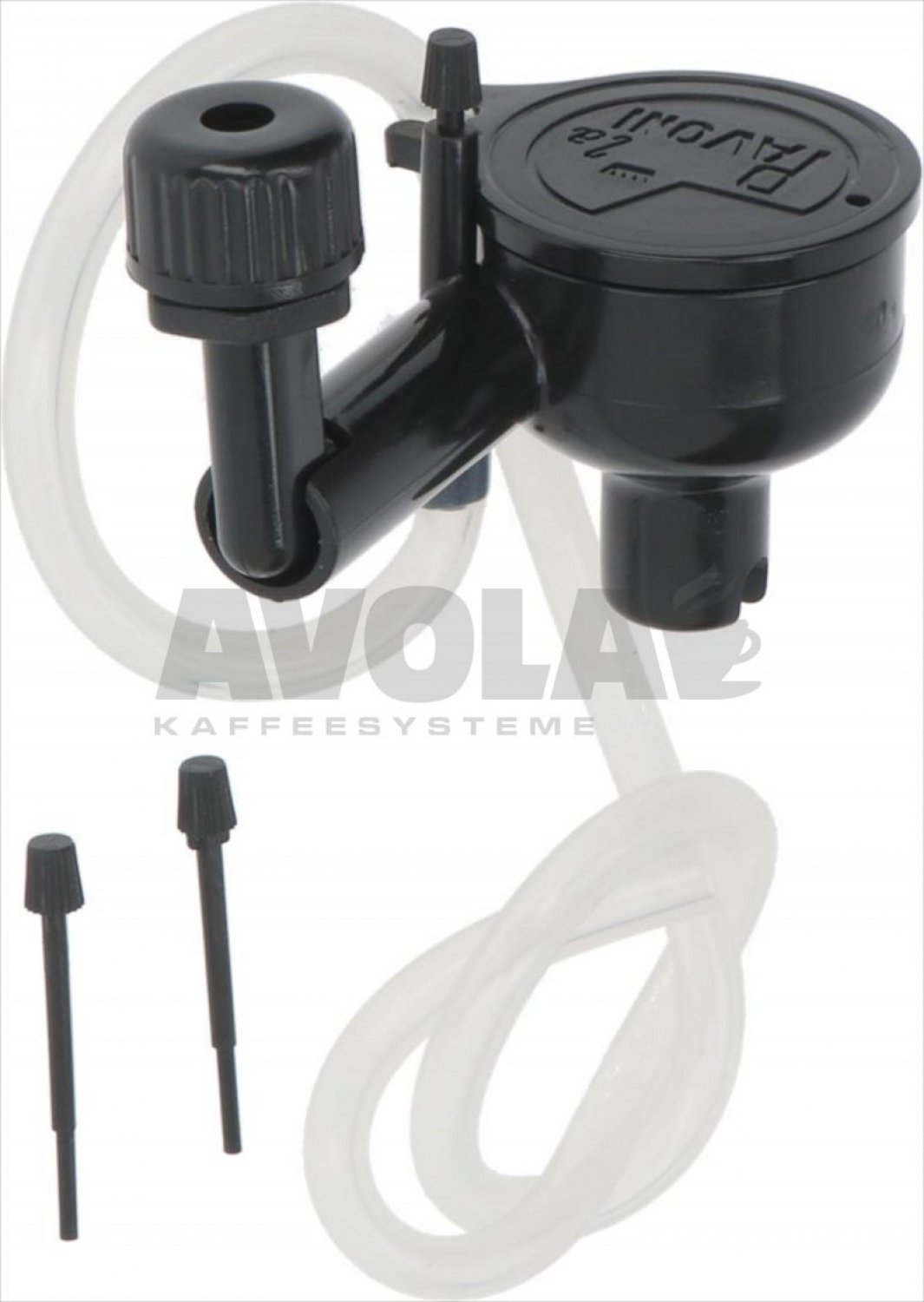

57la pavoni europiccola cappuccinatore 8035620
La Pavoni Europiccola Cappuccinatore
27,50 €

excl. Shipping costs

Delivery time
is determined
58silicone hose o 4x7 shore 60 1 m 8006716
Silicone hose ø 4x7 SHORE 60 - 1 m
5,97 €

excl. Shipping costs

immediately available, 9 available
60flat silicone gasket o 15x9x5 mm 8001697
FLAT SILICONE GASKET ø 15x9x5 mm
3,40 €

excl. Shipping costs

immediately available, 16 available
61fitting for level glass 8002650
FITTING FOR LEVEL GLASS
8,84 €

excl. Shipping costs

immediately available, 9 available
62level glass o 9x132 mm 8007006
LEVEL GLASS ø 9x132 mm
5,63 €

excl. Shipping costs

immediately available, 9 available
63untere halterung wasserstandglas la pavoni 8035614
Untere Halterung Wasserstandglas La Pavoni
23,86 €

excl. Shipping costs

immediately available, 5 available
64eflon flat gasket o 17x12x1 5 mm 8001696
EFLON FLAT GASKET ø 17x12x1,5 mm
3,11 €

excl. Shipping costs

immediately available, 13 available
65brass washer flat o 17x12x1 mm 8007264
BRASS WASHER FLAT ø 17x12x1 mm
2,81 €

excl. Shipping costs

immediately available, 11 available
66nut m12 for steam tap 8007266
NUT M12 FOR STEAM TAP
3,27 €

excl. Shipping costs

immediately available, 7 available
67la pavoni europiccola blindstopfen verchromt 8037790
La Pavoni Europiccola Blindstopfen verchromt
8,71 €

excl. Shipping costs

immediately available, 2 available

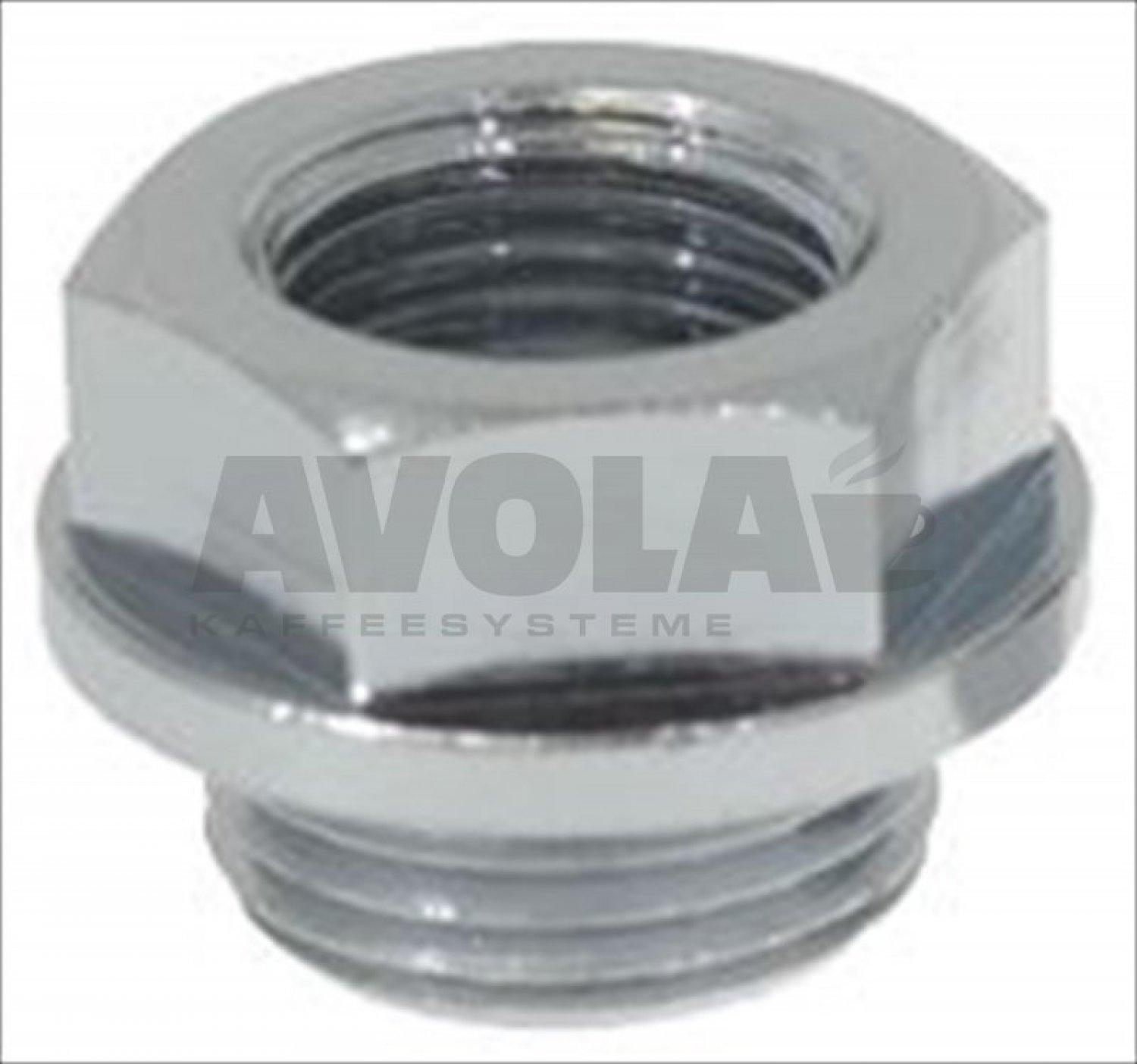

68pressure gauge fitting 8005665
PRESSURE GAUGE FITTING
10,54 €

excl. Shipping costs

immediately available, 2 available
68anschluss fuer manometer m12x1 aussen 1 8 quot innen messing 8253486
Anschluss für Manometer - M12x1 Aussen 1/8" innen Messing
17,85 €

excl. Shipping costs

Delivery time 4-6 weeks..
69boiler pressure gauge 8003458
BOILER PRESSURE GAUGE
31,08 €

excl. Shipping costs

immediately available, 3 available
70la pavoni europiccola level plate 8002649
La Pavoni Europiccola level plate
8,40 €

excl. Shipping costs

immediately available, 3 available
73lip seal o 21x11x4 5 mm 8001698
LIP SEAL ø 21x11x4,5 mm
5,38 €

excl. Shipping costs

immediately available, 13 available
74punched washer 8007263
PUNCHED WASHER
3,36 €

excl. Shipping costs

immediately available
75seeger ring j 20 8005468
SEEGER RING J-20
2,70 €

excl. Shipping costs

immediately available, 13 available
76jacket for coffee group 60er gruppe 8064578
JACKET FOR COFFEE GROUP 60er Gruppe
21,22 €

excl. Shipping costs

immediately available, 2 available
77o ring 0152 epdm 8001392
O-RING 0152 EPDM
1,67 €

excl. Shipping costs

immediately available, 20 available
78piston tie rod for group 8035617
PISTON TIE ROD FOR GROUP
19,08 €

excl. Shipping costs

immediately available, 1 available
79pavoni europiccola piston lever 8005080
Pavoni Europiccola piston lever
25,43 €

excl. Shipping costs

immediately available, 3 available
80lip seal o 44x33x5 5 mm 8001695
LIP SEAL ø 44x33x5,5 mm
6,96 €

excl. Shipping costs

immediately available, 15 available
80lippendichtung silikon pavoni europiccola 1 stueck 8140739
Lippendichtung Silikon Pavoni Europiccola (1 Stück)
5,95 €

excl. Shipping costs

immediately available
81shower 8000562
SHOWER
6,56 €

excl. Shipping costs

immediately available, 2 available
82filter holder gasket o 60x50x5 5 mm 8001693
FILTER HOLDER GASKET ø 60x50x5,5 mm
5,96 €

excl. Shipping costs

immediately available
83gruppenverschluss aus edelstahl mit gewinde fuer steigrohr o 25 mm nicht mehr lieferbar 8280952
Gruppenverschluss aus Edelstahl mit Gewinde für Steigrohr ø 25 mm (nicht mehr lieferbar)
This article is no longer available
83gruppenverschluss mit gewinde fuer steigrohr o 25 mm 8035615
Gruppenverschluss mit Gewinde für Steigrohr ø 25 mm
9,23 €

excl. Shipping costs

immediately available, 4 available
84la pavoni suction pipe 8035545
La Pavoni suction pipe
12,65 €

excl. Shipping costs

immediately available, 3 available
85o ring 03112 epdm 8014745
O-RING 03112 EPDM
1,50 €

excl. Shipping costs

immediately available
88filter holder knobm12 8003162
FILTER HOLDER KNOBM12
7,81 €

excl. Shipping costs

immediately available, 2 available
89buchse fuer hebelgruppegelenk mit laufrollen 8280953
Buchse für Hebelgruppegelenk mit Laufrollen
Price on request
89articulation bushing 8002201
ARTICULATION BUSHING
3,87 €

excl. Shipping costs

immediately available, 6 available
90la pavoni fork pin 8005158
La Pavoni fork pin
4,66 €

excl. Shipping costs

immediately available, 7 available
91radial seeger ring 8003556
RADIAL SEEGER RING
1,34 €

excl. Shipping costs

immediately available
942 cups filter holder assembly pavoni ga 8001179
2 CUPS FILTER HOLDER ASSEMBLY PAVONI/GA
54,45 €

excl. Shipping costs

immediately available, 2 available
96double spout o 3 8 25 00mm 8000123
DOUBLE SPOUT ø 3/8 - 25,00mm
7,18 €

excl. Shipping costs

immediately available, 8 available
982 cups filter 8001031
2 CUPS FILTER
15,35 €

excl. Shipping costs

immediately available, 6 available
991 cup filter 8001072
1 CUP FILTER
14,42 €

excl. Shipping costs

immediately available, 6 available

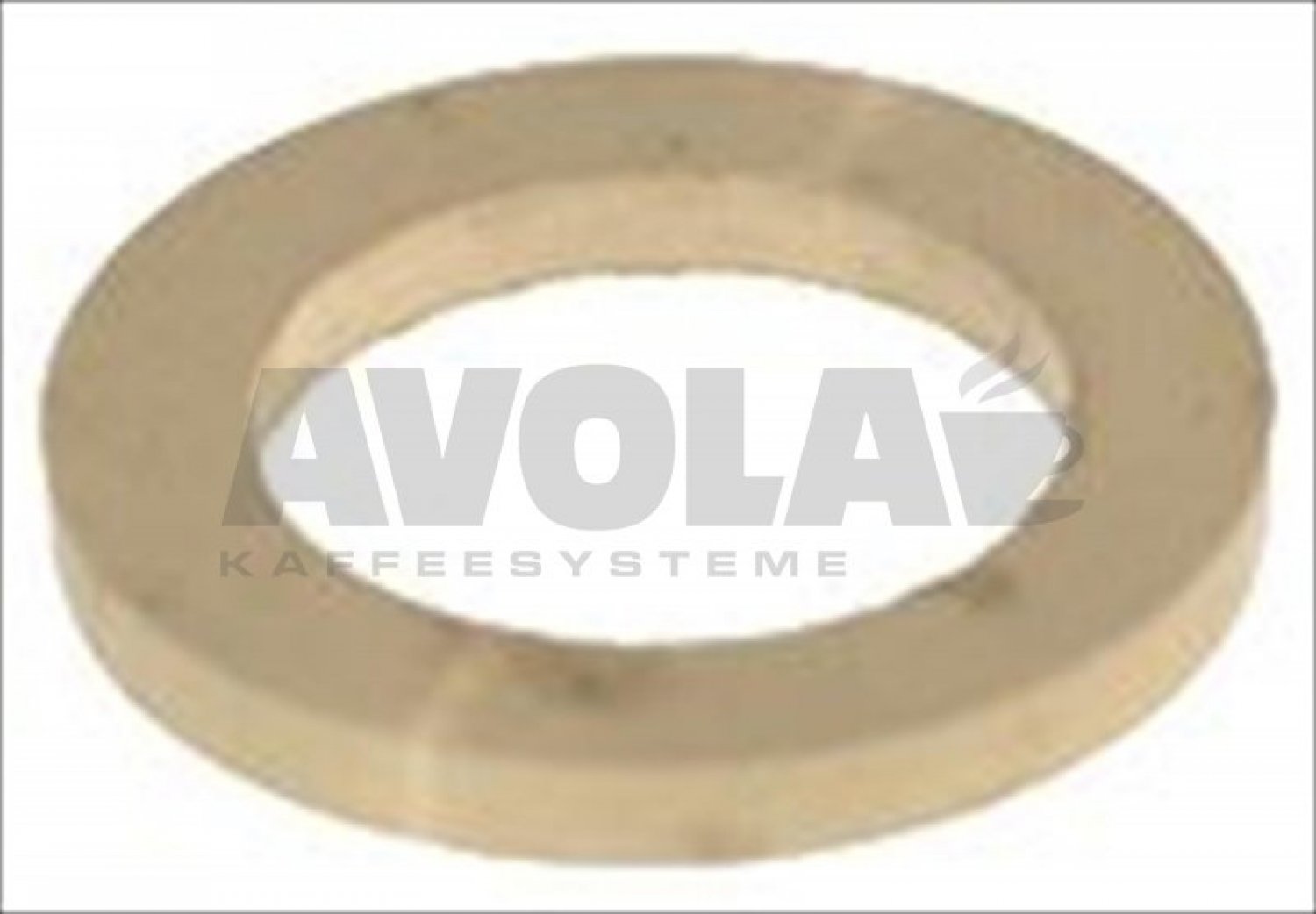

100brass washer flat o 14 5 x 9 5 1 5 mm 8007267
BRASS WASHER FLAT ø 14,5 x 9,5 1,5 mm
2,21 €

excl. Shipping costs

immediately available, 12 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
