Profitec

PROFITEC E61 BRÜHGRUPPE Pro400 Pro500 Pro600 Pro700 Lucca

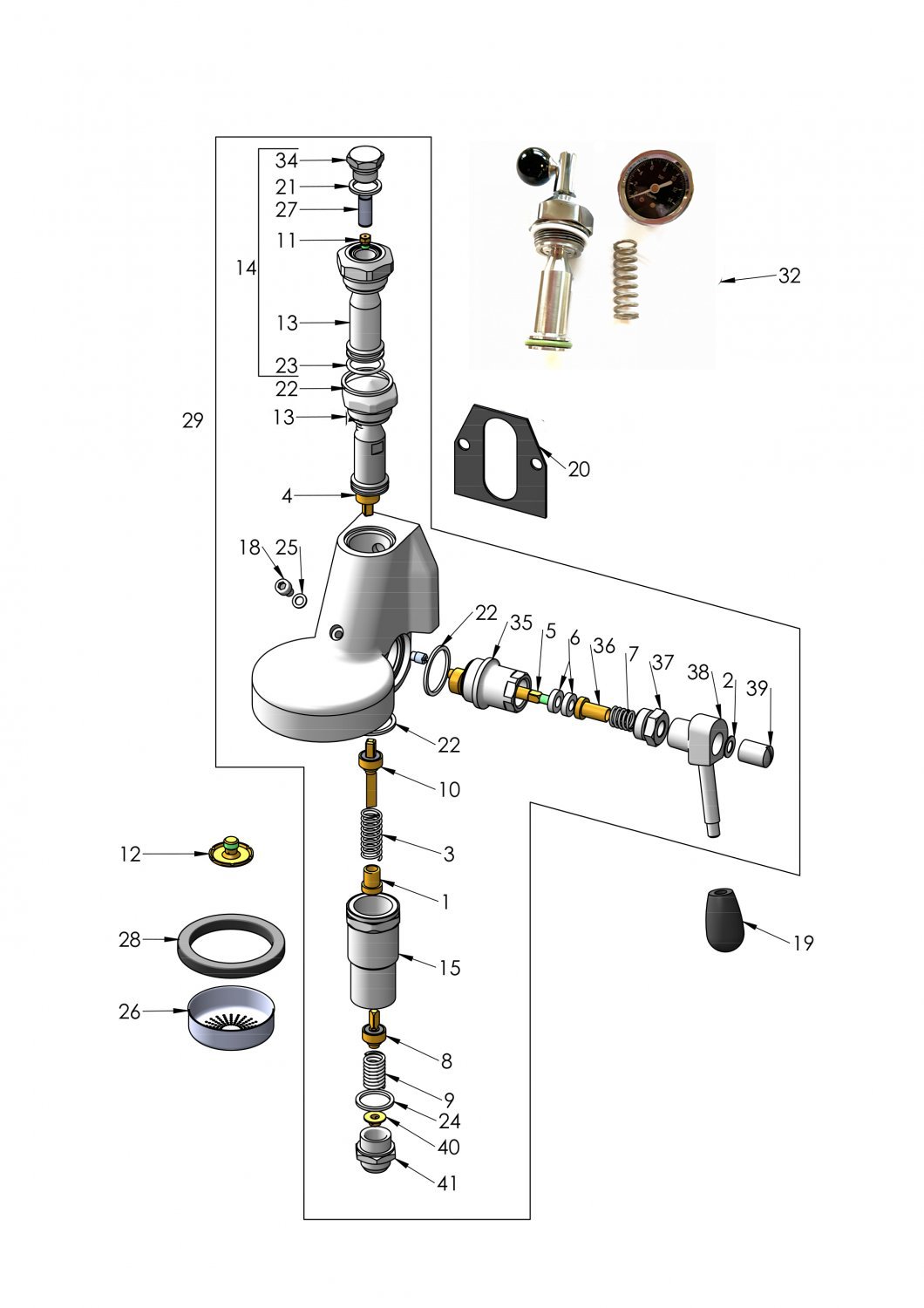

Drawing number 8139673

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
0e61 bruehgruppe revisionsset kit ecm bfc sab u v m 8079664
E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - u.v.m.
49,90 €

excl. Shipping costs

immediately available, 7 available

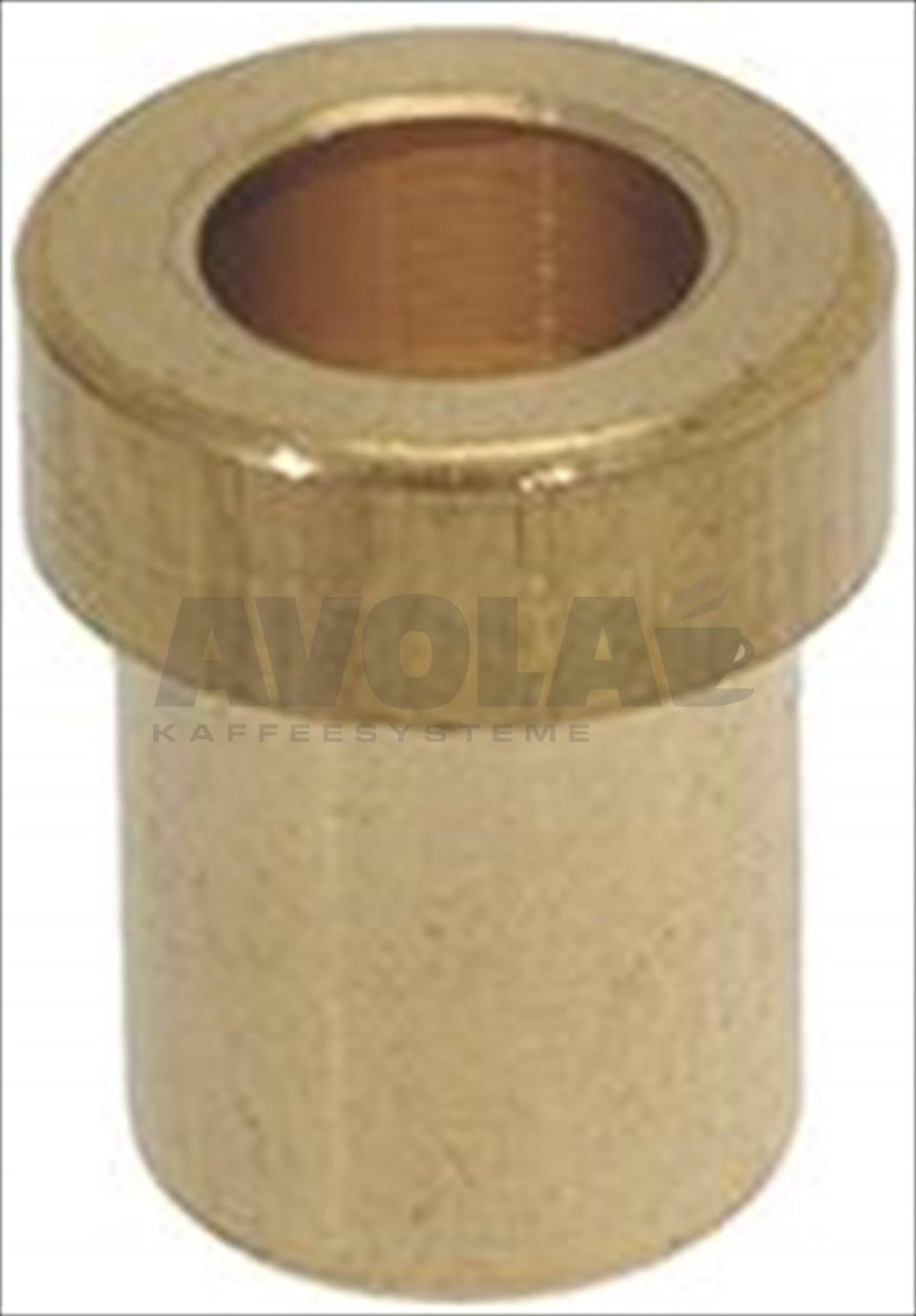

1spring guide bushing 8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs

immediately available, 6 available

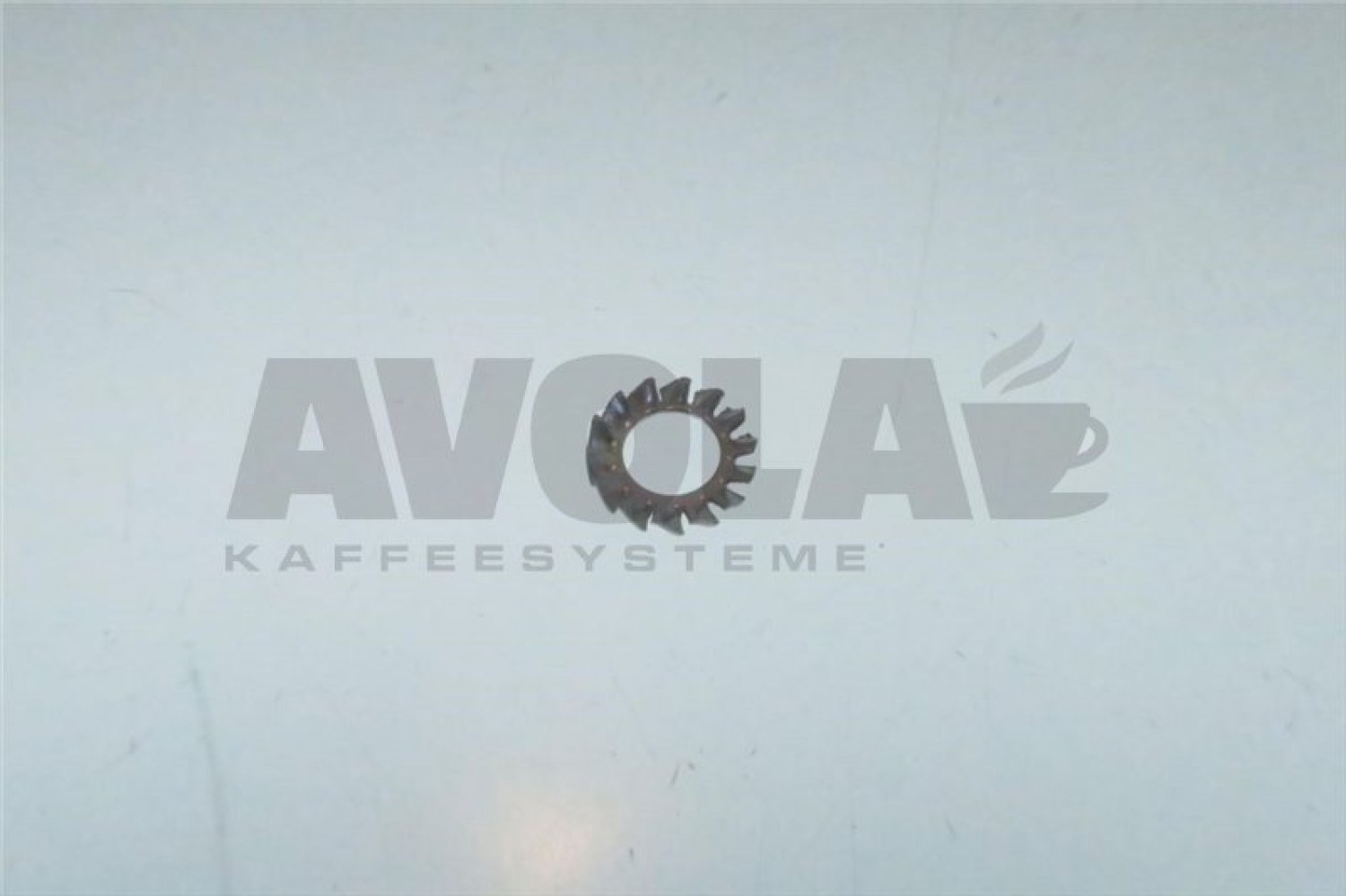

2zahnscheibe 0 8 nockenwelle e61 8073573
Zahnscheibe 0,8 Nockenwelle E61
1,25 €

excl. Shipping costs

immediately available
3spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available

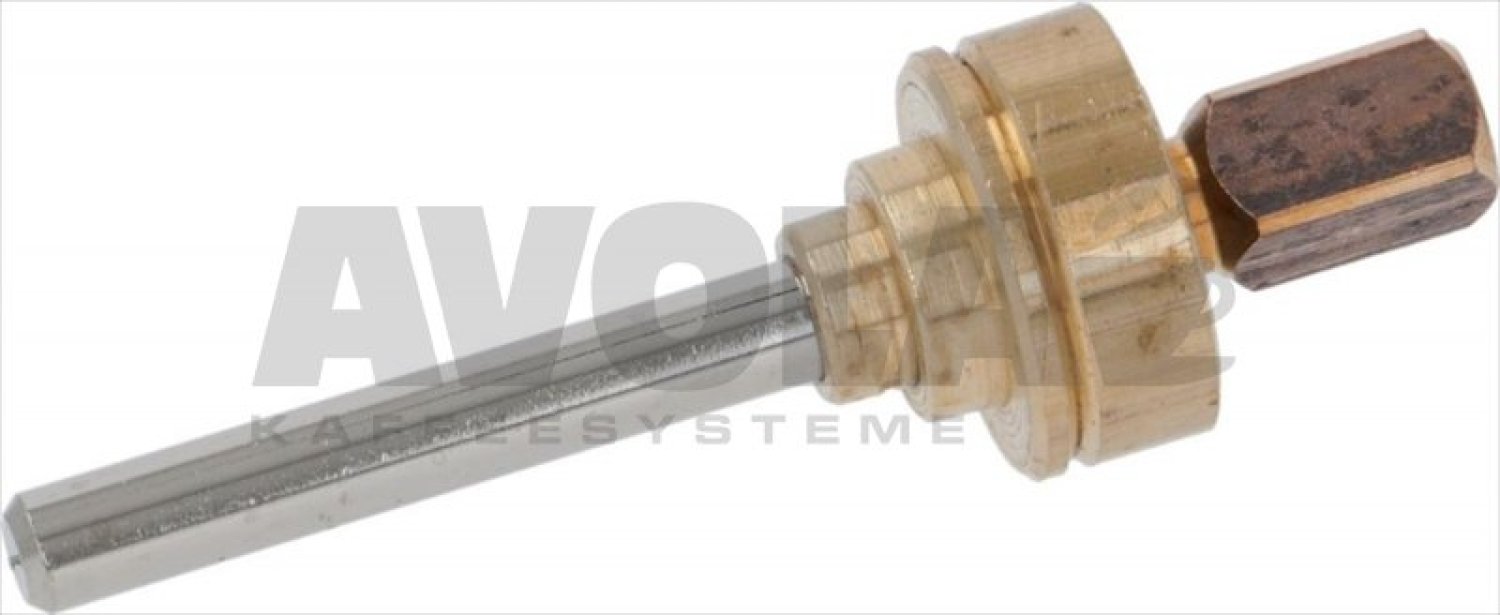

4complete spout valve 8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs

immediately available
5cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
6epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
7spring o 15x25 mm 8003821
SPRING ø 15x25 mm
2,02 €

excl. Shipping costs

immediately available
8e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
9feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
10complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available

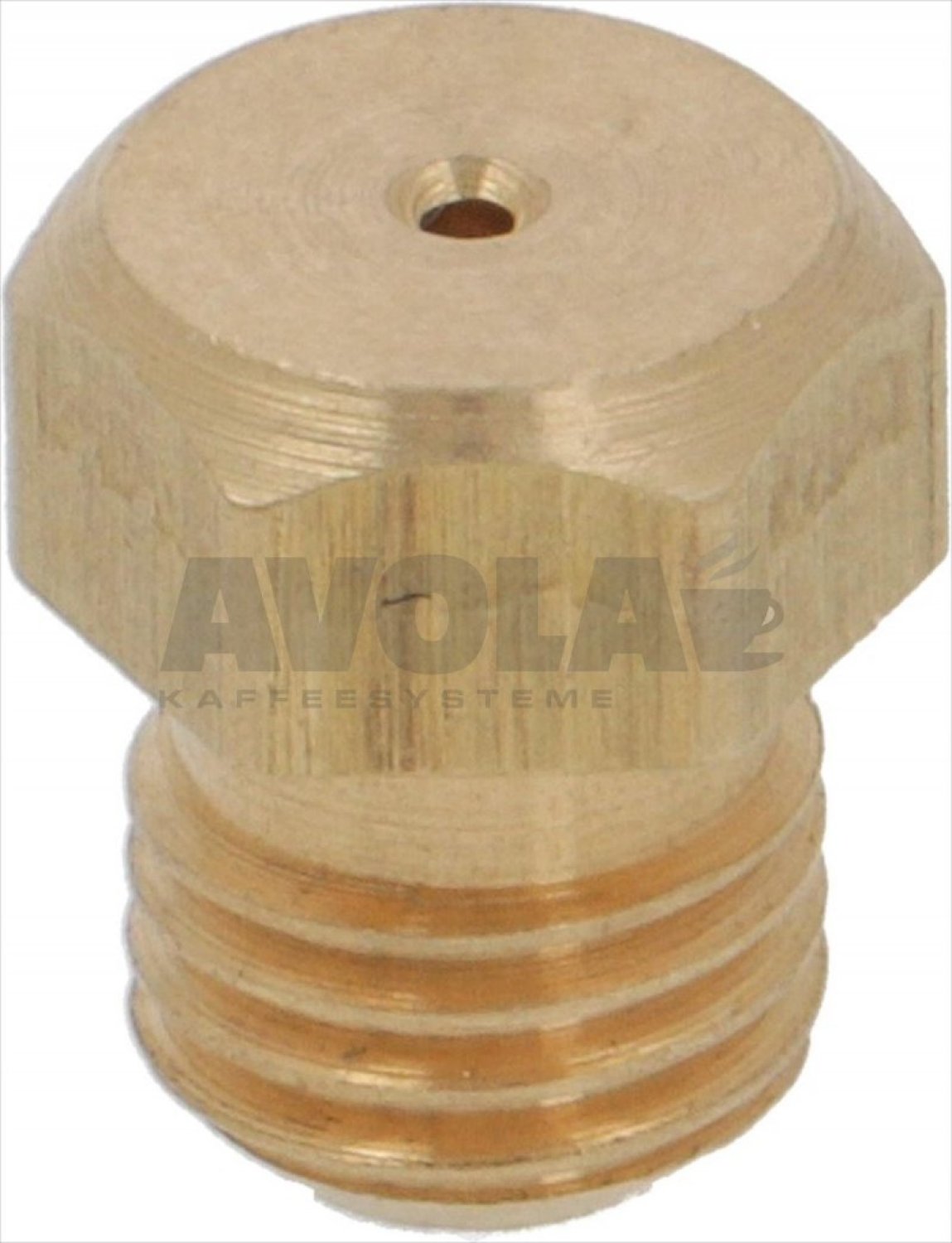

11nozzle m6x1 hole 8006984
NOZZLE M6x1 HOLE
3,27 €

excl. Shipping costs

immediately available, 8 available
12group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available

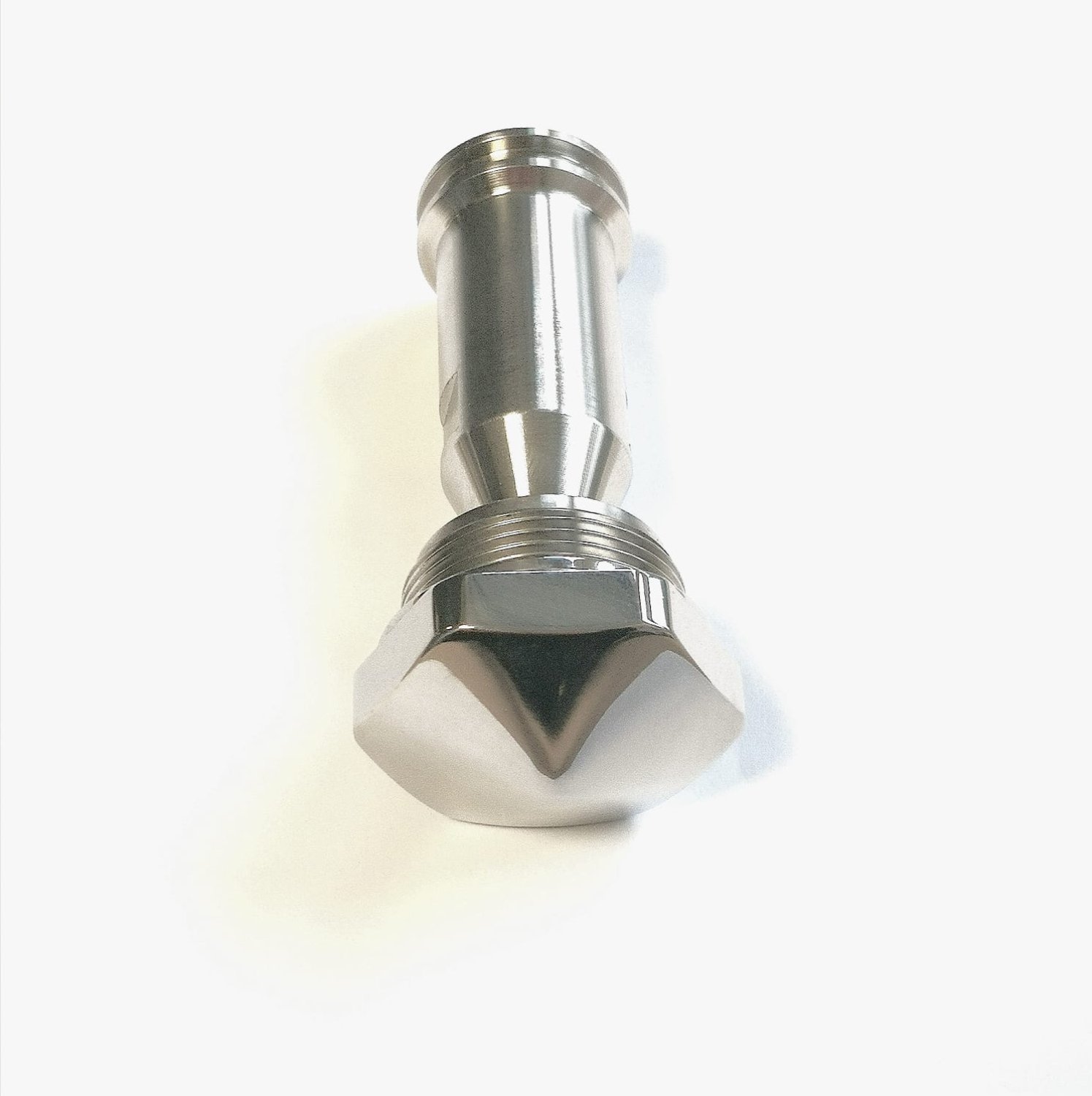

13original profitec kollektor inox fuer e61 bruehgruppe edelstahl glocke gruppenpilz ohne o ring 8140715
Original Profitec Kollektor Inox für E61 Brühgruppe Edelstahl Glocke Gruppenpilz (ohne O-Ring)
63,50 €

excl. Shipping costs

immediately available

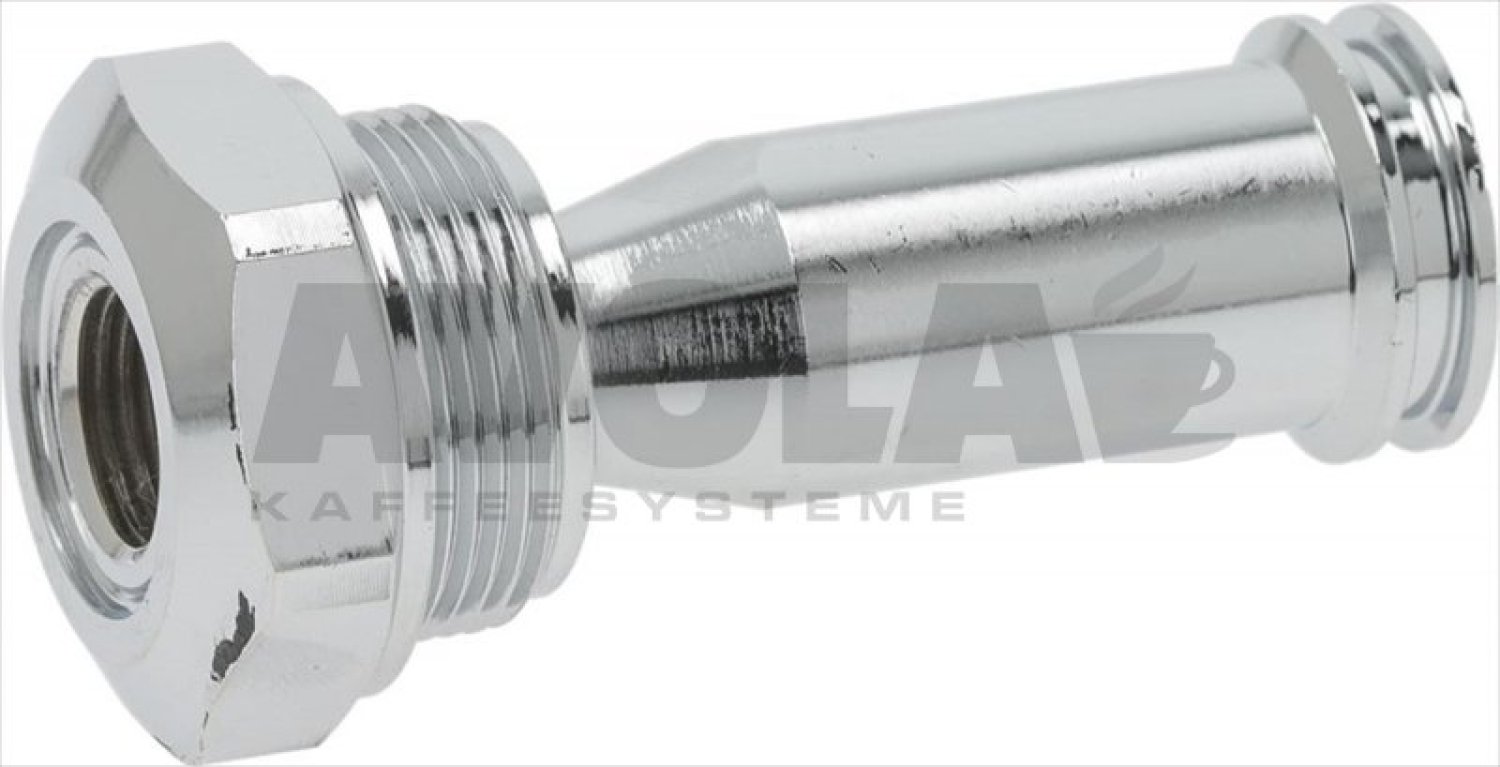

14chromium plated upper sleeve 8063314
CHROMIUM-PLATED UPPER SLEEVE
39,00 €
39,00 €

excl. Shipping costs

immediately available, 3 available

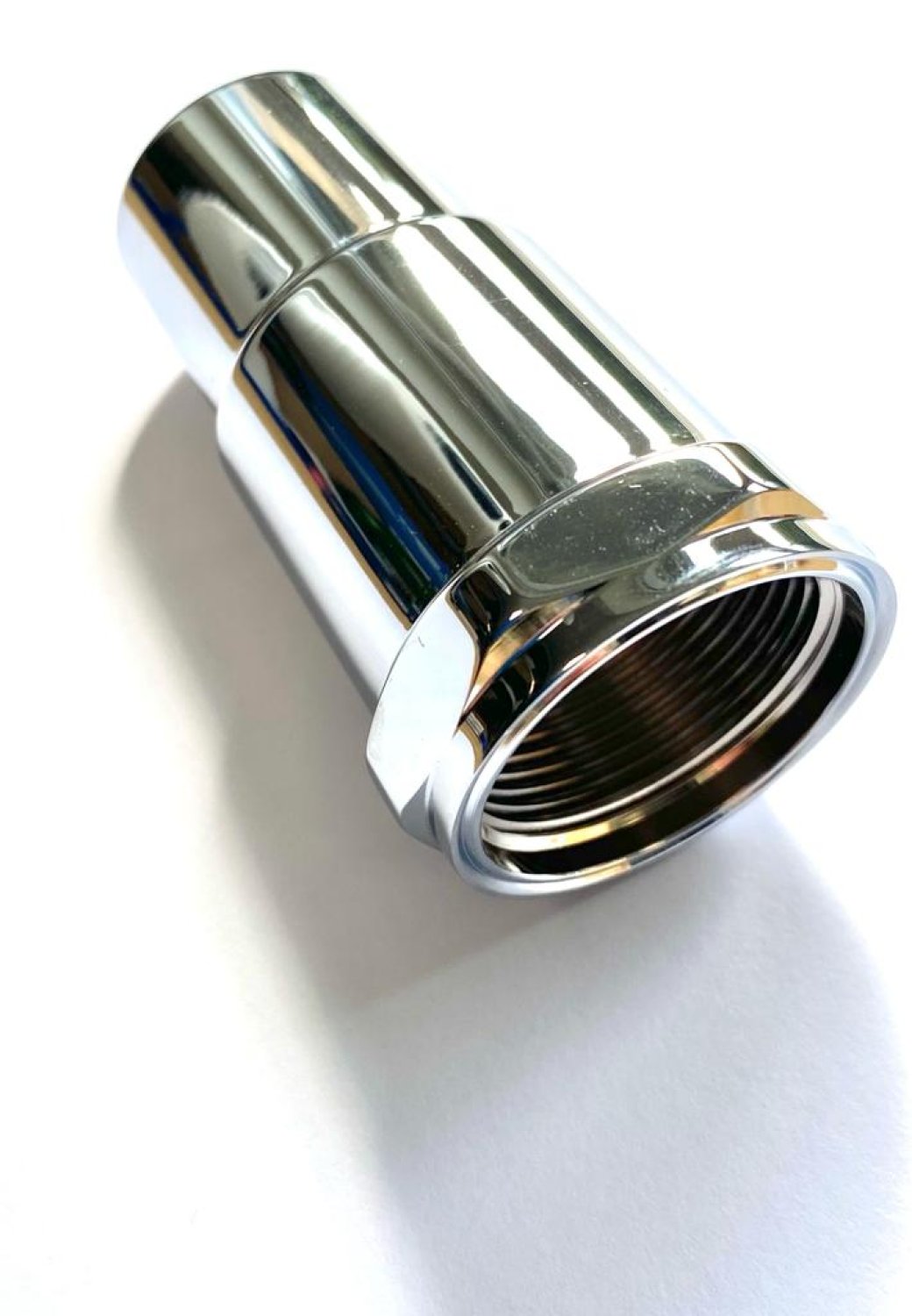

15ecm vorbruehzylinder 8118503
ECM Vorbrühzylinder
25,89 €

excl. Shipping costs

immediately available, 4 available
18low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs

immediately available
19knebel griff m8 schwarz 8081143
Knebel Griff M8 schwarz
9,52 €

excl. Shipping costs

immediately available, 5 available
20ecm gruppendichtung frontblech e61 8118518
ECM Gruppendichtung Frontblech E61
4,80 €

excl. Shipping costs

immediately available, 18 available
21ptfe flat gasket o 22x17x2 mm 8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs

immediately available
22ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
23o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
24flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
25ptfe flat gasket o10x6x1 mm 8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs

immediately available, 19 available
26precision shower screen 8062792
PRECISION SHOWER SCREEN
15,90 €

excl. Shipping costs

immediately available, 5 available

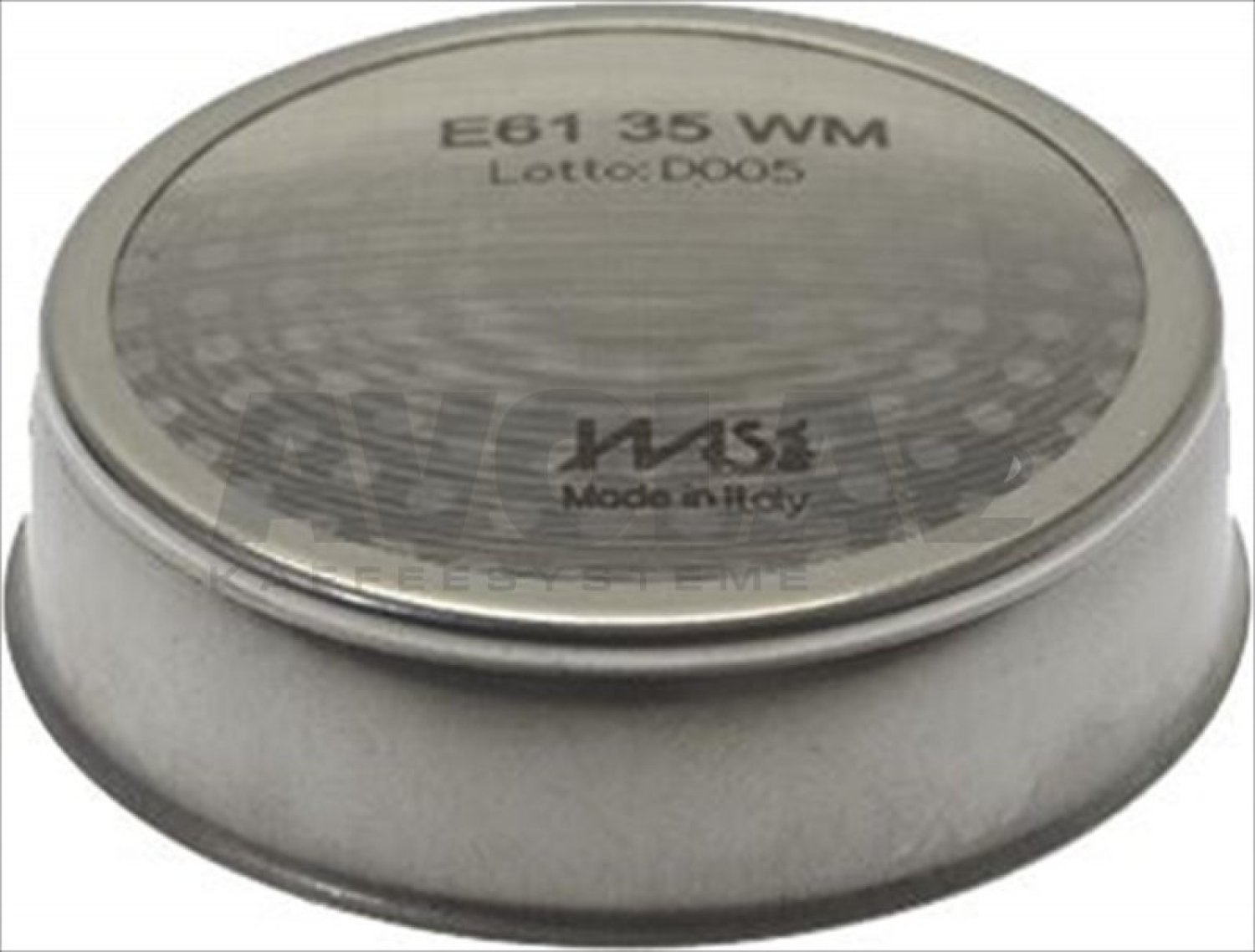

26precision shower screen 8062793
PRECISION SHOWER SCREEN
11,92 €

excl. Shipping costs

immediately available, 4 available
26shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
27water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
27metallfilter fuer duese gigleur l 16mm fuer edelstahlkollektor profitec 1 stueck 8164435
Metallfilter für Düse / Gigleur L=16mm - für Edelstahlkollektor Profitec (1 Stück)
7,20 €

excl. Shipping costs

immediately available, 11 available
28cafelat e61 siebtraegerdichtung 73x57x8 5 mm blau 8081203
Cafelat E61 Siebträgerdichtung 73x57x8,5 mm blau
5,95 €

excl. Shipping costs

immediately available
31federring m8 edelstahl din127 8080604
Federring M8 Edelstahl DIN127
0,92 €

excl. Shipping costs

immediately available
32profitec flowcontrol kit bruehdruckkontrolle durchflussregulierventil flow rate regulator p1065 8140699
Profitec Flowcontrol Kit Brühdruckkontrolle Durchflussregulierventil Flow Rate Regulator P1065
195,01 €
195,01 €

excl. Shipping costs

immediately available, 1 available
34 8164642
Verschraubung oben
10,41 €

excl. Shipping costs

Delivery time
is determined
35ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs

immediately available, 4 available
36cam guide bushing 8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs

immediately available, 14 available

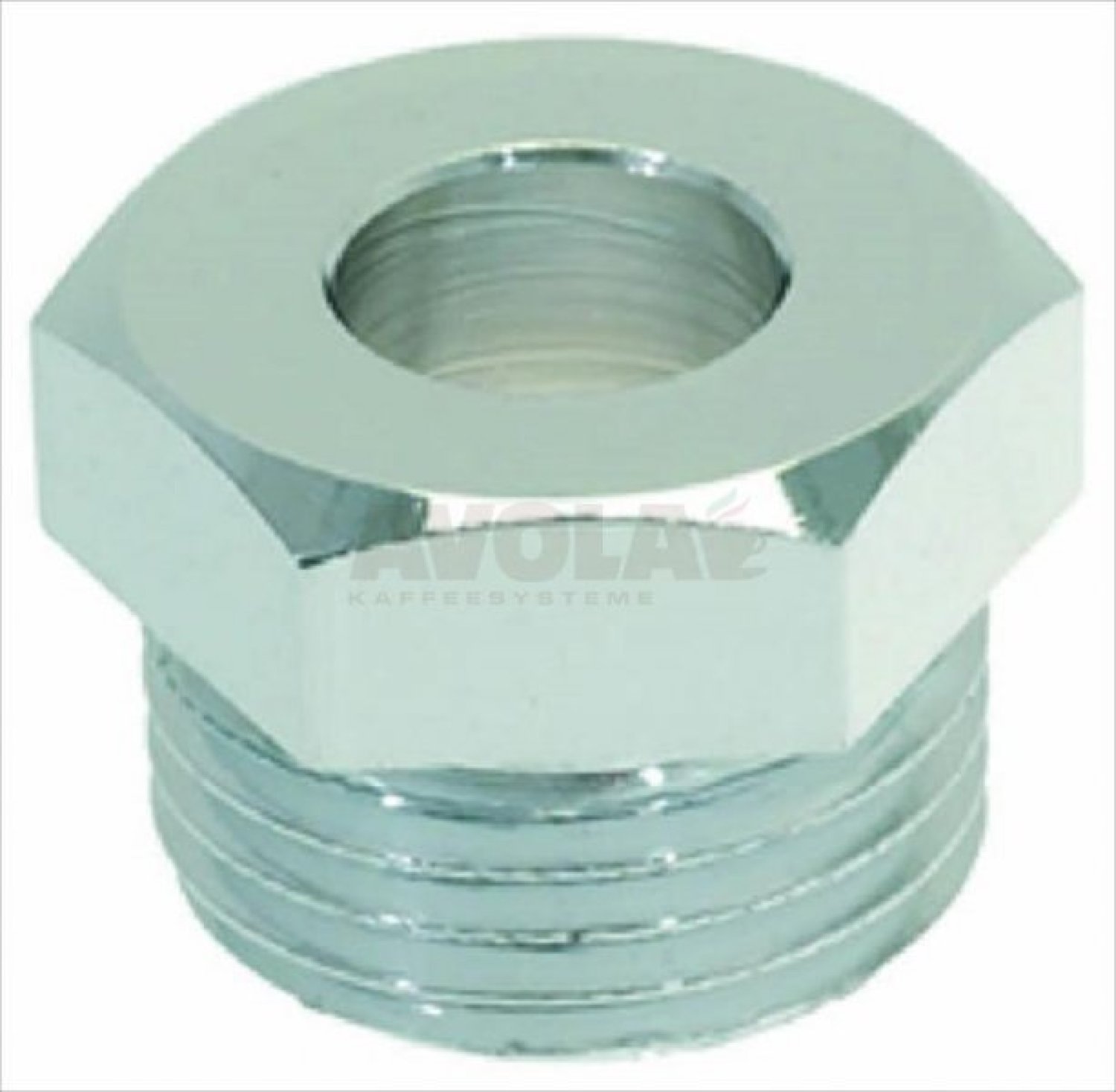

37e61 verschraubung nockenwelle 8080935
E61 Verschraubung Nockenwelle
4,89 €

excl. Shipping costs

immediately available, 5 available

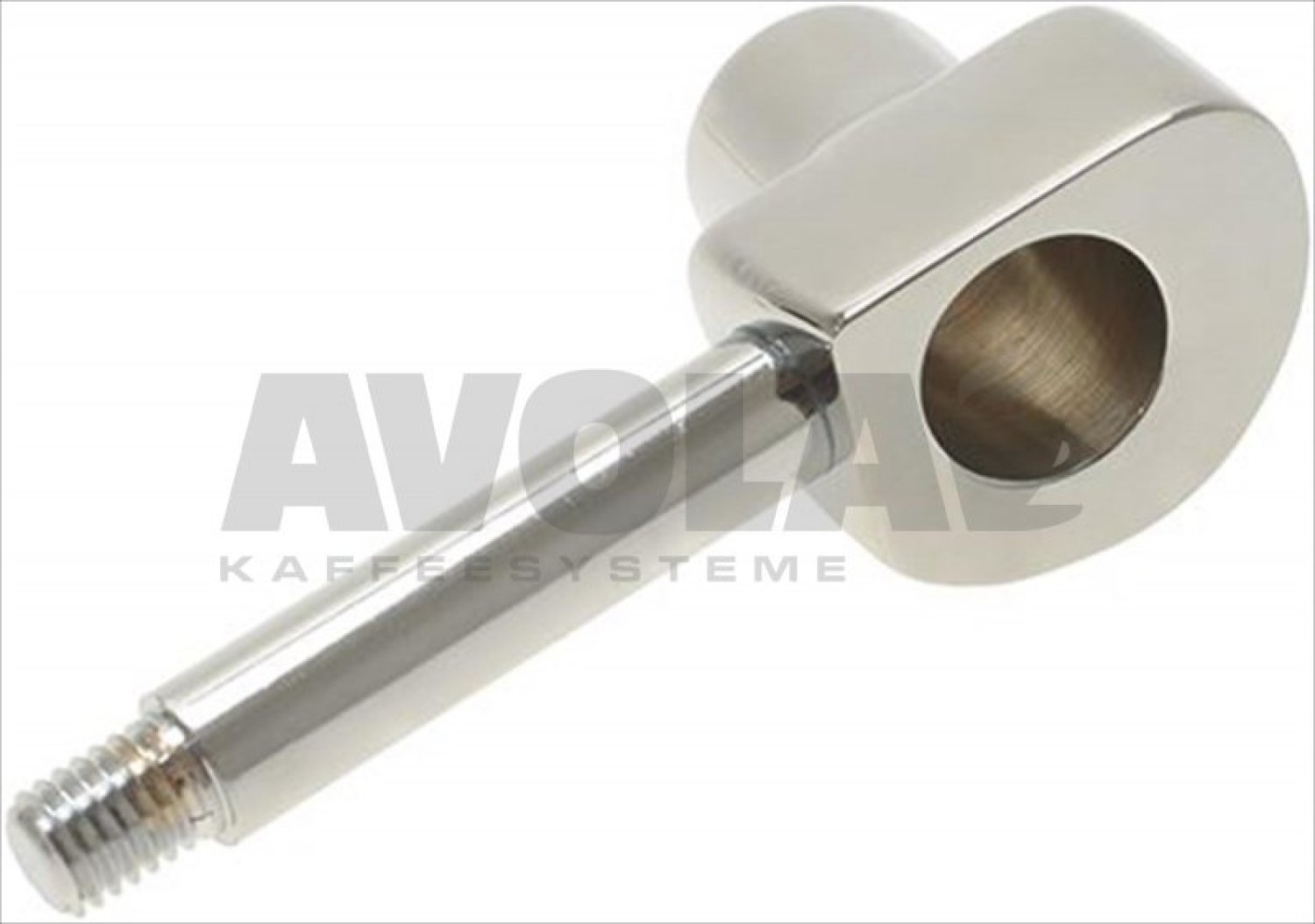

38micro control lever 8073574
MICRO CONTROL LEVER
41,95 €

excl. Shipping costs

immediately available, 5 available
39chromium plated cap m6 8002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs

immediately available, 7 available
40drain jet swirl 8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs

immediately available, 10 available

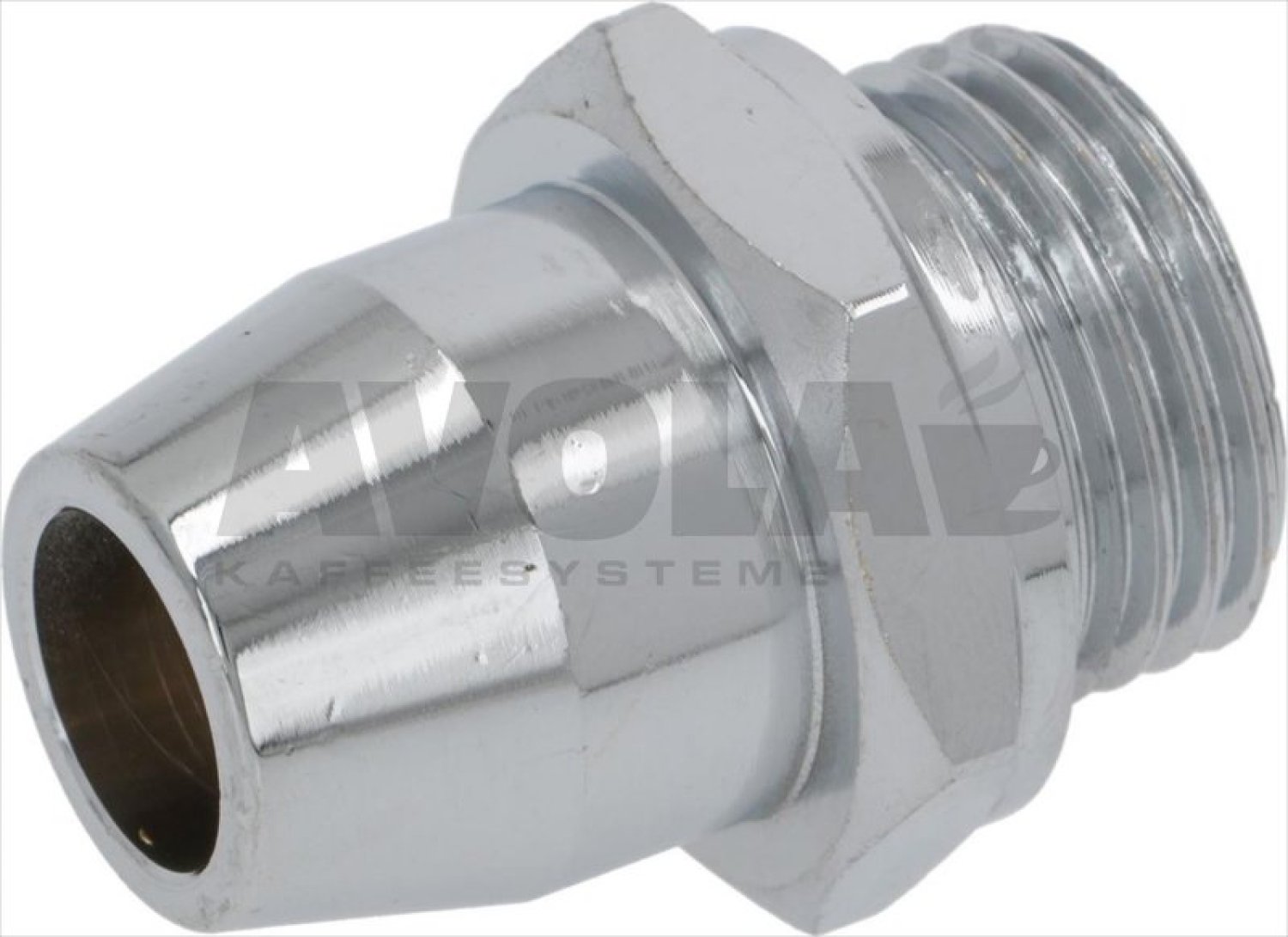

41drain chromium plated fitting 8105825
DRAIN CHROMIUM-PLATED FITTING
7,20 €

excl. Shipping costs

immediately available, 3 available

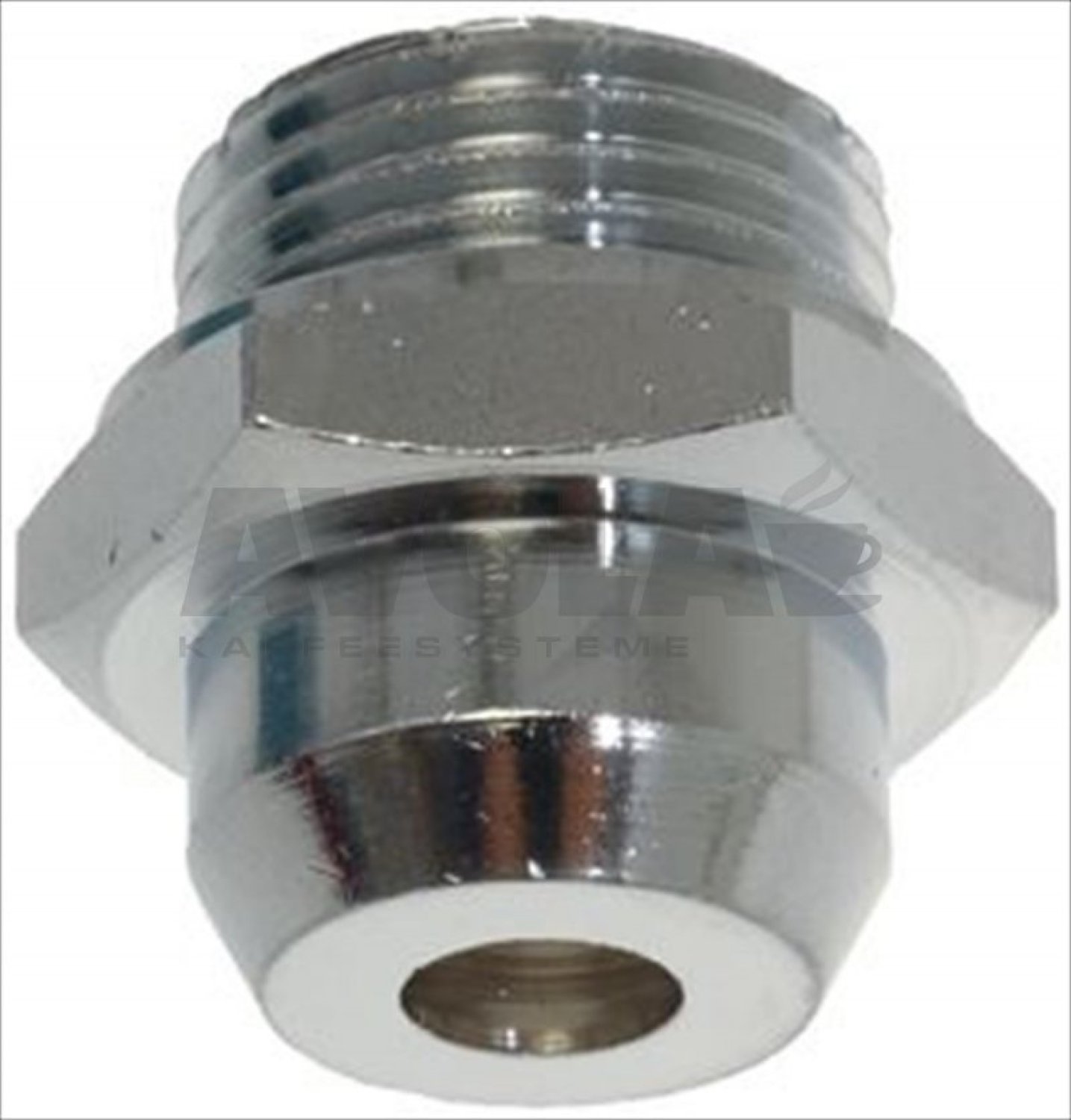

41drain chromium plated fitting 8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs

immediately available, 3 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
