Rocket

Brühgruppe Rocket E61 mit Keramikpilz

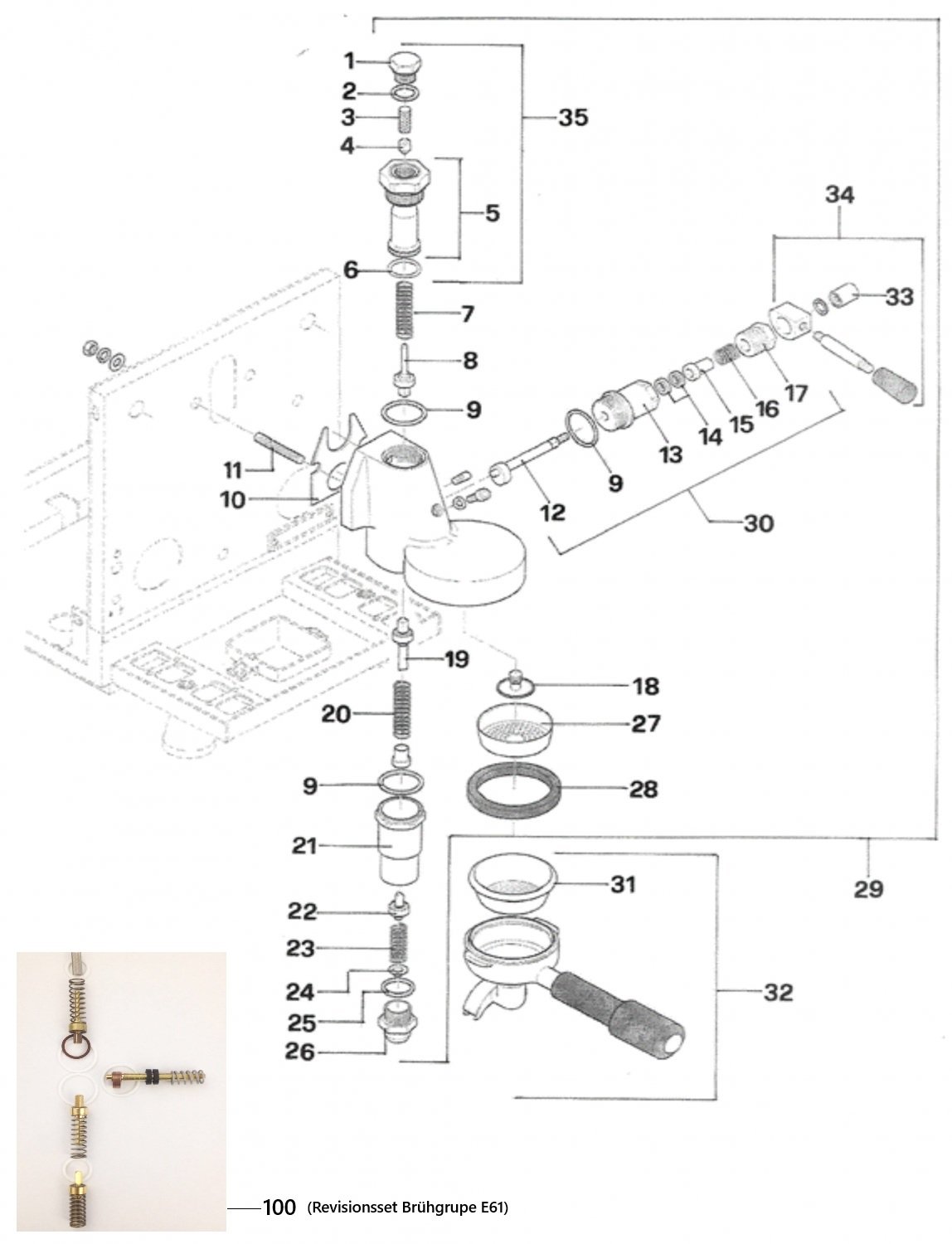

Drawing number 8140782

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
0manometer fuer e61 gruppen m6 skala 0 16bar 8101702
Manometer für E61 Gruppen M6 Skala 0-16bar
19,75 €

excl. Shipping costs

immediately available, 7 available
1rocket stopfen bruehgruppe 8069006
Rocket Stopfen Brühgruppe
10,54 €

excl. Shipping costs

immediately available, 3 available
2ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
3water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
4nozzle m6x1 hole 8006984
NOZZLE M6x1 HOLE
3,27 €

excl. Shipping costs

immediately available, 8 available
5rocket austauschzylinder keramik fuer bruehgruppenpilz 8140834
Rocket Austauschzylinder Keramik für Brühgruppenpilz
35,70 €

excl. Shipping costs

immediately available
6rocket dichtung fuer gruppenkollektor 1 stueck 8105782
Rocket Dichtung für Gruppenkollektor 1 Stück
3,45 €

excl. Shipping costs

immediately available
7spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
8rocket einlassventil e61 bruehgruppe ventil oben 1 stueck 8105967
Rocket Einlassventil E61 Brühgruppe Ventil oben (1 Stück)
14,28 €

excl. Shipping costs

immediately available, 1 available
9rocket flachdichtung aus teflon 36x30x3 mm 8079477
ROCKET Flachdichtung aus Teflon 36x30x3 mm
2,50 €

excl. Shipping costs

immediately available, 18 available
10rocket gruppendichtung 8069008
Rocket Gruppendichtung
4,64 €

excl. Shipping costs

immediately available, 8 available
11gewindestift innensechskant m8x1 25 16mm laenge 1 stueck 8105750
Gewindestift Innensechskant M8x1,25 16mm Länge (1 Stück)
1,96 €

excl. Shipping costs

immediately available, 3 available
12rocket nockenwelle bruehgruppe e61 8106013
Rocket Nockenwelle Brühgruppe E61
29,90 €

excl. Shipping costs

immediately available, 7 available
13ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs

immediately available, 4 available
14epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
15rocket buchse fuer nockenwelle 8105822
Rocket Buchse für Nockenwelle
6,60 €

excl. Shipping costs

immediately available, 1 available
16spring o 15x25 mm 8003821
SPRING ø 15x25 mm
2,02 €

excl. Shipping costs

immediately available
17rocket e61 mutter fuer nockenwellenaufnahme 8105804
Rocket E61 Mutter für Nockenwellenaufnahme
10,71 €

excl. Shipping costs

immediately available, 4 available
18group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available
18rocket verteilerscheibe e61 gruppe o 30 mm m10x1 8140833
Rocket Verteilerscheibe E61 Gruppe ø 30 mm M10x1
12,40 €

excl. Shipping costs

immediately available, 4 available
19rocket e61 vorbruehkammernventil ventil mitte 1 stueck 8106001
Rocket E61 Vorbrühkammernventil Ventil Mitte (1 Stück)
16,51 €

excl. Shipping costs

immediately available, 8 available
20spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
21rocket vorbruehzylinder 8106027
Rocket Vorbrühzylinder
35,70 €

excl. Shipping costs

immediately available, 3 available
22rocket auslassventil e61 8105968
Rocket Auslassventil E61
22,42 €

excl. Shipping costs

immediately available, 10 available
23feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
24drain jet swirl 8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs

immediately available, 10 available
25flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
26drain chromium plated fitting 8105825
DRAIN CHROMIUM-PLATED FITTING
7,20 €

excl. Shipping costs

immediately available, 3 available
27ims praezisionsdusche e61 nanotec o 60 mm 200 micro m 8088784
IMS Präzisionsdusche E61 Nanotec ø 60 mm 200µm
16,67 €

excl. Shipping costs

immediately available, 7 available
27precision shower screen 8062792
PRECISION SHOWER SCREEN
15,90 €

excl. Shipping costs

immediately available, 5 available
27precision shower screen 8062793
PRECISION SHOWER SCREEN
11,92 €

excl. Shipping costs

immediately available, 4 available
27shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
27rocket original dusche e61 8393638
Rocket original Dusche E61
8,21 €

excl. Shipping costs

immediately available, 8 available
27ims matrix dusche e61 duschsieb 1 stueck 8280721
IMS Matrix Dusche E61 Duschsieb (1 Stück)
27,95 €

excl. Shipping costs

immediately available, 7 available
28cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available
28paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available
28gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available
29rocket giotto cellini r58 cinquantotto e61 bruehgruppe mit keramikgruppenpilz 8106228
Rocket Giotto Cellini R58 Cinquantotto E61-Brühgruppe mit Keramikgruppenpilz
357,00 €

excl. Shipping costs

Delivery time: 3-5 working days
30e61 nockenwelle komplett montiert in fuehrung anschluss verchromt 8106057
E61 Nockenwelle komplett montiert in Führung Anschluss verchromt
49,00 €

excl. Shipping costs

Delivery time 4-6 weeks..
31precision filter 1 cup 6 8 g h24 5 8062780
PRECISION FILTER 1 CUP 6/8 g H24.5
20,42 €

excl. Shipping costs

immediately available, 3 available
31precision filter 1 cup 7 9 g h26 5 8062781
PRECISION FILTER 1 CUP 7/9 g H26.5
15,70 €

excl. Shipping costs

immediately available, 10 available
31precision filter 2 cups 12 18 g h24 5 8062782
PRECISION FILTER 2 CUPS 12-18 g H24.5
18,39 €

excl. Shipping costs

Delivery time
is determined
31precision filter 2 cups 14 20 g h26 5 8062783
PRECISION FILTER 2 CUPS 14/20 g H26.5
16,54 €

excl. Shipping costs

immediately available, 4 available
31filter 1 tasse the single 7 5 g h19 5 mm 8073996
Filter 1 Tasse The Single 7.5 g H19.5 mm
24,87 €

excl. Shipping costs

immediately available, 3 available
31filter 1 tasse the single 9 5 g h21 mm 8073997
Filter 1 Tasse The Single 9.5 g H21 mm
14,90 €

excl. Shipping costs

immediately available, 5 available
311 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 13 available
312 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 7 available
311 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 18 available
31blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available
312 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
31rocket 2 tassen sieb 8105891
Rocket 2 Tassen Sieb
9,95 €
9,95 €

excl. Shipping costs

immediately available, 6 available
31rocket eintassen sieb 8105878
Rocket Eintassen-Sieb
6,95 €

excl. Shipping costs

immediately available, 7 available
32rocket siebtraeger 1 tasse komplett 8081298
Rocket Siebträger 1 Tasse komplett
53,55 €

excl. Shipping costs

immediately available, 3 available
32rocket siebtraeger 2 tassen komplett 1 stueck 8073509
Rocket Siebträger 2 Tassen komplett (1 Stück)
52,28 €

excl. Shipping costs

immediately available, 2 available
32rocket bottomless portafilter 8073510
Rocket bottomless portafilter
39,90 €

excl. Shipping costs

immediately available, 2 available
33chromium plated cap m6 8002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs

immediately available, 7 available
34rocket e61 bezugshebel 8106071
Rocket E61 Bezugshebel
38,15 €

excl. Shipping costs

immediately available, 2 available
35bruehgruppen kollektor e61 keramik rocket espresso 8080668
Brühgruppen Kollektor E61 Keramik - Rocket Espresso
71,40 €

excl. Shipping costs

immediately available, 3 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
