Rocket

R60 V Wasserkreislauf

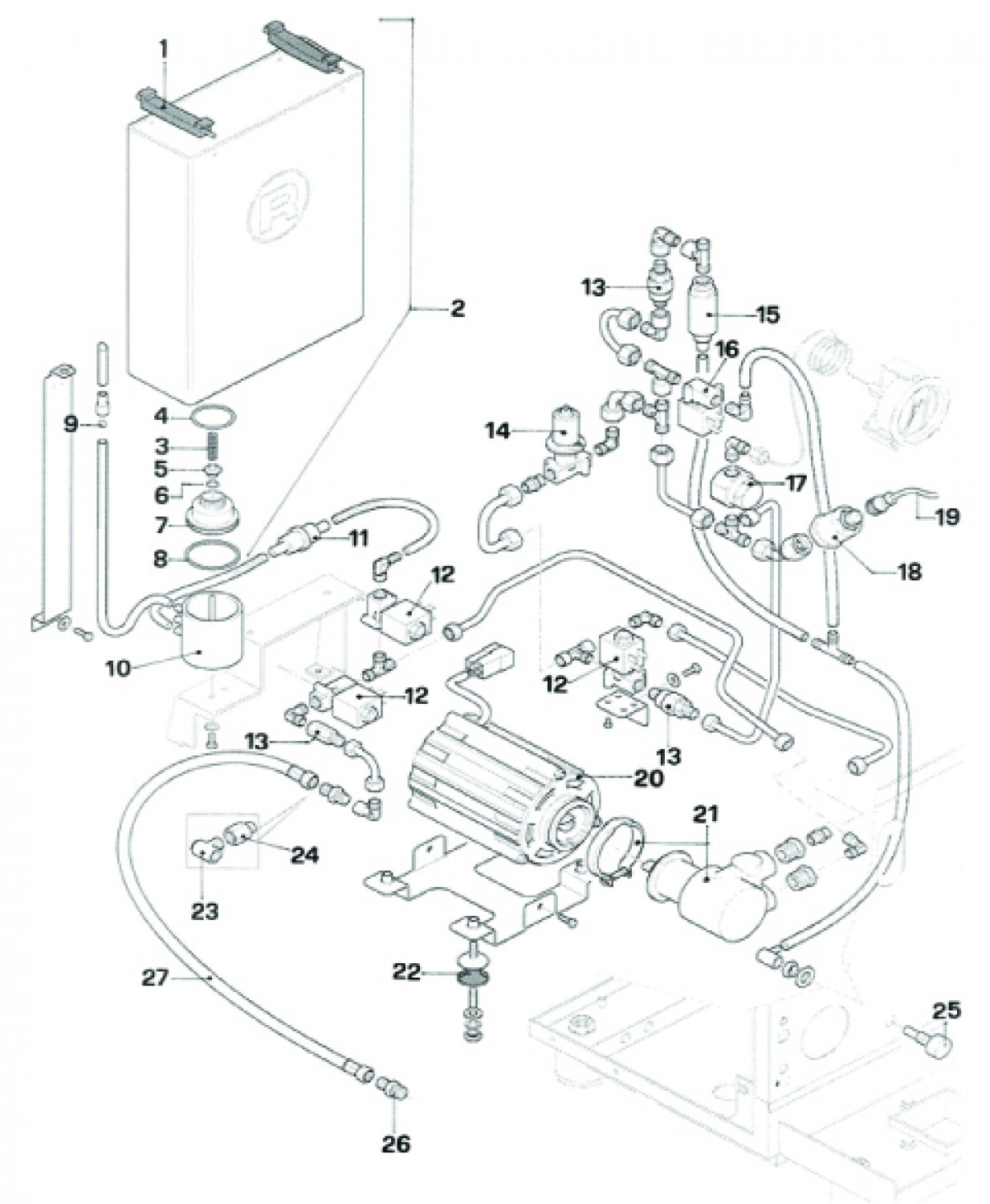

Drawing number 8144574

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1rocket wassertank plastik halterung 8079392
Rocket Wassertank Plastik Halterung
3,50 €

excl. Shipping costs

immediately available, 15 available
2rocket tank complete r58 and appartamento 8069002
ROCKET TANK COMPLETE R58 and Appartamento
36,90 €

excl. Shipping costs

immediately available, 1 available
3rocket wassertank feder 8079476
Rocket Wassertank Feder
2,38 €

excl. Shipping costs

immediately available
4rocket dichtung tankkupplung 8069001
Rocket Dichtung Tankkupplung
4,76 €

excl. Shipping costs

immediately available, 5 available
5rocket dichtungstraeger wassertankventil 1 stueck 8105847
Rocket Dichtungsträger Wassertankventil (1 Stück)
7,00 €

excl. Shipping costs

immediately available, 3 available
6o ring 02031 red silicon 8002065
O-RING 02031 - RED SILICON
0,83 €

excl. Shipping costs

immediately available
7rocket wassertankadapter unterteil ohne dichtung 8101775
Rocket Wassertankadapter Unterteil ohne Dichtung
3,83 €

excl. Shipping costs

immediately available, 11 available
8rocket o ring tankstutzen 8068995
Rocket O- Ring Tankstutzen
2,50 €

excl. Shipping costs

immediately available
9glaskugel o 5 mm tankaufnahmen be und entlueftung 8073687
Glaskugel ø 5 mm Tankaufnahmen Be- und Entlüftung
1,93 €

excl. Shipping costs

immediately available, 5 available
10tankaufnahme neu ab seriennummer d1314r581793 appartamento portavia type v drei oeffnungen fuer vibrationspumpenmodelle 8068996
Tankaufnahme Neu (ab Seriennummer D1314R581793) Appartamento Portavia Type V (drei Öffnungen für Vibrationspumpenmodelle)
10,90 €

excl. Shipping costs

immediately available, 6 available
11inlet pass through filer o8mm 8059181
INLET PASS-THROUGH FILER - Ø8mm
3,13 €

excl. Shipping costs

immediately available
122 way solenoid valve ode 8000815
2-WAY SOLENOID VALVE ODE
26,50 €

excl. Shipping costs

immediately available, 6 available
13rueckschlagventil o 1 8 quot m 1 8 m bsp 8280846
Rückschlagventil ø 1/8 " M-1/8 M BSP
11,00 €

excl. Shipping costs

immediately available, 5 available
14rocket r60v druckregelventil pressure profiling 8106218

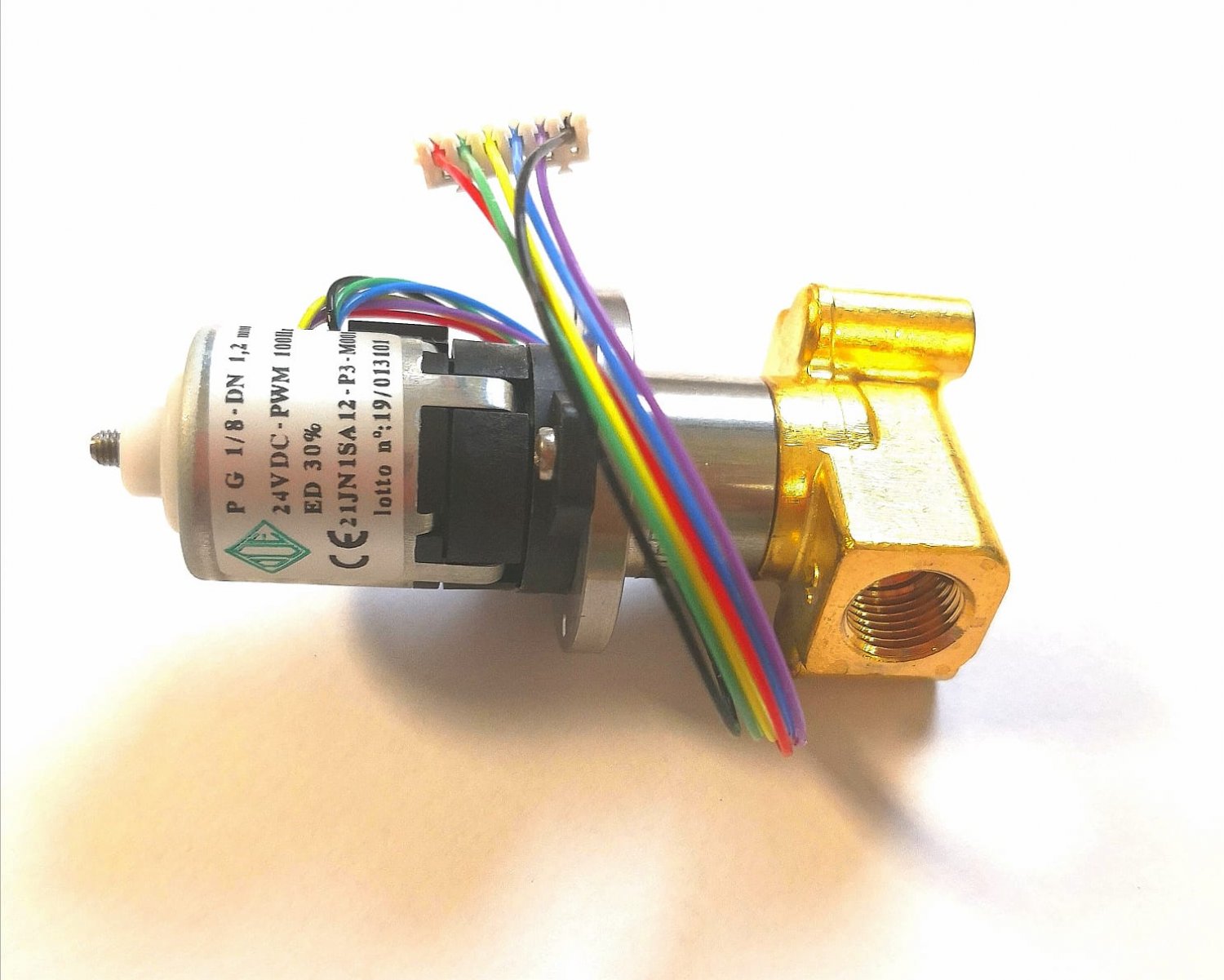

Rocket R60V Druckregelventil Pressure Profiling
271,27 €

excl. Shipping costs

immediately available, 1 available
15ecm rocket expansion valve o 1 8 8068993
ECM Rocket EXPANSION VALVE ø 1/8
19,41 €

excl. Shipping costs

immediately available, 3 available
16rocket 2 wege ventil ode stromlos geoeffnet 230 240v 50 60hz 8106059

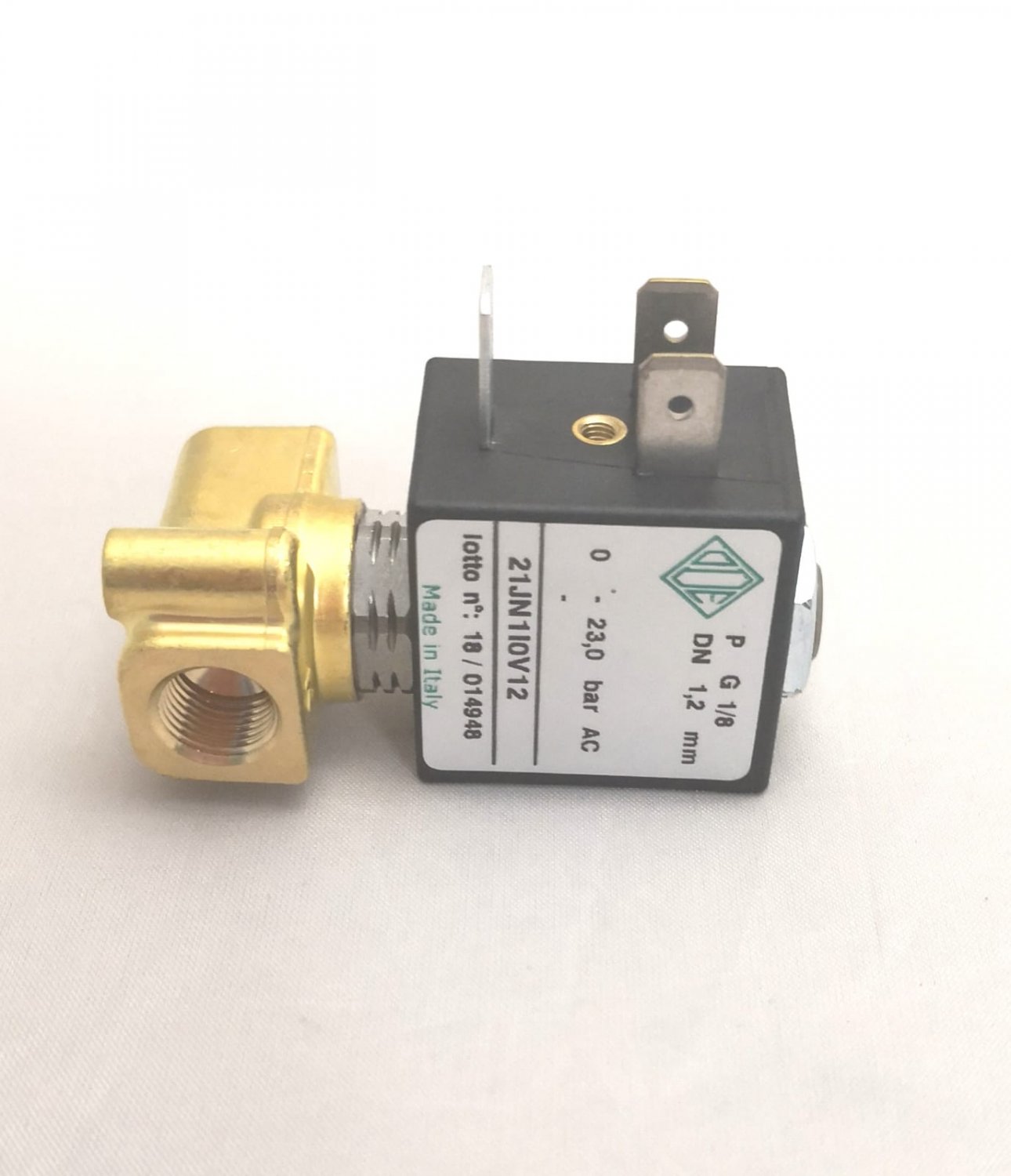

Rocket 2-Wege-Ventil ODE stromlos geöffnet 230/240V 50/60Hz
58,64 €

excl. Shipping costs

immediately available, 3 available
17rocket flowrate control valve durchflusskontrollventil 8106095

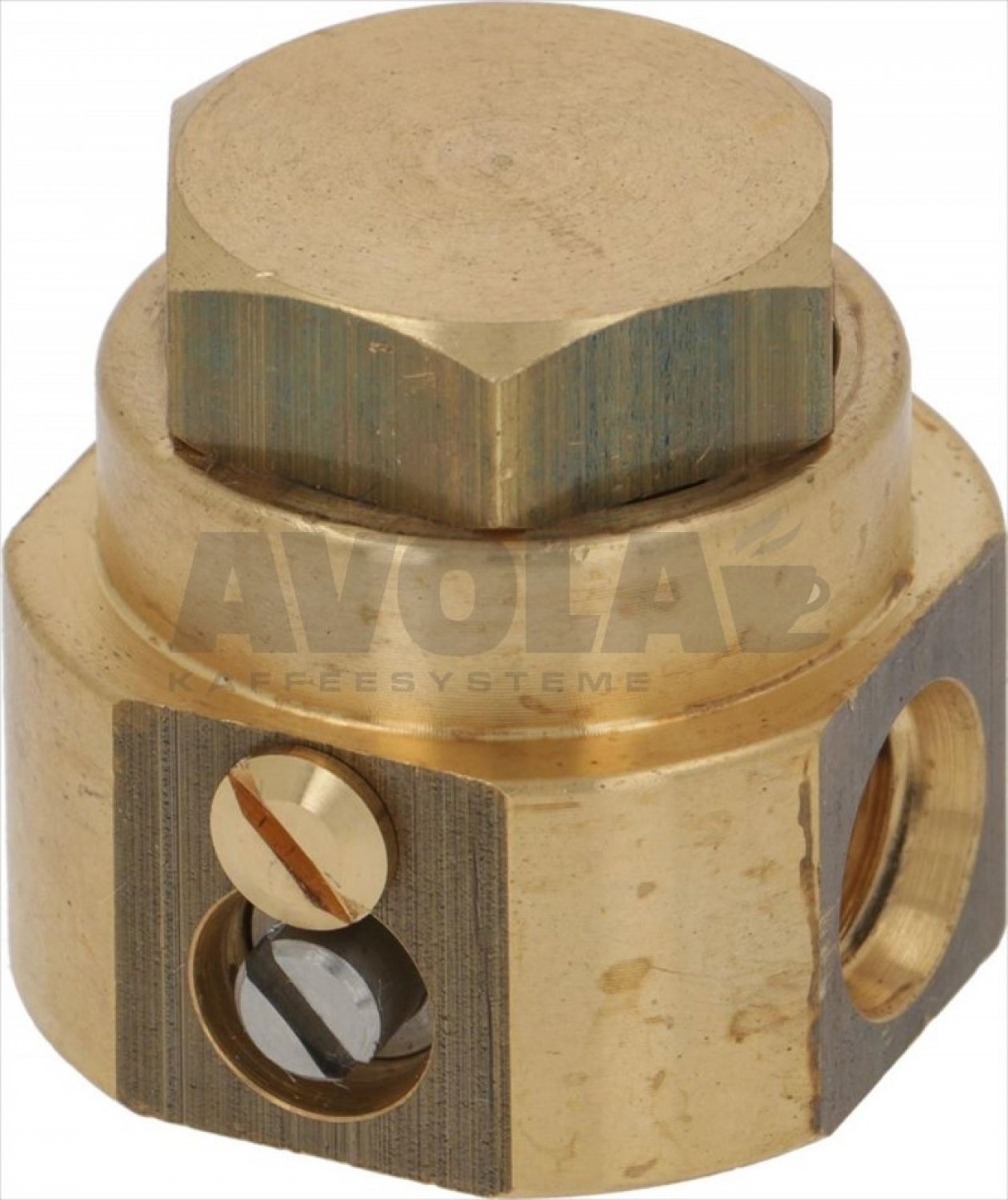

Rocket Flowrate Control Valve Durchflusskontrollventil
65,99 €

excl. Shipping costs

Delivery time 4-6 weeks
18 8106193

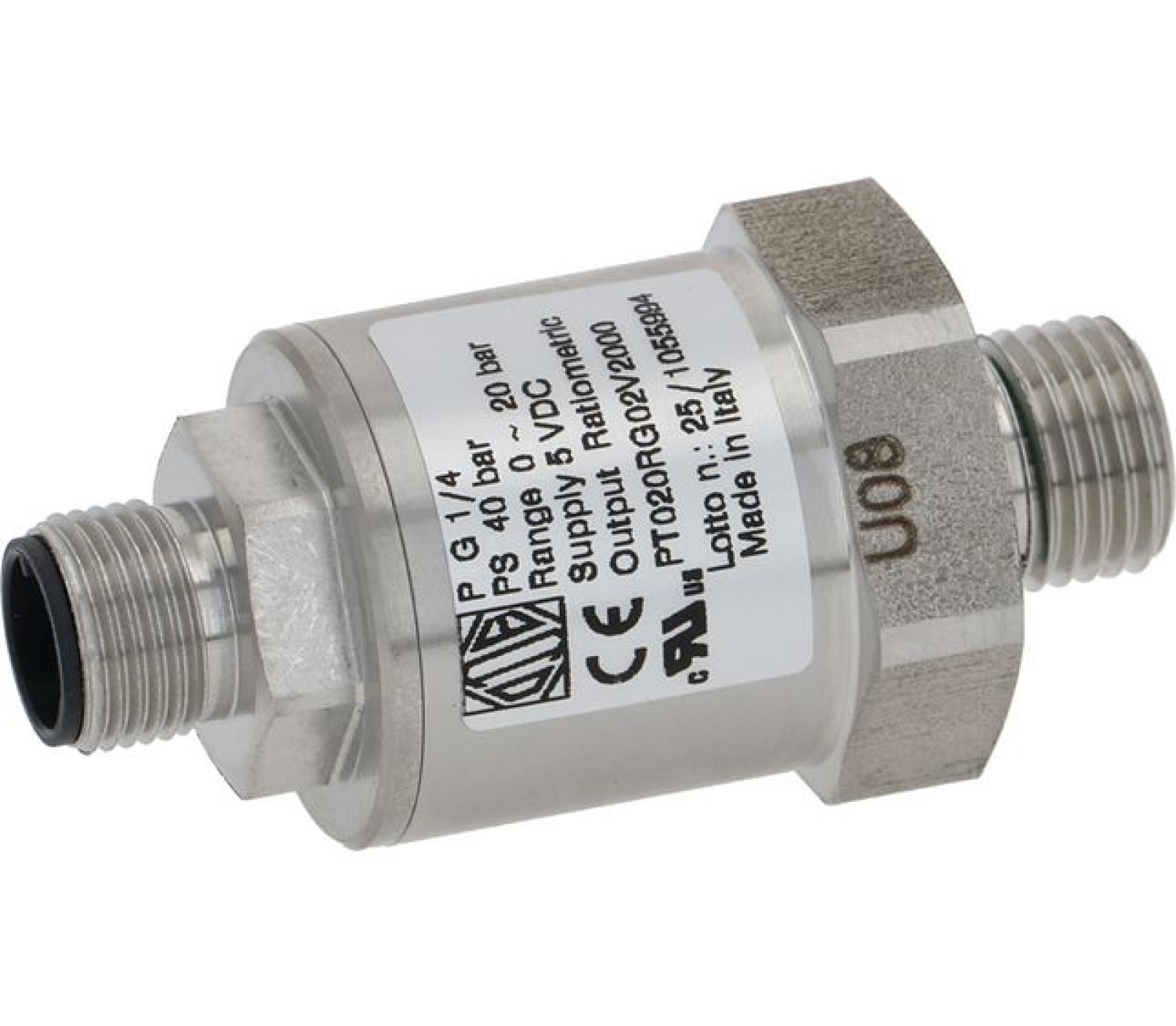

Rocket Pressure transducer
160,96 €

excl. Shipping costs

Delivery time
is determined
19 8106006
Rocket Transducer cable
34,15 €

excl. Shipping costs

Delivery time
is determined
20rocket pumpenmotor 230v rpm rpm c013792 8081369
Rocket Pumpenmotor 230V RPM RPM C013792
148,75 €

excl. Shipping costs

Delivery time 4-6 weeks..
21fluid o tech rotoflow pumpenkopf 50l cb054 lange stellschraube eco brass rotationspumpe pumpe 8101723
FLUID-O-TECH Rotoflow Pumpenkopf 50l Cb054 lange Stellschraube Eco Brass Rotationspumpe Pumpe
79,90 €

excl. Shipping costs

immediately available, 5 available
22rocket stossdaempfer 1 stueck 8105865
Rocket Stoßdämpfer - 1 Stück
11,28 €

excl. Shipping costs

immediately available, 12 available
23rocket swivel connector 8080836
Rocket swivel connector
28,30 €

excl. Shipping costs

immediately available, 6 available
25rocket expansion auslassstutzen 8101282
Rocket Expansion Auslassstutzen
12,50 €

excl. Shipping costs

immediately available, 2 available
26rocket anschluss o 1 8 aussengew 3 8 8105821
Rocket Anschluss ø 1/8 Außengew. 3/8
8,33 €

excl. Shipping costs

immediately available, 7 available
27rocket flexschlauch fuer festwasseranschluss 1 8 f 1 8 f konisch dichtend 8105976
Rocket Flexschlauch für Festwasseranschluss 1/8 F - 1/8 F konisch dichtend
27,00 €

excl. Shipping costs

immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
