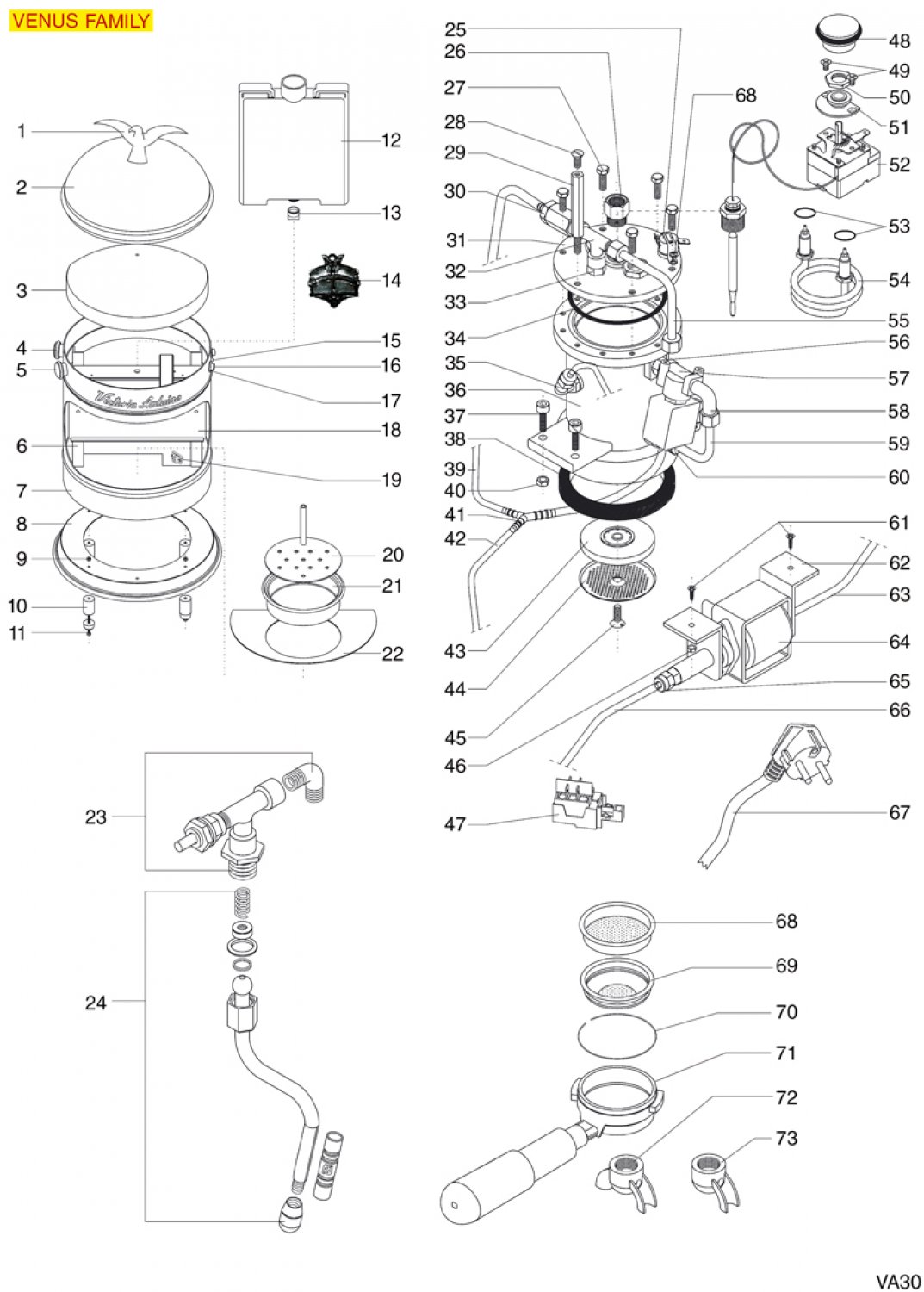

VICTORIA ARDUINO - VENUS FAMILY EXPLOSIONSZEICHNUNG KOMPLET

Drawing number 8063191

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1victoria arduino venus family adler poliert8281257
Victoria Arduino Venus Family Adler poliert
142,00 €

excl. Shipping costs
Delivery time
is determined
28281256
Victoria Arduino Venus Family Kuppel (ohne Adler) Messing poliert
298,31 €

excl. Shipping costs
Delivery time 4-6 weeks
12nuova simonelli water container 2 l8000507
Nuova Simonelli Water Container 2 L
27,24 €

excl. Shipping costs
immediately available, 2 available
17supporto bombato oro lucido o 20 mm8174262
Supporto Bombato Oro Lucido ø 20 mm
Price on request
33fitting o 1 8 a 1 8 a8005709
Fitting ø 1/8 A-1/8 A
2,34 €

excl. Shipping costs
immediately available, 15 available
34o ring 0171 epdm8001940
O-RING 0171 EPDM
3,03 €

excl. Shipping costs
immediately available, 18 available
35elbow fitting 1 8 quot m8022410
Elbow Fitting 1/8"m
9,59 €

excl. Shipping costs
Delivery time
is determined
38filter holder gasket o 72x57x8 28001638
Filter Holder Gasket ø 72x57x8,2
3,96 €

excl. Shipping costs
immediately available, 14 available
39silicone hose o 5x8 shore 60 1m8006817
Silicone Hose ø 5x8 Shore 60 - 1m
3,95 €

excl. Shipping costs
immediately available
43shower holder sprayer8005222
Shower Holder Sprayer
19,03 €

excl. Shipping costs
immediately available, 4 available
44shower o 56 5 mm8000568
Shower ø 56,5 mm
5,75 €

excl. Shipping costs
immediately available
45countersunk flat head screws m6x168007255
Countersunk Flat Head Screws M6x16
1,37 €

excl. Shipping costs
immediately available
47bipolar switch 16a 250v8004710
Bipolar Switch 16A 250V
Price on request
52thermostat single phase 858064620
Thermostat Single Phase 85
29,95 €

excl. Shipping costs
Delivery time
is determined
53ptfe flat gasket o18x13x2 mm8001641
PTFE Flat Gasket ø18x13x2 mm
2,21 €

excl. Shipping costs
immediately available
54heating element 1000w 230v 1 4 rime 12mm8007399
Heating Element 1000w 230v, 1/4″, 12mm
38,44 €

excl. Shipping costs
Delivery time
is determined
573 way solenoid valve ceme8063396
3-way Solenoid Valve Ceme
25,23 €

excl. Shipping costs
immediately available, 5 available
62square damper ex ep ek ea8005273
Square Damper Ex-ep-ek-ea
2,63 €

excl. Shipping costs
immediately available
64vibratory pump ulka ex5 48w 230v 50hz8001016
Vibratory Pump Ulka Ex5 48w 230V 50hz
14,90 €

excl. Shipping costs
immediately available
65straight fitting 1 8 rime connector 6x4 pipe8022397
Straight Fitting 1/8″ -connector 6x4 Pipe
5,19 €

excl. Shipping costs
immediately available, 4 available
66teflon pipe o 4x6 mm 1 m8006801
Teflon Pipe ø 4x6 mm - 1 M
5,50 €

excl. Shipping costs
immediately available, 8 available
682 cups filter 12 gr8001064
2 Cups Filter 12 gr
6,28 €

excl. Shipping costs
immediately available, 8 available
691 cup filter 6 gr8001063
1 Cup Filter 6 gr
Price on request
70filter blocking spring o 1 00 mm8003622
Filter Blocking Spring ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
711 cup filter holder assembly simonelli8001204
1 Cup Filter Holder Assembly Simonelli
52,80 €

excl. Shipping costs
Delivery time
is determined
72double spout8000123
Double Spout
6,77 €

excl. Shipping costs
immediately available, 7 available
73single spout o 3 8 kurz 24 50mm8000128
Single Spout ø 3/8 kurz 24,50mm
5,74 €

excl. Shipping costs
immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
