Wega

MOTOREN UND PUMPEN

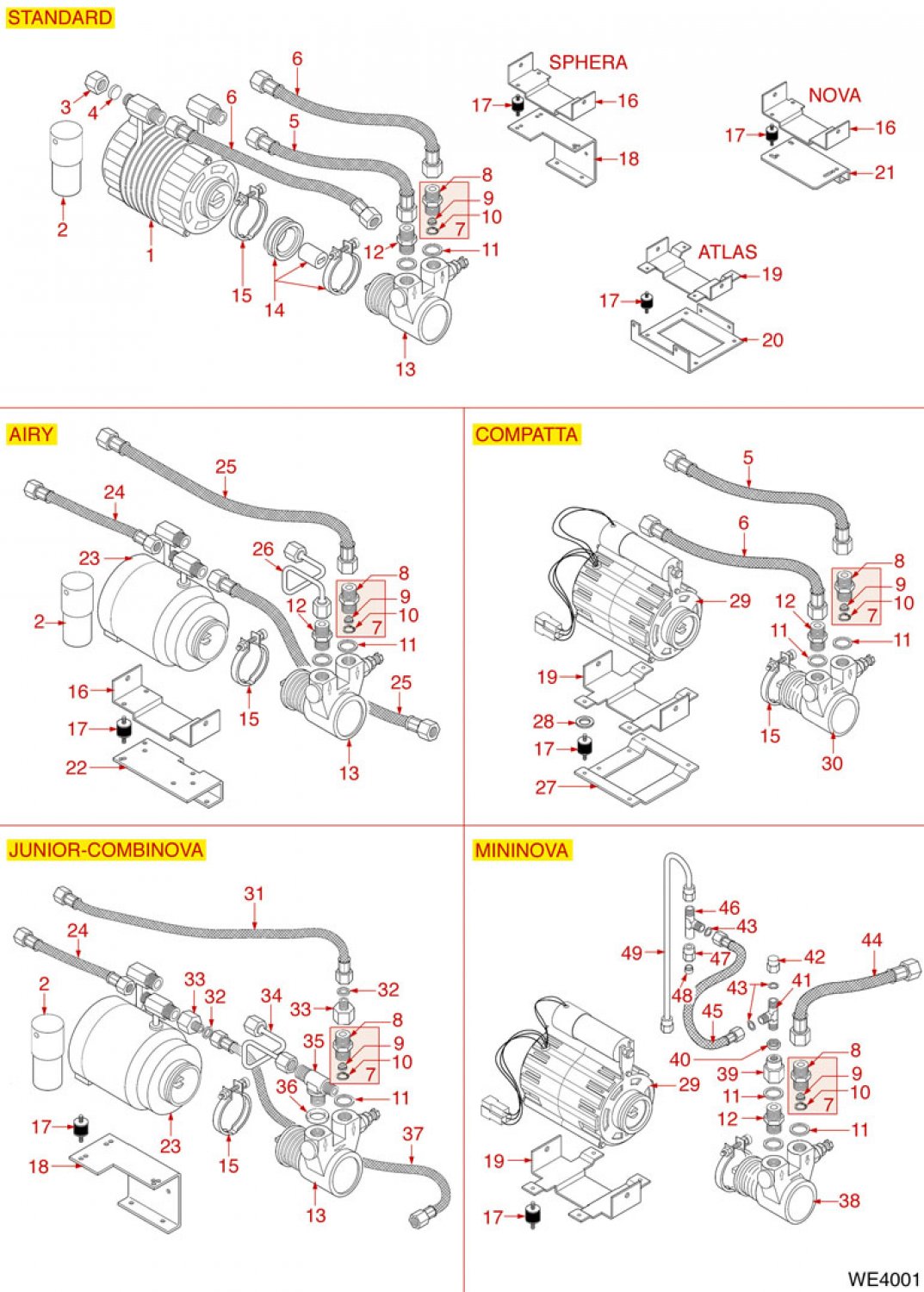

Drawing number 8057529

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1rpm motor with clamp connection 330w 2308003069
Rpm Motor With Clamp Connection 330w 230
161,95 €

excl. Shipping costs
Delivery time
is determined
2capacitor8011680
Capacitor
11,07 €

excl. Shipping costs
immediately available, 6 available
5flex hose o 3 8 fp x fc l 30 cm8006839
Flex Hose ø 3/8 Fp x Fc L.30 cm
13,64 €

excl. Shipping costs
immediately available, 3 available
7brass fitting8005692
Brass Fitting
10,20 €

excl. Shipping costs
immediately available, 2 available
9water filter o 11 mm8001106
Water Filter ø 11 mm
2,11 €

excl. Shipping costs
immediately available
10circlip j 98000004
Circlip J-9
1,37 €

excl. Shipping costs
immediately available
11copper flat gasket 22x17x1 5 mm8001815
Copper Flat Gasket 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available
12fitting8005711
Fitting
3,53 €

excl. Shipping costs
immediately available

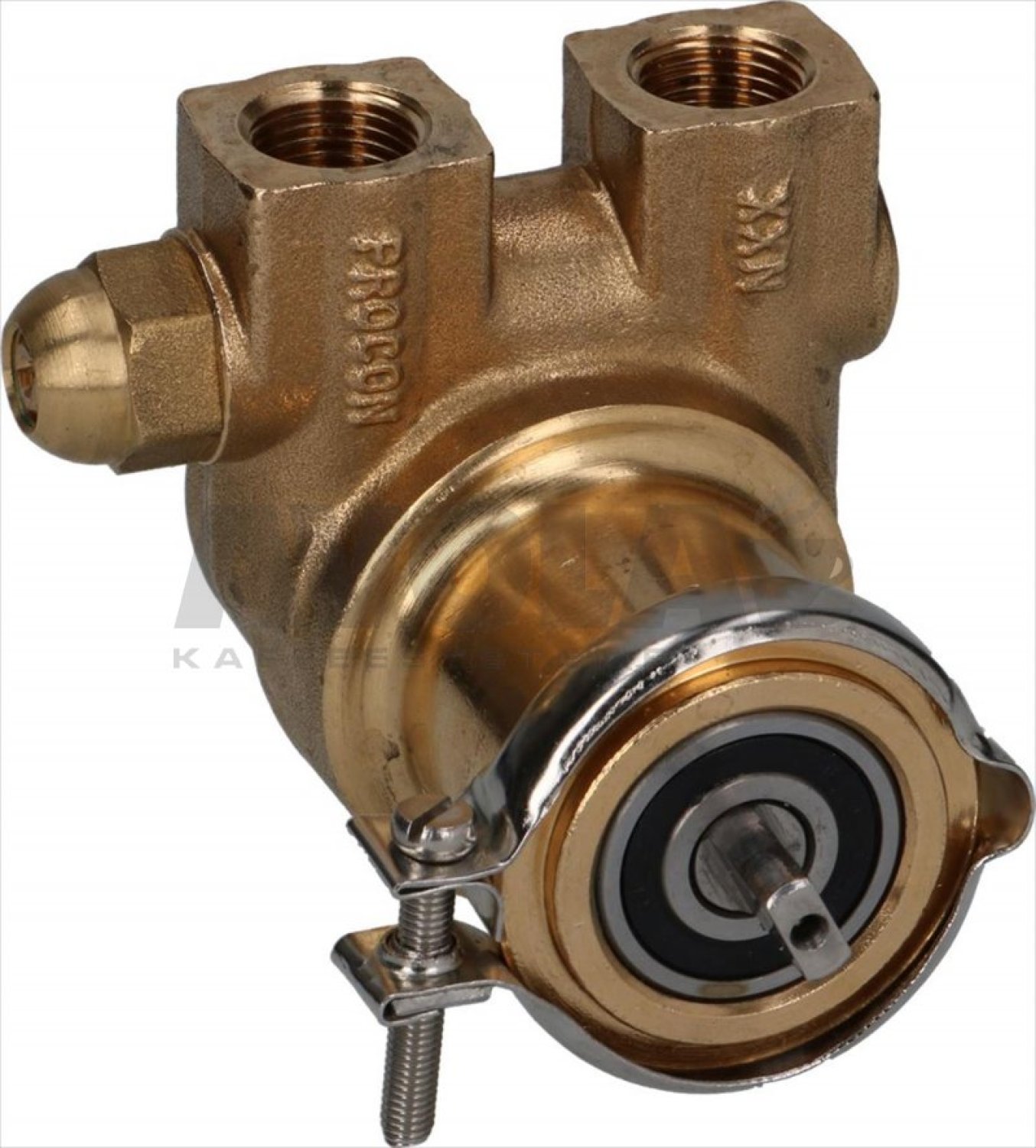

13rotationspumpe procon npt gewinde o 3 8 180 l h8062858
Rotationspumpe PROCON NPT Gewinde ø 3/8 /180 L/h
112,73 €

excl. Shipping costs
immediately available, 2 available
14motor coupling kit8002182
Motor Coupling Kit
16,96 €

excl. Shipping costs
Delivery time 4-6 weeks
15stainless steel clamp for flange pump8001277
Stainless Steel Clamp For Flange Pump
6,90 €

excl. Shipping costs
immediately available, 8 available
17anti vibration support o 15 mm m48004585
Anti Vibration Support ø 15 mm M4
9,39 €

excl. Shipping costs
immediately available, 10 available
23rpm motor with clamp connection 330w 2308003069
Rpm Motor With Clamp Connection 330w 230
161,95 €

excl. Shipping costs
Delivery time
is determined
29rpm motor with clamp connection 120w 2308003071
Rpm Motor With Clamp Connection 120w 230
122,57 €

excl. Shipping costs
Delivery time
is determined
30rotary vane pump rotoflow8005224
Rotary Vane Pump Rotoflow
88,00 €

excl. Shipping costs
Delivery time
is determined

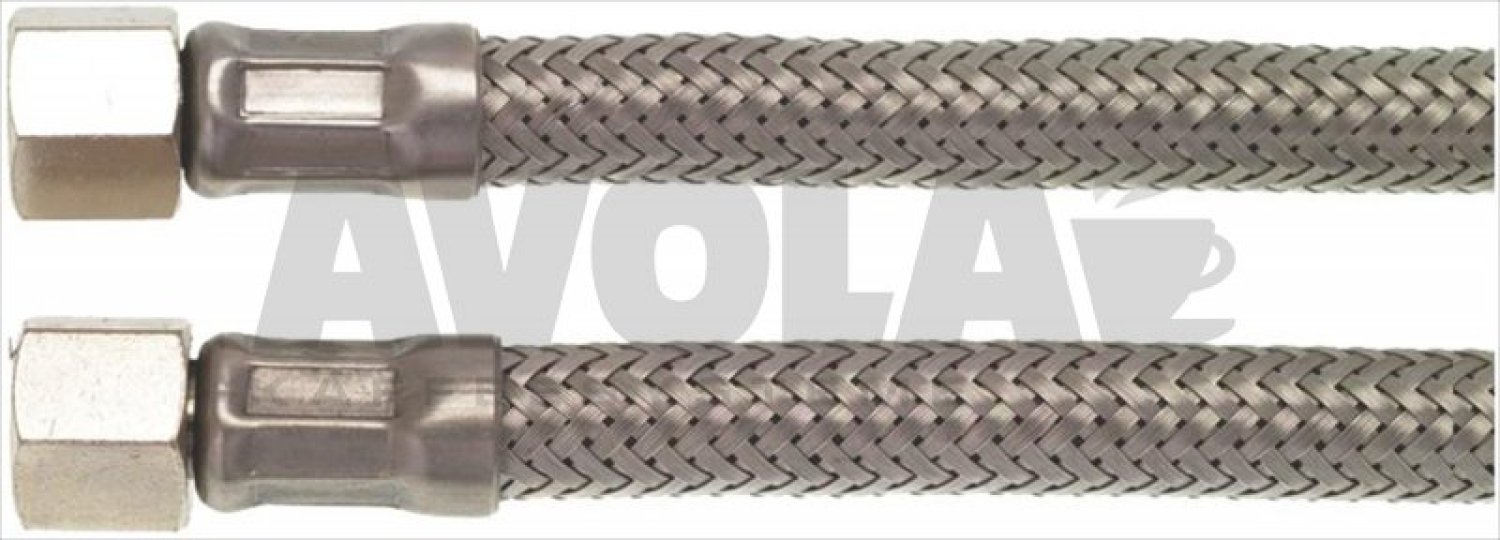

31flex hose8006838
Flex Hose
14,32 €

excl. Shipping costs
immediately available, 2 available

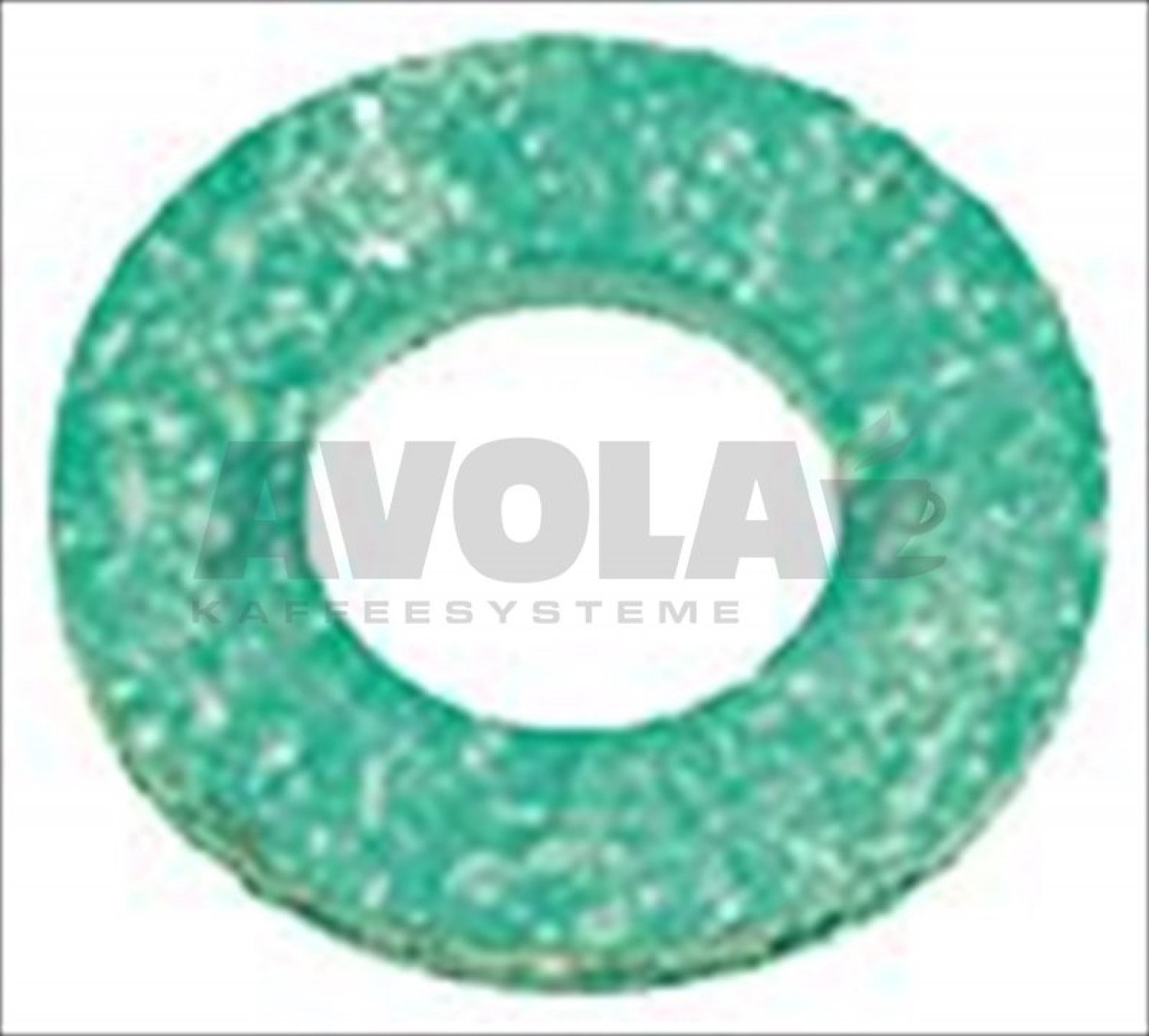

32asbestos free flat gasket8001357
Asbestos Free Flat Gasket
Price on request
33fitting o 1 8 out 3 8 in8005738
Fitting ø 1/8 Out -3/8 in
7,13 €

excl. Shipping costs
immediately available, 15 available

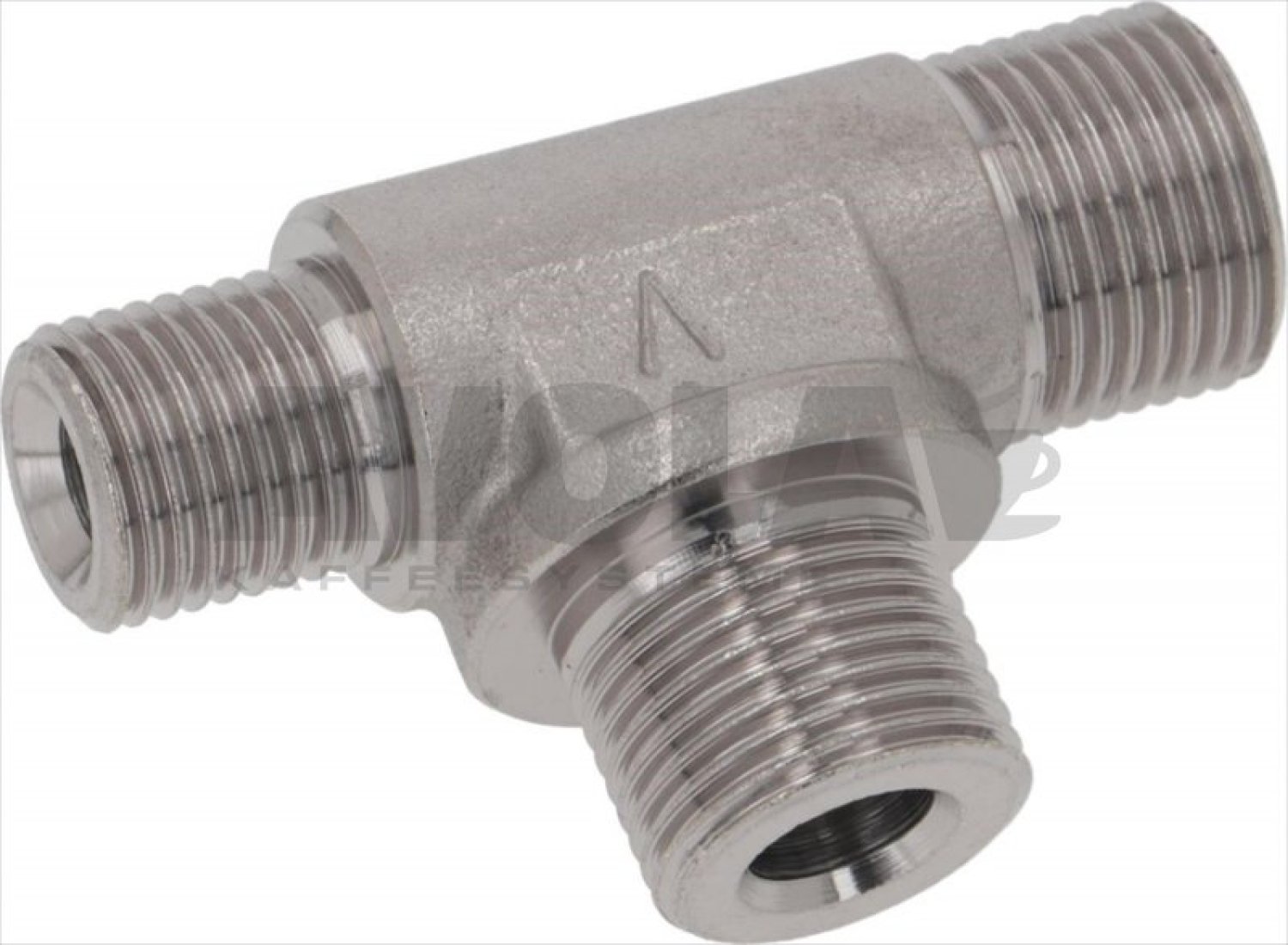

35t shaped brass fitting8005696
T Shaped Brass Fitting
40,72 €

excl. Shipping costs
Delivery time 4-6 weeks
36round copper gasket o 23x17x3 mm 3 8 zoll8001472
Round Copper Gasket ø 23x17x3 mm - 3/8 Zoll
1,65 €

excl. Shipping costs
immediately available
38rotary vane pump rotoflow8005239
Rotary Vane Pump Rotoflow
82,13 €

excl. Shipping costs
immediately available, 1 available
40nut 1 8 rime 8005454
Nut 1/8″
2,78 €

excl. Shipping costs
immediately available, 9 available
43asbestos free flat gasket8001357
Asbestos Free Flat Gasket
Price on request
44flex hose 150 cm o 3 88006849
Flex Hose 150 cm -ø 3/8
15,62 €

excl. Shipping costs
immediately available, 2 available

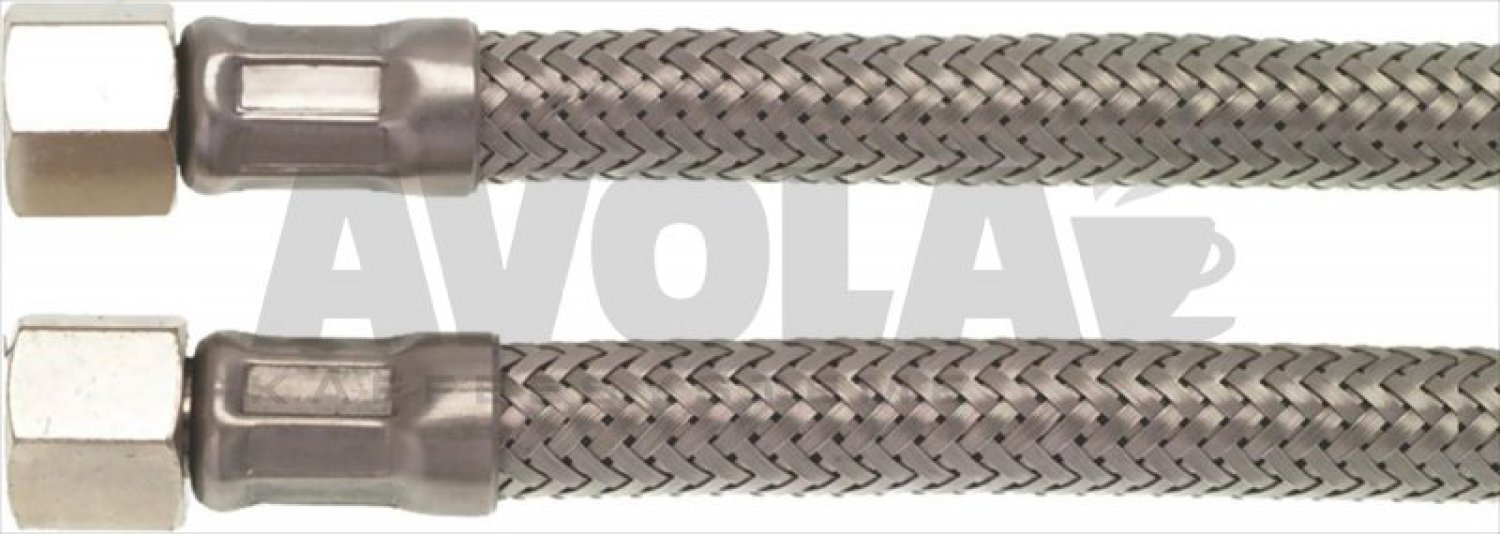

45flex hose8006837
Flex Hose
9,47 €

excl. Shipping costs
immediately available, 3 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
