Wega

WASSER-DAMPFHÄHNE STANDARD

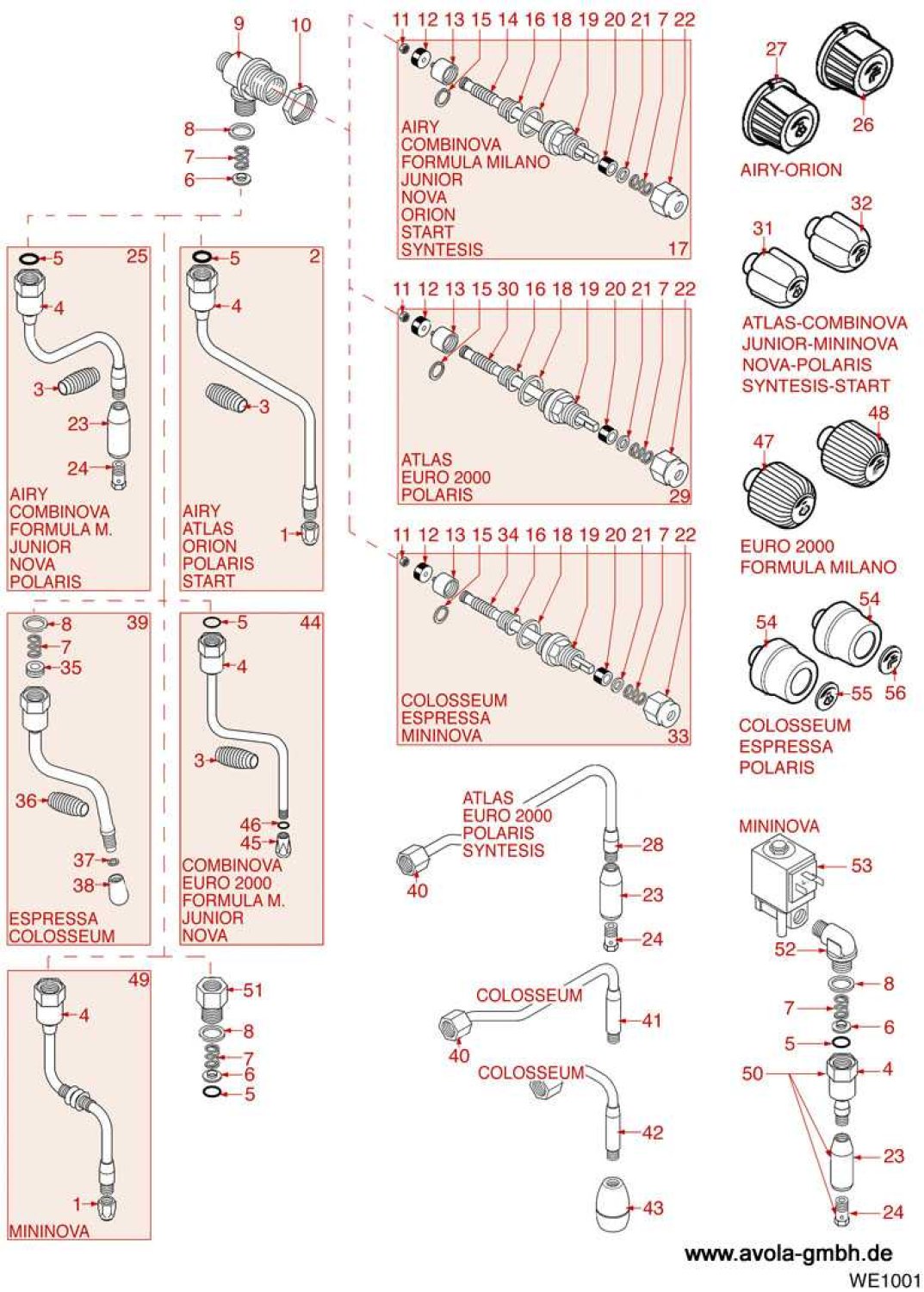

Drawing number 8057516

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

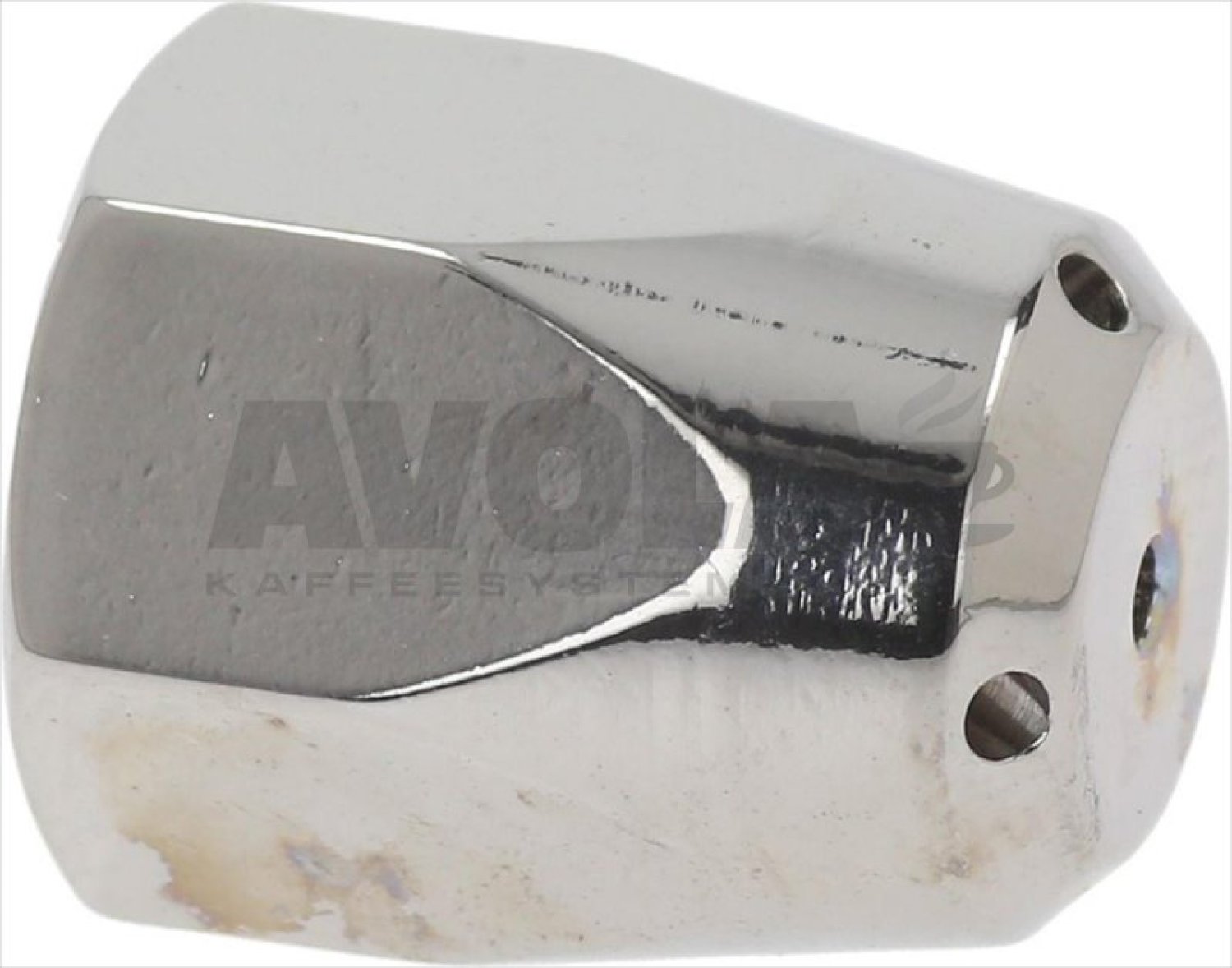

1chrome water sprinkler m10 8006621
CHROME WATER SPRINKLER M10
11,52 €

excl. Shipping costs

Delivery time: 4-6 weeks

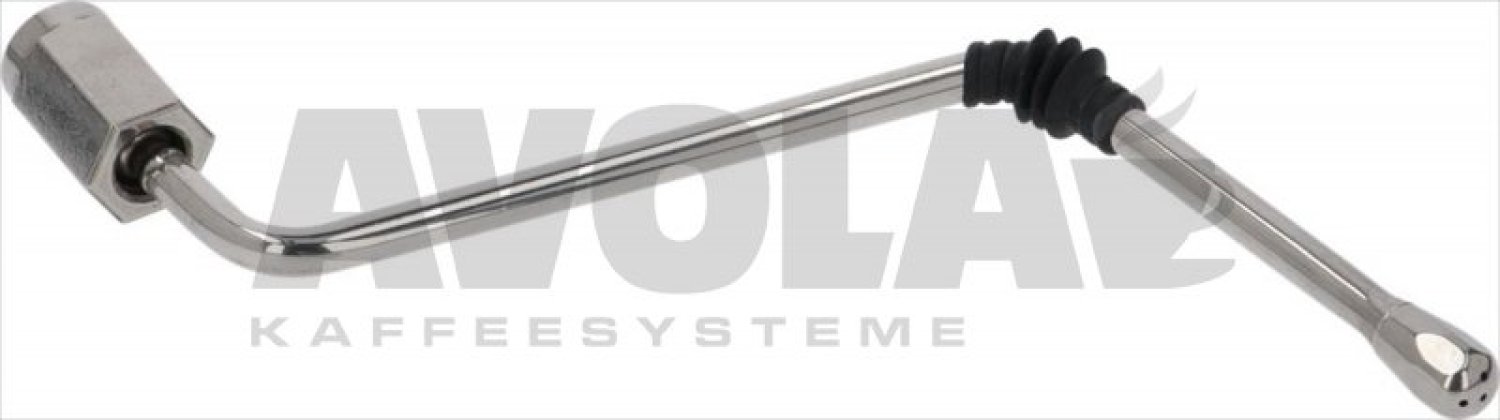

2chrome pipe stem complete 8006619
CHROME PIPE STEM COMPLETE
41,19 €

excl. Shipping costs

Delivery time: 4-6 weeks

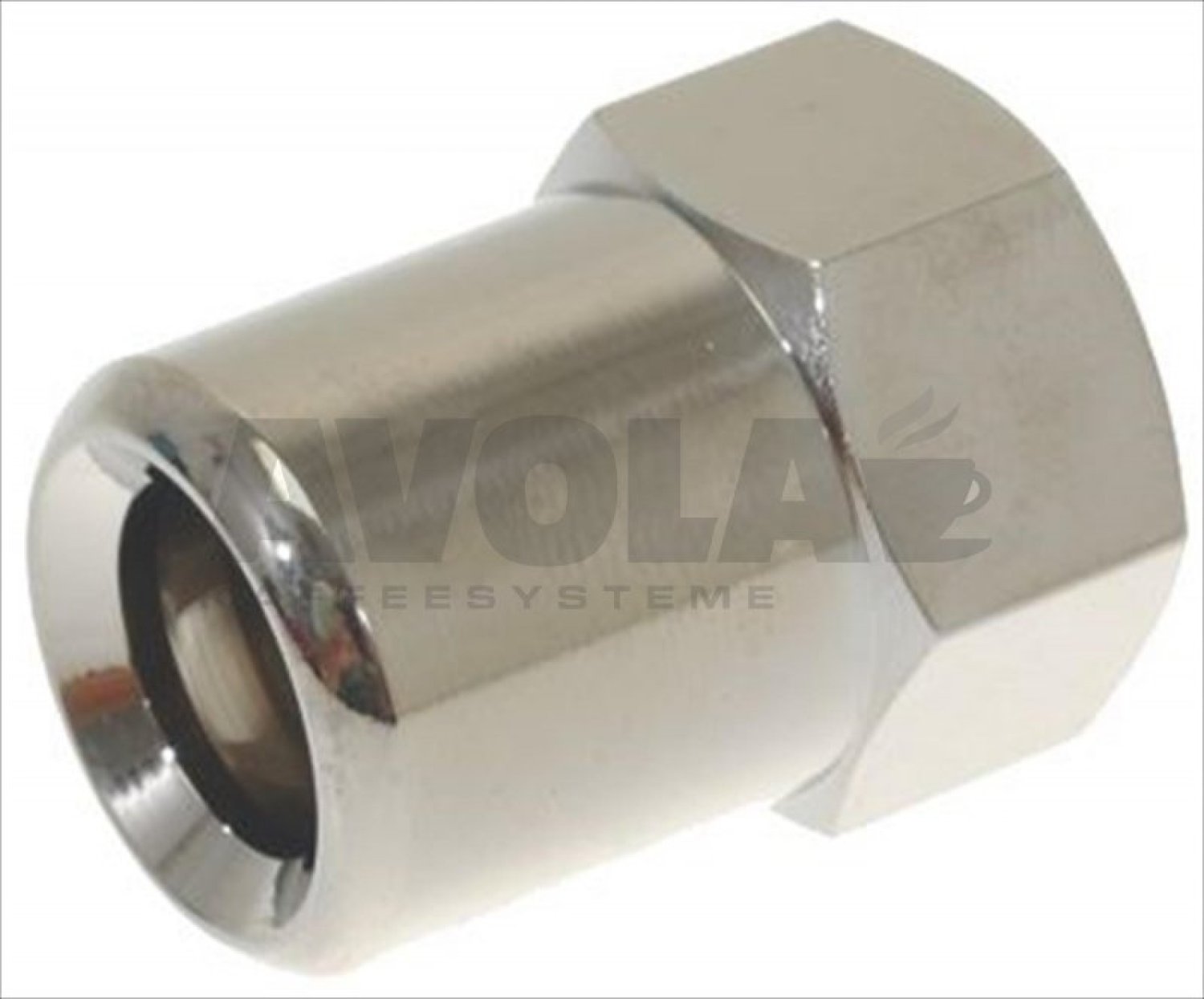

4chrome hexagonal nut 8006628
CHROME HEXAGONAL NUT
7,54 €

excl. Shipping costs

immediately available, 3 available
5o ring 03043 epdm 8001575
O-RING 03043 EPDM
0,89 €

excl. Shipping costs

immediately available

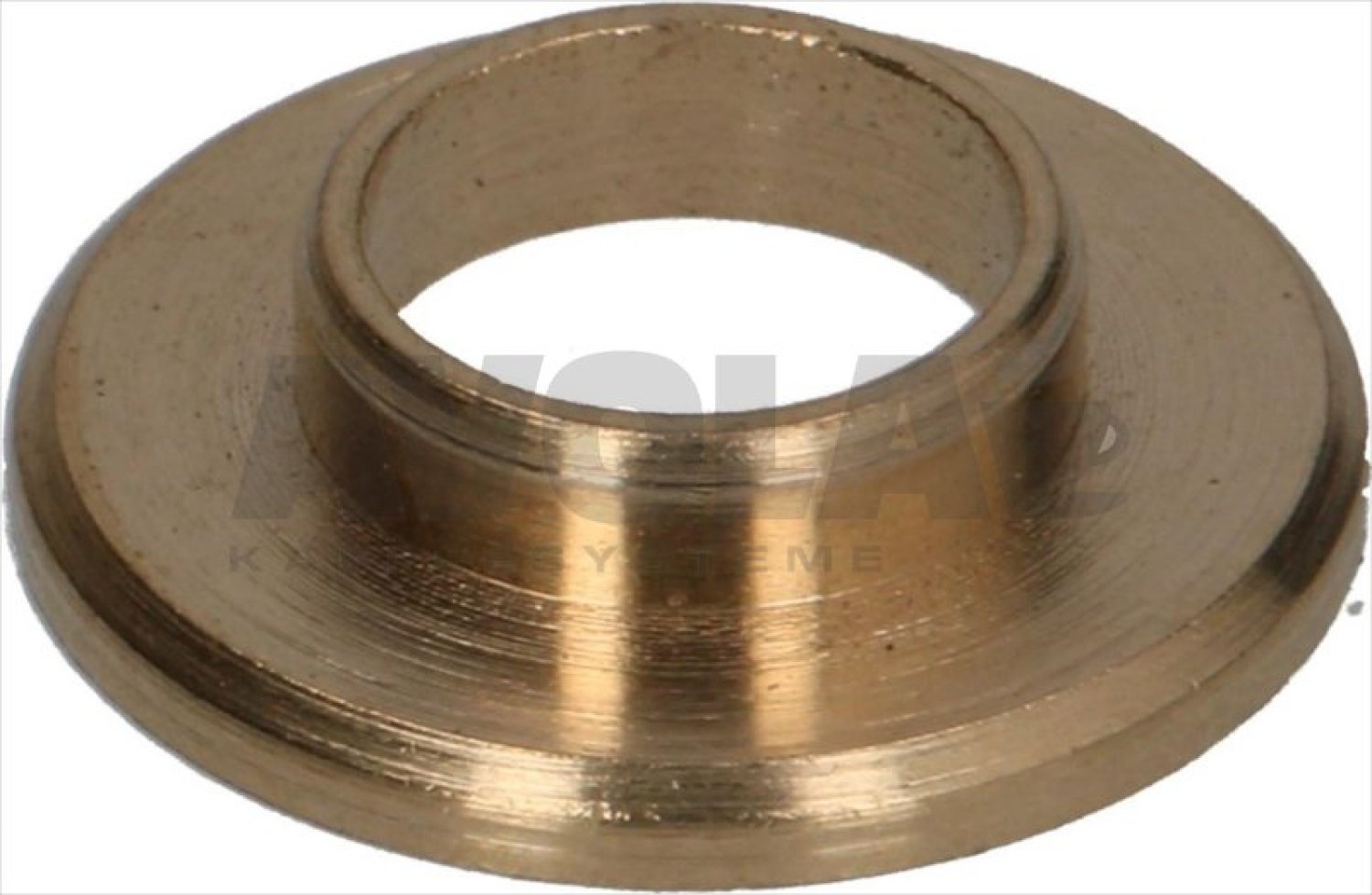

6washer 8001588
WASHER
1,26 €

excl. Shipping costs

immediately available
7spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs

immediately available, 8 available
8ptfe flat gasket 21x16 8x2 mm 8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs

immediately available, 14 available
9steam tap body 8005576
STEAM TAP BODY
22,24 €

excl. Shipping costs

Delivery time
is determined
10nut m 26x1 5 8005578
NUT M 26x1.5
6,06 €

excl. Shipping costs

Delivery time
is determined
11hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
12flat epdm gasket o 15x4x4 mm 80 sh 8001748
Flat EPDM gasket ø 15x4x4 mm 80 SH
1,25 €

excl. Shipping costs

immediately available, 15 available
13tap piston 8005131
TAP PISTON
4,70 €

excl. Shipping costs

immediately available, 9 available

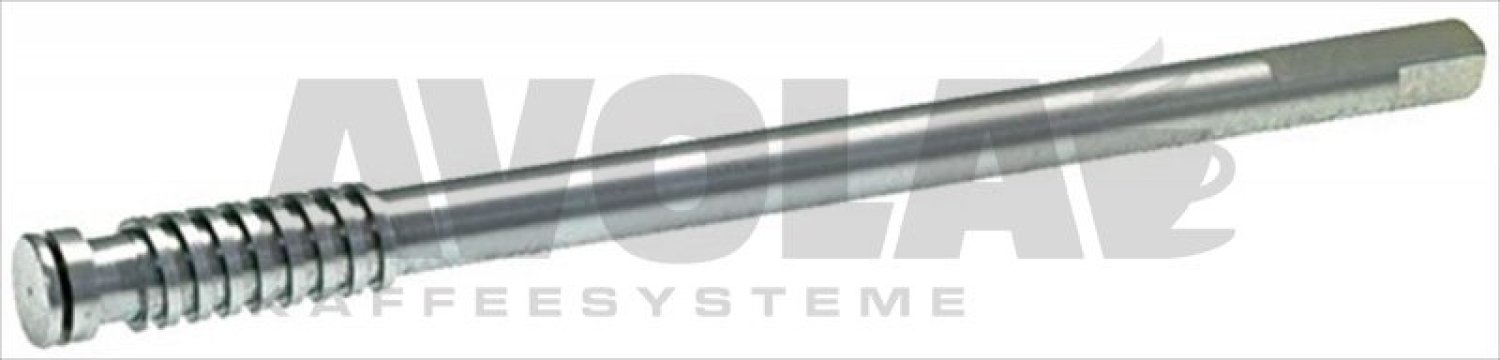

14water steam tap pin 8005146
WATER/STEAM TAP PIN
22,99 €

excl. Shipping costs

Delivery time
is determined
15radial seeger ring 8003728
RADIAL SEEGER RING
0,94 €

excl. Shipping costs

immediately available
16gasket holder 8001617
GASKET HOLDER
2,57 €

excl. Shipping costs

immediately available, 7 available
17water steam tap pin rod 8005577
WATER/STEAM TAP PIN ROD
27,23 €

excl. Shipping costs

immediately available, 4 available

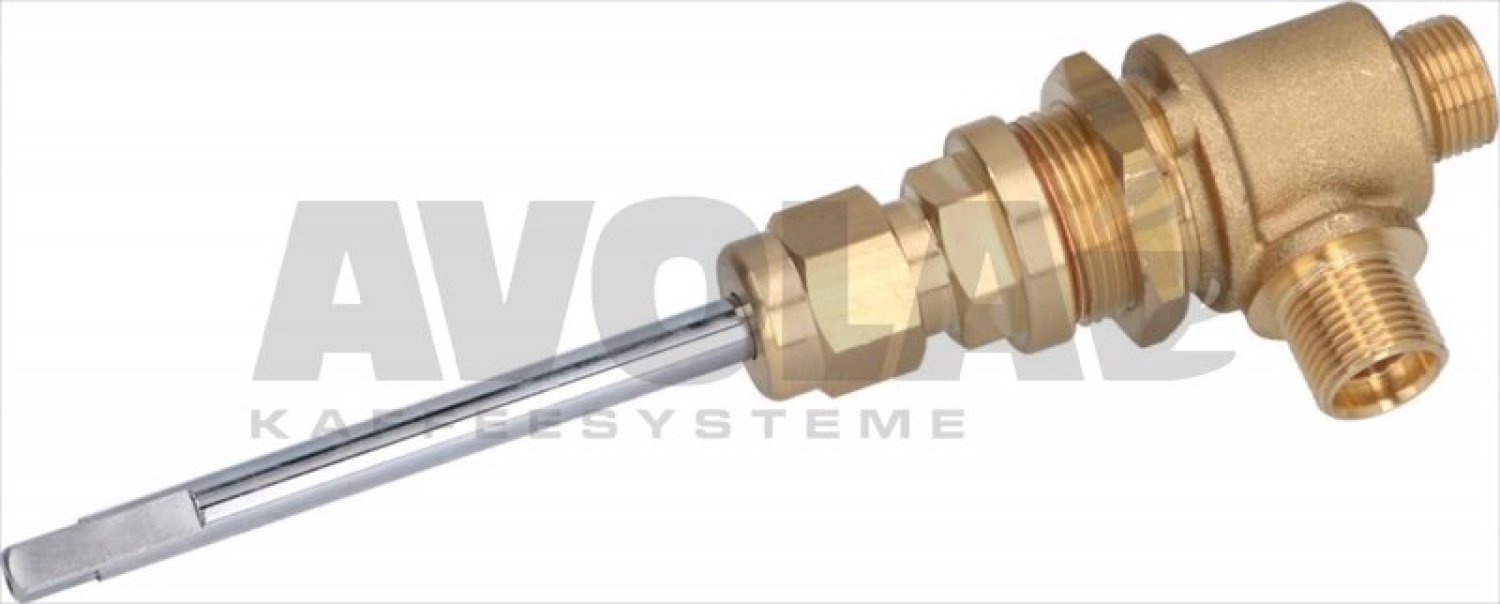

17water steam tap 8005544
WATER/STEAM TAP
114,89 €

excl. Shipping costs

Delivery time
is determined
18copper flat gasket o 26x20x2 mm 8001587
COPPER FLAT GASKET ø 26x20x2 mm
1,49 €

excl. Shipping costs

immediately available, 19 available
18asbestos free flat gasket o 26x20x2 mm 8001590
ASBESTOS FREE FLAT GASKET ø 26x20x2 mm
1,00 €

excl. Shipping costs

immediately available, 6 available
19tap coupling 8005838
TAP COUPLING
11,20 €

excl. Shipping costs

Delivery time
is determined
20flat epdm gasket o 12 5x8x9 mm 8001631
FLAT EPDM GASKET ø 12,5x8x9 mm
1,05 €

excl. Shipping costs

immediately available
21brass washer o 12x8x1 mm 8001616
BRASS WASHER ø 12x8x1 mm
0,73 €

excl. Shipping costs

immediately available, 14 available
22tap nut 8005581
TAP NUT
5,60 €

excl. Shipping costs

Delivery time
is determined

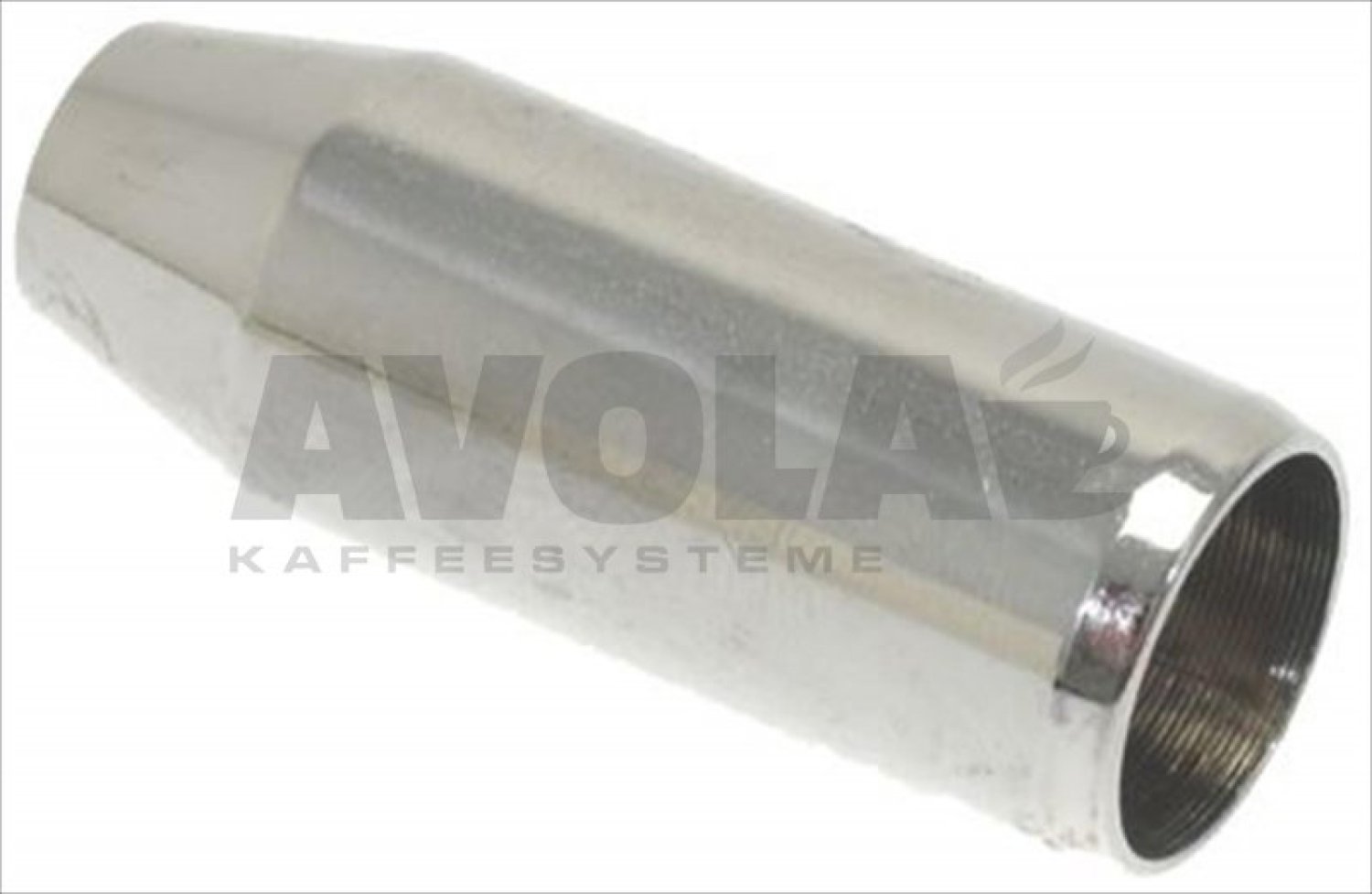

23water pipe nozzle m9 8006644
WATER PIPE NOZZLE M9
9,19 €

excl. Shipping costs

Delivery time 4-6 weeks..
24water pipe nozzle m10 8006627
WATER PIPE NOZZLE M10
5,46 €

excl. Shipping costs

Delivery time
is determined

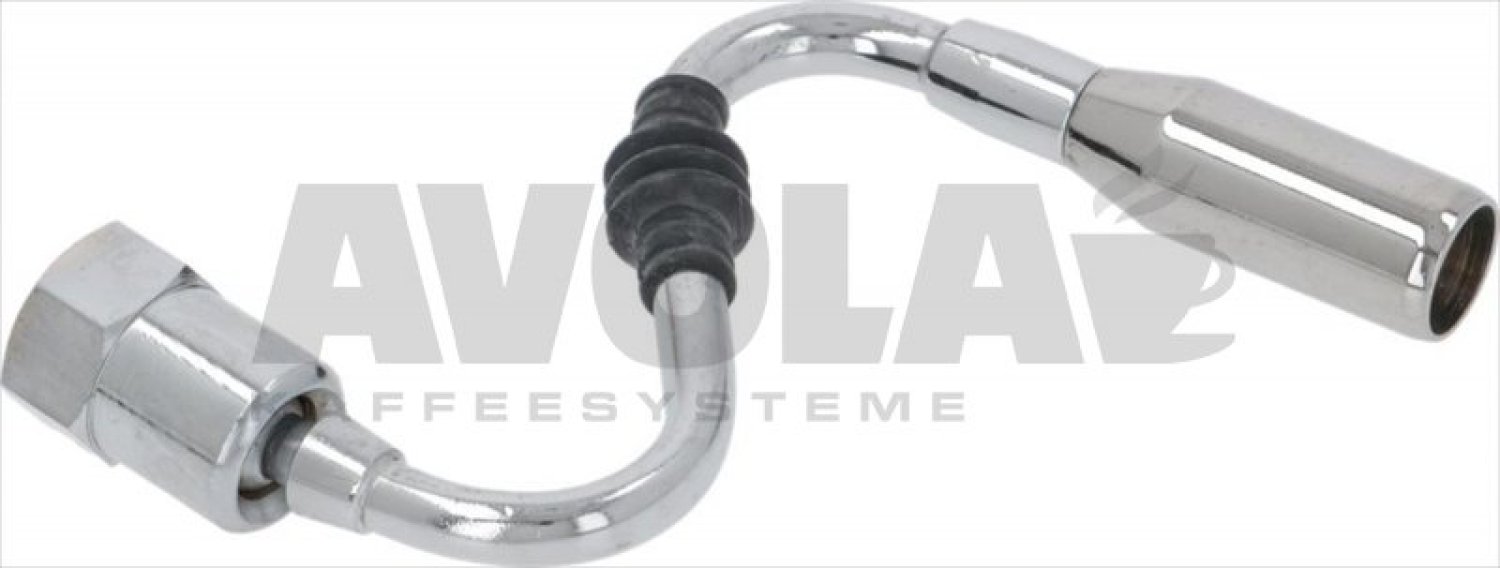

25chrome complete water pipe 8006618
CHROME COMPLETE WATER PIPE
59,62 €

excl. Shipping costs

Delivery time
is determined

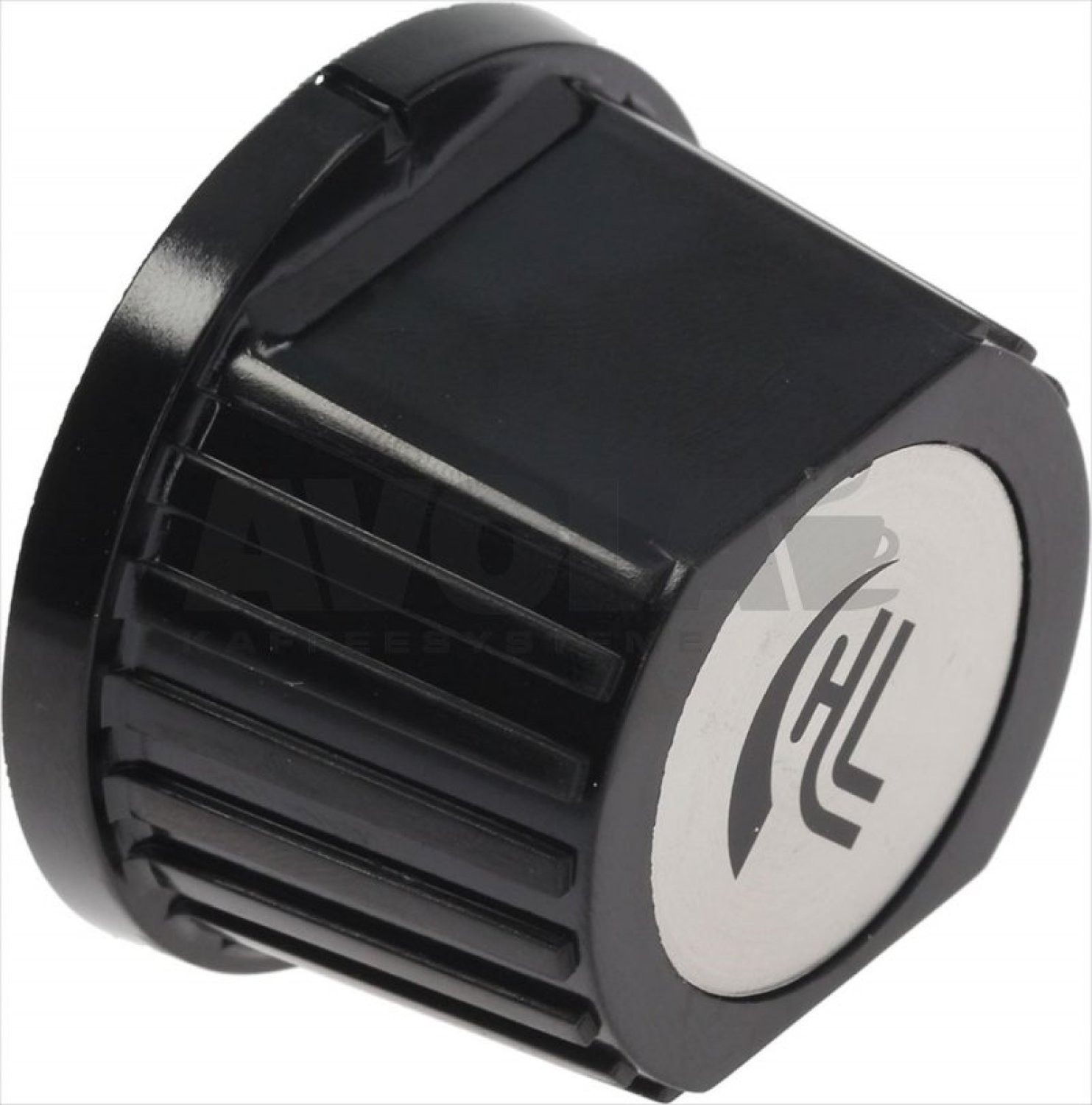

26water tap knob 8003328
WATER TAP KNOB
14,65 €

excl. Shipping costs

immediately available, 3 available

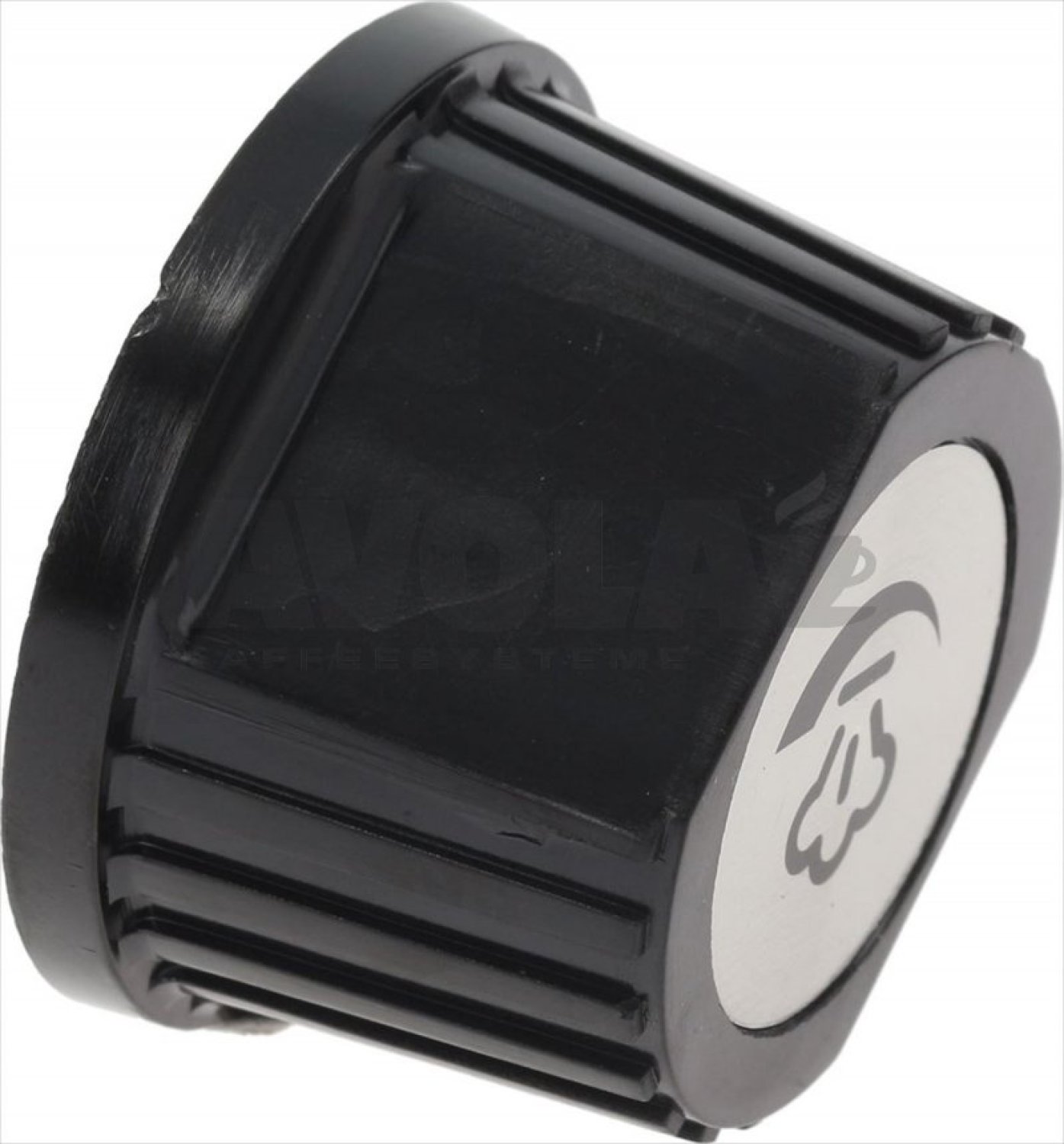

27steam tap knob 8003326
STEAM TAP KNOB
9,58 €

excl. Shipping costs

immediately available, 2 available
29water steam tap pin rod 8005493
WATER/STEAM TAP PIN ROD
33,55 €

excl. Shipping costs

immediately available, 3 available

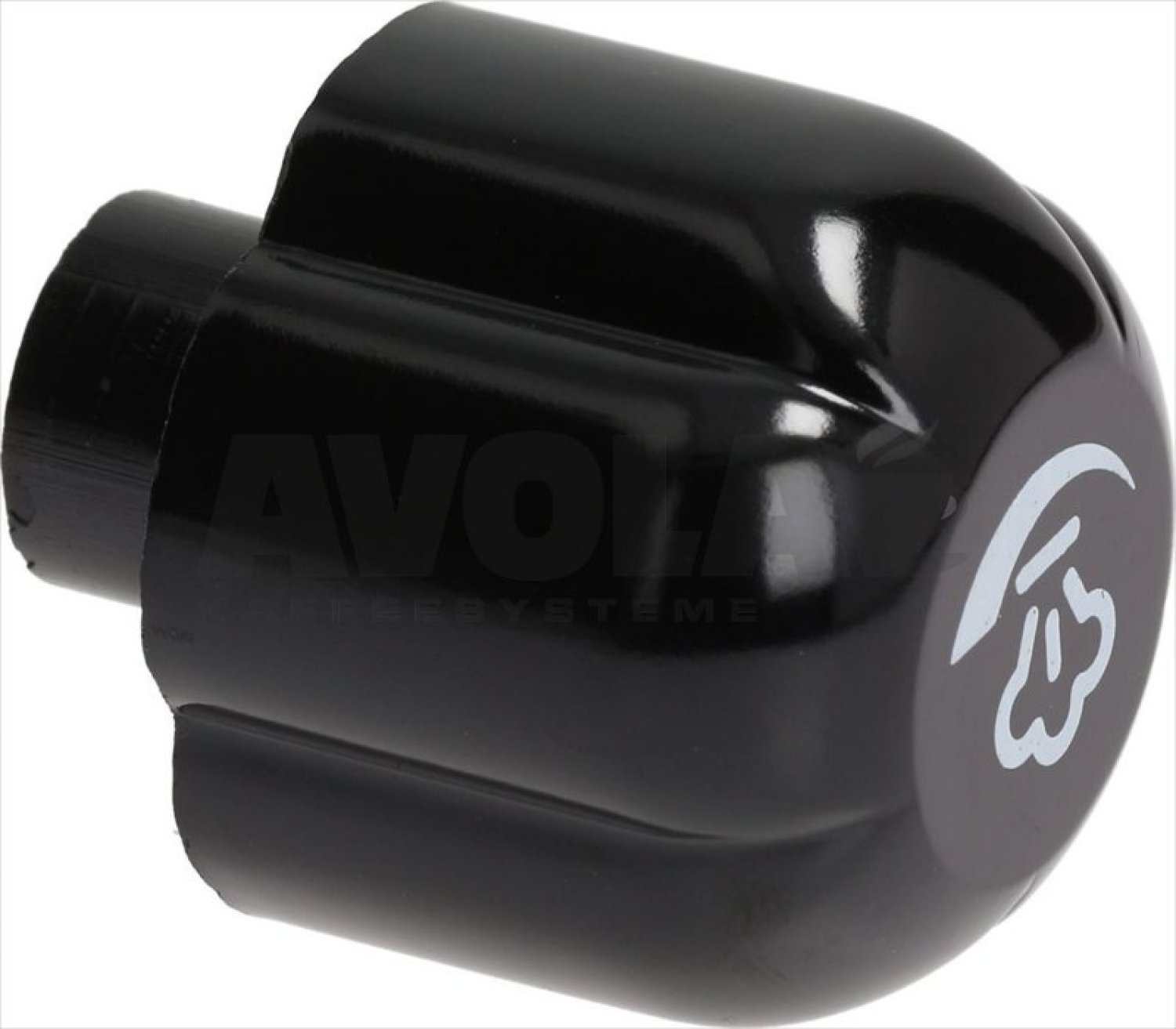

31steam tap knob 8003191
STEAM TAP KNOB
8,58 €

excl. Shipping costs

Delivery time
is determined

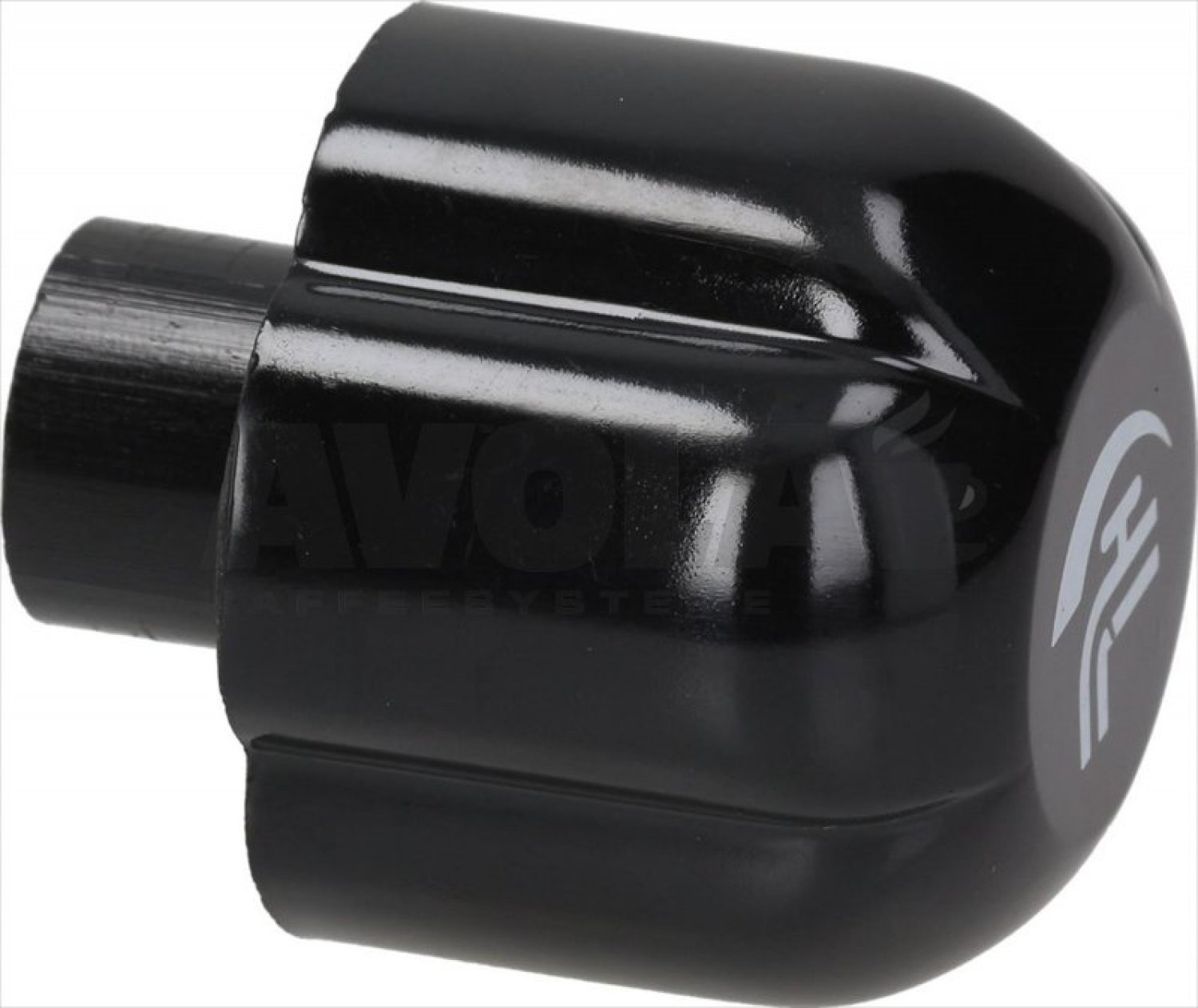

32water tap knob 8003192
WATER TAP KNOB
8,44 €

excl. Shipping costs

immediately available, 1 available
33water steam tap pin rod 8005494
WATER/STEAM TAP PIN ROD
34,18 €

excl. Shipping costs

immediately available, 2 available
35conical ptfe seal o 14x7x6 mm 8001618
CONICAL PTFE SEAL ø 14x7x6 mm
3,46 €

excl. Shipping costs

immediately available, 13 available
36burn preventing rubberpiece o 10 mm 8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs

Delivery time
is determined
45stainless steel water sprinkler m8 8006624
STAINLESS STEEL WATER SPRINKLER M8
11,95 €

excl. Shipping costs

immediately available, 1 available

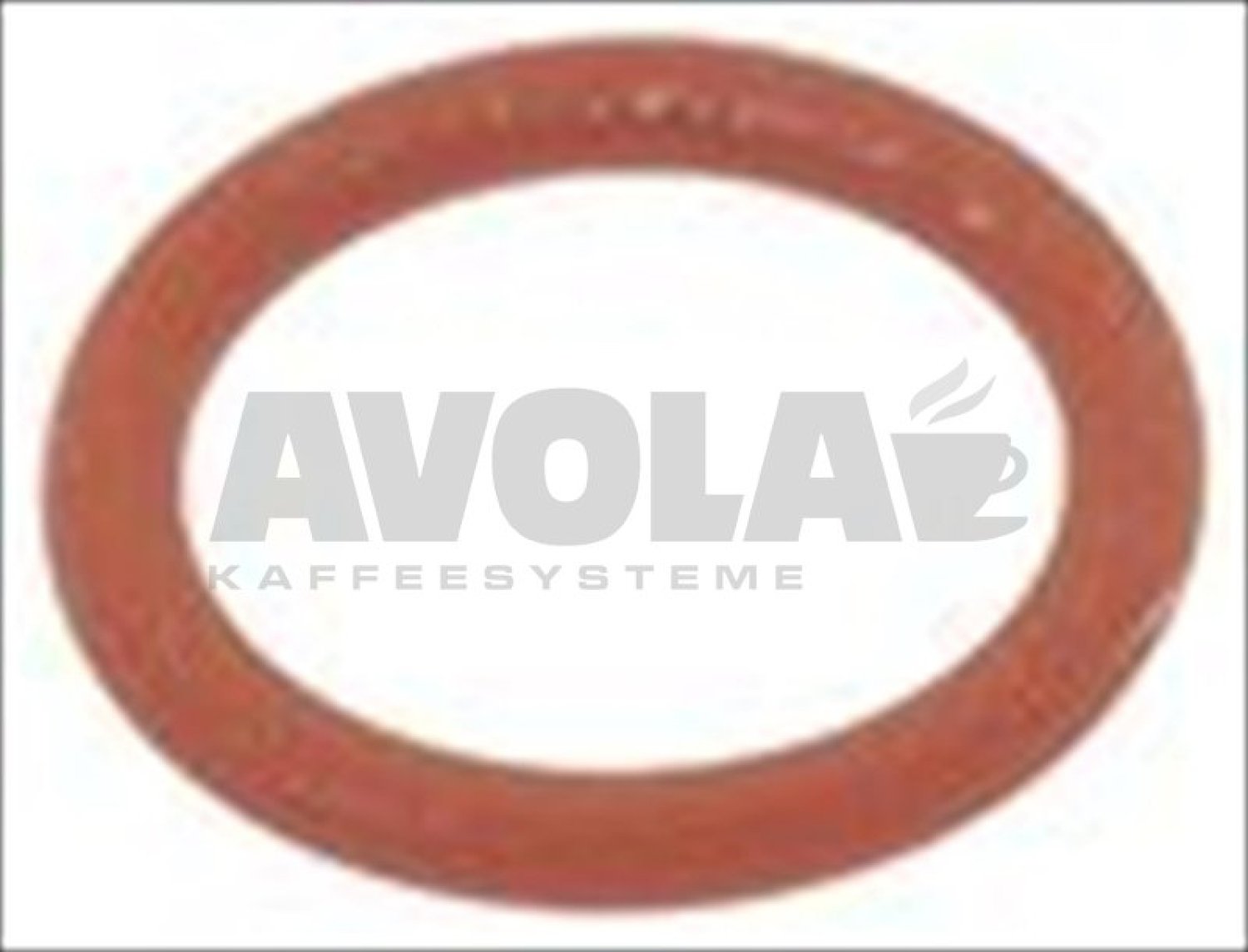

46o ring m 0060 10 red silicone 8001766
O-RING M 0060-10 RED SILICONE
2,13 €

excl. Shipping costs

immediately available, 18 available

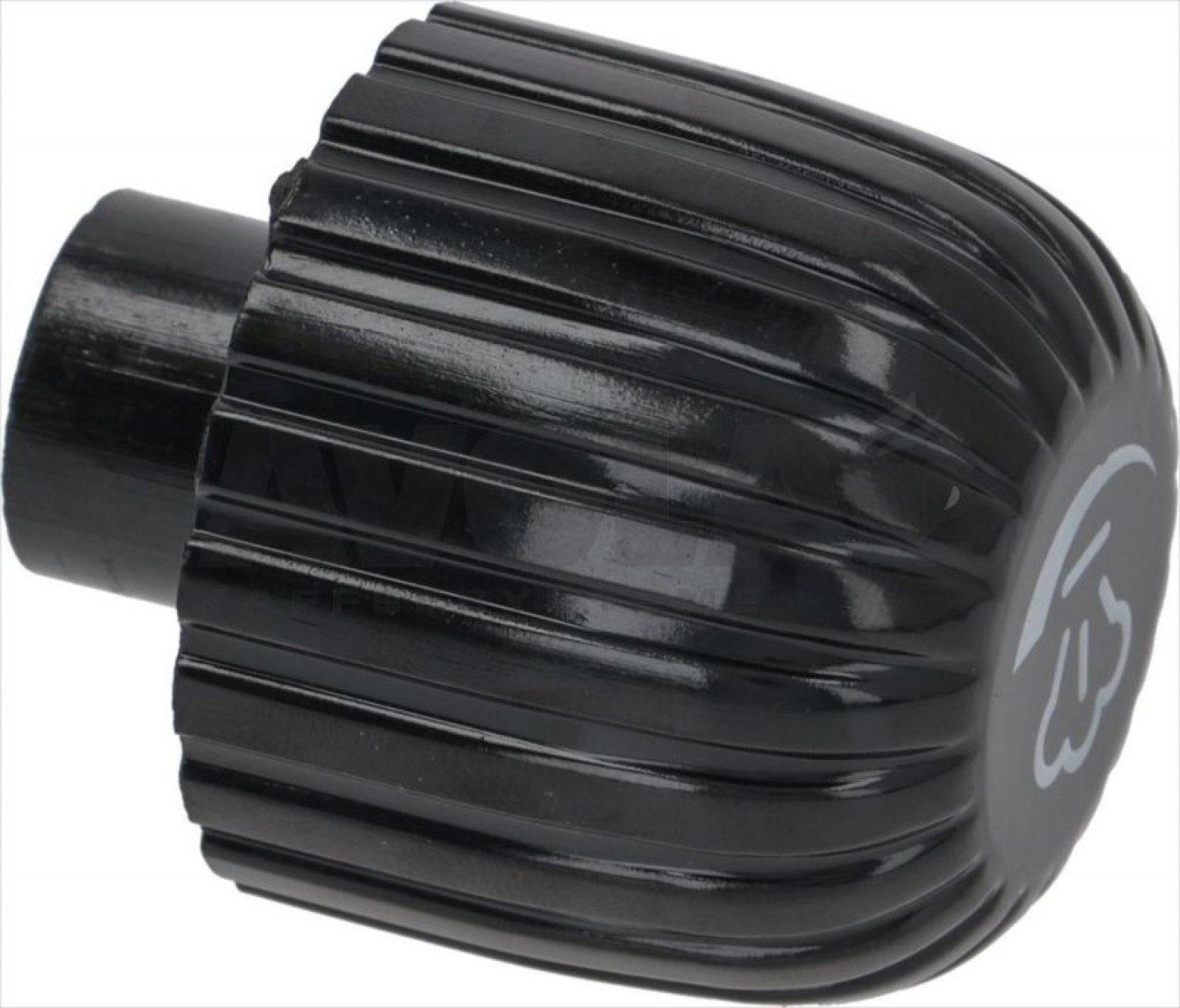

47steam tap knob 8003333
STEAM TAP KNOB
10,69 €

excl. Shipping costs

Delivery time 4-6 weeks..

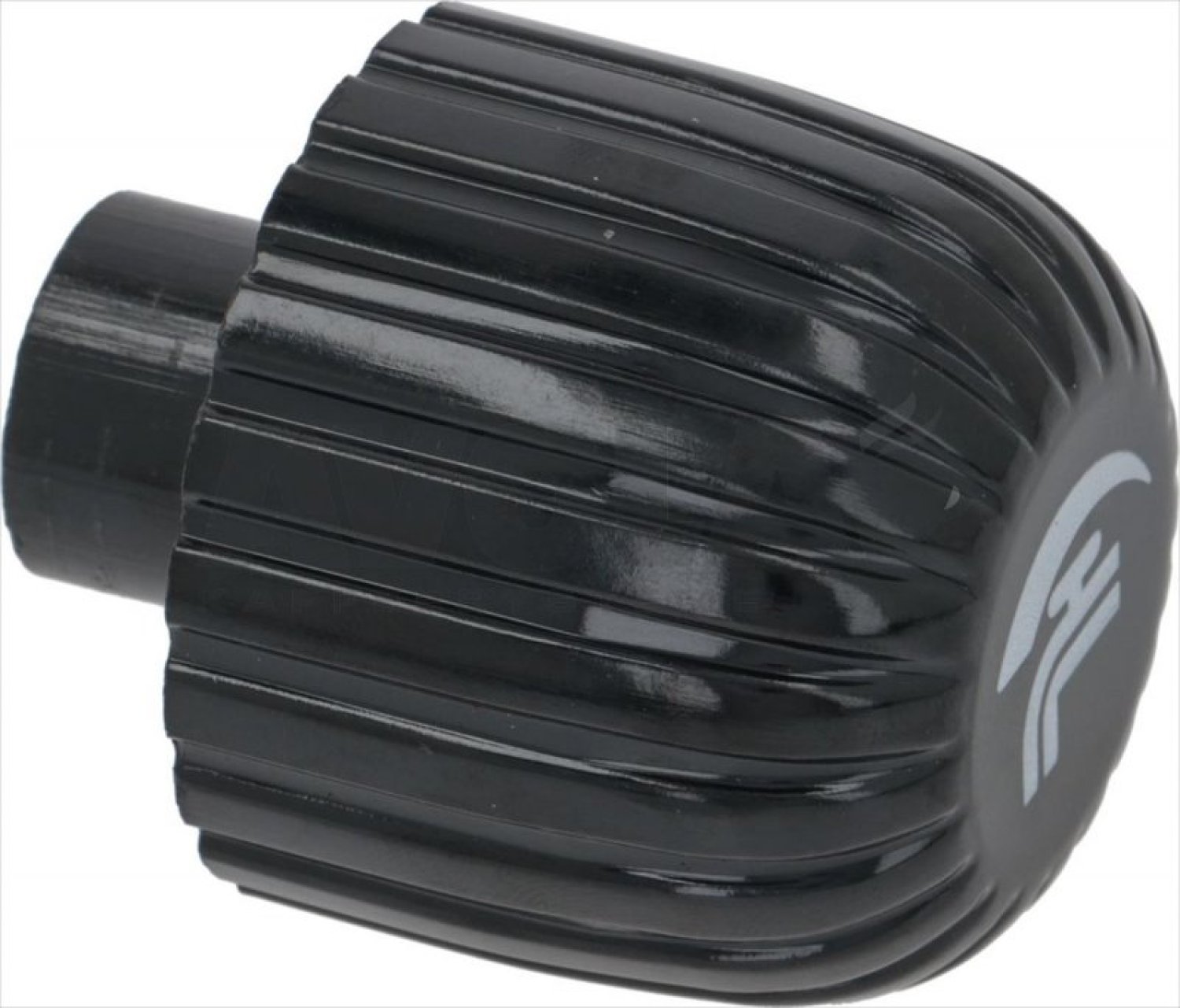

48water tap knob 8003334
WATER TAP KNOB
This article is no longer available

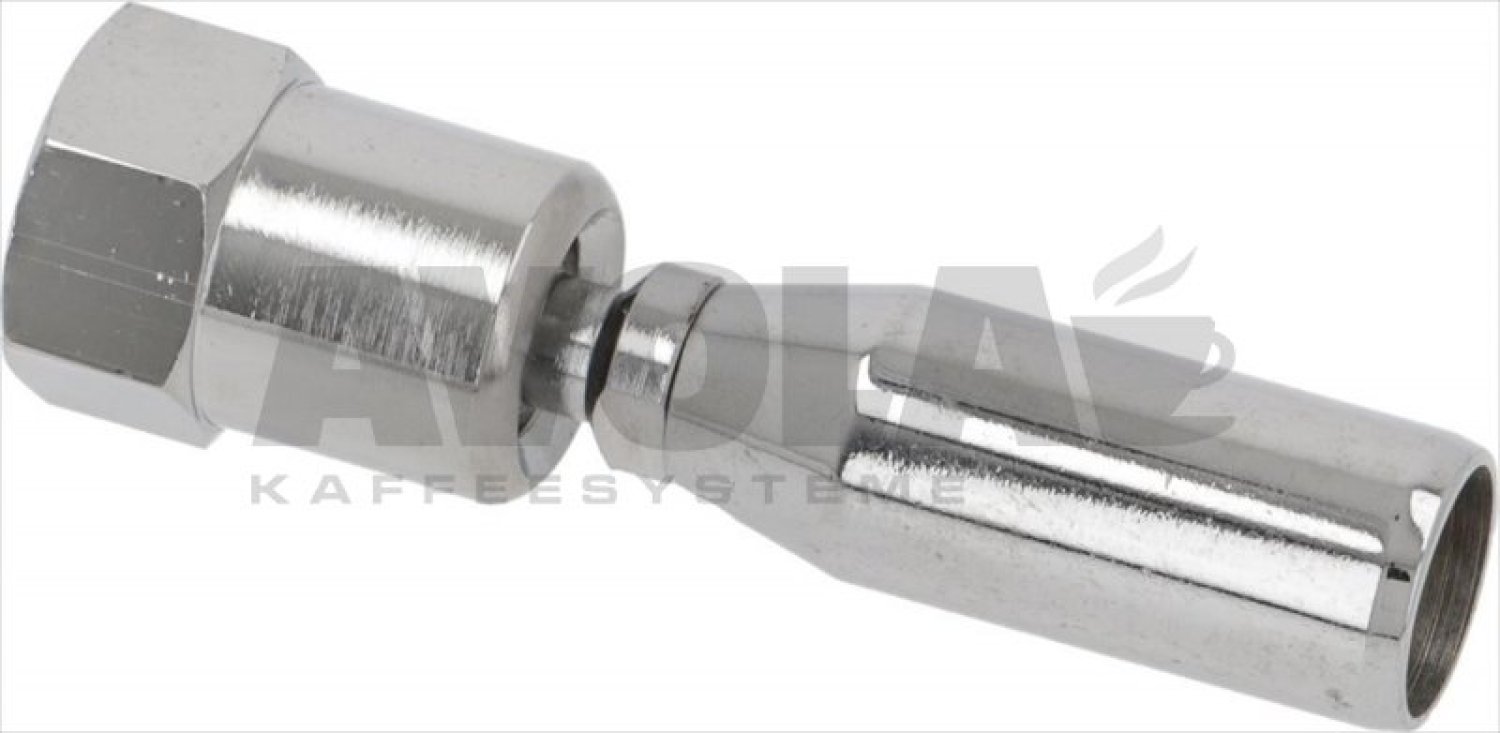

50complete water pipe 8006702
COMPLETE WATER PIPE
56,62 €

excl. Shipping costs

Delivery time
is determined
51fitting o 3 8 o 3 8 zoll 8005742
FITTING ø 3/8 - ø 3/8 Zoll
3,49 €

excl. Shipping costs

immediately available
54water steam tap knob 8003193
WATER/STEAM TAP KNOB
11,19 €

excl. Shipping costs

Delivery time 4-6 weeks..
55steam silk screen print f handle 8003195
STEAM SILK SCREEN PRINT. F. HANDLE
5,21 €

excl. Shipping costs

immediately available, 2 available
56water silk screen printing f handle 8003194
WATER SILK SCREEN PRINTING F. HANDLE
5,08 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
