Wega

WASSER-DAMPFHÄHNE VELA-VENERE

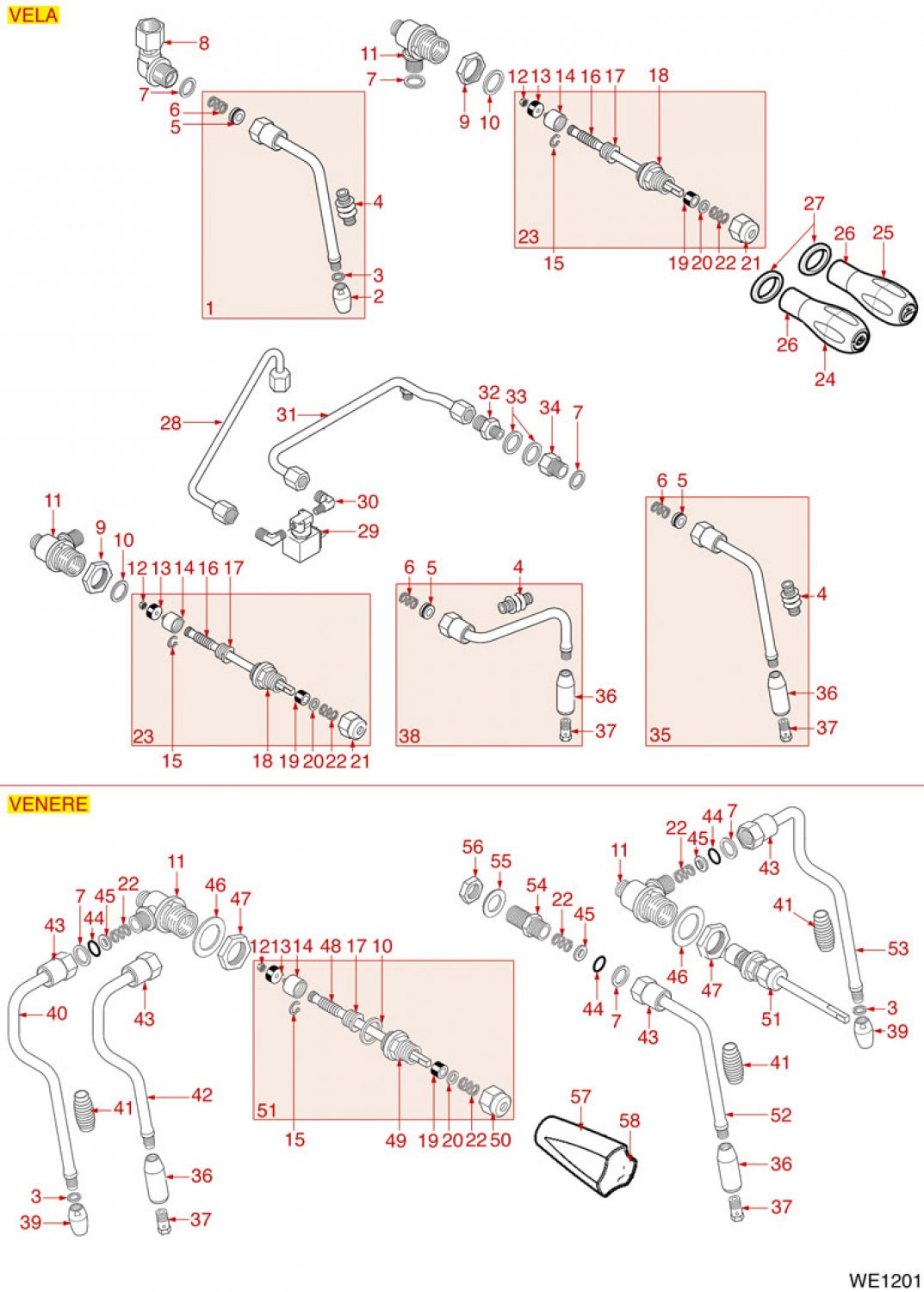

Drawing number 8057518

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
5conical ptfe seal o 14x7x6 mm 8001618
CONICAL PTFE SEAL ø 14x7x6 mm
3,46 €

excl. Shipping costs

immediately available, 8 available
6spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs

immediately available, 6 available
7ptfe flat gasket 21x16 8x2 mm 8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs

immediately available
9nut m 26x1 5 8005578
NUT M 26x1.5
6,06 €

excl. Shipping costs

Delivery time
is determined
10copper flat gasket o 26x20x2 mm 8001587
COPPER FLAT GASKET ø 26x20x2 mm
1,49 €

excl. Shipping costs

immediately available, 19 available
10asbestos free flat gasket o 26x20x2 mm 8001590
ASBESTOS FREE FLAT GASKET ø 26x20x2 mm
1,00 €

excl. Shipping costs

immediately available, 6 available
11steam tap body 8005576
STEAM TAP BODY
22,24 €

excl. Shipping costs

Delivery time
is determined
12hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
13flat epdm gasket o 15x4x4 mm 80 sh 8001748
Flat EPDM gasket ø 15x4x4 mm 80 SH
1,25 €

excl. Shipping costs

immediately available, 12 available
14tap piston 8005131
TAP PISTON
4,70 €

excl. Shipping costs

immediately available, 8 available
15radial seeger ring 8003728
RADIAL SEEGER RING
0,94 €

excl. Shipping costs

immediately available
17gasket holder 8001617
GASKET HOLDER
2,57 €

excl. Shipping costs

immediately available, 7 available
18tap coupling 8005838
TAP COUPLING
11,20 €

excl. Shipping costs

Delivery time 4-6 weeks..
19flat epdm gasket o 12 5x8x9 mm 8001631
FLAT EPDM GASKET ø 12,5x8x9 mm
1,05 €

excl. Shipping costs

immediately available
20brass washer o 12x8x1 mm 8001616
BRASS WASHER ø 12x8x1 mm
0,73 €

excl. Shipping costs

immediately available, 14 available
21tap nut 8005581
TAP NUT
5,60 €

excl. Shipping costs

Delivery time
is determined
22spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs

immediately available, 6 available
23water steam tap pin rod 8005493
WATER/STEAM TAP PIN ROD
33,55 €

excl. Shipping costs

immediately available, 3 available
292 way solenoid valve parker 230v 50 60hz 8000970
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
85,92 €

excl. Shipping costs

immediately available, 2 available
30l fitting o 1 4 a 1 8 a 8005689
L- FITTING ø 1/4 A-1/8 A
8,25 €

excl. Shipping costs

immediately available, 3 available

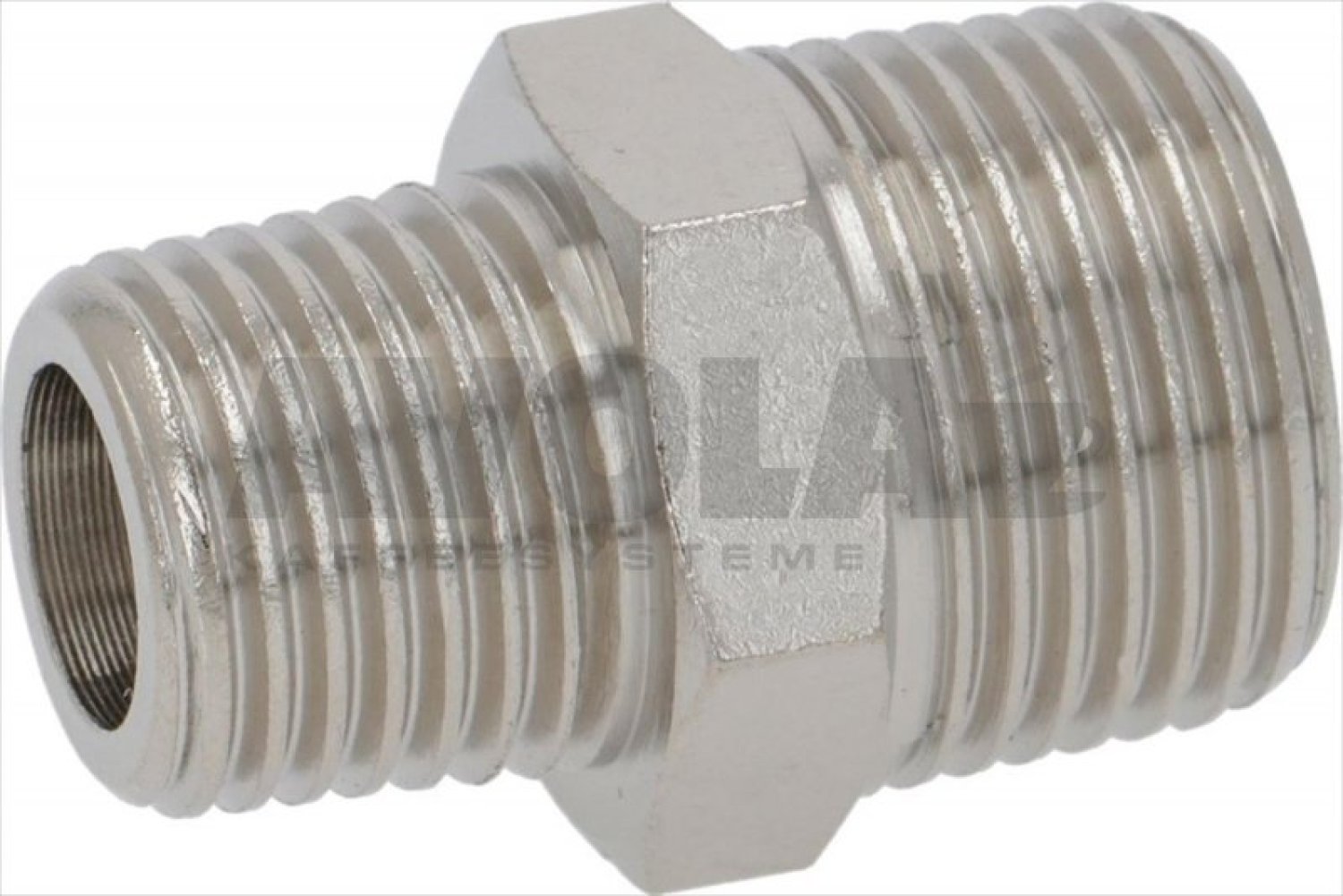

32nichel plated fitting 8022419
NICHEL-PLATED FITTING
Price on request
33copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available
36water pipe nozzle m9 8006644
WATER PIPE NOZZLE M9
9,19 €

excl. Shipping costs

Delivery time
is determined
37water pipe nozzle m10 8006627
WATER PIPE NOZZLE M10
5,46 €

excl. Shipping costs

Delivery time
is determined
41burn preventing rubberpiece o 10 mm 8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs

immediately available, 13 available
43chrome hexagonal nut 8006628
CHROME HEXAGONAL NUT
7,54 €

excl. Shipping costs

immediately available, 2 available
44o ring 03043 epdm 8001575
O-RING 03043 EPDM
0,89 €

excl. Shipping costs

immediately available
45washer 8001588
WASHER
1,26 €

excl. Shipping costs

immediately available
56brass nut o 3 8 8005663
BRASS NUT ø 3/8
2,90 €

excl. Shipping costs

immediately available, 8 available
57water steam tap knob 8003196
WATER/STEAM TAP KNOB
11,60 €

excl. Shipping costs

Delivery time
is determined
58cap for knob 8003197
CAP FOR KNOB
7,37 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
