ECM Heidelberg

ECM Classika II Dampfhahn

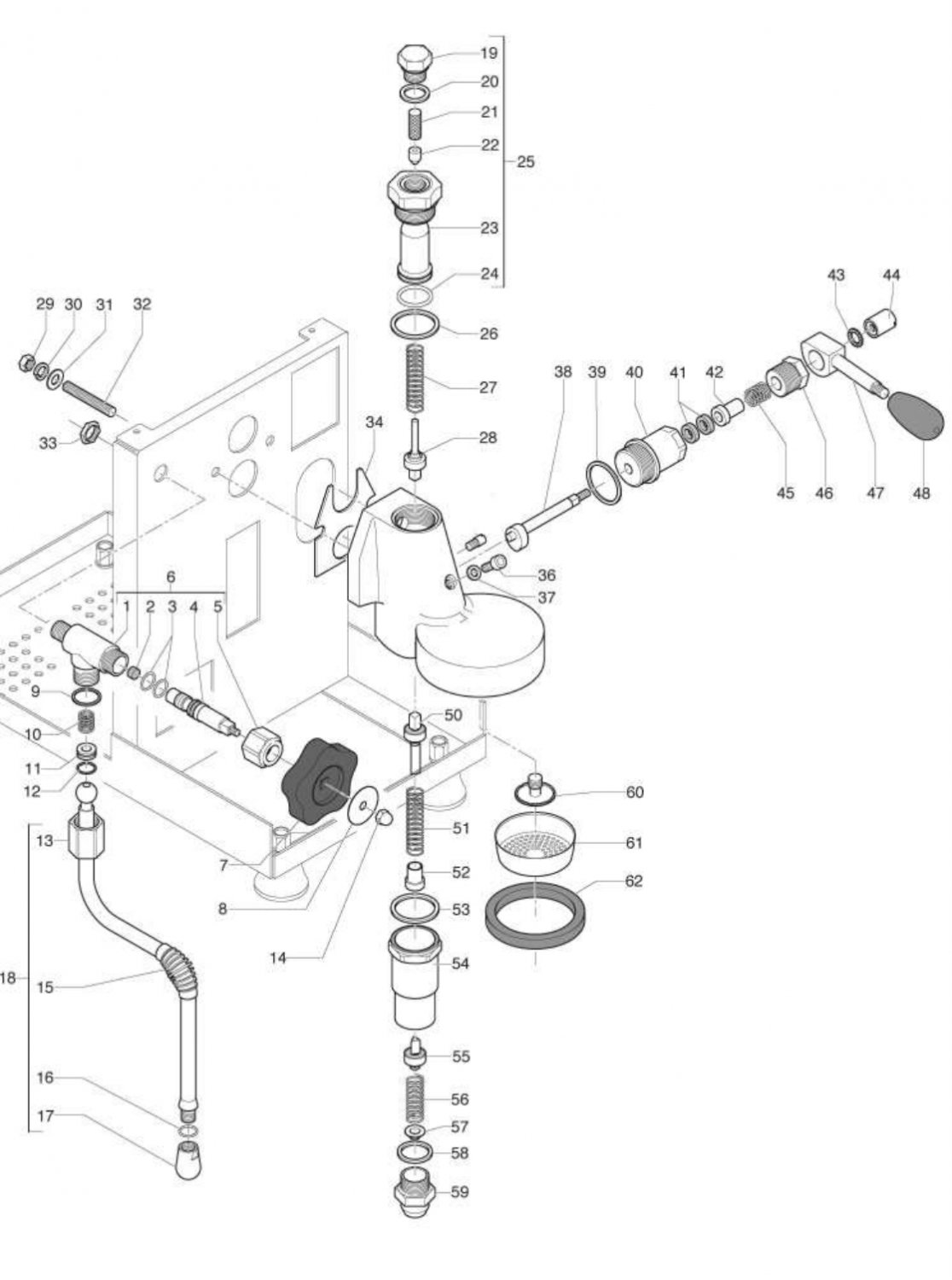

Drawing number 8079432

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
0e61 bruehgruppe revisionsset kit ecm bfc sab bezzera u v m 8079664
E61 Brühgruppe Revisionsset Kit ECM - BFC - SAB - Bezzera u.v.m.
49,90 €

excl. Shipping costs

immediately available
1 8137210
ECM Korpus für Drehventil
This article is no longer available
2ecm blind gasket o 9x6 5 mm 8069468
ECM blind gasket ø 9x6,5 mm
1,75 €

excl. Shipping costs

immediately available
3o ring 0112 epdm 8001565
O-RING 0112 EPDM
0,83 €

excl. Shipping costs

immediately available
4pin tap water steam 8069446
PIN TAP WATER/STEAM
23,40 €

excl. Shipping costs

immediately available, 4 available
5ecm ueberwurfmutter dampfventil 8137209
ECM Überwurfmutter Dampfventil
8,33 €

excl. Shipping costs

immediately available, 3 available
6steam hot water valve ecm barista mechanika technika 8079348
Steam Hot water valve ECM Barista Mechanika Technika
40,90 €

excl. Shipping costs

immediately available, 2 available
7handle tap water steam 8069438
HANDLE TAP WATER/STEAM
12,20 €

excl. Shipping costs

immediately available, 6 available
9o ring 0121 epdm 8014882
O-RING 0121 EPDM
1,07 €

excl. Shipping costs

immediately available
10spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,38 €

excl. Shipping costs

immediately available
11ecm kegeldichtung inkl o ring 1 stueck 8140525
ECM Kegeldichtung inkl. O-Ring (1 Stück)
3,27 €

excl. Shipping costs

immediately available
12o ring 0115 epdm 8001977
O-RING 0115 EPDM
0,94 €

excl. Shipping costs

immediately available
15burn preventing rubberpiece o 10 mm 8001467
Burn preventing rubberpiece ø 10 mm
2,64 €

excl. Shipping costs

immediately available, 8 available
16ecm gasket 8080834
ECM gasket
0,65 €

excl. Shipping costs

immediately available
18pipe steam complete satinless steel 8069460
PIPE STEAM COMPLETE SATINLESS STEEL
40,61 €

excl. Shipping costs

immediately available, 1 available
20ptfe flat gasket o 22x17x2 mm 8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,70 €

excl. Shipping costs

immediately available
21water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
23chromium plated upper sleeve 8063314
CHROMIUM-PLATED UPPER SLEEVE
39,00 €
39,00 €

excl. Shipping costs

immediately available, 15 available
24o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
26ptfe flat gasket 36x30x2 mm 8001567
PTFE FLAT GASKET 36x30x2 mm
1,71 €

excl. Shipping costs

immediately available
27spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
28complete spout valve 8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs

immediately available
33ecm profitec mutter 1 4 zoll 8079396
ECM Profitec Mutter 1/4 Zoll
1,25 €

excl. Shipping costs

immediately available, 12 available
34ecm gasket group 75x68x2 mm 8069492
ECM GASKET GROUP 75x68x2 mm
5,07 €

excl. Shipping costs

immediately available, 7 available
38cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
39ptfe flat gasket 36x30x2 mm 8001567
PTFE FLAT GASKET 36x30x2 mm
1,71 €

excl. Shipping costs

immediately available
41epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
45spring o 14 6x21 mm 8003547
SPRING ø 14,6x21 mm
6,89 €

excl. Shipping costs

immediately available, 11 available
47micro control lever 8073574
MICRO CONTROL LEVER
41,95 €

excl. Shipping costs

immediately available, 4 available
50complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available
51spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
52spring guide bushing 8001795
SPRING GUIDE BUSHING
4,74 €

excl. Shipping costs

immediately available, 4 available
53ptfe flat gasket 36x30x2 mm 8001567
PTFE FLAT GASKET 36x30x2 mm
1,71 €

excl. Shipping costs

immediately available
55e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
56feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
57drain jet swirl 8005864
DRAIN JET SWIRL
2,89 €

excl. Shipping costs

immediately available
58flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
60group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
5,90 €

excl. Shipping costs

immediately available
61shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
3,90 €

excl. Shipping costs

immediately available
62rubber 73x57x8 5 mm for e61 brew unit 8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs

immediately available
200filter holder complete 1 cup profi ecm germany 8069459
FILTER HOLDER COMPLETE 1 CUP PROFI ECM GERMANY
67,50 €

excl. Shipping costs

immediately available, 1 available
200filter holder complete 2 cups profi ecm german 8069458
FILTER HOLDER COMPLETE 2 CUPS PROFI ECM GERMAN
64,90 €

excl. Shipping costs

immediately available, 1 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
